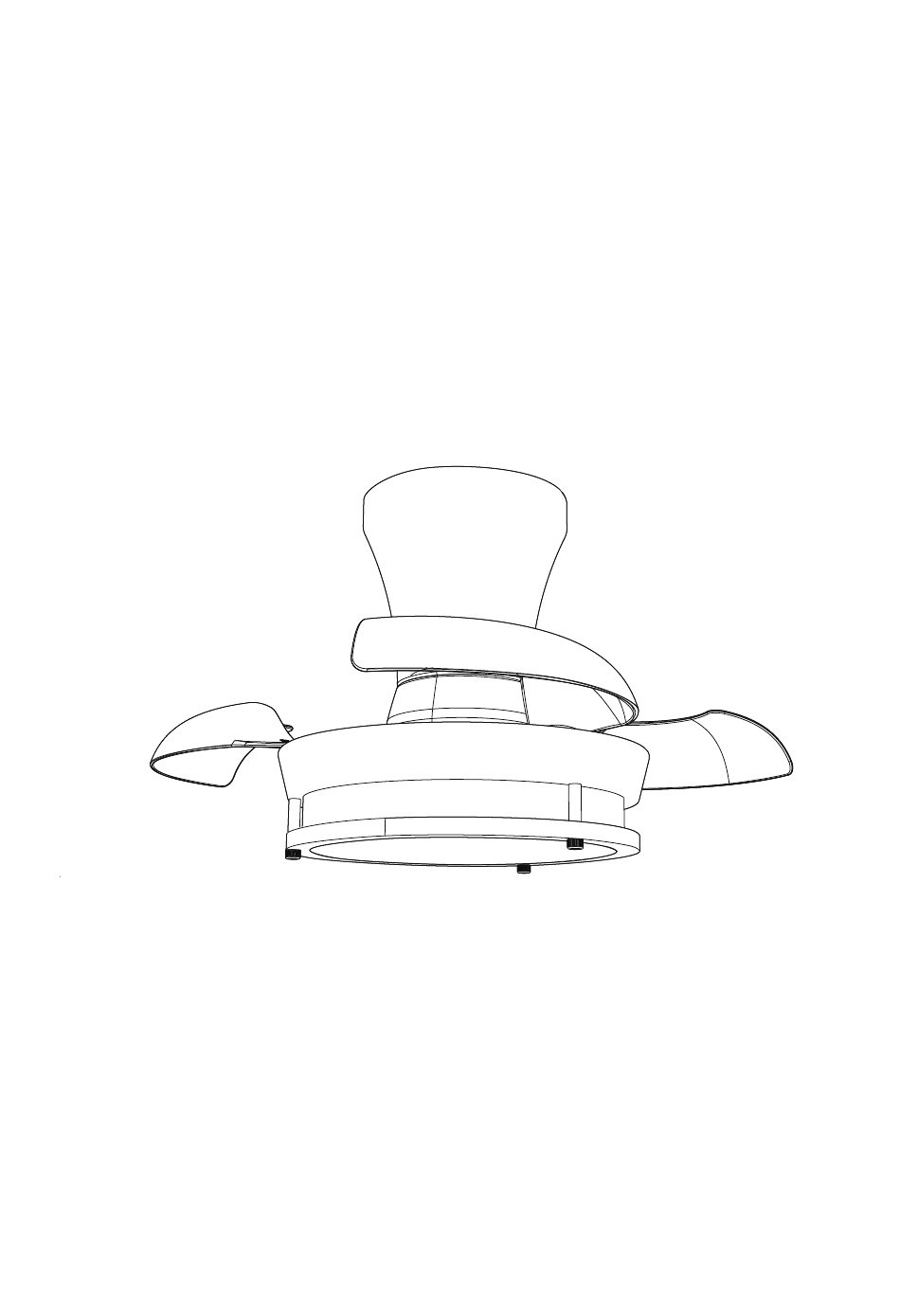

- Page 1 Manual Book Ceiling Fan Light...
- Page 2 WARNING To prevent the risk of fire, electric shock, and serious personal injury, please follow these instructions: 1. Review the User Manual: Before installing your new fan, thoroughly read the user manual and saf- ety information. please review the assembly drawings carefully to check if any components are miss- ing.
- Page 3 Unpack your fan and check the contents. Please check each item prior to installation. To reduce the chance of scratch or possible damages, please move the parts only when required for installation. Ref.# Description Mounting Plate Receiver Decorative cover Fan housing Remote Control Accessory bag for Mounting Plate Remote Control Accessory bag...
- Page 4 Ref.#8 Ref.#8 1-1.Remove the Mounting bracket and 1-2.Loosen the two screws in the 'L' slot, Decorative Cover. and then remove the other two screws and rotate to remove the bracket. Live wire: brown Neutral wire: blue ground wire: yellow-green 2-1. Ensure that the main power supply 2-2.
- Page 5 Wooden ceiling Concrete ceiling Ref.#6 Ref.#6 3-2. Cement ceiling: drill holes on the cement 3-1.Wooden ceiling: use serf-tapping ceiling, then use expasion tnbes and serf- screws to drive into the wooden tapping screws for fixing. ceiling. (Use the Accessory bag Ref.#9 for Mounting plate) (Use the Accessory bag Ref.#9 for Mounting plate) 4.Use a screwdriver to unscrew the six screws from Ref.#9...
- Page 6 5.Suspend the hole in the decorative cover on the hook of the mounting bracket to make wire connection easier. Electric supply Detailed wiring diagram MOTER POWER (3 line) LED POWER (3 line) 6.Use the terminal block to connect the power supply of LED and motor to the receiver, and then connect the mains power to the receiver...
- Page 7 7.After connecting the wires, place the receiver into the mounting plate,and then detach the fan body from the hook. 8.Hang the two slots on the decorative cover onto the two screws of the mounting bracket, and then rotate the fan anticlockwise by 2-3 centimeters.
- Page 8 9Use the two screws that were removed in step 1-2 and tighten them both. Secure the two screws on the two slots of the decorative cover. screw-1 screw-2 Ref.#8 Ref.#12 screw-4 screw-3 10.The installation is complete...
- Page 9 Method for Installing the Base: method 1 method 2 Secure using the 3M tape. Fasten with screws. (Use the Accessory bag Ref.#11 for remote control)
- Page 10 Remote controller manual 1. To operate the fan, please install 2 AAA batteries(not included) in the remote controller. 2. If not used for extended periods of time,remove the batteries to prevent damage to the remote controller. 3. Store the remote controller away from excessive temperatures and humidity. 4.
-
Page 11: Receiver Precautions
Receiver manual Receiver precautions: 1. The controller is divided into input and output. It is strictly prohibited to swap input and output plug wires. 2. The working voltage of this product: AC 230V. 3. If there is a wall switch on the fan, it must be turned on for effective control. 4.
