ALVEO3D BLHP2432 H12 Instruction Manual

Remote-controlled air filtration kit for bambulab p1s / x1 / x1c compatible with ams
Hide thumbs

Advertisement

Table of Contents

INSTRUCTION
MANUAL
Remote-Controlled Air Filtration Kit
For BambuLAB P1S / X1 / X1C Compatible with AMS
https://www.alveo3d.com/en/product/kit-bambu-lab-activated-carbon-hepa13-air-filter/
Partagez votre expérience sur www.facebook.com/alveo3d/
FLEXEE SYSTEM SAS
ALVEO3D par
73000 Chambéry
460 Rue de la Leysse
contact@alveo3d.com
www.alveo3d.com
Find all assembly instructions :
v1.0 EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BLHP2432 H12 and is the answer not in the manual?

Questions and answers

Summary of Contents for ALVEO3D BLHP2432 H12

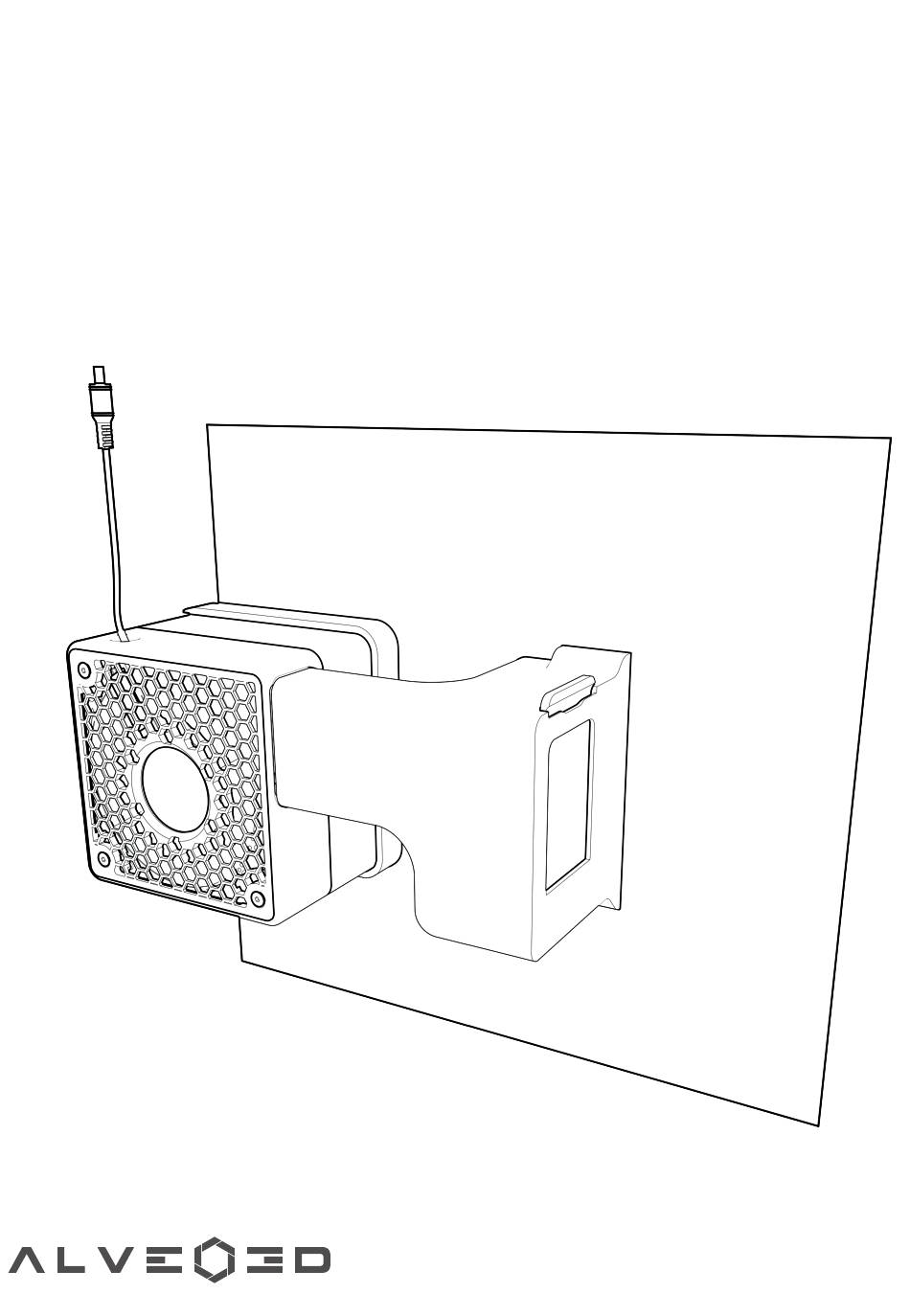

  • Page 1 Remote-Controlled Air Filtration Kit For BambuLAB P1S / X1 / X1C Compatible with AMS Find all assembly instructions : https://www.alveo3d.com/en/product/kit-bambu-lab-activated-carbon-hepa13-air-filter/ v1.0 EN Partagez votre expérience sur www.facebook.com/alveo3d/ ALVEO3D par FLEXEE SYSTEM SAS 460 Rue de la Leysse 73000 Chambéry www.alveo3d.com...

  • Page 2: Installation Recommendations

    You can print these parts by accessing the links provided in the email you received after your order or by visiting the following address: https://www.alveo3d.com/download-kit-bambulab/ The installation is carried out directly on the machine's rear panel at the location of the existing fan. No modifications to the machine are required.

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS Read the guidelines before use. 1. Power on the fan only after assembling the device with protective grills to avoid injury. 2. Use only recommended electrical voltages to power the system to prevent damage to electronic components. 3. Avoid contact with the electronic board when it is powered. 4.

  • Page 4: Materials Provided

    MATERIALS PROVIDED Materials Provided in this Kit: Remote and IR receiver (battey included) www.alveo3d.com 24V power supply BLHP2432_H12 Blower P3D-R Filter 3X M4x50mm countersunk screws M4 nuts x4 Metal self-tapping screws, Phillips head, 12 mm x2 1X M4x12mm countersunk screws...

  • Page 5: Materials Needed

    MATERIALS NEEDED Materials Needed (Not Provided): 2.5 mm Hex Allen key (for M4 screws) Phillips screwdriver Scissors Additional Items for Filter Replacement. Gloves Minimum FFP2 mask...

  • Page 6: Mounting The Casing

    1. MOUNTING THE CASING...
  • Page 7 2. MOUNTING THE CASING SUPPORT ON THE PANEL 1. Locate the Holes: Identify the holes on the rear panel intended for installing the filtration system support. 2. Place the EPDM seal in the groove on the back of the casing support. If the seal is too long, trim it with scissors for a precise fit.
  • Page 8 3. INSTALLATION OF THE CASING ON THE SUPPORT 1. Mount the Filtration Casing: Place it on the support attached to the rear panel. 2. Slide the Casing: Align it properly and slide it into the support rail...
  • Page 9 4. INSERTION DU FILTRE P3DR 1. Insert the filter with the activated carbon side facing the fan. 2. Push the filter all the way to the stop to ensure correct positioning. Insert the Filter Activated Carbon Side: Push the Filter: Ensure it is facing the fan Insert it fully until it reaches the stop...
  • Page 10 5. GUIDE DE RECYCLAGE 1. Prepare the EPDM seals on the guide by cutting two pieces of suffi- cient length to cover the designated areas. 2. Place the magnets in the designated slots and secure them with strong adhesive to ensure they stay in place. Airflow Hatch (door) Magnet EPDM Seal...
  • Page 11 6. POSITIONING OF THE RECYCLING GUIDE Position the recycling guide on the rear panel, ensuring it is properly placed to guarantee an optimal seal between the guide and the filtration casing.
  • Page 12 7. RECYCLING GUIDE PINS Also check the proper positioning of the guide's ergonomic features to ensure a perfect seal. Pins...
  • Page 13 8. SEALING OF THE RECYCLING GUIDE Check that the casing is correctly positioned against the stop on the support and that the recycling guide fits perfectly into the designated space on the casing...
  • Page 14 9. AIRFLOW MANAGEMENT USING THE DOOR: Use the door to manage the air according to the filaments: Closed trap : Nylon Semi-open trap : PETG Open trap :...

  • Page 15: Electrical Connections

    10. ELECTRICAL CONNECTIONS: 1. Connect the IR receiver to the male connector of the blower. 2. Plug the 24V power supply into the female connector of the IR receiver. Blower 24V Power supply Blower ->IR Receiver IR Receiver -> 24V Power supply...

  • Page 16: Filter Replacement

    FILTER REPLACEMENT Filter lifetime sheet The lifespan of a P3DR filter depends on several factors such as the type of plastic used for printing, melting temperature, concentration of nanoparticles, VOCs, and humidity levels. We recommend replacing the filter according to the following table: Intensive Use Occasional Use Remplacement du filtre...
  • Page 17 Breathe Easy! You're Filtering! Designed in France ALVEO3D 460 Rue de la Leysse 73000 Chambéry France contact@alveo3d.com...
