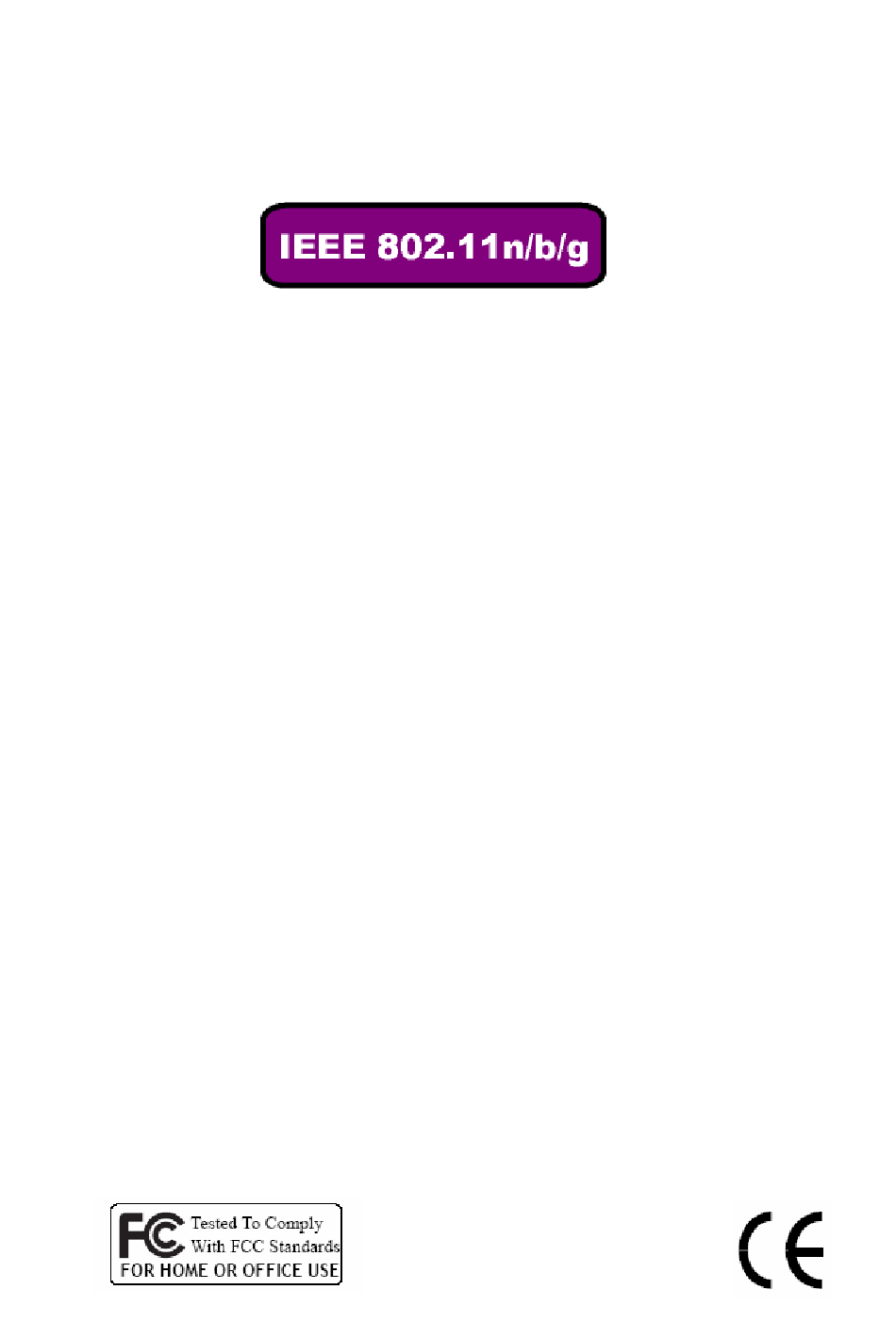

  • Page 1 WLAN 11n PCI WL-6400-V2 USER’S GUIDE VERSION 2008/12/3...
  • Page 2 © All rights reserved. All trade names are registered trademarks of respective manufacturers listed. This manual may not be copied in any media or form without the written consent of original maker.

  • Page 3: Table Of Contents

    Information To User ..........…….. I 1. Introduction ............…… 1 2. Wireless LAN Basics ..........……. 3 3. IP ADDRESS ............……. 4 4. Install Driver/Utility ..........……. 5 4.1 Windows XP/2K............ 5 4.2 Windows Vista............6 5. Wireless Network Configuration ........7 5.1 Utility Icon ............7 5.2 Client Mode (Default Setting)........

  • Page 4: Information To User

    INFORMATION TO USER Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 5 For the following equipment: WLAN 11n PCI (Product Name) WL-6400-V2 (Model Designation) is herewith confirmed to comply with the requirements set out in the Council (European parliament) Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility of Radio and Telecom device (1999/5/EC).
  • Page 6 The channel identifiers, channel center frequencies, and regulatory domains of each 22-MHz-wide channel are shown in following Table. Regulatory Domains Frequency Channel Identifier (MHZ) France North Japan ETSI Israel Mexico Outdoor America 2412 2417 2422 2427 2432 2437 2442 2447 2452 2457 2462...

  • Page 7: System Requirements

    Thank you for your purchase of the WLAN 11n PCI. Featuring wireless technology, this wireless networking solution has been designed for both large and small businesses, and it is scalable so that you can easily add more users and new network features depending on your business scale. FEATURES Support Microsoft 2000, XP, x64 and Vista.

  • Page 8: Before You Start

    BEFORE YOU START Confirm Box Contents ◆ WLAN 11n PCI ◆ Quick Start Guide ◆ Driver CD INSTALL YOUR WLAN 11n PCI TO PC Quick Start Guide Install your WLAN 11n PCI into your PC. Install driver. GETTING TO KNOW WIRELESS LAN ADAPTER LED turns on when WLAN link to WLAN adaptor or AP.

  • Page 9: Wireless Lan Basics

    Wireless LAN network defined by IEEE 802.11b/g standard committee could be configured as : Ad Hoc wireless LAN. Infrastructure wireless LAN. Ad Hoc network is a group of PCs installed with wireless LAN cards, this group of PCs is called a BSS (Basic Service Set). PCs in this group can use their wireless LAN cards to communicate with each other, but can not connect to the Internet.

  • Page 10: Ip Address

    To use the WLAN Adapter with a computing device, the WLAN Adapter must be equipped with a proper Interface. All drivers and supporting software for the WLAN Adapter must be installed and configured first. Ask your system administrator for the following information, which you may need to provide during driver installation : Your Wireless Client Name.

  • Page 11: Windows Xp/2K

    Windows XP/2K ▓ The installation & driver CD will automatically activate the autorun installation program after you insert the disk into your CD drive. Step 1 : Insert the installation CD into your CD-ROM. Installation program will prompt language setup. Choose the Setup Language you would like to use and click Next...

  • Page 12: Windows Vista

    Installing drivers. Step 3 : Click Finish to complete installation. Windows Vista ▓ Just insert device into proper interface. Vista will install driver automatically. CD also contains the latest driver from chipset vendor.

  • Page 13: Wireless Network Configuration

    WLAN 11n PCI uses its own management software. All functions controlled by users are provided by this application. When you insert the WLAN 11n PCI into your laptop or desktop, a icon should appear in the Windows System Tray automatically. 5.1 Utility Icon ▓...

  • Page 14: General Setting

    5.2.1 GENERAL SETTING Once device is set, double click on that icon and the configuration window will pop up as shown. It shows the current connected network. The signal strength and link quality are displayed also. The bar graph displays the quality and strength of the link between the node and its Access Point.
  • Page 15 5.2.3 AVAILABLE NETWOEK SETTING Click Available Network tab and it will show all available networks that radio can reaches. Select proper SSID & BSSID you want to connect. Click Refresh button to force and rescan available networks currently. Select one of SSIDs, and click Add to Profile to create profile that can be configured more...
  • Page 16 5.2.5 Statistics Statistics page tab will show real-time TX/RX relative counters to check or evaluate the wireless performance. Click button to set Reset counter to zero. 5.2.6 Wi-Fi Protected Setup An easy and secure setup solution for Wi-Fi network. you can choose PIN Code or Push Button method to connect to an AP.

  • Page 17: Technical Specifications

    Step 2 : Enter the PIN code into your AP. ▓ PBC method: Step 1 : Push the PBC button. Step 2 : Push the physical button on your AP or visual button on the WPS config page.
  • Page 18 Product Name WLAN 11n PCI Model No. WL-6400-V2 Chipset Realtek RTL8190+RTL8256 Standard IEEE 802.11b, IEEE 802.11g, IEEE 802.11n Frequency Band 2.4GHz ~ 2.4835GHz unlicensed ISM band IEEE 802.11b : DSSS IEEE 802.11g : OFDM Spread Spectrum IEEE 802.11n : OFDM / MIMO IEEE 802.11b : DBPSK / DQPSK / CCK...

  • Page 19: Troubleshooting

    Symptom : The LED is off. Remedy : Make sure the PC Card is inserted properly. Otherwise contact your vendor. Symptom : The LED is always on not blinking. Remedy : Make sure that you have installed the driver from attached CD. Otherwise contact your vendor.

  • Page 20: Glossary

    IEEE 802.11 Standard The IEEE 802.11 Wireless LAN standards subcommittee, which is formulating a standard for the industry. Access Point An internetworking device that seamlessly connects wired and wireless networks together. Ad Hoc An Ad Hoc wireless LAN is a group of computers, each with a WLAN adapter, connected as an independent wireless LAN.
  • Page 21 systems, such as a LAN and a mainframe. In Internet terminology, a gateway is another name for a router. Generally a gateway is used as a funnel for all traffic to the Internet. IEEE Institute of Electrical and Electronics Engineers Infrastructure An integrated wireless and wired LAN is called an Infrastructure configuration.
  • Page 22 uses the same IP address every time it reboots and logs on to the network, unless it is manually changed. Temporal Key Integrity Protocol (TKIP) The Temporal Key Integrity Protocol, pronounced tee-kip, is part of the IEEE 802.11i encryption standard for wireless LANs. TKIP is the next generation of WEP, the Wired Equivalency Protocol, which is used to secure 802.11 wireless LANs.
  • Page 23 cracked in a couple of hours with off-the-shelf tools. Wireless LAN (WLAN) A wireless LAN does not use cable to transmit signals, but rather uses radio or infrared to transmit packets through the air. Radio Frequency (RF) and infrared are the commonly used types of wireless transmission. Most wireless LANs use spread spectrum technology.
  • Page 24 mechanism, the transmitting station sends out an RTS packet to the receiving station, and waits for the receiving station to send back a CTS (Clear to Send) packet before sending the actual packet data. This setting is useful for networks with many clients. With many clients, and a high network load, there will be many more collisions.
  • Page 25 802.1x Authentication 802.1x is a framework for authenticated MAC-level access control, defines Extensible Authentication Protocol (EAP) over LANs (WAPOL). The standard encapsulates and leverages much of EAP, which was defined for dial-up authentication with Point-to-Point Protocol in RFC 2284. Beyond encapsulating EAP packets, the 802.1x standard also defines EAPOL messages that convey the shared key information critical for wireless security.
