Clevertronics CLP ARGONAUT Installation & Maintenance Instruction Manual

Clevertest Plus
Refer to the supplementary operation guide supplied with the Product.
After Power ON, the Status LED on a Clevertest Plus enabled fitting will display a rapid Green or Red
flashing for a period up to 2 minutes.
.
Zoneworks, HIVE and DATA Monitored Options
Fittings with part numbers -ZW, -HVG, -DATA
(nodes). These fittings are monitored using either Powerline Carrier Technology that utilize the power
cable to provide data communication, RF transceiver modules operating in the ISM band or a dedicated
data cable to/from data routers installed on a dedicated data trunk connected to a central Server (can also
be connected via Ethernet/Internet/Fibre). Zoneworks software on the server is used to monitor,
coordinate testing and collate test data from each fitting. Zoneworks Fittings can be commissioned by a
single push of the test switch or by scanning the supplied barcode. The LED Test Switch indicator provides
a multifunction indication of the status of the fitting during testing and normal operation:
Option State
ZW, HVG, DATA Commissioned
ZW, DATA Un-commissioned
Un-commissioned
HVG
With network connectivity
Un-commissioned
HVG
Without network connectivity
ZW, DATA Emergency Light Test In Progress
HVG Emergency Light Test In Progress
In the case of the DATA version a 2-way "figure 8" cable and terminal block facilitates the connection to
the DATA network via a multi-drop bus (daisy chain connection). For further information of installation of
a Zoneworks system, please refer to the Zoneworks Users Guide and Commissioning Guide (incl. DATA
version)
DALI EM Option
Luminaires with part numbers having -DALI are fitted with DALI modules (nodes) that facilitate
connection and integration to 3rd Party Lighting Control Systems. Before installing the -DALI fitting
please confirm that the Lighting Control System has the capability to monitor DALI Emergency
Luminaires. The -DALI fitting will be addressed and configured into the control system by the Lighting
Control System Commissioning Technicians and not Clevertronics
State LED Operation
Commissioned/ Un-commissioned LED on Solid (Green)
Emergency Light Test in progress LED flashes at 1s On (Yellow) & 1s Off
"IDENTIFY COMMAND" Lamp and Status LED Flash for 30 seconds
A 2-way "figure 8" cable and terminal block facilitates the connection to the DALI network OR a
5/6way "structured wiring system" lead and plug facilitating the power and DALI connection. DALI
connections are marked as Da Da.
UK Instruction Sheet Template – V1.4 – Updated: 09/03/2022
are fitted with Zoneworks communications modules
LED Operation
LED on Solid (Green)
Batt plugged-in: yellow 1s, green 1s
Batt unplugged: red 1s, off 1s
Batt plugged-in: yellow 1s, green 1s
Batt unplugged: red 1s, off 1s
Batt plugged-in: yellow 250mS, green
250mS, yellow 250mS, green 250mS,
green 1s
Batt unplugged: red 250mS, off
250mS, red 250mS,off 250mS, off 1s
LED flashes at yellow 5s , 0ff 1s
LED flashes at yellow 1s , 0ff 1s

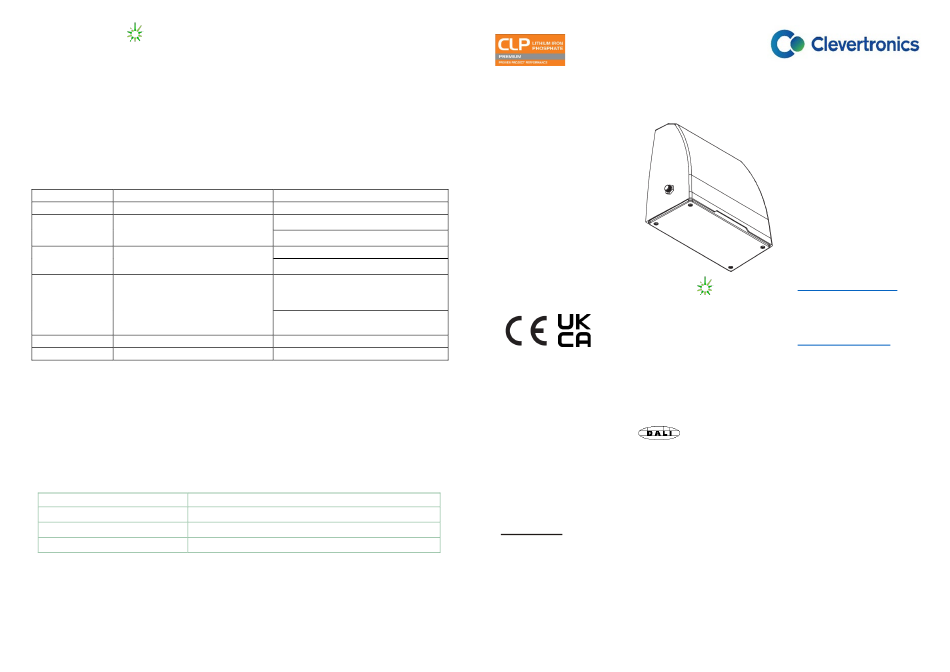

CLP™ ARGONAUT Weatherproof Wall Light
Installation & Maintenance Instruction Leaflet
NOTE: Standard product codes with this symbol
enabled with Clevertest Plus capability. Please refer to the
operation guide supplied with the product for details.
IP65
Models: ARGOWALL-LP- xx-yy
Testing:
Manual Test xx = Blank
Zoneworks HIVE xx = HVG
DALI Registered. xx = DALI
Spare Parts:
1550290 Replacement Battery
8050219 Replacement Emergency/240V LED Board
UKM02370310001 Replacement Emergency Driver
UKM02870330001 Replacement Emergency Driver (HVG Only)
1330153 Replacement 240V Driver
Important:
It is illegal for anyone, except for a licensed electrician to install or maintain this product. Before installation,
ensure that the electricity supply has been switched off and isolated. Installation must be carried out in
accordance with the relevant British Standards.
Photocell (Daylight Sensor):
ARGOWALL luminaires are fitted with an energy saving photocell for detecting day/night light levels.
When ambient light is 10-20lx the photocell will turn ON the main light when
When ambient light is 30-80lx the photocell will turn OFF the main light when
To bypass this function and allow light on during the day, fit link across PC1 and PC2 terminals.
Emergency light function is NOT affected by the photocell operation.
Australia (Head Office)
Website: www.clevertronics.com.au
are
Email: info@clevertronics.com.au
Phone: +61 3 9559 2700
Fax: +61 3 9559 2799
UK OFFICE
Website: www.clevertronics.co.uk
362 Stockley Close
West Drayton UB7 9BL
Phone: 01895 430 255
Options:
Colour default RAL7016 yy = blank
Colour Custom yy = colour code
Lsw is powered.
Lsw is powered.
1942614 V1.2 4 December 2023
