Summary of Contents for Bake Max BMPLS7KE021

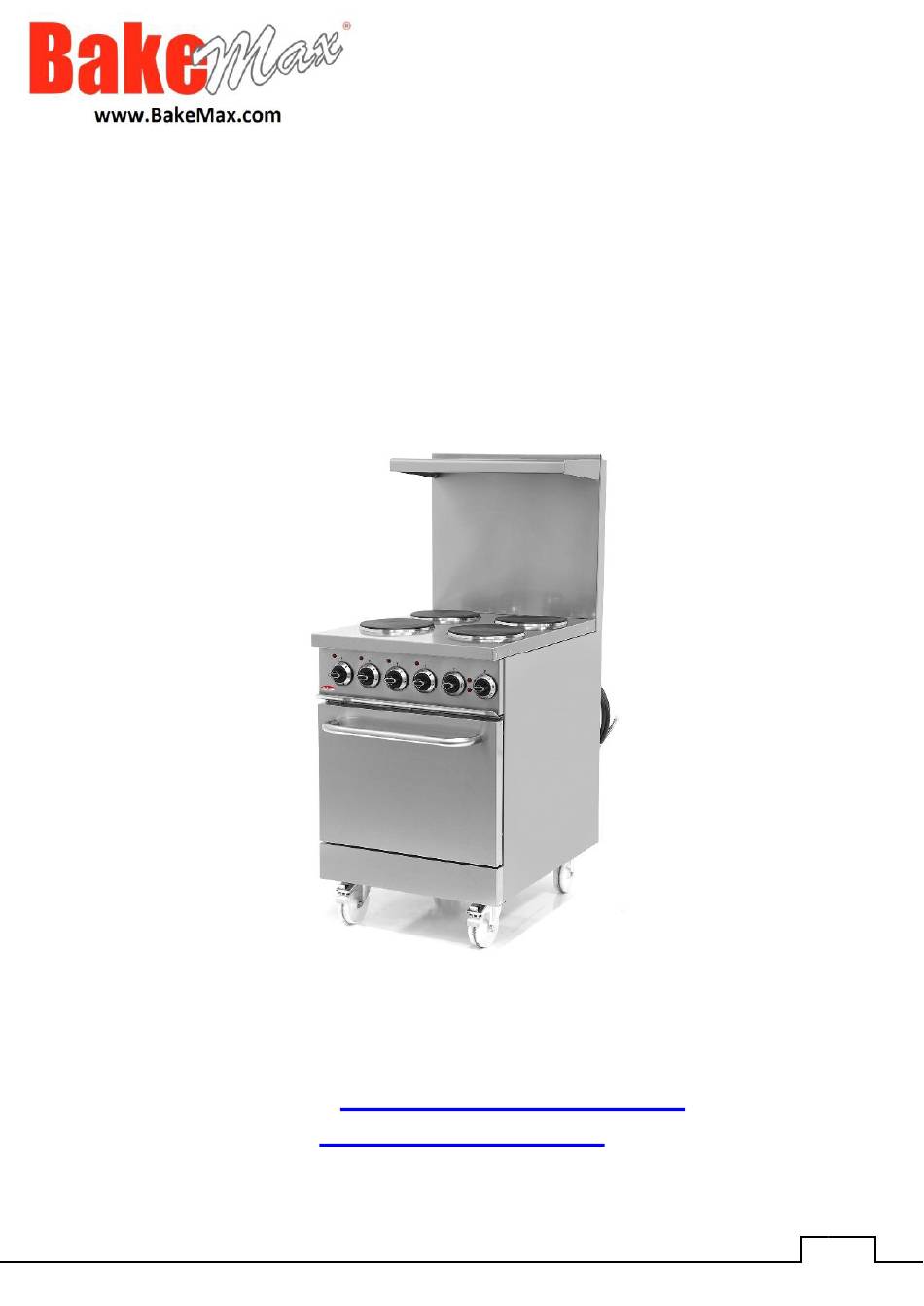

- Page 1 BakeMax BMPLS7KE021 Heavy-Duty 4-Burner Electric Range Questions? OEM Parts? Toll Free: 1-800-565-2253 Email: Service@BakeMax.com www.BakeMax.com...
-
Page 2: Warning & Safety
Warning & Safety PLEASE READ AND FOLLOW INSTRUCTIONS BELOW TO PREVENT INJURY OR DAMAGE TO THE PRODUCT BakeMax® (a registered trademark of Titan Ventures International Inc or TVI) is not responsible for any harm or injury caused due to any person’s improper or negligent use of this equipment. -
Page 3: General Information
GENERAL INFORMATION Before installing the appliance, read operation and maintenance instructions carefully. Wrong installation and part changing may damage the product or may cause injury on people. These are not in our company’s responsibility to damage the appliance intentionally, negligence, detriments because of disobeying instructions and regulations, wrong connections, un-authorized intervention to appliance invalidates the warranty. - Page 4 Contact your local authorized service agent for service or required maintenance. Please record the model number, serial number, voltage and purchase date in the area below and have it ready when you call to ensure a faster service. Model No. BMPLS7KE021 Serial No. Voltage Purchase Date...
-
Page 5: Product Description
*The Professional Electric Ranges ,that provides high efficiency has been designed to be used in industrial kitchens. Product Crated Model # Electrical Width Depth Height Weight Weight 208V / 64A / 13300W / 1Ph 954mm 610mm 1446.5mm 116kg 130kg BMPLS7KE021 208V / 37A / 13300W / 3Ph 37.6” 24” 56.95” 256lbs. 289lbs. -
Page 6: Installation
TRANSPORTATION *This appliance can not be moved by hand from area to area.It must be moved on pallet with forklift truck. UNPACKING *Please unpack the package according to the security codes and ordinances of current country and get rid from the pack.Parts which contacts with food are produced by stainless steel.All plastic parts are marked by material’s symbol. -
Page 7: Safety Instructions
SAFETY INSTRUCTIONS *Do not use the appliance in insufficient lighted place. *Do not touch the moving attachments while the appliance operates. *Do not install the appliance in the presence of flammable or explosive materials. *Do not operate the appliance when the machine is empty. *Do not load so less or more than appliance’s capacity. -
Page 8: Operation
OPERATION *Control Panel; A : Heat Adjustment Knob *Operating; • Plug in the appliance. • Put the cooker on the range. • Adjust heat setting butttons to desired temperature. • The range reaches the desired temperature and starts to operate. •... -
Page 9: Cleaning And Maintenance
CLEANING & MAINTENANCE ➢ CLEANING AND MAINTENANCE AFTER EVERY USE • Always turn off the appliance and disconnect from the power supply before cleaning. • Clean the outer surface of the appliance with a wet cloth and chrome shiner. • Do not use abrasive cleaning chemicals as these can leave harmful residues. - Page 10 Part Description Factory # HOTPLATE 2 KW Ø 220 208V M.ELK-HOT-YHT-017 208V 1325W RESISTANCE 125836 M.ELK-RZS-BRU-PLS-006 WIRE BASKET 660x460 MM M.AKS-SPT-TEL-023 REAR CLOSURE ARA-KNX.PG7-0043 INNER BLOCK SHELF SHEET YSC-KNX.PG7-LZ-1278 CONTAIN HCN-SLK-PG-001 YSC-KNX.PG7-LZ-1294 COVER INTERIOR SHEET FRONT PANEL SHEET YSC-KNX.PG7-LZ-1291 COVER EXTERIOR SHEET YSC-KNX.PG7-LZ-1293 FRONT LOWER PLINTH SHEET YSC-KNX.PLS-PN-0137...
- Page 11 METAL LABEL M.AKS-OZL-MTL-006 BUTTON 0-6 JP.M.AKS-DGM-EMP-010 BUTTON M.AKS-DGM-EMP-024 122-572 °F BUTTON M.AKS-DGM-EMP-052 COB DOOR HINGE LEFT M.AKS-MNT-KZN-002 M.AKS-MNT-KZN-003 OVEN DOOR HINGE RIGHT M.AKS-MNT-KZN-004 AGAINST THE HINGE BRAKED WHEEL JP.M.AKS-TKR-PSF-008 CHASSIS WHEEL WITHOUT BRAKE JP.M.AKS-TKR-PS-002 LC1D12F7 CONTACTOR M.ELK-KNT-KNT-037...
-
Page 12: Warranty And Service
Warranty & Service BakeMax provides a 1-Year Limited Parts and Labor warranty on most items, there are select items which carry a Limited 2-Year Warranty. Extended Warranty is available on some products. Please contact us for details. The Warranty is not transferable and is limited to original installation of equipment sold by BakeMax for the original user.
