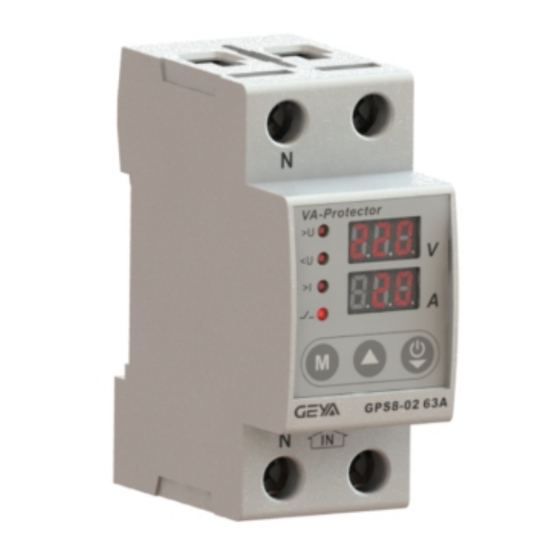

GEYA GPS8-02 Instruction Manual

Voltage / Current Protector GPS8-02
Instruction Manual
Technical parameters
Function
Rated supply voltage
Rated supply frequency
Operation voltage range
Rated operational current
Burden
Over voltage operation value
Under voltage operation value
Over/under voltage action delay
Over current operation value
Over current action delay
Power-up delay
Reset time
Measurement error
Electrical life(AC1)
Mechanical life
Operating temperature
Storage temperature
Mounting/DIN rail
Protection degree
Operating position
Overvoltage cathegory
Pollution degree
Dimensions
Weight
Parameter setting
Parameter
Over voltage value
Over voltage recovery value
Under voltage value
Under voltage recovery value
Voltage fault action time
Over current value
Over current action delay
Power on delay time
Reset time
Fault reset
General
■Applications
■ Function Features
■Model and connotation
GPS8-02
Over voltage, under voltage and over current
AC110V(L-N)
45~65Hz
70V~400V(L-N)
32A,40A,50A,63A,80A（AC1）
AC max.3VA
OFF,120V~300V
70V~100V,OFF
0.1s~10s
1~32A,40A,50A,63A,80A
2s~600s
2s~600s
2s~900s
≤1%
4
1×10
1×10
-20℃ ~ +60℃
-35℃ ~ +75℃
Din rail EN/IEC 60715
IP40 for front panel/IP20 terminals
any
82 36 68mm × ×
135g
Range Step value
OFF,120V~300V 1V
115V~295V 1V
70V~100V,OFF 1V
75V~105V 1V
0.1s~10s 0.1s
OFF,1A~32/40/50/63A 0.1A
2s~600s 1s
2s~600s 1s
2s~900s 1s
ON-OFF
-Overvoltage ,undervoltage and overcurrent protection for household
equipment.
-Voltage / current (True RMS)monitoring and protection.
-Use true RMS measurement.
-Double bus wiring design stronger ability.
-Over / under voltage value and over-current value can be set.
-Self reset after fault.
-Digital display voltage, current value, fault status can be displayed by LED.
-1-MODULE,DIN rail mounting.
GPS8 02
Incoming line mode
U:upper incoming line
D:lower incoming line
Design number
GPS8 Series
Panel Diagram
Over voltage indicator
Under voltage indicator
Over current indicator
Power open and close
indicator
Press and hold the setting key for 3 seconds to enter the
M
setting. After modifying the setting, press and hold for 3
seconds to save the setting.
Used to increase the value when setting parameters.
1.Used to reduce the value when setting parameters.
2.After exiting the setting, it can be used to manually turn
3.If the automatic fault reset function is turned off, this
Functions Diagram
U
LED:
LED: >U
LED: <U
Factory settings
135V
130V
90V
95V
0.5s
32A/40/50/63A
5s
Tp：Power-up delay(2~600s)
5s
Tr：Reset delay time(2~900s)
30s
Tu：Over/under voltage fault action time(0.1~10s)
ON
Tc：Overcurrent fault action time(2~600s)
-1-
