Summary of Contents for GemOro ELITE 1030LED

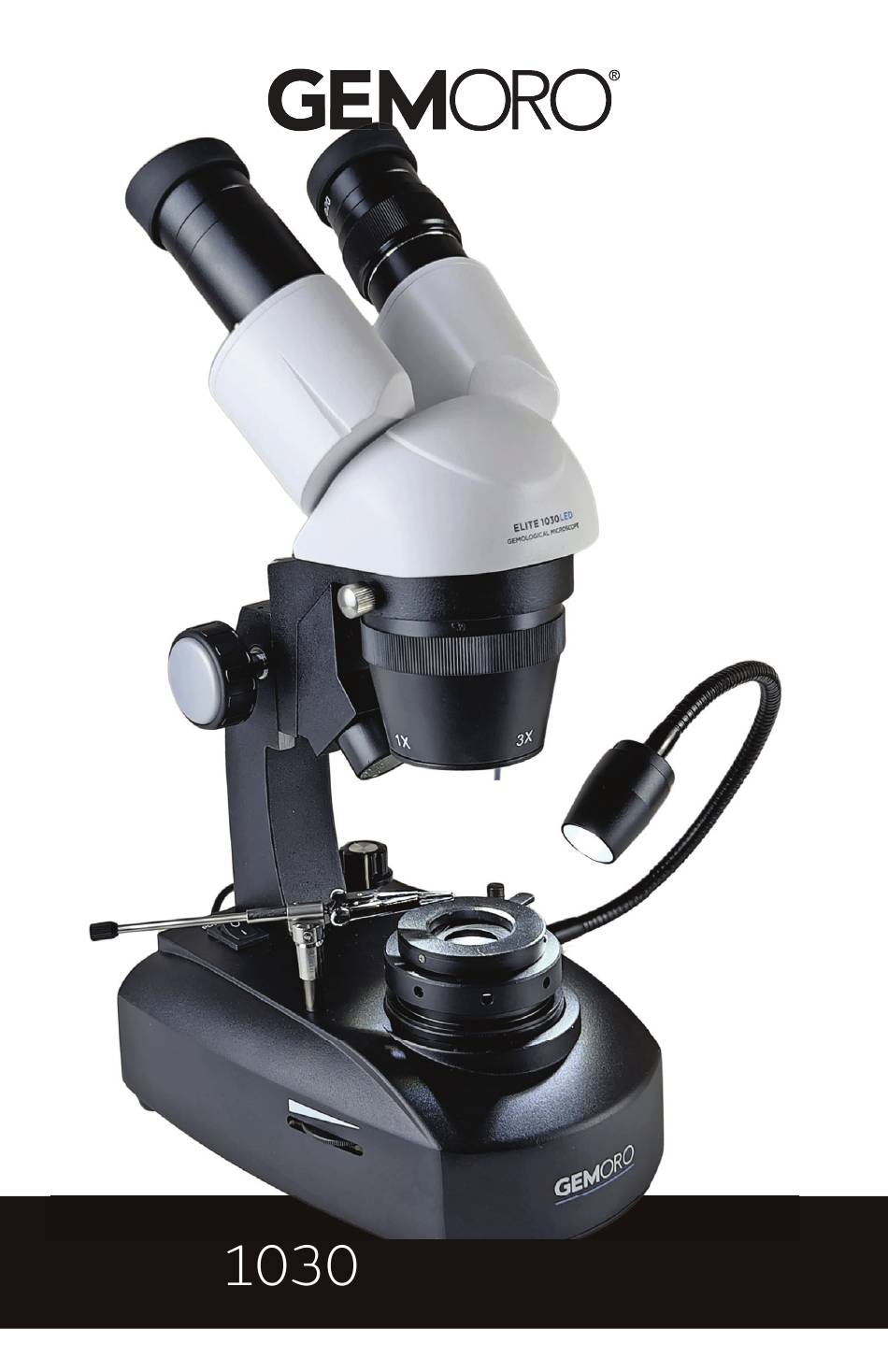

- Page 1 ELITE LED User Manual...
- Page 2 Congratulations on your purchase of the advanced Elite 1030LED by GEMORO Superior Instruments, the most trusted name in gemological instrumentation for the jewelry industry. You’ve made a smart choice. Not only are the precision optics superior in this microscope, but the full featured GEMORO Elite 1030LED utilizes the latest in daylight LED illumination and allows for true portability.
- Page 3 Switch Knob 9. Goose- neck Spot LED Light 7. Gem Clip 17. Iris Diaphragm 8. Gem Clip Post 19. AC/DC Power Cord 16. Dark Receptacle Field Condenser 14. Microscope Base 15. Battery 18. Rheostat Light Compartment Dimmer GEMORO ELITE 1030LED MICROSCOPE...
- Page 4 Once attached and positioned properly, use the supplied Allen wrench to tighten the small locking screw to further secure it in place. (See GEMORO ELITE 1030LED Installation & Service Tools section on page 6.) Flip the Power Switch to the ON position.
- Page 5 Iris Diaphragm Arm to adjust the Iris Diaphragm as desired. ELECTRICAL & LIGHTING Input Voltage: DC 5V Lighting: a) Natural Daylight. b) Incident Light 1W LED (without transmitted light). c) Transmitted Light 1W LED (without transmitted light). d) Gooseneck Spot LED Light 1W. GEMORO ELITE 1030LED MICROSCOPE...
- Page 6 GEMORO ELITE 1030LED INSTALLATION & SERVICE TOOLS Along with your GEMORO ELITE 1030LED microscope, you will fi nd two tools. The description and usage instructions for these tools are as follows: ALLEN WRENCH (Allen Key / Hex Key) - This “L” shaped tool is used when attaching the Gooseneck LED Light Source to the microscope base, while further securing it into a stationary position.
- Page 7 PERSONAL INJURY AND DAMAGE TO THE MICROSCOPE. 2. If any of the LED lights are not functioning and may need to be replaced, please contact GEMORO at 800.527.0719 or service@sykessler.com. MAINTENANCE AND STORAGE 1. Your microscope is a professional instrument and should be handled with care.
-
Page 8: Warranty
In the event the GEMORO Elite 1030LED is no longer available or has been discontinued and warranty coverage is applicable, at the factory’s sole discretion, an equivalent microscope may... - Page 9 GEMORO SUPERIOR INSTRUMENTS 10455 Olympic Drive Dallas, Texas 75220 USA 214.351.0380 or 800.527.0719 sales@sykessler.com sykessler.com/warranty-registration/ www.sykessler.com ©2024 SKS, Inc.
