Summary of Contents for Hoteche P801306A

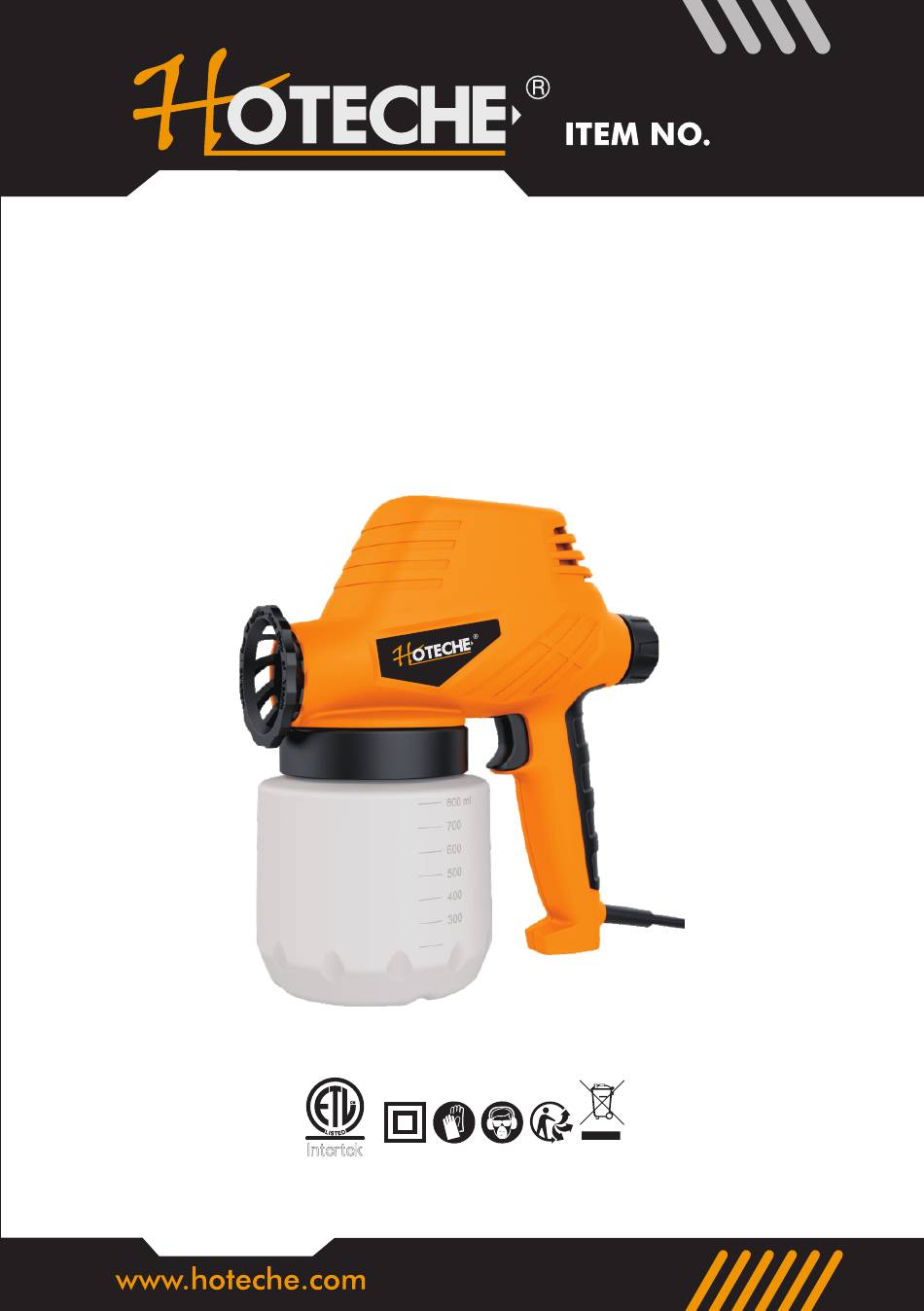

- Page 1 SINCE 1995 P801306A 1.8A(110W) SPRAY GUN Int rtek...
-
Page 2: Important Safety Instructions
1. IMPORTANT SAFETY INSTRUCTIONS Before using the spray gun, read the operating instructions carefully and observe the safety precautions. Keep these documents in a safe place. You have acquired a branded appliance, which requires careful cleaning and maintenance for trouble free operation. 7. - Page 3 bodily injury. In the event that injection occurs, Do not overload your tools seek medical attention immediately. Tools operate better and safer in the performance 8) Verify that all connections are secure before range for which they were intended. operating the unit. Use the right tool 9) Know how to stop the unit and bleed Do not use low-power tools and accessories on...
- Page 4 15. Disconnect the mains plug. 21. Repair only by qualified electricians When not in use, before servicing and when changing This power tool complies with the pertinent safety the tool, e.g. saw blade, bits, cutter etc. regulations. Repairs may only be carried out by a 16.
-
Page 5: Intend Use
IMPORTANT SAFETY INSTRUCTIONS Household use only. This appliance has a polarized plug. This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. -
Page 6: Technical Specifications
3. TECHNICAL SPECIFICATIONS Model P801306A Voltage 110-120V~ Frequency 50/60Hz 1.8A(110W) Rated Current input Container capacity 800mL Max. flow rate (based water) 300ml/min 4. Product information: Fig. A. 1. Motor housing 2. Output control 3. Trigger switch 4. Handle 5. Paint container 6. - Page 7 from lumps or other particles. Thinning Always remember to disconnect from the mains supply before filling the paint container with sprayable material. The table below shows recommended ‘‘run out time’’ with the viscosity cup attached for Fig C different types of material. Water based paint 20 - 35 seconds Primers...
- Page 8 Fig. E Fig. F When spraying large areas, using a criss-cross pattern as shown. Never start or stop the spray gun while it is aimed at the surface to be sprayed. Evenly control the speed of movement of the spray gun. A fast speed of movement over the surface will give a thin coat and a slow speed will give a heavy coat.
-
Page 9: Cleaning And Maintenance
6. CLEANING AND MAINTENANCE Always remember to disconnect from the mains supply before cleaning the spray gun or paint container. It is essential that the spray gun is cleaned thoroughly after every use. Failure to clean it will almost certainly result in blockages and it may not operate when you next come to use it! The guarantee does not cover cleaning a sprayer that has not been properly cleaned by the user. - Page 10 If your spray gun should require extra internal cleaning, it may be necessary to disassemble it. If so the following action should be taken: 1. Loose the nozzle with the attached plastic wrench. Only loose, do not screw out. 2. Rotate the nozzle guard anti-clockwise and pull out the pump assembly.
-
Page 11: Troubleshooting
7. TROUBLE SHOOTING Make sure that the plug is removed from the mains when carrying out maintenance work on the motor. Malfunction Cause Solution Seized piston Disassemble sprayer, clean Motor has a low hum and and lubricate does not spray Try a new piston assembly or ... - Page 12 Cord set Sleeve Cord Fixing Screw Tigger Switch Internal Wire Knob Shaft 21 22 Rubber tip 1 9 20 Base Spring Rivet Guard Spring O ring Cylinder O ring Hermetic end Spring Reek park Spray sheet Nozzle Spanner Rivet Steel sheet Rivet Bobbin Rubber Sheet...
