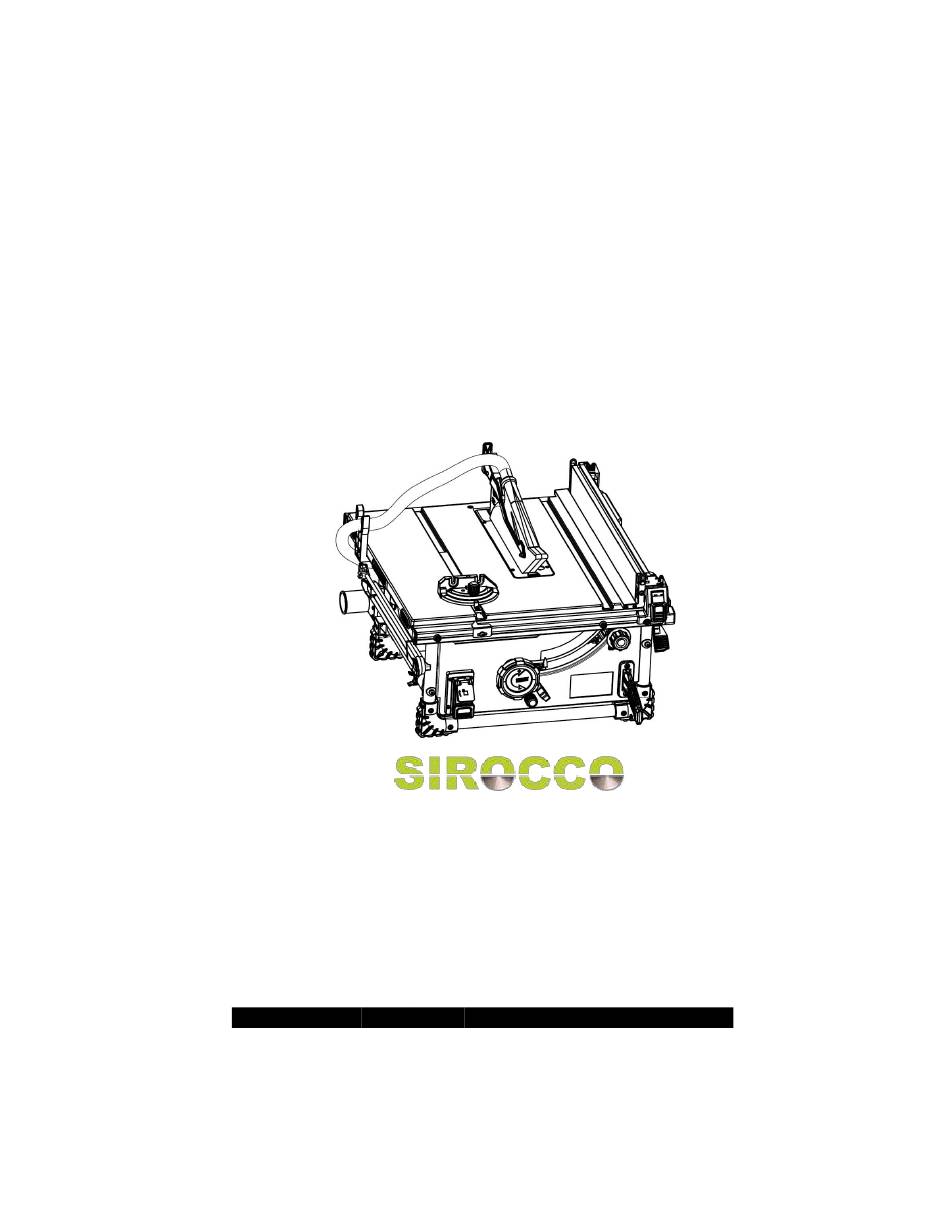

Operating/ Safety instructions

Dustless Table Saw

Instrucciones de uso y seguridad

Instructions d'utilisation/de sécurité

Type:

M1H-ZP8-254

IMPORTANT:

Read Before Using

Call Toll Free for

Consumer Information

& Service Locations

For English Version

See page 2

IMPORTANT:

Lire avant usage

Pour obtenir des informations et

les adresses de nos centres de

service après-vente,

appelez ce numéro gratuit

1-281-208-0000

Version française

IMPORTANTE:

Leer antes de usar

https://www.siroccodustless.com/

Voir page 36

Llame gratis para

obtener información

para el consumidor y

ubicaciones de servicio

Versión en español

Ver la página 70

Table of Contents

Need help?

Do you have a question about the M1H-ZP8-254 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sirocco M1H-ZP8-254

Page 1 Operating/ Safety instructions Dustless Table Saw Instrucciones de uso y seguridad Instructions d'utilisation/de sécurité Type: M1H-ZP8-254 IMPORTANT: IMPORTANT: IMPORTANTE: Read Before Using Lire avant usage Leer antes de usar Call Toll Free for Pour obtenir des informations et Llame gratis para...
Page 2: Table Of Contents
Miter Gauge Bladebevellocker Table Push stick Cord Wrap RaildrivingKnob Dust Export Raillock Lever Wrench Rip Fence Carrying hand SmartGuard Models M1H-ZP8-254 Rated voltage(V) AC120V Rated Frequency(Hz) 60Hz Rated Power(W) Speed(/min) 4600/min Saw blade diameter(mm) 254mm Saw blade bore 15.9 80mm Max.
Page 3: Power Switch
Page Page General Safety Rules ..........2–3 Mounting the Table Saw ..........16 ..........Additional Safety Rules 3–5 Adjustments ...............17–20 Connection to a Power Source & Extension Cords Adjusting 0° and 45° Positive Stops ......17 Table of Contents ............. Adjusting Blade Parallel to the Miter Gauge Slots ..18 Glossary of Terms ............
Page 4 All repairs, electrical or mechanical, should be attempted only by trained repairmen. Contact the Personal Safety nearest Sirocco Factory Service Center, Authorizefd Service Station or other competent repair service. KNOW YOUR POWER TOOL Read and understand the owner’s manual and labels affixed Use only Sirocco replacement parts;...
Page 5 General Safety Rules DIRECTION OF FEED Tool Use Feed work into a blade or cutter against the direction of rotation of the blade or cutter only. DON’T FORCE TOOL It will do the job better and safer at the rate for which it was NEVER LEAVE TOOL RUNNING UNATTENDED designed.
Page 6 Additional Safety Rules e. NEVER place your face or body in line with the cutting KICKBACKS AND POSSIBLE INJURY tool. CAN USUALLY BE AVOIDED BY: a. Maintaining the rip fence parallel to the sawblade. • NEVER place your fingers and hands in the path of the sawblade or other cutting tool.
Page 7 Additional Safety Rules d. Make sure the top of the cutting tool rotates toward you Dull, gummy or improperly sharpened or set cutting tools can when standing in normal operating position. Also make sure 11. KNOW YOUR CUTTING TOOLS the cutting tool, arbor collars and arbor nut are installed prop - cause material to stick, jam, stall the saw, or kickback at the erly.
Page 8: Extension Cords
Connection to a Power Source Double Insulated Tools WHEN SERVICING, ONLY WARNING IDENTICAL REPLACEMENT PARTS. POLARIZED PLUGS. To reduce the risk of Double insulation is a design concept used in electric WARNING electrical shock, your tool is equipped with a power tools which eliminates the need for the three wire polarized plug (one blade is wider than the other), this plug grounded power cord and grounded power supply system.
Page 9: Glossary Of Terms
Glossary of Terms burning of the workpiece or splintering. In general, heel cre- WORKPIECE The item on which the cutting operation is being performed. ates a poor quality cut and can be a safety hazard. The surfaces of a workpiece are commonly referred to as KERF faces, ends and edges.
Page 10: Rip Fence
Unpacking and Checking Contents To avoid injury from unexpected starting or WARNING electrical shock during unpacking and setting up, do not plug the power cord into a source of power. This cord must remain unplugged whenever you are working on the table saw. Model 3410 Table Saw is shipped complete in one carton.
Page 11: 1. Smart Guard
Assembly WARNING! Disconnect the plug from the power source before performing any assembly, adjustment or repair to avoid possible injury. 1. Smart guard Firstly, Depress the guard lever and aligned the slot on the rocker arm of the smart guard with the ripping knife, and the fixing pin is stuck in the circular arc groove(A) of the ripping knife.
Page 12 4. Vacuum hose Using vacuum hose join smart guard &lower guard dust out into vacuum inlet. Using vacuum hose join vacuum outlet to dust export. WARNING! Collect dust from dust export! The dust harmed your health ! Operation & adjustments WARNING! Disconnect the plug from the power source before performing any assembly, adjustment, or repair to avoid possible injury.
Page 13 3. Saw blade height adjustment Turn the lift handle counterclockwise to raise the saw blade and turn the lift handle clockwise to lower the sawblade. 4. Positioning the ripping knife Remove the table insert. Raise the blade as high as it will go by turning the elevation wheel clockwise and set it perpendicular to the table (0° on bevel scale).
Page 14 5. Replace the saw blade To reduce the risk of injury, using the correct blade! Turn elevation wheel clockwise until the blade is up as high as it will go. Remove table insert. Insert the open-head hex wrench onto the arbor shaft. While holding the first wrench, loosen the arbor nut counterclockwise with the the ring-head hex wrench.
Page 15 8. Ripping RIPPING is cutting a piece of wood with the grain, or lengthwise. This is done using the rip fence. Position the fence to the desired WIDTH OF RIP and lock it in place. Before starting to Rip. 9. Miter &Cross Cutting MITER CUTTING is cutting wood at an angle other than 90°...
Page 16: Mounting The Table Saw
Assembly Attaching Rip Fence Raise rip fence handle 1, so holding clamp 2 is out far enough to fit on the table 3 (Fig. 18). 2 . Position the rip fence 4 over table 3 holding up the front end, first engage holding clamp 2 with rear rail. Lower front end onto front rail 5.
Page 17: Maintaining Your Table Saw
Special Cutting Techniques This table saw is a highly versatile tool, capable of WARNING WARNING performing a wide range of highly specialized cuts that cannot be covered in this manual. Do not attempt to perform cuts not covered in this manual unless you are thoroughly familiar with procedures and fixturing.
Page 18 Make sure the teeth of the ANTIKICKBACK pawls are always sharp. To sharpen: Remove blade guard. FIG. 57 Rotate pawl toward rear of spreader so that teeth are above top of the spreader. 3. Hold the spreader with a pawl over corner of the workbench (Fig. 57).
Page 19: Troubleshooting
4. Burned out switch. REMEDY 1. Plug saw in. 2. Replace fuse or reset tripped circuit breaker. 3. Have cord replaced by an Authorized Sirocco Service Center or Service Station. 4.Have switch replaced by an Authorized Sirocco Service Center or Service Station.
