Summary of Contents for MACTRON AutoTRON MAS0650

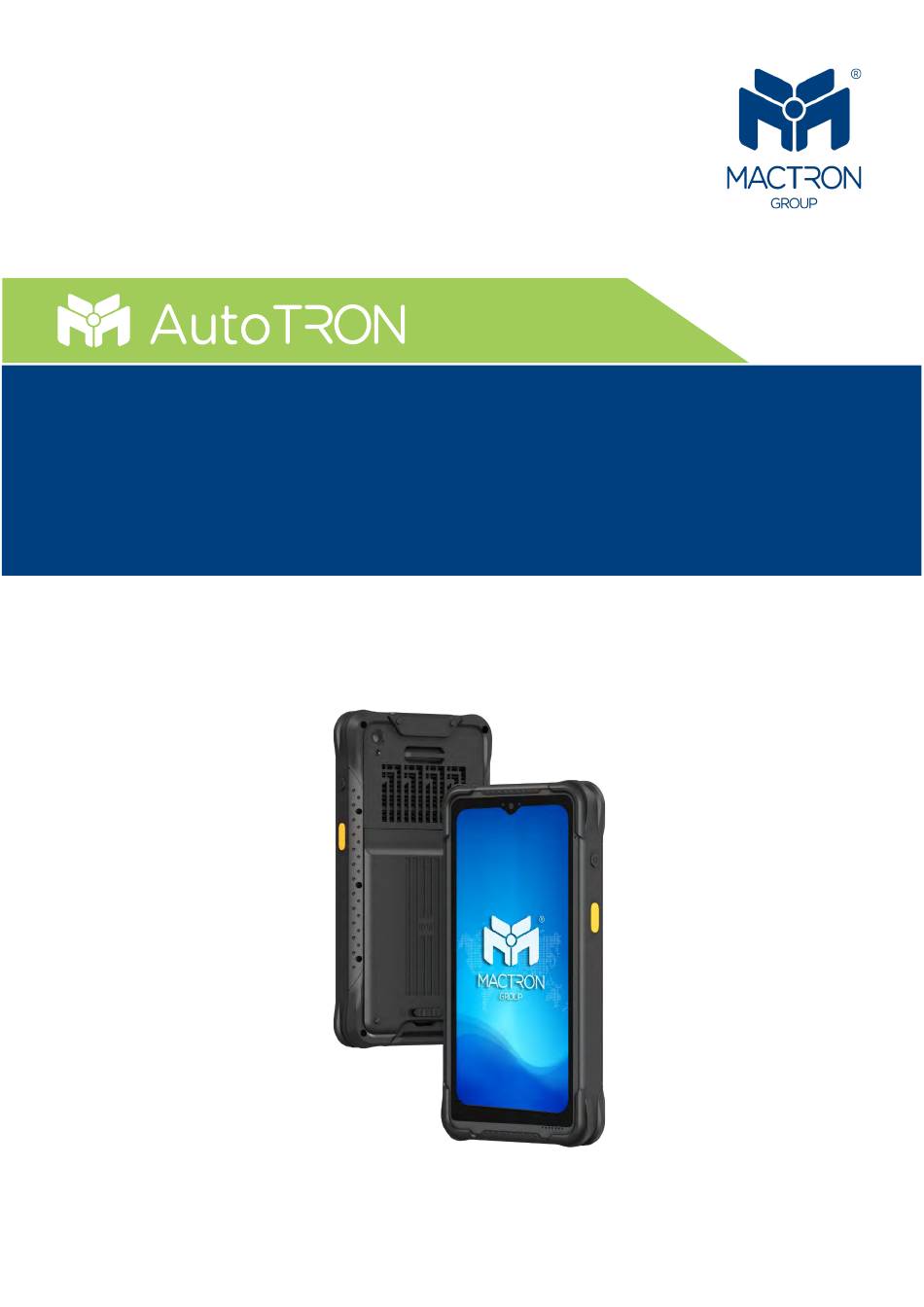

Page 1 MAS0650 User’s Manual...
Page 2: Copyright Notice
Copyright Notice The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
Page 3 Thank you for choosing MACTRON Mobile handheld PC This instruction serves to enable users to get to know our product as soon as possible. Here we have made a brief introduction to the key layout and definitions in figures and words. And a brief explains for the basic operating functions.
Page 4: Table Of Contents
Contents 1. Getting Started ..............1 1.1. Packing List ....................1 1.2. Connecting to Power Supply ................. 1 1.3. Turning On and Oﬀ the Mobile handheld PC ..........2 2. Product Information ............. 4 2.1. Specification ....................4 2.2. Product Overview ..................6 2.3.
Page 5 6. Care and Maintenance ............21 6.1. Protecting the Mobile handheld PC ............21 6.2. Taking Care of the Mobile handheld PC ............21 7. Troubleshooting ..............26 7.1. Preliminary Checklist .................. 26 7.2. Solving Common Problems ................. 26 7.3. Restart the Mobile handheld PC ..............
Page 7: Getting Started
1. Getting Started This chapter ﬁrst tells you step by step how to get the mobile handheld PC up and running. Then, you will ﬁnd a section brieﬂy introducing the external components of the mobile handheld PC. 1.1. Packing List After unpacking the shipping carton, you should ﬁnd these standard items: If you discover any of the items listed below are damaged or lost, please contact your local distributor immediately.
Page 8: Turning On And Off The Mobile Handheld Pc
2. Insert the USB Type-C head of the power adapter into the USB Type-C port of the device. 3. Now you can power on the device. 1.3. Turning On and Oﬀ the Mobile handheld PC Turning On Press the power button ( ) on the right side of the system.
Page 9 Hibernate This item does not appear in the power menu by default. If you want to set up this mode, please go to Windows Settings to set it up.
Page 10: Product Information
2. Product Information 2.1. Specification Display Display Type 6.5" IPS TFT LCD Resolution 720 x 1600 Brightness 500 nit Touch Panel 5 points Projected Capacitive touchscreen System Intel® Celeron® N5100 Processor Intel® UHD Graphics 620 Memory 8 GB Storage 128 GB Operating System Windows 10/ Windows 11 (optional) I/O Ports...
Page 11 Sensors 1 x G-sensor Battery 7.4V/4000mAh Using Time About 6 hours (50% volume sounds, 50% screen brightness, 1080P HD video display by default) Power Adapter USB Type C PD3.0 45W Standard Accessory 1 x Hand-strap 1 x 45W Fast charge adapter and CtoC data cable Packaging Box 193 x 103 x 57mm Dimension (WxHxD)
Page 12: Product Overview
2.2. Product Overview Note: Depending on the special model you purchased, the look and color of the device may be different from the graphics shown in this manual. Note: Please open the waterproof plug before using the ports or device. When not using ports or device, please completely cover the waterproof plug to isolate water and dust.
Page 13 Bottom View Side View...
Page 14: System Configuration
2.3. System Configuration 2.3.1. Rear Components Ref. No. Component Description ❶ Camera Barcode scan key (customized) ❷ Cooling Fan Waterproof Cooling Fan ❸ Cover Latch Battery Rear Cover Latch...
Page 15: Left-Side Components
2.3.2. Left-Side Components Ref. No. Component Description ❶ Volume + Used to increase the device volume. ❷ Volume - Used to decrease the device volume. ❸ Scan Button F Barcode scan key (Customized when no scan module is available.)
Page 16: Right-Side Components
2.3.3. Right-Side Components Ref. No. Component Description ❶ Power Button Used to sleep, wake up, power on and off the device. ❷ Scan Button F Barcode scan key (Customized when no scan module is available.) 2.3.4. Top Components Ref. No. Component Description ❶...
Page 17: Bottom Components
2.3.5. Bottom Components Ref. No. Component Description ❶ USB 3.0 Type-A Connects USB devices. ❷ USB Type-C OTG (Data transmission) ❸ Pogo pin Matched with the positioning hole to connect the Docking Charger. 2.4. Installation and uninstallation of SIM and TF card Step 1.
Page 18: Operating Your System
3. Operating Your System This chapter provides information about the use of the Mobile handheld PC. If you are new to Mobile handheld PCs, reading this chapter will help you learn the operating basics. If you are already a Mobile handheld PC user, you may choose to read only the parts containing information unique to your Mobile handheld PC.
Page 19: Using Wireless Connections
3.2. Using Wireless Connections 3.2.1. Using the WLAN The built-in WLAN (Wireless Local Area Network) module supports WIFI 802.11(a/b/g/n/ac). 3.2.2. Turning On / Oﬀ the WLAN Radio 3.2.2.1 To turn on the WLAN radio: Click → [Settings] → [Network & Internet] → [WLAN]，Slide the WLAN switch to the [On] position.
Page 20: Using The Bluetooth Feature
4. Depending on the network settings, you may need to enter a password. Contact your network administrator or service provider for details. For more information on setting a wireless network connection, refer to Windows online help. 3.3. Using the Bluetooth Feature The Bluetooth technology allows short-range wireless communications between devices without requiring a cable connection.
Page 21 5. Depending on the type of Bluetooth device that you want to connect to, you will need to enter the pertinent information. For detailed information on using the Bluetooth feature, see Windows’s online Help.
Page 22: Managing Power
4. Managing Power Your Mobile handheld PC operates on external Type-C power. This chapter tells you how you can eﬀectively manage power. To maintain optimal battery performance, it is important that you use the battery in the proper way. 4.1. AC Adapter CAUTION: ...
Page 23: Battery Pack
4.2. Battery Pack The battery pack is the internal power source for the Mobile handheld PC. It is rechargeable using the AC adapter. CAUTION: The time to unplug the battery pack is limited to when the battery is not being charged. NOTE: Care and maintenance information for the battery is provided in the ”Battery Pack Guidelines”...
Page 24: Battery Low Signals And Actions
4.2.3. Battery Low Signals and Actions When the battery is low, please connect the adapter immediately, put the Mobile handheld PC into hibernation, or turn oﬀ the Mobile handheld PC's power. 4.2.4. Replacing the Battery Pack CAUTION:  There is danger of explosion if the battery is incorrectly replaced. Replace the battery only with the Mobile handheld PC manufacturer’s optional battery packs.
Page 25: Power-Saving Tips
4.3. Power-Saving Tips Aside from enabling your Mobile handheld PC's power saving mode, you can do your part to maximize the battery's operating time by following these suggestions.  Do not disable Power Management.  Decrease the LCD brightness to the lowest comfortable level. ...
Page 26: Expanding Your Mobile Handheld Pc
5. Expanding Your Mobile handheld PC You can expand the capabilities of your Mobile handheld PC by connecting other peripheral devices. When using a device, be sure to read the instructions accompanying the device together with the relevant section in this chapter. 5.1.
Page 27: Care And Maintenance
6. Care and Maintenance Taking good care of your Mobile handheld PC will ensure a trouble-free operation and reduce the risk of damage to your Mobile handheld PC. This chapter gives you guidelines covering areas such as protecting, storing, cleaning, and traveling.
Page 28 example, do not place the Mobile handheld PC on a bed, sofa, rug, or other similar surface. Otherwise, overheating may occur that results in damage to the Mobile handheld PC.  As the Mobile handheld PC can become very hot during operation, keep it away from objects that are vulnerable to heat.
Page 29 Cleaning Guidelines  Never clean the Mobile handheld PC with its power on.  Use a soft cloth moistened with water or a non-alkaline detergent to wipe the exterior of the Mobile handheld PC.  Gently wipe the display with a soft, lint-free cloth. ...
Page 30  avoid installing or removing the battery pack when the Mobile handheld PC is in Sleep mode. Abruptly removing the battery pack may cause loss of data or the Mobile handheld PC may become unstable.  avoid touching the battery pack terminals or damage may occur, thereby causing improper operation to it or the Mobile handheld PC.
Page 31 When Traveling  Make sure that the battery pack is fully charged.  Make sure that the device is turned oﬀ.  Make sure that all the connector covers are closed completely to ensure the waterproof integrity.  Disconnect the AC adapter from the Mobile handheld PC and take it with you. Use the AC adapter as the power source and as a battery-charger.
Page 32: Troubleshooting
7. Troubleshooting Mobile handheld PC problems can be caused by hardware, software, or both. When you encounter any problem, it might be a typical problem that can easily be solved. This chapter tells you what actions to take when solving common Mobile handheld PC problems.
Page 33 to return to room temperature.  If the battery doesn't charge after it has been stored in very low temperatures, try disconnecting and reconnecting the AC adapter to solve the problem.  Make sure that the battery pack is installed correctly. ...
Page 34  The brightness level might be too low. Increase brightness.  The screen output may be switched to an external device. Please switch the display via Windows [Control Panel]. The characters on the screen are dim.  Adjust the brightness and / or contrast. Bad dots appear on the display at all times.
Page 35 operation to ﬁnish. The Mobile handheld PC does not resume from Sleep or Hibernation mode.  The Mobile handheld PC automatically enters Sleep or Hibernation mode when the battery pack is empty. Do any one of the following:  Connect the AC adapter to the Mobile handheld PC. ...
Page 36  If you are using an external AC power, make sure that the AC adapter is correctly and securely connected. If so, make sure that the electrical outlet works properly.  If you are using the battery power, make sure that the battery is not discharged. WLAN Problems I cannot use the WLAN feature.
Page 37: Restart The Mobile Handheld Pc
I cannot access the network.  Make sure that the network conﬁguration is appropriate.  Make sure that the user’s name or password is correct.  You have moved out of range of the network. 7.3. Restart the Mobile handheld PC When the Mobile handheld PC crashes due to a problem, you may need to restart the Mobile handheld PC.
