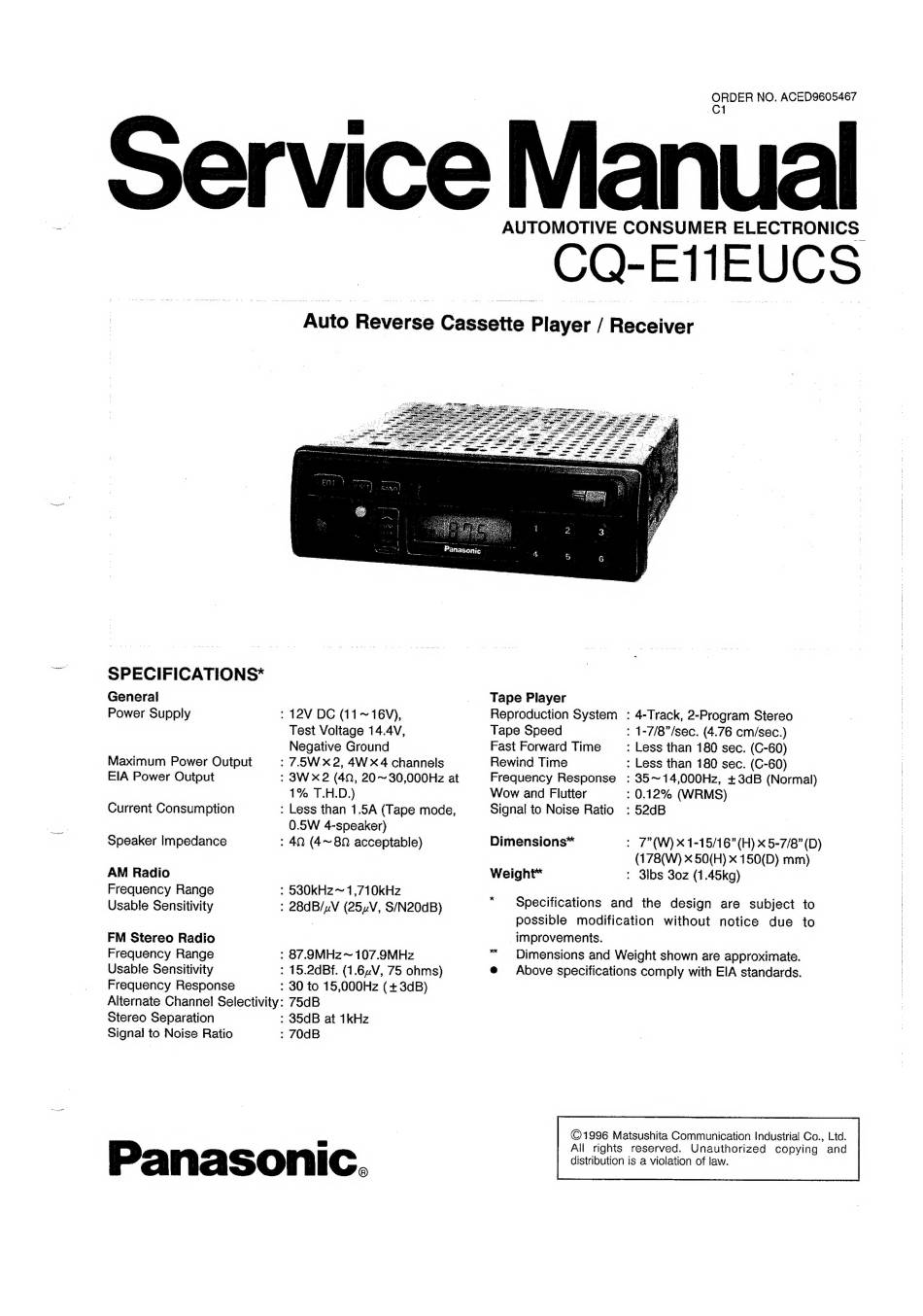

Panasonic CQ-E11EUCS Service Manual

ORDER NO. ACED9605467
Ct
Service Manual
AUTOMOTIVE CONSUMER ELECTRONICS
SPECIFICATIONS*
General
Power Supply
Maximum Power Output
EIA Power Output
Current Consumption
Speaker Impedance
AM Radio
Frequency Range
Usable Sensitivity
FM Stereo Radio
Frequency Range
Usable Sensitivity
Frequency Response
Stereo Separation
Signal to Noise Ratio
: 12V DC (11~16V),
Test Voltage 14.4V,
Negative Ground
: 7.5WX2, 4W x4 channels
: 3Wx2 (40, 20~30,000Hz at
1% T.H.D.)
: Less than 1.5A (Tape mode,
0.5W 4-speaker)
> 49 (4~80 acceptable)
: 530kHz2~ 1,710kHz
: 28dB/,V (25.V, S/N20dB)
> 87.9MHz~ 107.9MHz
: 15.2dBf. (1.62V, 75 ohms)
: 30 to 15,000Hz (+ 3dB)
Alternate Channel Selectivity:
: 35dB at 1kHz
: 70dB
75dB
Panasonic.
Tape Player
Reproduction System
Tape Speed
Fast Forward Time
Rewind Time
Frequency Response
Wow and Flutter
Signal to Noise Ratio
Dimensions"
Weight*
*
: 4-Track, 2-Program Stereo
: 1-7/8"/sec. (4.76 cm/sec.)
: Less than 180 sec. (C-60)
: Less than 180 sec. (C-60)
; 35~14,000Hz, +3dB (Normal)
> 0.12% (WRMS)
: 52dB
: 7"(W) X 1-15/16"(H) x 5-7/8 (D)
(178(W) X50(H) x 150(D) mm)
: 3lbs 30z (1.45kq)
Specifications and the design are subject to
possible modification without notice due to
improvements.
Dimensions and Weight shown are approximate.
@ Above specifications comply with EIA standards.
©1996 Matsushita Communication Industrial Co., Ltd.
Ail rights reserved. Unauthorized copying and
distribution is a violation of law.
