Summary of Contents for NB G70

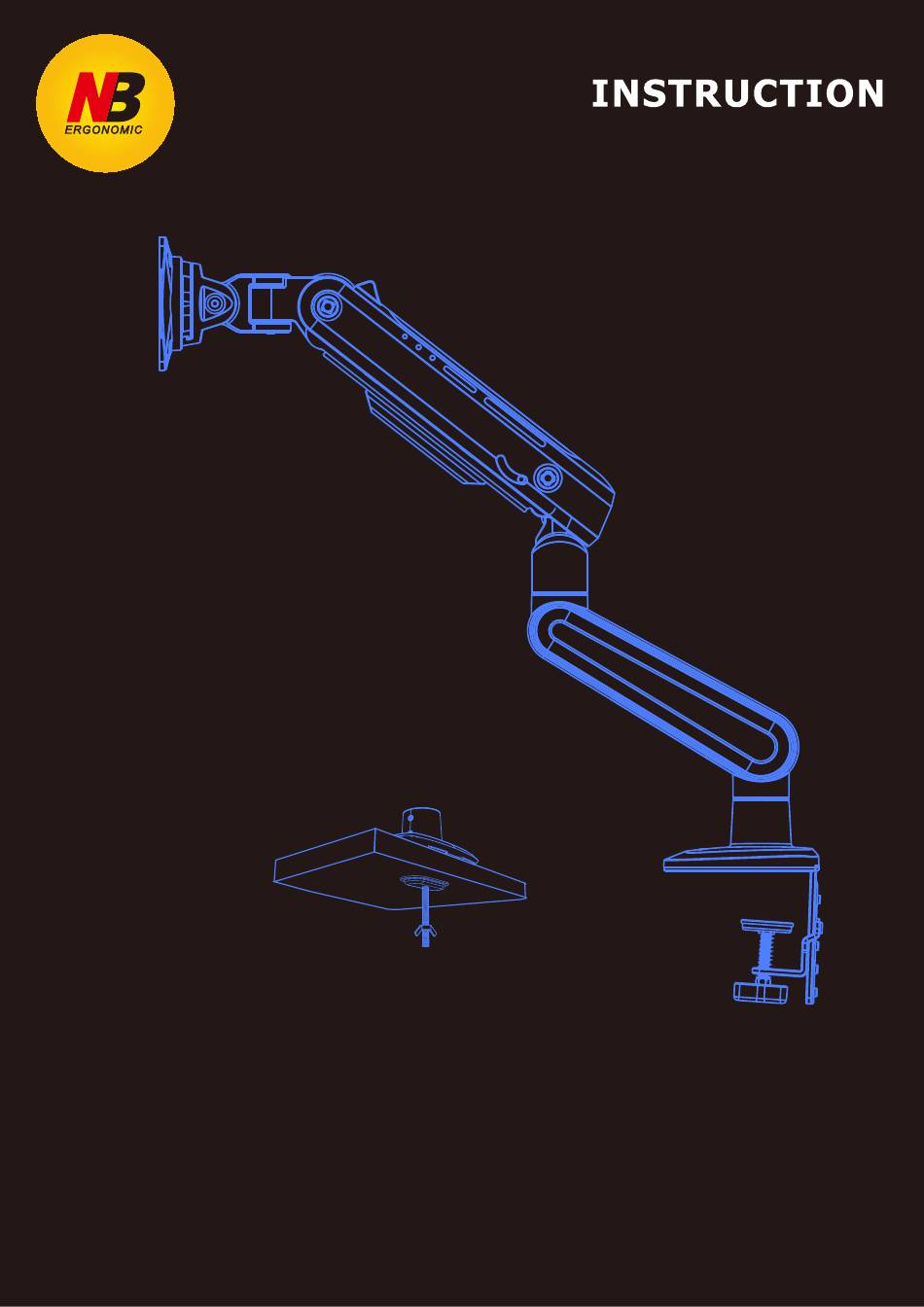

Page 1 D e s Mechanical Spring Gaming Monitor Arm...
Page 2: Table Of Contents
Contents 3/20 Product Specifications Cautions 4-8/20 9/20 Parts List 10-11/20 1.Base Installation 12/20 2.Arm Assemby 12-14/20 3.Display Installation 15-17/20 4.Torque Adjustment 17/20 5.Rotation Restriction 18/20 6.Tilt Adjustment 19/20 7.Cable Management 3/20 产品规格 4-8/20 注意事项 9/20 零件清单 10-11/20 1.底座安装 12/20 2.机械臂安装 12-14/20 3.显示器安装...
Page 3: Product Specifications
Product Speciﬁcations VESA 75×75，100×100mm LOAD Capacity 4.4-44lbs (2-20 kg) 0.8"-3.5"(20mm-90mm) 360° Rotation:360° 180° 24.4 "(620mm)max Swivel:180° Option B Option A D e s +/-50° Clamp Installation Grommet Installation Tilt:±50° 0.8"-3.5"(20mm-90mm) 0.8"-3.5"(20mm-90mm) 3/20...
Page 4: Cautions
Cautions Important Safety Information Please read the entire instructions and safety information prior to assembly. Failure to do so may cause personal injury, product damage and additional property damage. 1.If you do not understand the instructions or have any concerns, please contact a qualified local installer. 2.Do not install or assemble if the product or hardware is damaged or missing, if you require replacement parts, please contact your local distributor or the manufacturer for assistance.
Page 5 Cautions Important Safety Information 제품의 조립을 시작하기 전에 취급설명서 및 안전수칙을 잘 읽어보시기 바랍니다. 잘못된 설치로 인하여 인명피해 및 재산피해가 발생할 수 있습니다. 1.만약 설명서를 이해할 수 없거나, 어떤 의심이나 문제가 있다면, 현지에 설치자질을 갖춘 설치상에게 조립을 구하십시오. 2. 제품이나 나사, 액세서리가 파손되거나 분실된 경우 조립하지 마시고 현지 딜러에게 연락하여 도움을 요청하시기...
Page 6 Cautions Important Safety Information Przed montażem należy zapoznać się z całą instrukcją obsługi wraz z informacjami dotyczącymi bezpieczeństwa. Niedopełnienie tego obowiązku może spowodować obrażenia ciała, uszkodzenie produktu i dodatkowe szkody materialne. 1. W przypadku niezrozumienia niniejszej instrukcji lub w przypadku wątpliwości, prosimy skontaktować się z wykwalifikowanym instalatorem.
Page 7 Cautions Important Safety Information Lesen Sie die gesamte Anleitung, bevor Sie mit der Installation und Montage beginnen.UnsachgemaBe Installation dieses Produkts kann Schaden verursachen oder zu schwerenVerletzungen führen. 1.Wenn Sie Fragen zur Anleitung oder den Warnhinweisen haben, wenden Sie sich an lhrenHändler vor Ort. 2.Bevor Sie mit der Installation beginnen, gleichen Sie den Lieferumfang mit der Teile-Checklisteab.
Page 8 Cautions Important Safety Information Lea todas las instrucciones y la información de seguridad antes de realizar el montaje. Si no lo hace, puede sufrir lesiones personales, dañar el producto y otros daños materiales. 1. Si no entiende las instrucciones o tiene alguna duda, póngase en contacto con un instalador local cualificado. 2.
Page 9: Parts List
Parts List ×2 ×8 M4×30×4 M4×12×4 M6×12×6 ×1 ×1 Caution : Do not over tighten the screws and some hardware included may not be used. 9/20...
Page 10: Base Installation
1.Base Installations 1.Base Installations Option A Grommet Installation M6×12 10/20...
Page 11 1.Base Installations Option B Clamp Installation Assemble fixture M6×12 0.8"-3.5" (20mm-90mm) Install the fixture to the base and tighten the screws. Adjust the fixture to Adjust the screws to fit the appropriate height. tightly against the desktop. 11/20...
Page 12: Arm Assemby
2.Arm Assemby Tighten set screws using 4mm Allen key. 3.Display Installation Install the VESA plate to the monitor using M4x30mm（A）or M4x12mm（B） M4×30 VESA:100×100mm VESA:75×75mm 12/20...
Page 13 3.Display Installation M4×12 VESA:100×100mm VESA:75×75mm Need Teamwork Attach VESA Plate to upper arm. Pull down the locking buckle. 13/20...
Page 14 3.Display Installation 1.Rotating head adjustment When the screen rotates slightly left and right, it can be easily rotated and stably stopped within the rotation range. Tighten the screw 2.Adjust the tightness of the rear arm rotation When the screen rotates slightly left and right, it can be easily rotated and stably stopped within the rotation range. 14/20...
Page 15: Torque Adjustment
4.Torque Adjustment WARNING: Do not adjust tension without monitor attached. Hold the upper arm in the highest position and use the allen key to adjust the spring until the arm stays in the position as you want it to be. The upper arm in the highest Position , More easy to adjust the spring tension.
Page 16 Cautions Ensure display screen weights within load range 2-20kg 1. If display can be hovered at any height after display installed. No adjustment needed. 2. If display lifts up automatically after installation, adjust as follows:Wind the set screw to "-" direction to reduce torque by using E,4mm Allen key, until display can be hovered at any desired position.
Page 17: Rotation Restriction
Cautions Situación 1: Cuando el monitor está colgado en el soporte, el monitor puede flotar a cualquier altura, es decir, no se requiere ajuste Situación 2: Cuando el monitor está colgado en el soporte y se levanta automáticamente, utilice la llave E de 4 mm en el paquete de tornillos suministrado por nuestra empresa para depurar repetidamente en la dirección "- Situación 3: Cuando el monitor se cae automáticamente después de colgarlo en el soporte, utilice la llave...
Page 18: Tilt Adjustment
6.Tilt Adjustment Tighten the screws for both left and right sides. +: Torque Increase -: Torque Decrease 18/20...
Page 19: Cable Management
7.Cable Management Installation Disassembly ON/OFF Switch ON/OFF Switch USB RGB lighting Switch Installation: Clasp one side of the lower arm, and press the other side with your hand to fasten with the arm. Disassembly: Clasp the upper and lower sides of the wire cover with the index ﬁngers of both hands, and pull it out to one side to disassemble.
