dB Technologies Control24A Quick Start

CONTROL24A
MAIN FEATURES
• 4 channels Audio In (4 Analog or 2
AES/EBU)
• 4 channels Audio Out (2 AES/EBU)
• 2 channels A2Net Out
• Compatible also with RDNet devices
• Compact half rack size
• Quick installation
• AURORA Net USB/Ethernet control
PACKAGE CONTENTS
The box contains:
• n.1 Control24A controller
• n.1 mains cable
This quick start and warranty documentation
DESCRIPTION
Control24A is the new dBTechnologies professional
controller for active speakers that feature A2Net or
RDNet connections for a remote in-depth control and
configuration using AURORA NET software. The A2Net
output can route RDNet, Audio and power signal (up
to 30W per single channel) over a single CAT5 cable.
I/O connections include analog (XLR) and digital audio
(AES/EBU). The mechanical design allows an easy,
accurate and quick installation in half, 1U rack space
thanks to the optional brackets.
ACCESSORIES
RMK-1
rack mount kit
QUICK START USER MANUAL SECTION 1

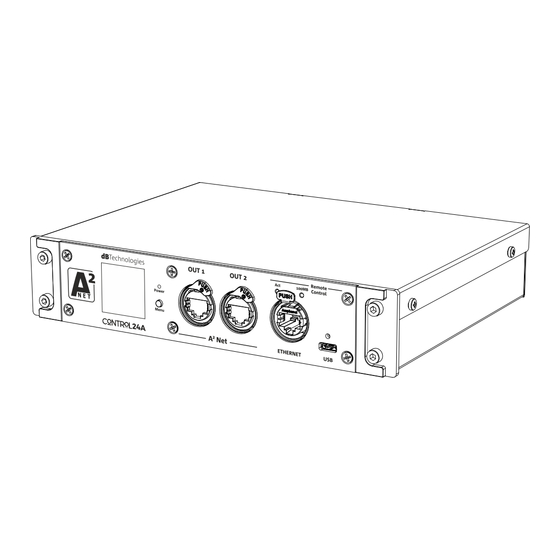

DIMENSIONS
SPECIFICATIONS
Type
Audio Inputs
Audio Outputs
A2Net ports
Data Control
Cooling
Operating Range
AD Converter
Control
Power Supply
Dimensions (WxHxD)
Operation limit temp.
Weight
1
420120447Q REV1.0
Remote
OUT 1 OUT 2
Act 100MB
Control
Power
Menu
A Net 2
ETHERNET USB
220
Digital controller - half rack
4x XLR-F Analog (2x Analog/digital AES/EBU)
2x XLR-M Digital (AES/EBU)
2x Output (Neutrik® etherCON, light ring
Halo)
Ethernet (RJ45)
USB C-type
Passive convenction
100-240V~ (50-60Hz)
24 bit/48 kHz
Menu button
Full-range SMPS
220x44x167 mm
(8.66x1.73x6,57 in)
-20°C / 50°C (-4°F / 122°F)
1.91 Kg (4.21 lbs.)
