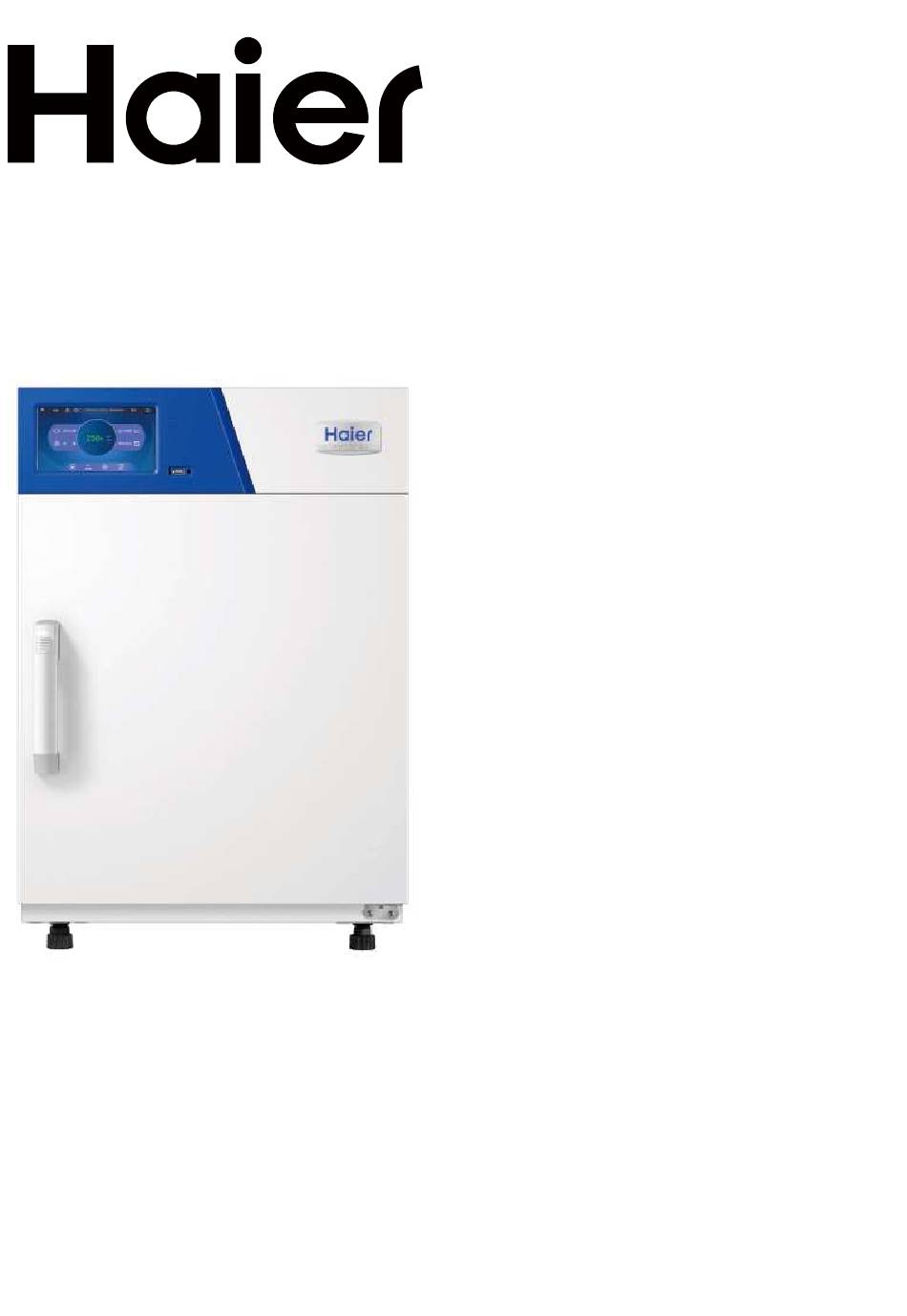

Thermostatic incubator

Operation Manual

• Please read this manual carefully before use

• The company reserves the right to interpret the instruction manual

• Please keep it together with the invoice after reading

• In case of any update of product technology or software, no prior notice will be provided.

• Please refer to the appearance of actual product

Model

HFP-80

HFP-168

HFP-258

HZP-80

HZP-168

HZP-258

Table of Contents

Need help?

Do you have a question about the HFP-80 and is the answer not in the manual?

Questions and answers

Summary of Contents for Haier HFP-80

Page 1 Thermostatic incubator Operation Manual Model HFP-80 HFP-168 HFP-258 HZP-80 HZP-168 HZP-258 • Please read this manual carefully before use • The company reserves the right to interpret the instruction manual • Please keep it together with the invoice after reading •...
Page 2: Table Of Contents
Contents Safety precautions ............1 Precautions for use............. 3 Product introduction............ 4 Product installation ............. 5 Name of each part ● Control panel ......7 Debugging and use ............ 8 Alarm ................. 19 Cleaning and sterilization .......... 20 Scheduled maintenance ..........22 Q&A ................
Page 3: Safety Precautions
Safety precautions Dear Haier Users: Greetings! Thank you for using the thermostatic incubator from Haier. In order to ensure that you can better read this manual and use this product, and to prevent the occurrence of personal injury and damage to articles, please be sure to carefully read and abide by the contents marked with the following symbols in this manual.
Page 4 When unplugging the incubator from the power socket, the power plug shall be tightly held without pulling wire of the power plug. If the wire is pulled by hand, it may cause an electric shock or ﬁ re due to short circuit; If the incubator does not work properly, please pull out the power plug.
Page 5: Precautions For Use
Precautions for use •Structure and composition: This product is composed of the incubator body, heating system, control system (including the alarm system) and the shelves whose spacing can be adjusted at will. •Displayed temperature of the incubator is temperature value of the temperature sensor inside the incubator.
Page 6: Product Introduction
•Large capacity data storage with up to 15 years of data traceability; Due to the need for improvement of the product, the Haier thermostatic incubator you got may not be completely consistent with the illustration in the manual. We sincerely apologize for that. The...
Page 7: Product Installation
Product installation Product unpacking and handling •The packing straps shall be cut oﬀ with an appropriate unpacking tool, such as scissors or wallpaper knife, and then the outer packing case shall be lifted vertically and removed horizontally; the accessories shall then be checked for completeness.
Page 8 Connection of main power supply • Before connecting the main power supply, it is necessary to ensure that the power matches the power consumption indicated on the nameplate. The power supply speciﬁ cations of the device are speciﬁ ed as follows: Power supply voltage: AC 220V±22V;...
Page 9: Name Of Each Part ● Control Panel
Name of each part Control panel ● Name of each part RS485接口 RS485 interface USB接口 USB interface 温度开关 Temperature switch 电源接口物联接口蜂鸣器 Power interface IoT interface Buzzer 电源开关 Power switch 显示屏 Display 物联模块（选配） IoT module (optional) 门把手 Door handles Fan heat 风机散热孔...
Page 10: Debugging And Use
• Password: Set the administrator password for rights management; (please remember your password. If you forget your password, please contact Haier's technical support.) Language selection interface...
Page 11 Network setting interface Time and temperature scale setting interface Mode setting interface...
Page 12 Password setting interface Home page After the initial settings, enter the home page interface. 1. Running records: time records and alarm records generated during running of the incubator; 2. Running data: the running curve of working space parameters during running of the incubator; 3.Set: basic settings of the incubator;...
Page 13 Operating steps: 1. Select running mode of the device (from ﬁ xed mode/appointment ﬁ xed mode/program mode/ appointment program mode, the ﬁ xed mode is selected by default); path: Set - Device Running 2. Temperature setting: If the ﬁ xed mode/appointment ﬁ xed mode is selected, click Set - Parameter Settings to set the temperature;...
Page 14 •High temperature alarm value: set temperature value +0.5℃ ~ set temperature value +5℃, the default is +0.5℃; •Low temperature alarm value: set temperature value -0.5℃~ set temperature value -5℃, the default is -0.5℃; •Overtemperature protection value: set temperature value +5 ℃ ~120 ℃ , the default is +5 ℃; •When the +- is pressed, the value will change by 0.1 when it is pressed simply, and will change by 1 when it is pressed and held.
Page 15 A.2 Device running Users should ﬁ rst select the running mode before running according to the requirements. The default running mode of the system is ﬁ xed mode. There are 4 running modes in total, and one of them must be selected before running;...
Page 16 A.2.2 Appointment ﬁ xed mode •An appointment can be made for the ﬁ xed mode, and time of appointment ranges within (0-999) hours (0-59) minutes. At the end of running, the appointment time/ﬁ xed time are cleared to zero; •After clicking “Start”, it is forbidden to change the running mode. If you want to change the running mode, you need to click “Stop Running”;...
Page 17 •During running of program mode, any editing, deletion and other operations on program segments/ subprogram segments in any form are prohibited; •If you click "Pause" during running of program mode without making any changes, current subprogram segment will be run continuously after startup; if any change is made, all program segments will be run again; •If change of running mode is prohibited during running of the device and it is necessary to change the running mode, click Stop Running;...
Page 18 A.3 Program settings Click “Program Settings” on the main interface to enter the setting interface Program setting running mode: (1) Ensure that the device is in standby state; (2) Mode selection: Set-Device Running-Program Mode/Appointment Program Mode; (3) Edit or select the required program segments; (4) Return to the main interface and click the “Run”...
Page 19 A.4 Basic settings Users can click the "Basic Settings" in the "Parameter Setting" interface to set language, time, alarm volume and so on of the incubator •Change language: select the appropriate language from the drop-down menu; •Time setting: set the time from the drop-down menu; •Alarm volume: in case of an alarm, the buzzer will prompt, and the alarm volume can be adjusted;...
Page 20 Message, notepad, bulletin Click the home page to enter the message, notepad, bulletin page: •New message: different authorized users can send messages between each other by creating new messages; •Message mailbox: if there are any unread messages after the user logs in, the number of unread messages will be highlighted both on the homepage icon and at the upper right corner of the message mailbox;...
Page 21: Alarm
Alarm Alarm type Alarm type Phenomenon Alarm indication Buzzer alarm Interior temperature > set High temperature Parameters are shown in temperature +0.5℃ or set Pulsed sound alarm alarm limit Interior temperature < set Low temperature Parameters are shown in temperature -0.5℃ or set Pulsed sound alarm alarm limit...
Page 22: Cleaning And Sterilization
During cleaning, be sure that no water will enter into the electrical parts. If you have any doubt about the compatibility of disinfectants or cleaning agents with equipment parts or materials contained in the equipment, please consult Haier or an agent designated by Haier. 1. Cleaning of external surfaces •Thoroughly remove the dirt, residues and sediments with warm water and detergent solution;...
Page 23 Warning Disinfection with alcohol! a) The disinfectants with an alcohol content of more than 10% will form a ﬂ ammable and explosive gas mixture when being combined with the air; b) When any of the such disinfectants is used, open flame or high temperature environment shall be avoided during disinfection;...
Page 24: Scheduled Maintenance
During daily repair and maintenance, only Haier or the organization designated by Warning Haier can inspect or provide the parts necessary for maintenance of the incubator; •The user shall clean and disinfect the incubator before notifying the maintenance engineer; •Haier reserves the right to update and improve the incubator;...
Page 25: Q&A
Please read here first. The content of this chapter is to answer various possible fault phenomena and provide solutions. If the problem still cannot be solved after such operation, please call the after-sales service department of Haier. Do not repair or disassemble the incubator by yourself. malfunction...
Page 26: Wiring Diagram
Wiring diagram RS485 Display Sensor Main control board Door heating 220V wire IOT module Relay Temperature switch Socket Heating wire Switch power Filter supply Switch...
Page 27: Specifi Cations • Packing List
Speciﬁ cations • packing list Speciﬁ cation HFP-80 HFP-168 HFP-258 Classiﬁ cation Name HZP-80 HZP-168 HZP-258 Volume (L) Structure Interior material Plasma electro-polished 304 stainless steel External material Powder coated galvanized zinc plate Product dimensions (Width × Depth × Height) 560×662×870...
Page 28 Packing list Name HFP-80/HZP-80 HFP-168/HZP-168 HFP-258/HZP-258 Shelf Power cord Power cord bracket Instruction manual Warranty certiﬁ cate Brochure Plastic bag Installation and debugging conﬁ rmation letter...
Page 29: Warranty Description
(charges for expired warranty) include labor costs and parts costs. All fees charged from user shall be according to the uniﬁ ed charging standard of Haier as presented by the maintenance staﬀ , and the service staﬀ shall issue the invoice, otherwise the user can refuse to pay the charges.
Page 32 Pricing on any The speciﬁcations listed in this brochure are subject to accessories shown change by the manufacturer can be found by and therefore cannot be guaranteed to be correct. keying the part If there are aspects of the number into the speciﬁcation that must be search box on guaranteed, please provide...
