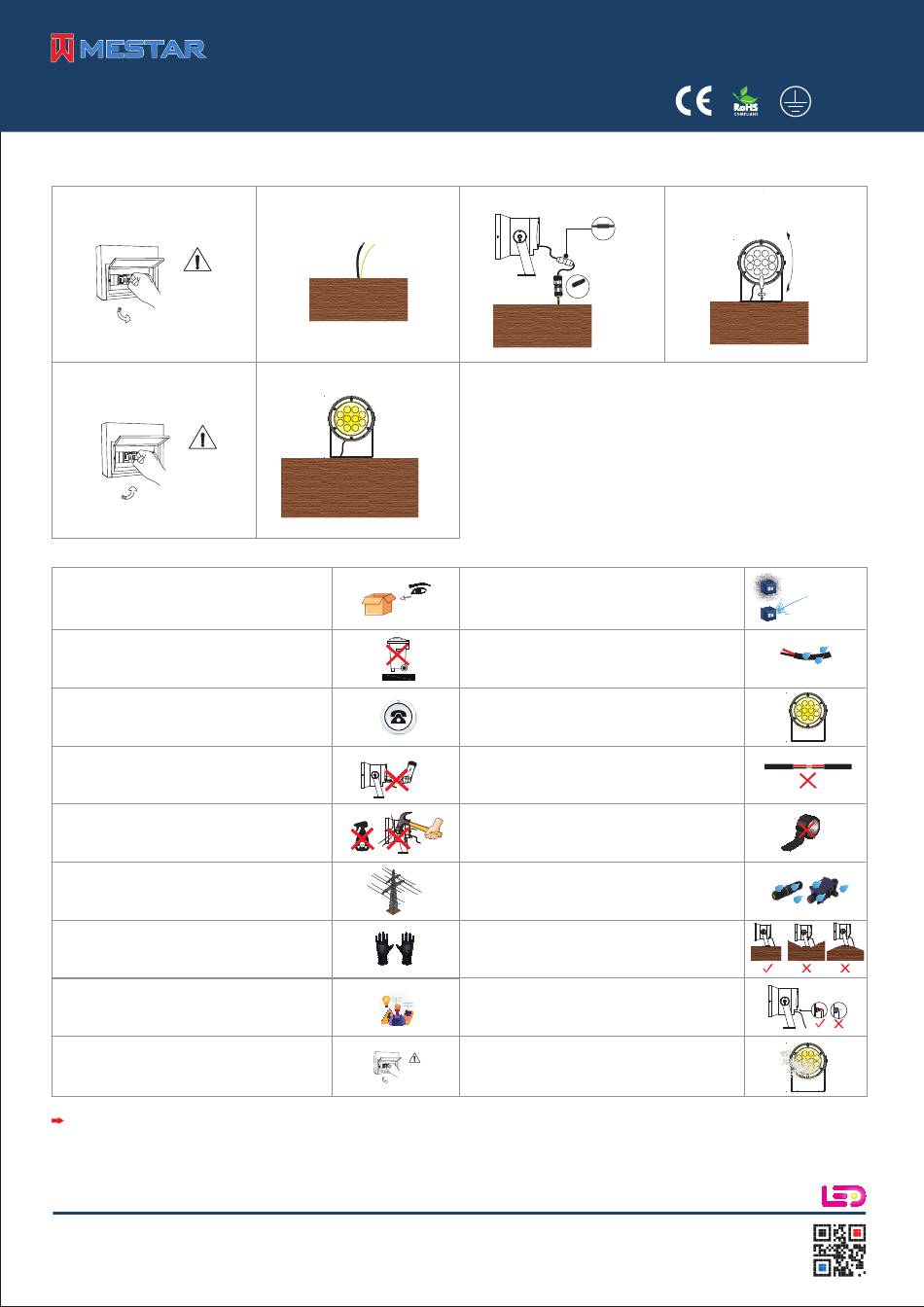

MESTAR BLAZE 4 Installation Manual

BLAZE 4 - LED FLOODLIGHT
A. INSTALLATION
1. Turn off the power.
POWER
On
Off
5. Turn on the power.
POWER
On
Off
*WARNING
1. Carefully unpack the carton. Check the contents to
ensure that all parts are present and have been
received in good condition.
2. If don't use, should be put in the right place to
avoid fire and explosion or causing environmental
pollution.
3. Contact the manufacturer if need help. Don't
install it if don't know the pieces of information.
4. Don't disassemble or change luminaires, LED driver.
5. Don't physical impact or use of chemicals that
deform the luminaires and affect the surface paint.
6. Install in accordance with national standards and
local electrical codes.
7. Use insulated gloves during product installation.
8. This products must be installed and maintained by
a qualified electrician.
9. Disconnect the power supply during installation.
Users must follow the safety instructions, specifications and warning notes written in this manual. If don't follow it, we will not be responsible for the warranty.
We reserve the right to make technical and design changes.
THIEN MINH MECHANICAL - ELECTRIC JSC
Head office: MESTAR Building, No. 98/11 Ung Van Khiem Street, Ward 25, Binh Thanh District, Ho Chi Minh City, Vietnam
Tel: (84) 28.3899 4790 - Email: mestar@mestar.vn - Web: www.mestar.vn
2. Leave cable from install surface.
L N
E
6. Completed install.
。
POWER
On
Off
3. Connect cable by connector IP68.
water
stopper
IP66
IP68
10. The product must be installed in environment ≤IP66.
11. All wires must be wrapped insulated rubber to ensure
safety and waterproof.
12. Check luminaire is fixed and secure after installation.
13. Do not let the poles of the wire touch each other.
14. Not use glue wrap electrical to wrap the cable.
15. Must use connector or junction box IP68 to connect
cable.
16. Make sure the installation surface is flat.
17. Minimum bend radius = Cable outside diameter x
Cable multiplier.
18. Projects near sea should use optional luminaires
with high anti-corrosion and sea salt resistant paint.
INSTALLATION MANUAL
IP66
4. Fix luminaires with install surface by
screws, then adjust the projection
direction of luminaires.
Dust tight. No ingress
of dust
Powerful water jets
against the enclosure
at any angle
