Summary of Contents for Feider FIW1080

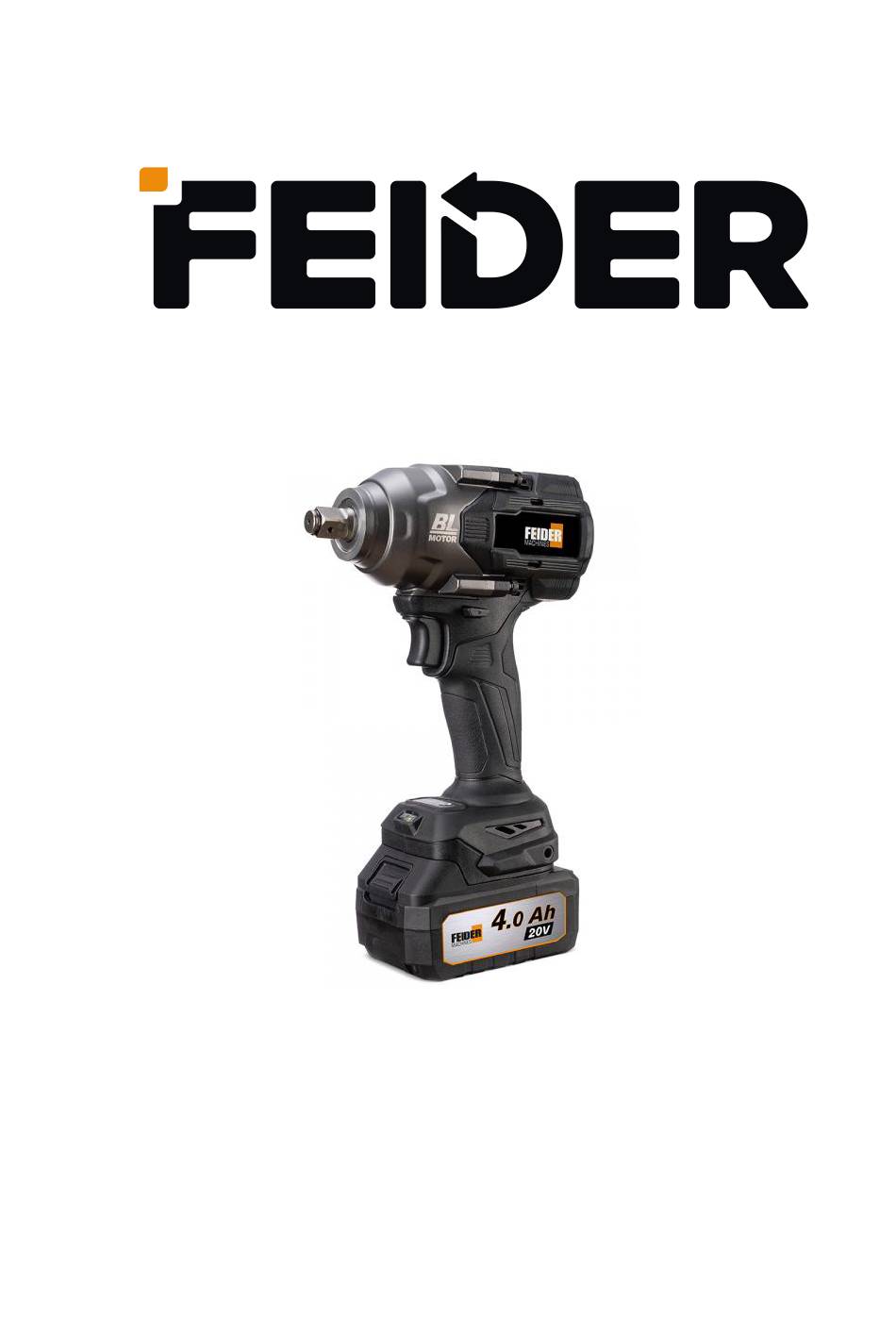

- Page 1 ORIGINAL INSTRUCTIONS >EN CORDLESS IMPACT WRENCH FIW1080 USER GUIDE CAUTION: Read this manual before using this machine!
-
Page 2: Table Of Contents
CONTENTS 1. INTENDED USE..............................3 2. SAFETY INSTRUCTIONS........................... 3 3. YOUR PRODUCT..............................9 4. OPERATION................................9 5. CLEANING AND MAINTENANCE AND STORAGE..................12 6. TECHNICAL DETAILS............................12 7. DISPOSAL................................13 8. DECLARATION OF CONFORMITY........................ 13 9. WARRANTY.................................14 10. PRODUCT FAILURE............................15 11. WARRANTY EXCLUSIONS..........................16... -
Page 3: Intended Use
1. INTENDED USE The cordless impact wrench is intended to loosen/tighten screws, bolts and nuts. It is not designed for commercial use. WARNING: For your own safety, read this manual and the general safety instructions carefully before using the appliance. Your power tool should only be given to other users together with these instructions. - Page 4 b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool.
- Page 5 to another. Shorting the battery terminals together may cause burns or a fire. d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
- Page 6 In case of eye contact, rinse abundantly with clean water for at least 10 minutes. Consult a physician. Fire hazard! Avoid short-circuiting the contacts of a detached battery. Do not incinerate the battery. b) Charger Use the charger provided with the tool only to charge ...
- Page 7 CAUTION: Only allow children at least 8 years old to use the battery charger. Give sufficient instruction so that the child is able to use the battery charger in a safe way and explain that it is not a toy and must not be played with.
- Page 8 2.4 SYMBOLS Conforms to relevant safety standards To reduce the risk of injury, the user must read and understand this manual before using this product. visible radiation, instructional safeguard Wear ear protectors. Exposure to noise can cause hearing loss. Wear eye protection. Class II, double isolation (only for charger).
-
Page 9: Your Product
3. YOUR PRODUCT 3.1 DESCRIPTION 1. 1/2 in. Square Drive 8. Battery status display 2. Directional switch and trigger lock 9. Battery 3. Trigger 10. charging port 4. Handle with soft grip 11.Charger 5. Speed setting button 12. RED indicator light on charger 6. -
Page 10: Switch On/Off
Insert the charger into 100-240V~,50/60Hz power supply outlet. The green indicator light (13) illuminated to show the power is connected. Insert the battery (9) into the port of charger (10). The red indicator light (12) illuminated when charging. ... -
Page 11: Led Light
speed 2 and three green LEDs for speed 3. Push the Speed setting button on the Electronic clutch control panel to cycle through the three speed settings and select the correct one for your specific application. Speed /min speed 0-1500 0-1500 speed 0-1900... -
Page 12: Cleaning And Maintenance And Storage
5. CLEANING, MAINTENANCE & STORAGE WARNING! Never use solvents such as petrol, alcohol, ammonia water etc. The solvents may damage the plastic parts. CAUTION! Always remove the battery before cleaning. 5.1 CLEANING Keep the ventilation slots free from dust and dirt. Regularly clean the impact driver with a soft cloth. -
Page 13: Disposal
BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux - France, declares that: Product: Cordless impact wrench Trade mark: FEIDER Model: FIW1080 Serial number: 20240409052-20240409451 Is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards. -
Page 14: Warranty
9. WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 15: Product Failure
10. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: • Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. •... -
Page 16: Warranty Exclusions
11. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 17 NOTES...
- Page 18 NOTES...
- Page 19 BUILDER SAS 32 rue Aristide Bergès - Z.I. du Casque - 31270 Cugnaux - France MADE IN PRC...
