Summary of Contents for Ambient Technologies TSFSC

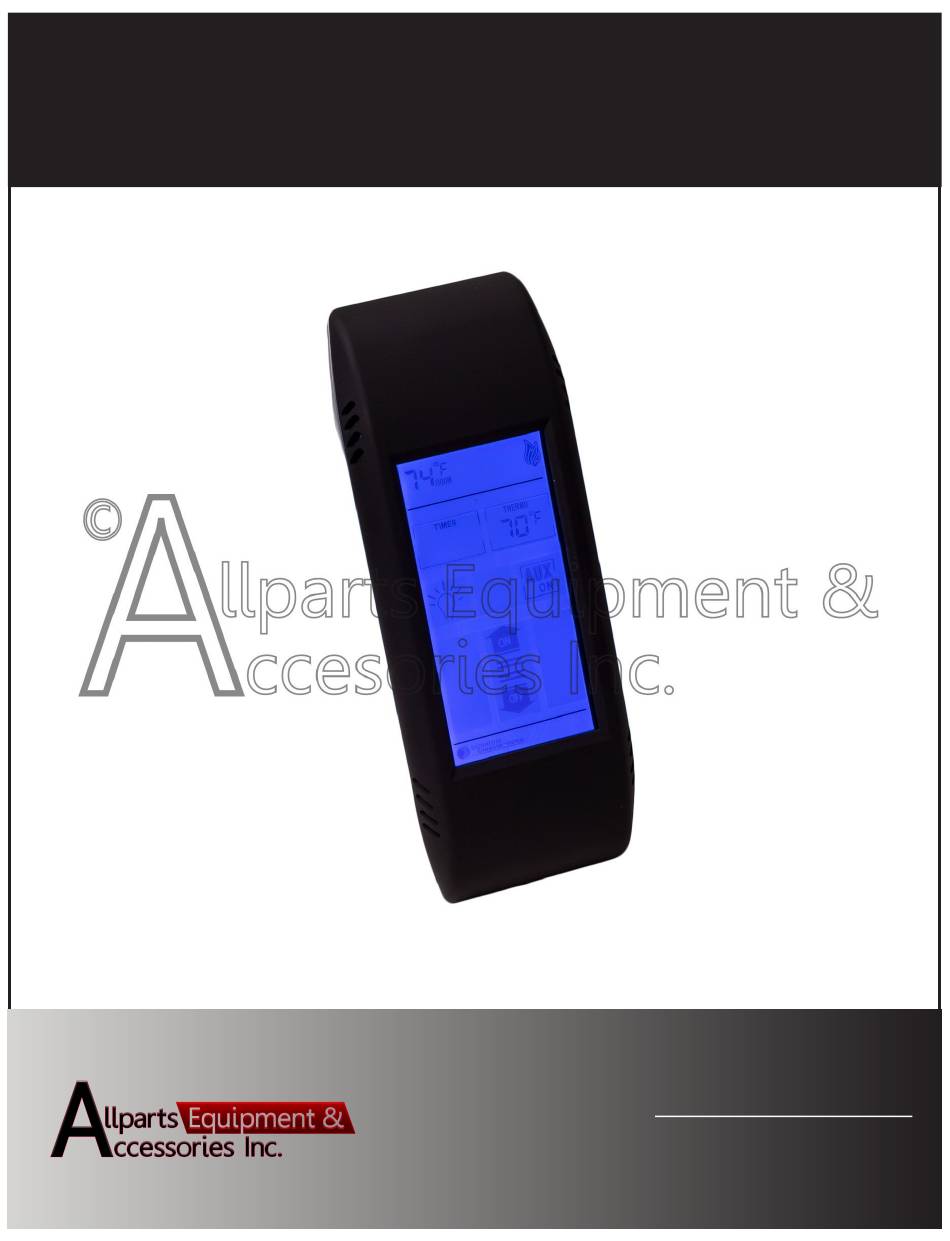

- Page 1 TSFSC Operating Instructions FOR QUESTIONS AND CONCERNS, CONTACT US AT FOR QUESTIONS AND CONCERNS, CONTACT US AT www.allpartsinc.com Call Us: 1-269-685-4123 Text Us: 1-269-447-0412...
-
Page 2: Contents Of Kit
Carefully inspect the contents for shipping damage. If any parts are missing or damaged, immediately contact the dealer from whom you purchased the kit or Ambient Technologies Technical Support at 1 800 398 6195. Do not attempt to install any part of the kit unless all parts are in good condition. Please keep this booklet for future reference. - Page 3 Touch Screen Full Function Signature Command Operating Instructions Function Areas of the LCD Display The figure on the right shows a typical display of the TSFSC LCD. Information Bar The information bar shows the room temperature, the “sending signal” radio icon, the low battery indication icon, the child-proof icon, and the flame icon.
- Page 4 MHSC Touch Screen Full Function Signature Command Operating Instructions Due to the sensitive temperature monitoring components in the transmitter, it is necessary to allow the transmitter to stabilize to room temperature before accurate room temperatures are displayed. If the transmitter is activated from a severe cold condition, allow 15 minutes for accurate temperature readings to appear on the LCD display.
- Page 5 MHSC Touch Screen Full Function Signature Command Operating Instructions The Signature Command control board then needs to re-learn the new setting. 1. The RF receiver button on the control board must be in the on position before the learn function can begin.
- Page 6 MHSC Touch Screen Full Function Signature Command Operating Instructions The transmitter will operate the remote receiver from 1foot to a maximum of 30 feet. The distance is reduced when batteries are low. Manual Mode In this mode, the TIMER button and the THERMO button will only display “TIMER”...
- Page 7 MHSC Touch Screen Full Function Signature Command Operating Instructions 3. Press the THERMO button again to confirm the Set Temperature. The transmitter will send out an On signal or an Off signal depending on the relationship between the Set temperature and the Room temperature.
- Page 8 MHSC Touch Screen Full Function Signature Command Operating Instructions Light Brightness Control The light brightness control function is used to adjust the brightness of the light bulbs connected to the AC module on the Signature Command System. There are four light brightness levels defined: Off, Low, Medium and High. 1.
-
Page 9: Troubleshooting
MHSC Touch Screen Full Function Signature Command Operating Instructions Safety Features 1. Low Battery Detection When low battery condition occurs, the transmitter will turn off the fireplace. A) Battery voltage is checked every one minute. When the battery voltage is low, the LCD displays a low battery icon which will exist in all modes. -
Page 10: Warranty
After contacting Ambient Technologies Tech Service to receive a return authorization number, we agree to repair or replace at our option any Ambient Technologies remote control under warranty. Provided it is returned postage prepaid to our warranty facility in a padded carton within the warranty period, with proof of the original date of purchase and a brief description of the malfunction.
