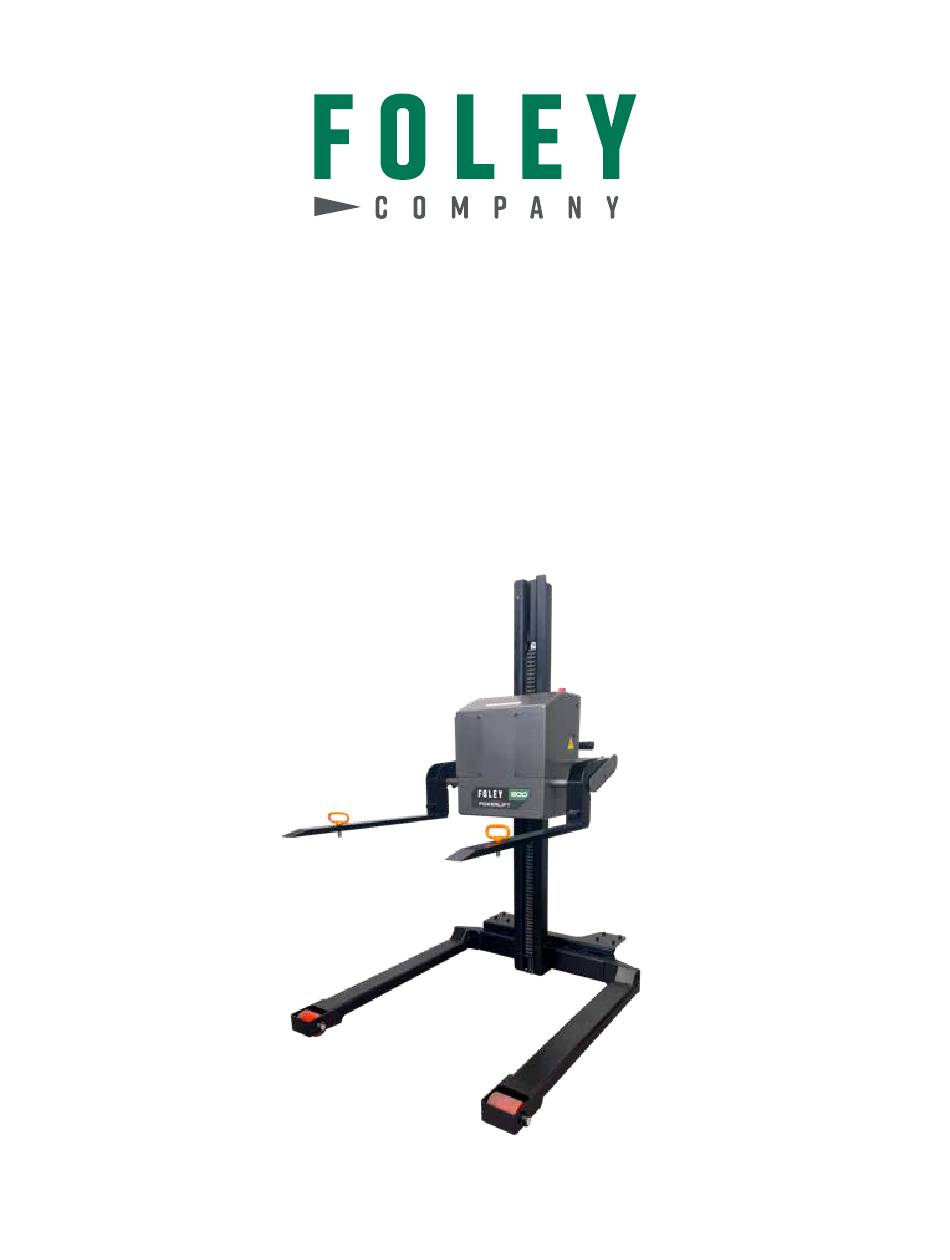

- Page 1 900 POWERLIFT OPERATOR MANUAL Model 9001911/9001912 ORIGINAL INSTRUCTIONS 9007902 (08-2023)
-
Page 2: Receiving Instructions
The machine is designed damage during transit. If damage is detected upon primarily for lifting reel mower cutting units into a Foley delivery, make a note of it on the SHIPPER RECEIVER. reel grinder. Using this product for purposes other... - Page 3 Table Of Contents Safety Setup Safety Decals Periodic Maintenance Product Overview Operation Battery Charging & Care Maintenance/Adjustments Parts Diagram 12-15 Electrical Diagram This manual identifies potential hazards and has safety messages identified by the Safety-Alert Symbol (Figure 2), which signals a hazard that may cause serious injury or death if the recommended precautions are not followed.
-
Page 4: General Safety
General Safety This product is capable of causing personal injury. Always follow all safety instructions to avoid serious personal injury. • Read and understand the contents of this manual before using. • Use full attention while operating the machine. Do not engage in any activity that causes distractions; injury or property damage may occur. -
Page 5: Setup - Installation
1. Remove the bag and inspect chain, carriage, forks, and legs for any damage that may have occurred during shipping. Do not use any damaged components. Contact your local distributor or Foley Company for support. 2. Install the two legs using the fasteners provided. Use an overhead hoist, forklift or other means to lift the main post and carriage from the pallet as this assembly weighs approximately 500 lbs (227 kg). -
Page 6: Safety And Instructional Decals
Safety and Instructional Decals Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or missing. DANGEROUS HIGH VOLTAGES PRESENT Read manual and disconnect power inside the enclosure of this product. -
Page 7: Monthly Inspections
Monthly Inspections 1. Check for frayed or loose wires 2. Clean off dirt and debris at all contact areas 3. Make sure all warning and safety labels are in place and in good condition 4. Battery condition CAUTION Children or bystanders may be injured if they move or attempt to operate the machine while it is unattended. -
Page 8: Product Overview
Product Overview Become familiar with all the controls before operating the machine. The figure below indicates the key features of the Powerlift. FLOOR CASTERS The casters give the Powerlift its mobility. DIRECTION SWITCH Pressing the top of the switch will raise the forks, pressing the bottom of the switch will lower the forks. Releasing the button will stop the movement of the forks. -
Page 9: Loading Instructions
Loading Instructions The load capacity rating as inscribed on the nameplate designates the net capacity, assuming the load is centered on the deck. This capacity must never be exceeded, as permanent damage or injury may result. Operating Instructions The Powerlift is a portable unit, movable with two wheels and two swivel casters. The brakes on the swivel casters are activated by pressing the “on”... - Page 10 Battery Recharging & Care The battery is completely sealed, maintenance-free and drip proof. The provided charger operates on 120VAC or 230VAC and requires a 3-wire (grounded) cord. Depress the Emergency Stop Button before charging. If left out the charger will not indicate the battery level and will not indicate when charging is complete.
-
Page 11: Maintenance
Maintenance Main Chain Adjustment Raise the carriage to access to the chain tensioner. Press the emergency stop switch to remove power. Engage the caster brakes and place a block or other support under the carriage to provide protection in the event of chain breakage. - Page 12 PARTS DIAGRAM FOLEYCO.COM...
- Page 13 Item no. Part No. Description 9009101 ACCESS PANEL POST 9009516 LEG ASSEMBLY 9009523 CHAIN HANGER WELDMENT B311213 5/16-18x3/4 BUTTON HEAD CAP SCREW B371616 3/8-16x1 BUTTON HEAD CAP SCREW B501601 1/2-13X1 HEX HEAD CAP SCREW B252811 1/4-20 X 1-3/4 SOCKET HEAD CAP SCREW B251016 1/4-20 X 5/8 BUTTON HEAD CAP SCREW J311000...
- Page 14 PARTS DIAGRAM FOLEYCO.COM...
- Page 15 Item Item Part No. Description Part No. Description 80338 KEY - .25SQ x 1.25LG J311000 5/16-18 HEX NUT 9009020 WIRING PACK - POWERLIFT K501501 1/2 LOCKWASHER SPLIT 9009091 BEARING GUARD 3706477 BATTERY, 12 VOLT, 18AH 9009043 DBL. BEARING SHAFT 9009086 CENTER BEARING PLASTIC 9009044 SINGLE BEARING SHAFT...
- Page 16 PARTS DIAGRAM ITEM FOLEYCO.COM...
- Page 17 Item no. Part No. Description 3706482 CONTACTOR TYPE 70 3706471 PILOT LIGHT 16MM GREEN 9009110 CHARGE PORT 3706510 #4 SS SHEET METAL SCREW 9009522 PULLOUT WELDMENT 3711428 ATO PANEL MOUNT FUSE HOLDER 3711431 5 AMP ATO FUSE 3706521 MAXI FUSE HOLDER 3706522 MAXI FUSE 50 AMP J257000...
- Page 18 900450 21BAT1+ 21CUT-1 BAT1 17BAT1- 23CP-GND 23-GND 26CP- 25CP+ FU-2 BAT2 18BAT2+ 22BAT2- 22CUT-2 5 AMP 24FU2-2 16FU2-1 OCK #1 OCK #2 12RCL-1 SWITCH ITCH 24RCL-2 24ESS2-1 ESS2 24ESS2-2 FU-3 FU-1 50 AMP 5 AMP 11B+ 11FU3-2 24ESS1-1 01FU1-1 01J1-7 J1-7 24FU1-2 ESS1...
- Page 19 ORIGINAL INSTRUCTIONS...
-
Page 20: Customer Support
Customer Support Contact Customer Support Foley Company 1750 Ryden Rd Prescott, WI 54021 Call: 904-507-8900 Email: Foleysupport@foleyco.com Facebook: facebook.com/FoleyCompany Twitter: @Foley_Company Scan on your mobile device to contact customer support FOLEYCO.COM...
