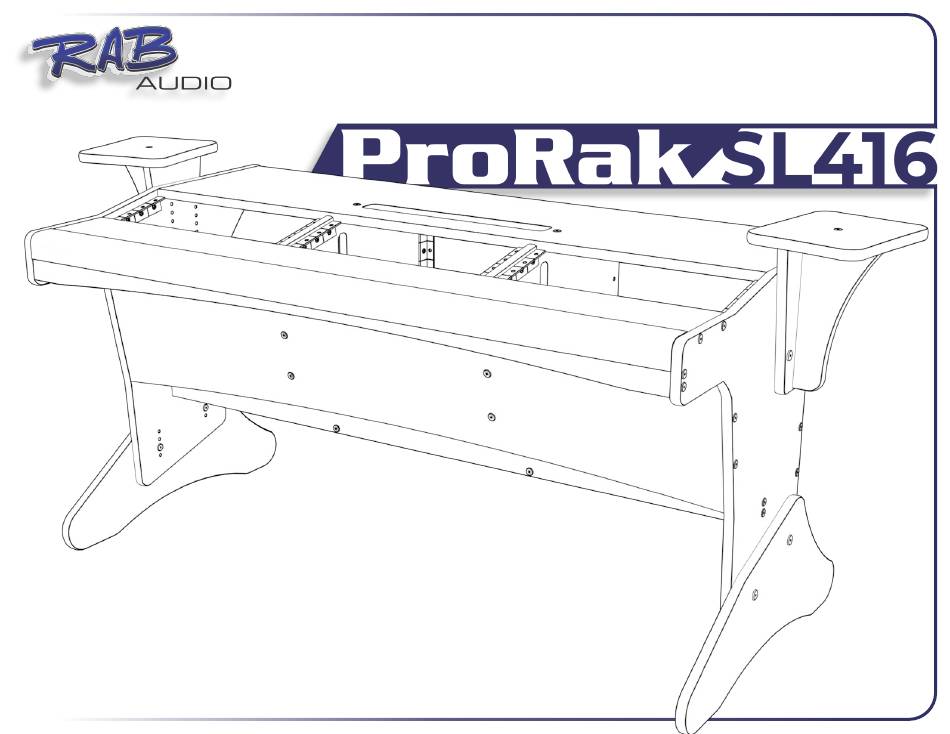

- Page 2 SL416 ProRak PARTS & QUANTITY DESCRIPTION Right Side Left Side Front Armrest Piece Middle Support Small Middle Support Middle Support Visual Monitor Bridge Front Armrest Support Cable Management Piece Monitor Deck Pieces Monitor Deck Pieces Monitor Decks For Rack Rail Middle For Rack Rail Middle Adjustable Feet Confirmat Screw...
- Page 3 ASSEMBLY STEP 1 OF SL416 ProRak Tools required: 4mm Hex Key / 4mm Hex Bit / Pieces required: SSL / SSR / SLF x2 Hardware required: Cap Nut x4 / Bolt x4 Attach the two SLF pieces to SSL and SSR with four cap nuts and bolts. Do not contact your dealer, please visit www.RABAudio.com/contact-us for parts and services.
- Page 4 ASSEMBLY STEP 2 OF SL416 ProRak Tools required: Phillips head screwdriver (NOT INCLUDED) Pieces required: SSL / SSR / CL / CR Hardware required: Rack Rail x6 / 7/16" Zinc Plated Screw x24 1. Attach the rack rail to the SSL and SSR using eight zinc screws. 2.
- Page 5 ASSEMBLY STEP 3 OF SL416 ProRak Tools required: 4mm Hex Key / 4mm Hex Bit Pieces required: SL3 / SL4 / SL7 Hardware required: Confirmat Screw x12 It is highly recommended to have two people for the rest of the build. 1.
- Page 6 ASSEMBLY STEP 4 OF SL416 ProRak Tools required: 4mm Hex Key / 4mm Hex Bit Pieces required: SSL / SSR / CL / CR Hardware required: Rack Rail x6 / Confirmat Screw x12 1. Attach SL2 to the unit using four confirmats screws through the sides as seen in illustration. 2.
- Page 7 ASSEMBLY STEP 5 OF SL416 ProRak Tools required: 4mm Hex Key / 4mm Hex Bit Pieces required: SL1 / SL6 / Extruded Corner Piece / SL5 Hardware required: Flat Confirmat Screw x4 / Confirmat Screw x10 1. Slide the extruded corner piece on to SL1 and SL6. 2.
- Page 8 ASSEMBLY STEP 6 OF SL416 ProRak Tools required: 4mm Hex Key / 4mm Hex Bit Pieces required: SL8 / SL9 / MD x2 Hardware required: Cap Nut x4 / Bolt x4 / Flat Confirmat Screw x4 / Confirmat Screw x2 1.
-
Page 9: Important Safety Notice
FOR PROMPT SERVICE & PARTS PLEASE CONTACT US AT www.RABAudio.com/contact-us WARNING IMPORTANT SAFETY NOTICE: Strict Adherence to Instructions: Any deviation from the instructions provided in this worksheet can lead to product malfunction or personal harm. Proper Tools and Hardware: Use a Phillips bit screwdriver when attaching your rack gear. The rack rails take 10-32 thread rack screws.
