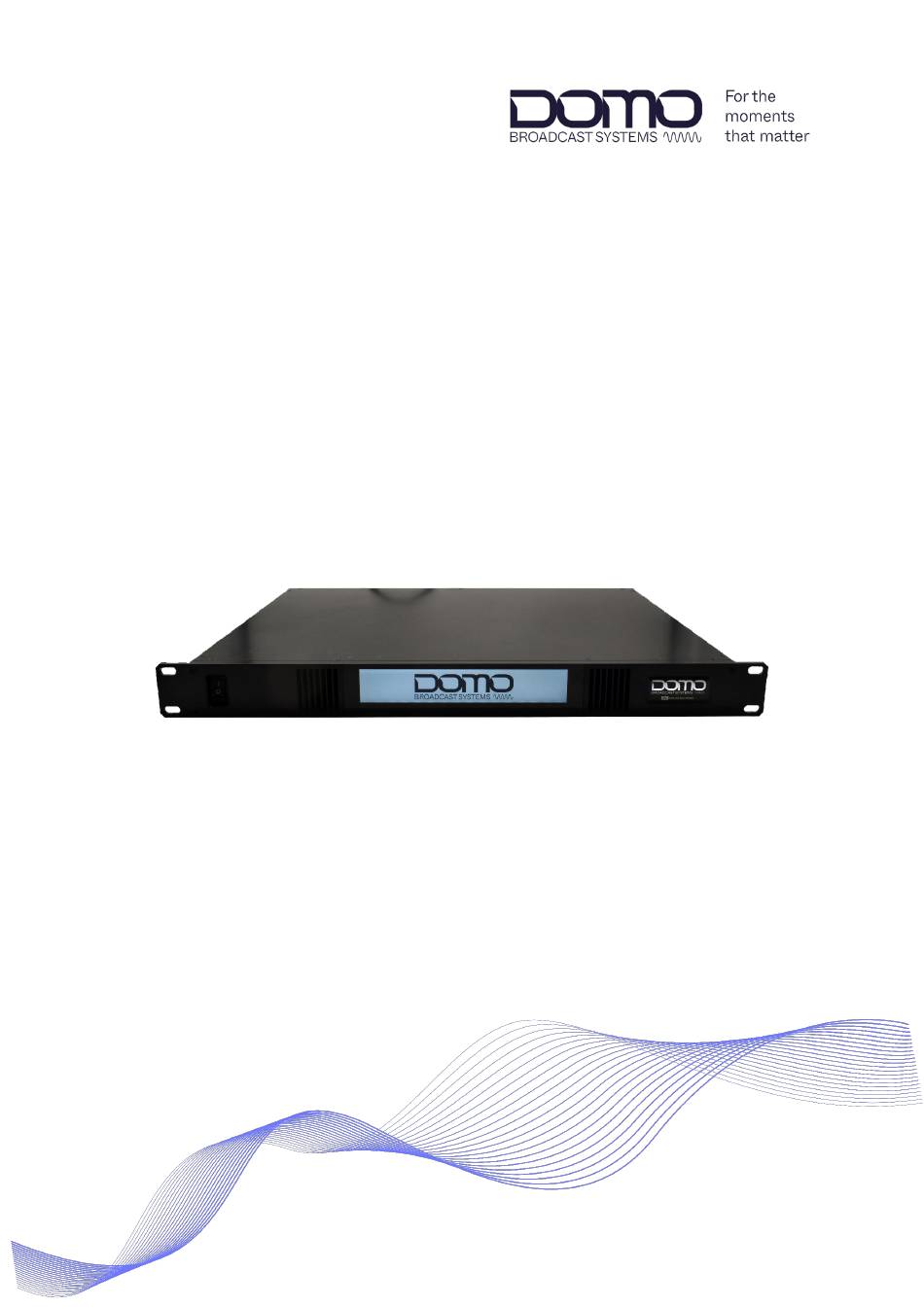

- Page 1 Resource Identifier: 100326 Revision 1.2 Onyx HEVC Encoder Setup Guide Commercial in Confidence...
-
Page 2: About This Document
Copyright This document contains information that is proprietary to Domo Tactical Communications (DTC) Limited trading as Domo Broadcast Systems (DBS). Any copying or reproduction in any form whatsoever is prohibited without the written permission of DTC. © 2023 Copyright Domo Tactical Communications (DTC) Limited. All rights reserved. -
Page 3: Table Of Contents
7. Appendix A: Reference Material ........... 7-32 How to Configure a PC IP Address ................... 7-32 Subnet with CIDR Values ....................7-33 Video Resolutions ......................7-33 Copyright © 2023 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 0-2 Commercial in Confidence... - Page 4 9. Appendix C: Safety and Maintenance .......... 9-35 Cautions and Warnings ..................... 9-35 Repairs and Alterations ..................... 9-35 Cleaning ..........................9-35 Caring for your Equipment ....................9-36 Storage ..........................9-36 Copyright © 2023 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 0-3 Commercial in Confidence...
-
Page 5: Product Overview
Dimensions 482mm x 352mm x 1RU Weight 2.9kg Note: Detailed technical specifications are given in the product datasheet. Please contact DBS for latest specifications. Copyright © 2023 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 1-1 Commercial in Confidence... -
Page 6: Related Documents
The equipment has been designed to meet and has been tested against harmonized EMC and safety standards. The CE Declaration of Conformity as well as the technical file are available on request. Copyright © 2023 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 1-2... -
Page 7: Product Package
Part Number Description LIC-4K-TX Enable 4K/UHD encoding LIC-BISS1-ENC Enable BISS 1 encryption LIC BISS2-ENC Enable BISS 2 encryption LIC-JPEG2K-XS-ENC Enable JPEG-XS encoding Copyright © 2023 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 2-3 Commercial in Confidence... -
Page 8: Hardware
This label notifies users of the dangers from electrical shocks. Disconnect all power sources. This label notifies users to disconnect all power sources to avoid the risks from electrical shocks. Copyright © 2023 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 3-4 Commercial in Confidence... -
Page 9: Installation Guidelines
CAUTION: There are air vents on the front and side panels to aid cooling of internal components. Please take care not to obstruct these vents to avoid overheating of the device. Copyright © 2023 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 3-5... -
Page 10: Front Panel
IP configuration and video/audio monitoring. Note: The web user interface should be used for detailed configuration of the Onyx IP Encoder. Copyright © 2023 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 3-6 Commercial in Confidence... -
Page 11: Rear Panel
Serial data interface. See Section 3.6.1 for pinout. High density BNC (female) ASI video output. High density BNC (female) Genlock input for studio synchronisation. Copyright © 2023 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 3-7 Commercial in Confidence... -
Page 12: Pinout
Note: RS232 2 settings are configurable in the web interface Serial page. RS232 1 can be used as a console interface for controlling the unit using MASH-CLI, the settings are fixed but can be viewed in the web interface. Copyright © 2023 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 3-8 Commercial in Confidence... -
Page 13: Getting Started
90s to boot-up, indicated when the front panel display becomes active. See typical initial setup connections below. Copyright © 2023 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 4-9 Commercial in Confidence... -
Page 14: Ip Address Identification
Double-click the Device Finder executable to open the application. All DBS devices attached to the network will be detected. Click Open to initialise communications with your PC’s default web browser. Copyright © 2023 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 4-10... - Page 15 The IP settings can be edited by pressing the Current Gateway parameter. IP addresses must be entered in CIDR notation, see description in Section 4.3.2. Copyright © 2023 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 4-11 Commercial in Confidence...
-
Page 16: Ipv6 Address
Alternatively, the IPv6 address can be discovered from Windows Powershell by entering the command: Get-NetNeighbor -IPAddress FE80* The IP address for the Onyx must have a Reachable state. Copyright © 2023 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 4-12 Commercial in Confidence... -
Page 17: Open The Web Interface
The presentation of the web page will differ depending on the browser application; the following example is Google Chrome. Click on Advanced to proceed. Copyright © 2023 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 4-13 Commercial in Confidence... - Page 18 Click Proceed to <ip_address> (unsafe) to open the web user interface. The browser will indicate that the site is connected by HTTPS but is not secure. Copyright © 2023 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 4-14 Commercial in Confidence...
- Page 19 192.168.0.15/24, where the first 24-bits of the IP address are masked. See Section 7.2 for a table of subnets mapped to CIDR values. Click Apply to activate a running config and Save to retain. Copyright © 2023 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 4-15 Commercial in Confidence...
-
Page 20: Web Browser Overview
The Home page provides a dashboard of information relating to currently active configurations. There are shortcuts to Config pages (red circle) or Status pages (orange circle). Copyright © 2023 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 5-16 Commercial in Confidence... -
Page 21: Status
Menus can be expanded or collapsed using the arrows adjacent to the header of each parameter. Note: It may be useful to open the Help (?) menu for descriptions of settings. Copyright © 2023 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 5-17... -
Page 22: Config
Note: Categories on the left panel marked with a save icon , indicate that they have been applied but not saved. To carry out a global save, go to the Manage>Config page. Copyright © 2023 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 5-18 Commercial in Confidence... -
Page 23: Command
Menus can be expanded or collapsed using the arrows adjacent to the header of each parameter. Note: It may be useful to open the Help (?) menu for descriptions of settings. Copyright © 2023 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 5-19... -
Page 24: Manage
CAUTION: If performing a firmware upgrade, please ensure the correct upgrade files are being applied according to the hardware, i.e., touchscreen encoders have touchscreen firmware. Copyright © 2023 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 5-20 Commercial in Confidence... -
Page 25: Basic Operation
Only settings for the Onyx IP Encoder are explained, it is assumed that the inputs to the system are provided. Copyright © 2023 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 6-21 Commercial in Confidence... -
Page 26: Video Input
SDI video input. Depending on the video input, it may be necessary to configure SDI settings. For a single video input this should not necessary. Copyright © 2023 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 6-22 Commercial in Confidence... - Page 27 Onyx HEVC Encoder Setup Guide Video input lock can be verified on the front panel touchscreen and on the WUI Status and Home pages. Copyright © 2023 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 6-23 Commercial in Confidence...
-
Page 28: Ip Streaming
TS per IP The number of transport stream packets in each IP packet. Leave this at the default value of 7 unless an advanced user. Copyright © 2023 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 6-24 Commercial in Confidence... - Page 29 The time to live value limits how long data circulates in a system. Interface This will set the physical interface that the unicast is received on. Copyright © 2023 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 6-25 Commercial in Confidence...
- Page 30 Reserved for special well-known multicast addresses 224.0.1.0 238.255.255.255 Globally scoped (Internet-wide) multicast addresses 239.0.0.0 239.255.255.255 Administratively scoped (local) multicast addresses Table 6-1: Multicast Address Uses Copyright © 2023 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 6-26 Commercial in Confidence...
- Page 31 The delay ca be adjusted to account for dropped packets. The delay will depend on the round-trip time (RTT) and the packet loss. This is advised in the web page help guide. Copyright © 2023 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 6-27 Commercial in Confidence...
- Page 32 The streaming input and output status can be monitored in the Status>IP Streaming page. Jitter and error count measurements are key performance indicators which can be corrected by adjusting Buffer Delay parameters in the setup. Copyright © 2023 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 6-28 Commercial in Confidence...
-
Page 33: Smpte 2022-7 Networks
Figure 6-1: Example SMPTE 2022-7 System Encoder Config>Network Settings The Stream A and Stream B ports for the Encoder and Decoder are configured as per Figure 6-1. Copyright © 2023 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 6-29 Commercial in Confidence... - Page 34 The encoder streams are both outputs and the streaming protocol must be RTP. In this example we are unicasting, therefore, the RTP address must point to the decoder. Copyright © 2023 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 6-30...
- Page 35 Adjust the Path Differential depending on the distance between the sources; buffer delay and path differential are explained in the WUI help guide and in Section 6.3.1. Copyright © 2023 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 6-31...
-
Page 36: Appendix A: Reference Material
The IP address range given in this example is a good one to use if you are unsure. Figure 7-1 How to configure a PC IP address Copyright © 2023 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 7-32... -
Page 37: Subnet With Cidr Values
Resolution 12G-SDI 2160p60, 2160p59.94, 2160p50 6G-SDI 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98 3G-SDI 1080p60, 1080p59.94, 1080p50 1.5G-SDI 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98 1080i60, 1080i59.94, 1080i50 Copyright © 2023 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 7-33 Commercial in Confidence... -
Page 38: Appendix B: After Sales Support
Mark the Box and Send to DBS Clearly mark the outside of the shipping box with the RMA number and send the box using your normal process. Copyright © 2023 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 8-34 Commercial in Confidence... -
Page 39: Appendix C: Safety And Maintenance
Do not immerse the unit in water to clean it If the unit becomes wet, immediately dry it with a microfiber or other lint-free cloth Copyright © 2023 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 9-35 Commercial in Confidence... -
Page 40: Caring For Your Equipment
Store units and battery packs in a cool, dry area at room temperature (22°C) Do not store units and/or batteries in active chargers Copyright © 2023 Domo Tactical Communications (DTC) Limited. All rights reserved. Page 9-36 Commercial in Confidence...
