Eurotronic ET Home Link DHA-263 Operating Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Gateway
ET Home Link DHA-263
OPERATING INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ET Home Link DHA-263 and is the answer not in the manual?

Questions and answers

Summary of Contents for Eurotronic ET Home Link DHA-263

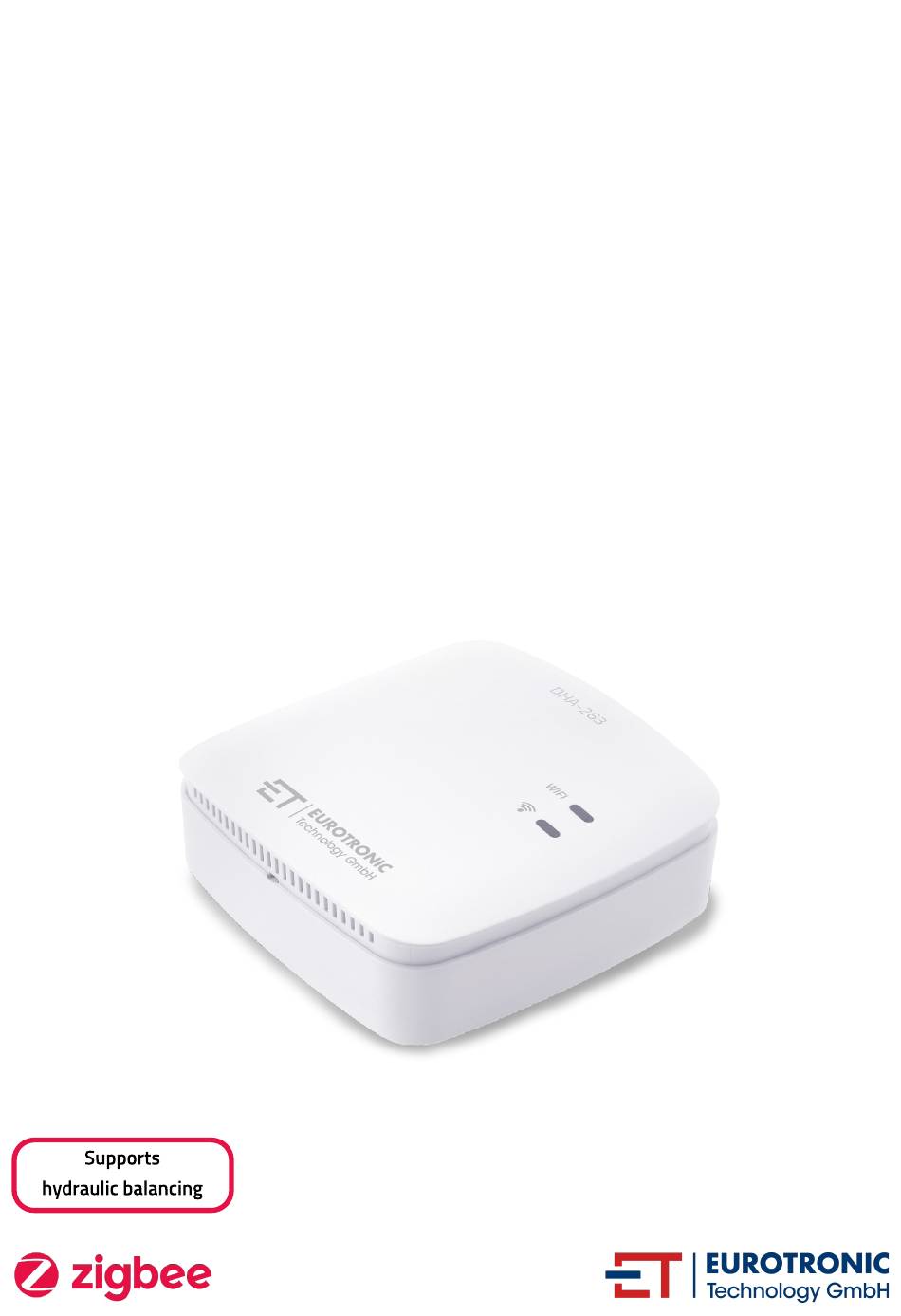

  • Page 1 Gateway ET Home Link DHA-263 OPERATING INSTRUCTIONS...

  • Page 2: Legal Notice

    LEGAL NOTICE Operating Instructions Gateway ET Home Link DHA-263 Manufacturer Status 2024.10 Version 1.0 / EN EUROtronic Technology GmbH Südweg 1 36396 Steinau-Ulmbach Germany www.eurotronic.org Publisher Ingenieurbüro FORMAT GmbH Ebertstraße 80 26382 Wilhelmshaven Germany www.format-docu.de Legal Information All brand names and trademarks mentioned in this document and protected by third-party rights, are sub- ject without restriction to the provisions of the applicable trademark law and the ownership rights of the respective registered owners.

  • Page 3: Table Of Contents

    This operating instruction manual provides assistance for starting up and using the ET Home Link DHA- 263. Read these operating instructions carefully before using the ET Home Link DHA-263. Keep this operating manual in a safe place and hand over all documents when passing the equipment on to third parties.
  • Page 4 ET Home Link DHA-263 Appendix ............... . 43 Technical Data .

  • Page 5: Safety Information

    ET Home Link DHA-263 Safety Information SAFETY INFORMATION In addition to the safety information in these operating instructions, all other available sources must also be observed. The areas of use defined in the written explanations of the intended use must be observed.

  • Page 6: Warnings

    ET Home Link DHA-263 Safety Information WARNINGS When operating your ET Home Link DHA-263 and its components, risks may arise that can be avoided by observing the following warnings. WARNING! Danger of electric shock! Improper handling of the product can lead to injuries.
  • Page 7 Do not operate the device if it is damaged. Î IMPORTANT! Material damage and malfunction possible! Damaged components and/or malfunctions prevent the device from working properly. If material damage and/or malfunctions occur, contact the Customer Service of Eurotronic Î Technology GmbH.

  • Page 8: Scope Of Delivery

    1× ET Home Link DHA-263 gateway • 1× power cable • 1× Quick Guide IMPORTANT! Material damage and malfunction possible! Damaged components and/or malfunctions prevent the device from working properly. If material damage and/or malfunctions occur, contact the Customer Service of Eurotronic Î Technology GmbH.

  • Page 9: Overview

    Use the ET HomeLink app for configuration purposes. Development and production are 100% "Made in Germany", which guarantees premium quality and technology. These operating instructions will help you to get your ET Home Link DHA-263 up and running quickly and easily.

  • Page 10: Controls And Display Elements

    ET Home Link DHA-263 Controls and Display Elements CONTROLS AND DISPLAY ELEMENTS The following section describes the controls and display elements of the gateway. Wi-Fi Zigbee Wi-Fi LED NFC contact surface ZigBee LED Micro USB port Reset button (on the rear side)

  • Page 11: Display Elements

    ET Home Link DHA-263 Controls and Display Elements DISPLAY ELEMENTS WI-FI LED Status Colour Function Configuration mode is active. The gateway Configuration mode Flashes green/yellow can be added to the app. Establishing a con- Flashes green/yellow 2× The gateway is connecting to the server.

  • Page 12: Putting Into Operation

    ET Home Link DHA-263 Putting into Operation PUTTING INTO OPERATION The connection process of ZigBee devices is referred to as "inclusion". The disconnection process is referred to as "exclusion" Both processes must be initiated by the gateway. Behaviour in the ZigBee Network The gateway serves as a base for the ZigBee network in order to communicate with other ZigBee certified devices and/or applications from other manufacturers.

  • Page 13: Installing The App Et Homelink App

    ET Home Link DHA-263 Putting into Operation INSTALLING THE APP ET HOMELINK APP Download the ET HomeLink app from Google Play (Android) or the App Store (iOS). Install the app on your smartphone. System requirements: Android from version 6.0 iOS from version 13...

  • Page 14: Connect The Gateway With The App

    ET Home Link DHA-263 Putting into Operation CONNECT THE GATEWAY WITH THE APP The following steps describe how to add your gateway to the app. 5.2.1 ADDING THE GATEWAY Tap on the button to add a new device. Tap on the Add ET Home Link button.

  • Page 15: Selecting Network

    ET Home Link DHA-263 Putting into Operation 5.2.2 SELECTING A NETWORK The WiFi network to which your smartphone is connected is automatically displayed. If necessary, you can integrate the gateway in another Wi-Fi network. To do this, close the app and connect your smart- phone to the required Wi-Fi network.

  • Page 16: Connecting The Gateway To The Power Supply

    ET Home Link DHA-263 Putting into Operation 5.2.3 CONNECTING THE GATEWAY TO THE POWER SUPPLY Connect the gateway to a suitable power socket using the micro-USB cable and an appropriate USB power adapter, as illustrated. INFORMATION No USB power adapter is contained in the package supplied. Use an appropriate USB power adapter...

  • Page 17: Configuration Of The Gateway

    ET Home Link DHA-263 Putting into Operation 5.2.4 CONFIGURATION OF THE GATEWAY The gateway automatically switches to Configuration mode. When Configuration mode is activated, the ZigBee LED lights up green/yellow continuously and the Wi-Fi LED flashes green/yellow. INFORMATION If the LEDs indicate a different status, reset the gateway to its default factory settings (see  Sec- tion 5.6 Resetting the Default Factory Settings on Page 40) and repeat the process.
  • Page 18 ET Home Link DHA-263 Putting into Operation Tap on the Configuration mode required: NFC, continue with Section Configuring Using NFC on Page 19 WiFi, continue with Section ConfigurING using Wi-Fi on Page 21...
  • Page 19 ET Home Link DHA-263 Putting into Operation CONFIGURING USING NFC After selecting the NFC option, follow the subsequent instructions. The NFC function ("Near Field Commu- nication") enables compatible devices nearby to exchange data with each other by implementing wireless communication.
  • Page 20 ET Home Link DHA-263 Putting into Operation Wait until the configuration process has been completed. When the configuration process has been completed, tap on the Next button.
  • Page 21 ET Home Link DHA-263 Putting into Operation CONFIGURING USING WI-FI After selecting the Wi-Fi option, follow the subsequent instructions. The process differs according to the operating system (Android, iOS) used on your smartphone. The follow- ing instructions describe the procedure for Android.
  • Page 22 ET Home Link DHA-263 Putting into Operation Tap the Next button. Wait until the configuration process has been completed. When the configuration process has been completed, tap on the Next button.

  • Page 23: Concluding Configuration Of The Gateway

    ET Home Link DHA-263 Putting into Operation 5.2.5 CONCLUDING CONFIGURATION OF THE GATEWAY Assign an unambiguous name for your gateway. The name appears in the app. Tap the Save button. The gateway has been set-up and configured successfully. Î INFORMATION Information on connecting an energy-saving controller to the gateway is available in the respective operating manual.

  • Page 24: Operating The Et Home Link

    ET Home Link DHA-263 Putting into Operation OPERATING THE ET HOME LINK You can operate your gateway via the ET HomeLink app. Tap on the Gateway menu option. Tap on the tile of the gateway to open a detail view of the device with further information.
  • Page 25 ET Home Link DHA-263 Putting into Operation Tap on the Edit button to edit the details of your gateway. Tap on the Delete button to delete the gateway from the app. INFORMATION If you delete the gateway from the app, all the energy-saving controllers connected via the app (and other devices connected) are also deleted from the app.

  • Page 26: Operating An Energy-Saving Controller

    ET Home Link DHA-263 Putting into Operation OPERATING AN ENERGY-SAVING CONTROLLER A condition for operating an energy-saving controller via the gateway is that one or more energy-saving controllers are connected via the ET Home Link app. Information on connecting an energy-saving controller to the gateway is available in the respective oper- ating manual.

  • Page 27: Setting The Temperature In A Room

    ET Home Link DHA-263 Putting into Operation 5.4.1 SETTING THE TEMPERATURE IN A ROOM You can set the temperature for each room individually. After selecting a room, set the desired tempera- ture for the room or radiator. Tap on the desired room (e.g. office).
  • Page 28 ET Home Link DHA-263 Putting into Operation Make additional settings: Heating profile off: The menu displays all energy-saving control- The stored heating profile is not active. lers that are assigned to the current room. You Heating profile on: can define further settings for the selected The stored heating profile is active.

  • Page 29: Device Settings

    ET Home Link DHA-263 Putting into Operation 5.4.2 DEVICE SETTINGS The menu of a room (see  Section 5.4.1 Setting the Temperature in a Room on Page 27.) pro- vides access to all the energy-saving controllers assigned to a room. You have access to additional settings...

  • Page 30: Heating Profile

    ET Home Link DHA-263 Putting into Operation 5.4.3 HEATING PROFILE In the Heating profile menu, you set heating blocks with heating times for different days. You can set the temperature individually for each heating time. CREATING A HEATING PLAN Tap on the Heating plans menu option.
  • Page 31 ET Home Link DHA-263 Putting into Operation Tap on one or more rooms for which the heating profile is to apply. Tap the Next button. Enter a designation for the heating profile in the input field. Tap the Next button.
  • Page 32 ET Home Link DHA-263 Putting into Operation EDITING OR DELETING A HEATING PLAN Option: Tap on the Menu button. An additional menu appears. Î Tap on the Edit button to edit the details of the heating plan. Option: Tap on the Delete button to delete the heating plan.
  • Page 33 ET Home Link DHA-263 Putting into Operation Tap the heating profile to set the heating times: Set the target temperature for the selected Add a new heating time. switching point. Delete the selected heating time. Set the ending time of the selected heating time.

  • Page 34: Absence Plan

    ET Home Link DHA-263 Putting into Operation 5.4.4 ABSENCE PLAN Use the Away menu to define a holiday plan for a period of absence. You can set the temperature individ- ually for each switching point. Tap on the Away button.
  • Page 35 ET Home Link DHA-263 Putting into Operation Enter a name for the absence plan in the input field. Tap the Next button. Select a symbol for the absence plan. Tap the Save button.
  • Page 36 ET Home Link DHA-263 Putting into Operation Option: Tap on the Menu button. An additional menu appears. Î Tap on the Edit button to edit the details of the absence plan. Option: Tap on the Delete button to delete the absence plan.
  • Page 37 ET Home Link DHA-263 Putting into Operation Tap on the Away disabled/enabled button to set the heating times: Overview of which rooms should be assigned Save the settings. to the holiday plan. Activate/Deactivate the holiday plan. Set the Away temperature for the period of absence.

  • Page 38: Disconnecting The Zigbee Connection

    ET Home Link DHA-263 Putting into Operation DISCONNECTING THE ZIGBEE CONNECTION It may be necessary to disconnect the connection between your gateway and an energy-saving controller. Ensure that the following condition is fulfilled: • The batteries have been inserted in the energy-saving controller.
  • Page 39 ET Home Link DHA-263 Putting into Operation Tap on the Delete button. The connection to your gateway has been disconnected. Î PA appears in the display of the energy-saving controller. Î INFORMATION If Er appears in the display of the energy-saving controller, repeat the process.

  • Page 40: Resetting The Default Factory Settings

    ET Home Link DHA-263 Putting into Operation RESETTING THE DEFAULT FACTORY SETTINGS Should problems occur, it may help to reset the gateway to its default factory settings. Press and hold the Reset button on the rear side for 5 seconds.

  • Page 41: Troubleshooting

    ET Home Link DHA-263 Troubleshooting TROUBLESHOOTING Problems can occur with the gateway. In the case of problems, observe the information on the control lamps, see  Section 4.2 Display Elements on Page 11.

  • Page 42: Cleaning And Storage

    ET Home Link DHA-263 Cleaning and Storage CLEANING AND STORAGE Disconnect the gateway from the power supply if the gateway will not be used for a longer period. Store the gateway in a dry, dust-free location. IMPORTANT! Material damage possible! Improper handling of the device can lead to damage.

  • Page 43: Appendix

    ET Home Link DHA-263 Appendix APPENDIX The following sections contain information on technical data, customer service and other legal informa- tion. TECHNICAL DATA The list below contains the technical data : Designation ET Home Link DHA-263 700263 Article number EAN number...

  • Page 44: Support And Contact

    ET Home Link DHA-263 Appendix SUPPORT AND CONTACT You can contact us for technical support. We look forward to assisting you with your enquiry: Phone: +49-(0)-6667-91847-0 E-mail: support@eurotronic.org EUROtronic Technology GmbH Customer service: Südweg 1 36396 Steinau-Ulmbach Germany DISPOSAL INFORMATION Obtain information on the possibility of returning old devices to your dealer free of charge.

  • Page 45: Personal Data

    Delete all personal data from your user account in the ET HomeLink app before disposing of your gate- way. SIMPLIFIED DECLARATION OF CONFORMITY EUROtronic Technology GmbH hereby declares that the radio equipment type ET Home Link DHA-263 complies with Directive 2014/53/EU. The entire text of the EU Declaration of Conformity is available at address:https:/ /eurotronic.org/service/downloads...
  • Page 46 EUROtronic Technology GmbH Südweg 1 | 36396 Steinau-Ulmbach | Germany www.eurotronic.org...
