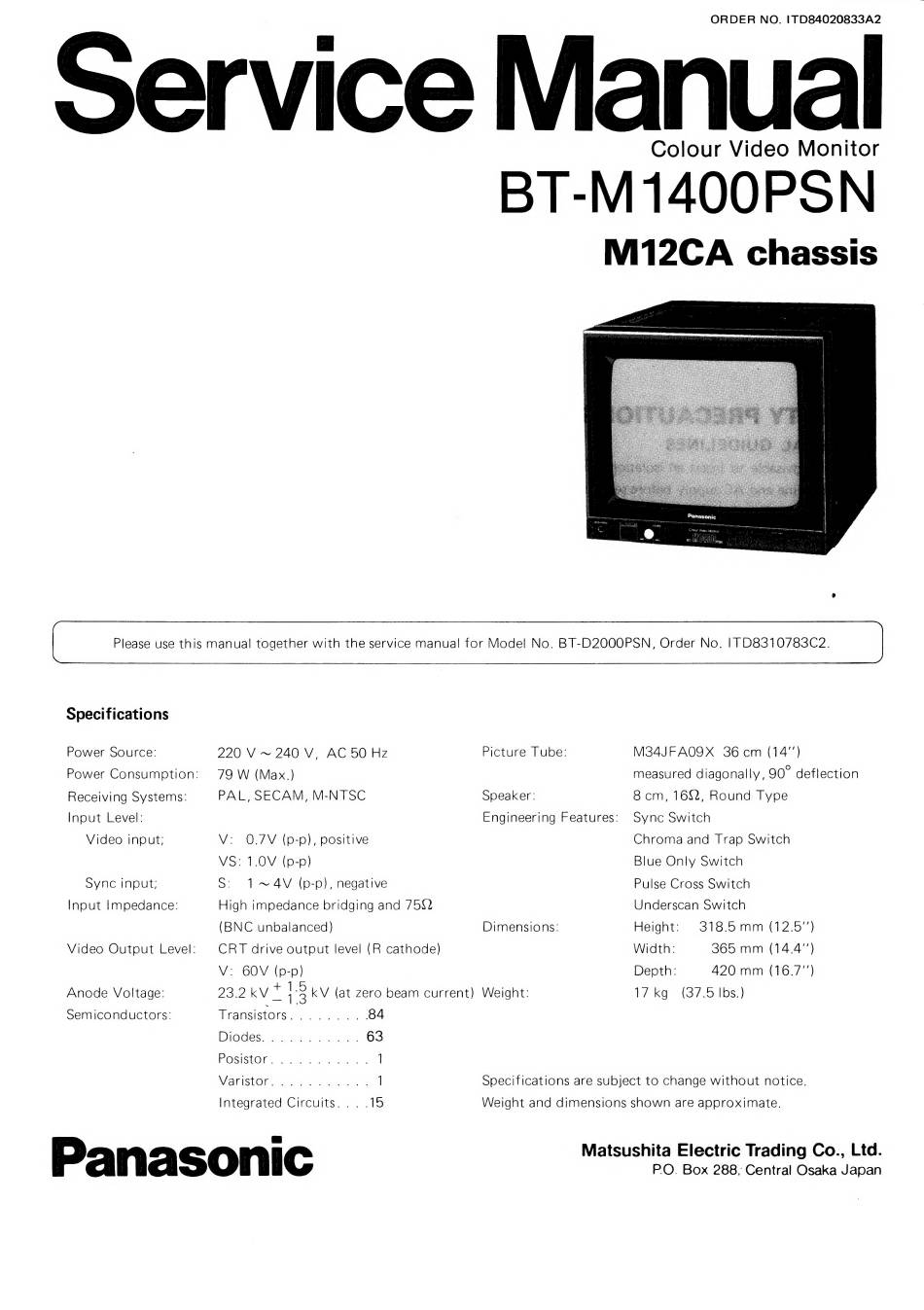

ORDER
NO. ITD84020833A2
Colour Video Monitor
BT-M1400PSN
M12CA
chassis
Please use this manual together with the service manual for Model No. BT-D2000PSN, Order No. |1TD8310783C2.
Specifications
Power Source:
Power Consumption:
Receiving Systems:
Input Level:
Video input;
Sync input;
Input Impedance:
Video Output Level:
Anode Voltage:
Semiconductors:
Panasonic
220 V~ 240 V, AC 50 Hz
Picture Tube:
79 W (Max.)
PAL, SECAM,
M-NTSC
Speaker:
Engineering Features:
V:
0.7V (p-p), positive
VS: 1.0V (p-p)
S:
1~A4V
(p-p), negative
High impedance bridging and 7522
(BNC unbalanced)
Dimensions:
CRT drive output level (R cathode)
V: 60V (p-p)
232 kV 7 2 kV (at zero beam current) Weight:
Transistors . piensa 84
DIOdeS.. ogee
a ae 63
EOSISLOL . oi yu.de
ee od
1
MEISCOM 6 te Bohs nr cert de oon
]
Integrated Circuits... .15
M34JFA09X
36 cm (14")
measured diagonally, 90° deflection
8cm, 1622, Round Type
Sync Switch
Chroma and Trap Switch
Blue Only Switch
Pulse Cross Switch
Underscan Switch
Height:
318.5 mm (12.5")
Width:
365 mm
(14.4")
Depth:
420 mm (16.7"')
17k
43725 lbs
Specifications are subject to change without notice.
Weight and dimensions shown are approximate.
Matsushita Electric Trading Co., Ltd.
P.O. Box 288, Central Osaka Japan
