Summary of Contents for Philips 223S9

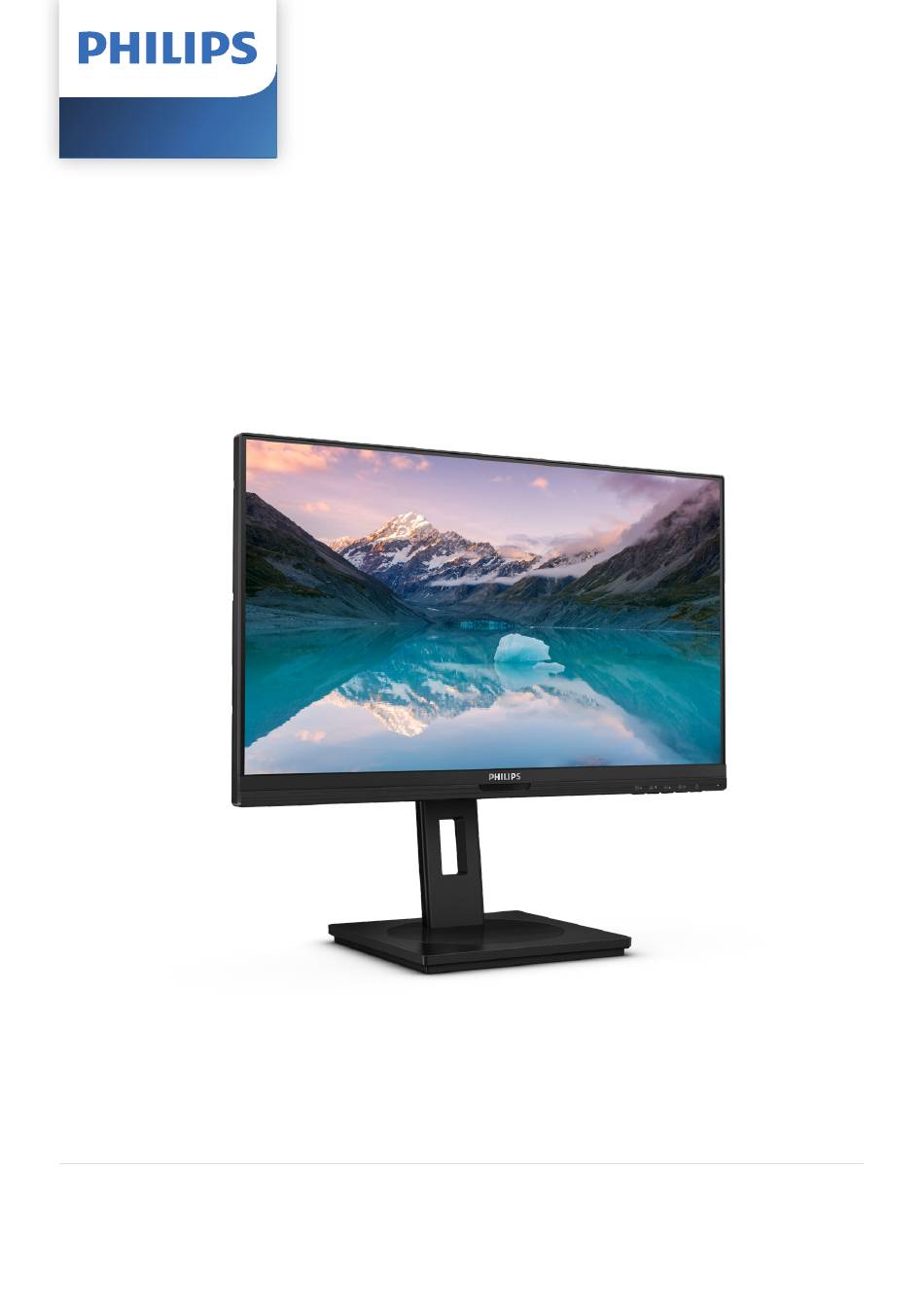

- Page 1 S Line 223S9 223S9AE User manual Customer care and warranty Troubleshooting and FAQs Register your product and get support at www.philips.com/welcome...
-
Page 2: Table Of Contents
6. Technical Specifications 15 6.1 Resolution & Preset Modes ..18 7 Power Management 19 8 Customer care and warranty 20 8.1 Philips’ Flat Panel Monitors Pixel Defect Policy ........ 20 8.2 Customer Care & Warranty ..23 9 Troubleshooting & FAQs 24 9.1 Troubleshooting ...... -
Page 3: Important
This electronic user’s guide is intended • When positioning the monitor, make for anyone who uses the Philips monitor. sure the power plug and outlet are Take time to read this user manual easily accessible. before you use your monitor. It contains •... - Page 4 workstation than longer breaks and dry cloth when the power is off. less often; for example a 5-10 minute However, never use organic solvent, break after 50-60-minute continuous such as, alcohol, or ammonia-based screen use is likely to be better than liquids to clean your monitor.
-
Page 5: Notational Descriptions
1.2 Notational Descriptions in” or “after-imaging” or “ghost imaging” will disappear gradually The following subsections describe over a period of time after the power notational conventions used in this has been switched off. document. Warning Notes, Cautions and Warnings Failure to activate a screen saver, or a periodic screen refresh application may Throughout this guide, blocks of text may result in severe “burn-in”... -
Page 6: Disposal Of Product And Packing Material
From the planning, design and production stages, Philips emphasizes the important of making products that can easily be recycled. At Philips, end-of-life management primarily This marking on the product or on entails participation in national take- its packaging illustrates that, under... -
Page 7: Setting Up The Monitor
Package contents Monitor S Line 223S9 223S9AE Quick Start ter your product and get support at www.philips.com/welcome 2. Hold the stand with both hands. (1) Gently attach the stand to the Screw and screwdriver M4 x 4 VESA mount area. - Page 8 Connecting to your PC Connect to PC 1. Connect the power cord to the back of the monitor firmly. 2. Turn off your computer and unplug its power cable. 3. Connect the monitor signal cable to the video connector on the back of Fast Charger your computer.
-
Page 9: Operating The Monitor
2.2 Operating the monitor Some select Philips displays may not Power or Charge your device when it Description of the control buttons enters to “Sleep/standby ” mode (White power LED blinking). In that case, please enter to OSD Menu and select “USB Standby Mode”, then, turn the function... - Page 10 LowBlue Mode 1, 2, 3, 4 What is On-Screen Display (OSD)? On-Screen Display (OSD) is a feature HDMI 1.4 Input in all Philips LCD monitors. It allows an DisplayPort USB C end user to adjust screen performance Auto On, O...
- Page 11 Resolution notification Height adjustment This monitor is designed for optimal performance at its native resolution, 1920 x 1080. When the monitor is powered on at a different resolution, an alert is displayed on screen: Use 1920 x 1080 for best results. Display of the native resolution alert can be switched off from Setup in the OSD (On Screen Display) menu.
-
Page 12: Remove The Base Assembly For Vesa Mounting
2.3 Remove the Base Assembly Note This monitor accepts a 100mm x 100mm for VESA Mounting VESA-Compliant mounting interface. Before you start disassembling the VESA Mounting Screw M4. Always monitor base, please follow the contact manufacturer for wall-mount instructions below to avoid any possible installation. -
Page 13: Image Optimization 11
Whether you're working There are multiple selections: EasyRead, with text applications, displaying images Office, Photo, Movie, Game, Economy, or watching a video, Philips SmartImage LowBlue Mode, Off. delivers great optimized monitor performance. Why do I need it? ... -
Page 14: Smartcontrast
• Off: No optimization by SmartImage. Note Philips LowBlue mode, mode 2 compliance with TUV Low Blue Light certification, you can have this mode by simply press the hotkey , then press to select LowBlue Mode, see above SmartImage selection steps. -
Page 15: Adaptive Sync 13
4 Adaptive Sync AMD Radeon R7 260X • AMD Radeon R7 260 • ■ Processor A-Series Desktop and Mobility APUs Adaptive Sync AMD A10-7890K • AMD A10-7870K • PC gaming has long been an imperfect AMD A10-7850K • experience because GPUs and monitors update at different rates. -
Page 16: Designs To Prevent Computer
• Reposition your screen to appropriate height and angle syndrome (CVS) according to your height. 4. Choose Philips monitor for easy-on- Philips monitor is designed to prevent eyes. eye strain caused by prolonged computer use. • Anti-glare screen: Anti-glare... -
Page 17: Technical Specifications 15
6 Technical Specifications Picture/Display Monitor Panel Type IPS Technology Backlight W-LED Panel Size 21.5" W (54.6 cm) Aspect Ratio 16:9 Pixel Pitch 0.24795 (H) mm x 0.24795 (V) mm Contrast Ratio(typ.) 1000:1 Native Resolution 1920 x 1080 @ 60 Hz Maximum Resolution 1920 x 1080 @ 75 Hz Viewing Angle... - Page 18 Other Convenience VESA mount (100 x 100 mm), Kensington Lock Plug & Play Compatibility DDC/CI, sRGB, Windows 11/10 , Mac OS X Stand Tilt -5 / +25 degree Swivel -180 / +180 degree Height adjustment 130mm Power AC Input Voltage AC Input Voltage AC Input Voltage Consumption...
- Page 19 ROHS Packaging 100% recyclable Specific Substances 100% PVC BFR free housing Cabinet Color Black Finish Texture Note The data mentioned in this section is subject to change without notice. Go to www. philips.com/support to download the latest version of leaflet.
-
Page 20: Resolution & Preset Modes
31.47 640 x 480 59.94 always ensure that your graphic card is capable of achieving the maximum 35.00 640 x 480 66.67 resolution and refresh rate of this Philips 37.86 640 x 480 72.81 display. 37.50 640 x 480 75.00 35.16... -
Page 21: Power Management 19
7 Power Management If you have VESA DPM compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse or other input device is detected, the monitor will 'wake up' automatically. -
Page 22: Customer Care And Warranty 20
Pixel Defect Policy pixels of other colors. Philips strives to deliver the highest Types of Pixel Defects quality products. We use some of the Pixel and sub pixel defects appear on the industry's most advanced manufacturing screen in different ways. - Page 23 Black Dot Defects the warranty period, a TFT Monitor panel Black dot defects appear as pixels or sub in a Philips flat panel monitor must have pixels that are always dark or 'off'. That is, pixel or sub pixel defects exceeding the a dark dot is a sub-pixel that stands out tolerances listed in the following tables.
- Page 24 BRIGHT DOT DEFECTS ACCEPTABLE LEVEL 1 lit subpixel 2 adjacent lit subpixels 3 adjacent lit subpixels (one white pixel) Distance between two bright dot defects* >15mm Total bright dot defects of all types BLACK DOT DEFECTS ACCEPTABLE LEVEL 1 dark subpixel 3 or fewer 2 adjacent dark subpixels 2 or fewer...
-
Page 25: Customer Care & Warranty
Please contact our Philips Customer Service Representative or local contact center (by Consumer care number) for more details. Philips Customer Care Center number listed below. -
Page 26: Troubleshooting & Faqs 24
The Auto Function is not applicable in be corrected by a user. If the problem DVI-Digital mode as it is not necessary. still persists after you have tried these solutions, contact Philips customer service Visible signs of smoke or sparks representative. •... - Page 27 For further assistance, refer to the Service turned off. contact information listed in Important • Uninterrupted display of still or static information manual and contact Philips images over an extended period may customer service representative. cause "burn-in", also known as "after- * Functionality different according to imaging"...
-
Page 28: General Faqs
Shut down your computer, monitor, make sure that there is disconnect your old monitor and no pressure or force applied to reconnect your Philips LCD monitor. the panel surface side. This may • Turn on your monitor and then turn affect your warranty conditions. - Page 29 The any PC, workstation or Mac? damage mentioned above is not covered under your warranty. Ans.: Yes. All Philips LCD monitors are fully compatible with standard Q12: Why is my Display not showing PCs, Macs and workstations.
- Page 30 Q14: Where can I find Important Information manual mentioned in EDFU? Ans.: Important Information manual can be download on the Philips website support page.
- Page 31 This product has been manufactured by and is sold under the responsibility of Top Victory Investments Ltd., and Top Victory Investments Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V.
