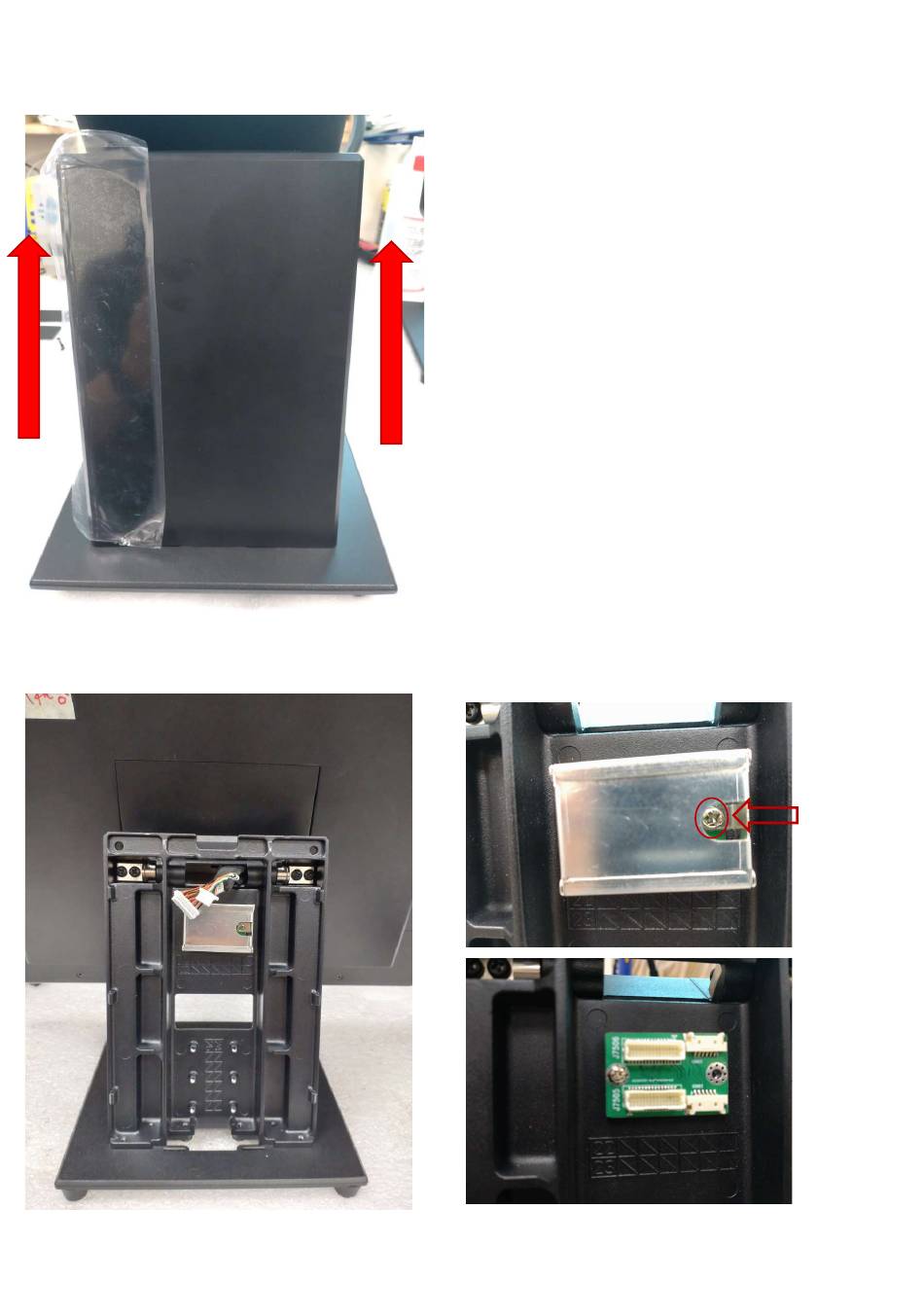

- Page 1 WP9690 Tiger Lake maintenance manual 1. Push up the back cover of the base and take it off 2. Loosen the screws and remove the iron parts and unplug the cables...
- Page 2 3. Loosen the screws and remove the base 4. Remove the cover on the left and right sides...
- Page 3 5. Use a blade to remove the mylar sheet 6. Loosen two screws...
- Page 4 7. Loosen eight screws 8. Open the back cover...
- Page 5 9. Replace motherboard Unplug J_USB1, J_USB2, J_USB3 Unplug EDP2, J_USB4, EDP1 Unplug JSPK1, JSPK2...
- Page 6 Loosen 4 screws Pick up motherboard , and replace a new motherboard Remove the EMI Gasket to the new motherboard...
- Page 7 10. Replace memory...
- Page 8 11. Replace M.2 Drive Loosen the screw , and pick up M.2 Drive 12. Replace LCD + Touch Panel module Remove all tap and cable...
- Page 9 Remove two speakers Loosen two screws Loosen two screws Remove EDP Cable Remove tap Remove EDP cable...
