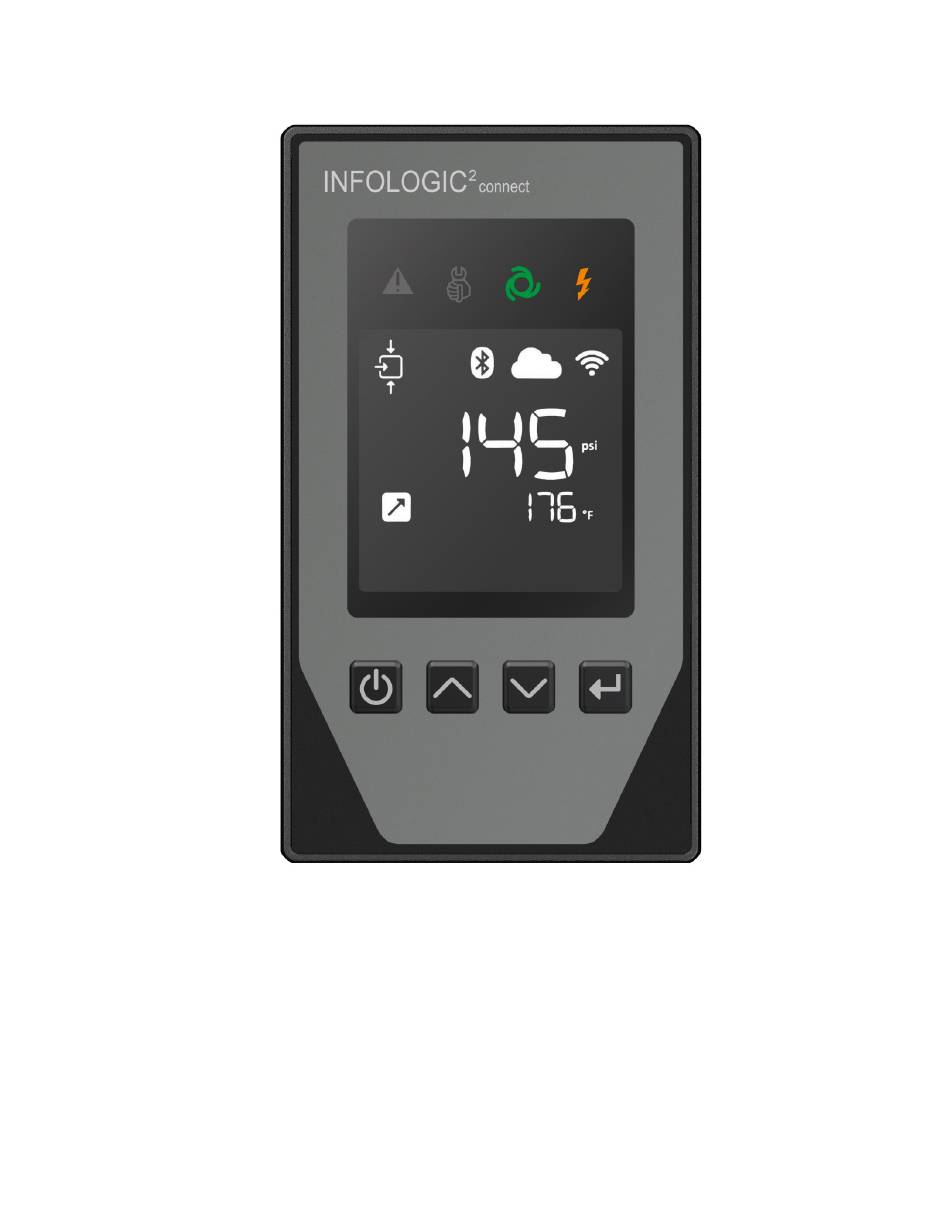

Page 1 INFOLOGIC Connect Instruction book Oil-injected screw compressors Controller...
Page 2: Table Of Contents
Instruction book Table of contents Controller functions ......................3 Control panel ........................6 Icons used ..........................7 Main screen .......................... 9 Warning ..........................10 Shutdown ........................... 12 Service warning ......................... 16 Remote control ........................17 Scrolling through screens ....................18 Calling up/modifying main screen .........
Page 3: Controller Functions
Instruction book Controller functions Figure 1: Controller Introduction The Connect controller has the following functions: • Controlling the unit • Protecting the unit • Monitoring components subject to service • Automatic restart after voltage failure (ARAVF) • Integrated connectivity (Bluetooth 4.2, Wi-Fi 802.11 b/g/n or Ethernet RJ45) Automatic control of the unit The controller maintains the net pressure between programmable limits by automatically loading and unloading the unit.
Page 4 Instruction book Warning: A number of time based automatic start/stop commands may be programmed. Take into account that a start command will be executed (if programmed and activated), even after manually stopping the unit. Protecting the unit Shutdown If the outlet element temperature exceeds the programmed shutdown level, the unit will be stopped. This will be indicated on the display of the controller.
Page 5 Instruction book Automatic restart after voltage failure (ARAVF) The machine is designed to not lead to hazardous situations after a power voltage failure (according to safety standards). However, if required, the ARAVF function can be activated in the Smartphone App (see section Connectivity-Smartphone App). This function, when enabled, will automatically restart the unit when the voltage is restored after voltage failure.
Page 6: Control Panel
Instruction book Control panel Figure 3: Control panel Reference Designation Function Shows the unit operating condition and a number of Display icons to navigate through the menu. Flashes in case of a shutdown, Warning sign is lit in case of a warning condition.
Page 7: Icons Used
Instruction book Icons used Status icons Icon Description Motor stopped Running unloaded Running loaded Remote Machine Control Mode, active Automatic Restart After Voltage Failure, active Emergency stop Main motor Element outlet temperature Units of pressure, outlet Units of temperature, outlet Dryer Units of dryer LAT temperature (Low ambient temperature)
Page 8 Instruction book Icon Description Multiply value x1000 Value in hours Value in seconds Fixed: Week timer, active Blinking: Waiting LAN cable connected Bluetooth connection Wi-Fi signal 100% Wi-Fi signal 75% Wi-Fi signal 50% Wi-Fi signal 25% Cloud connected Fixed: Over-the-air (OTA) update available Blinking: Over-the-air (OTA) update in progress Note: This chapter gives a general survey of available icons.
Page 9: Main Screen
Instruction book Main screen When the voltage is switched on, the first screen is a test screen. The next screen is the Main screen, shown automatically: The Main screen shows: • The unit status by means of pictographs • The air outlet pressure •...
Page 10: Warning
Instruction book Warning Description A Warning will appear in the event of: • Too high temperature at the outlet of the compressor’s element (TT90) • Too low temperature at the outlet of the compressor’s element (TT90) Compressor element outlet temperature (TT90) If the outlet temperature of the compressor's element exceeds the warning level warning (factory setting 110°C / 230°F) LED (2) will light up: Figure 4: Main screen with temperature outlet warning...
Page 11 Instruction book The related pictograph will appear flashing with temperature unit °C / °F icon. It remains possible to scroll through other screens, using the Scroll buttons up and down (6-7) to check the actual status of other parameters. Press button (7) to stop the compressor and wait until the compressor has stopped. Switch off the voltage, inspect the compressor and remedy.
Page 12: Shutdown
Instruction book Shutdown Description The unit will be shutdown in case of: • Outlet temperature exceeds the shutdown level, detected by temperature sensor (TT90) or temperature switches (TSHH11- TSHH21) • Error of the outlet pressure (PT20) /temperature sensor (TT90) • Outlet pressure too high •...
Page 13 Instruction book The related pictograph will appear flashing with temperature unit °C / °F icon. Press Scroll buttons (6-8) until the actual compressor element temperature appears. The screen shows that the temperature at the outlet of the compressor element is 117 ˚C. •...
Page 14 Instruction book Figure 8: Error on pressure and temperature sensor Compressor outlet pressure too high If the outlet pressure of the compressor exceeds the shutdown level (factory setting 1.5bar / 22psi over the maximum pressure of compressor) the compressor will be shutdown, alarm LED (2) will flash, automatic operation LED (4) will go out and the following screen will appear: Figure 9: High outlet pressure The unit of pressure bar/psi/MPa will appear flashing.
Page 15 Instruction book Motor overload In the event of motor overload, the compressor will be shutdown, alarm LED (2) will flash, automatic operation LED (4) will go out and the following screen will appear: Figure 10: Main screen with shutdown indication, motor overload •...
Page 16: Service Warning
Instruction book Service warning A service warning will appear when the service timer has reached the programmed time interval. If the service timer exceeds the programmed time interval, alarm LED (3) will light up. • Stop the unit, switch off the voltage and carry out the required service actions. See section Preventive Maintenance.
Page 17: Remote Control
Instruction book Remote control The unit can be commanded via external switches, this function is always activated. The unit can be commanded to start/stop via digital inputs. Note: Have the modifications checked by your supplier. Stop the unit and switch off the voltage before connecting external equipment.
Page 18: Scrolling Through Screens
Instruction book Scrolling through screens Scroll buttons (6-8) can be used to scroll through all screens. For most screens, the unit of measurement and the related pictograph are shown together with the screen number. Example: The screen shows the screen number P.SEt, the unit used bar and the related symbol for pressure unit.
Page 19: Calling Up/ Modifying Pressure Band Settings
Instruction book Calling up/ modifying pressure band settings Starting from the Main screen: • Press Scroll button (6-8) until P.SEt is shown on the display. Figure 13: Pressure setting screen • Press Enter button (9) to modify. 9828093646...
Page 20 Instruction book Figure 14: Starting/loading pressure changing • The pictograph shows starting/loading pressure and the value starts blinking. • Press Scroll button (6-8) to modify the starting/loading pressure and press enter button (9) to confirm. The unloading pressure on secondary row will update in consequence to have optimal pressure range.
Page 21: Calling Up Running Hours
Instruction book Calling up running hours Starting from the Main screen: • Press Scroll button (6-8) until HoUr is shown on the display. Figure 16: Running hours screen • Press Enter button (9). 9828093646...
Page 22: Calling Up Software Release
Instruction book Figure 17: Running hours value The screen shows the unit used (x1000 hrs) and the value (11.25): the running hours of the unit are 11250 hours. Calling up Software release Starting from the Main screen: • Press Scroll button (6-8) until SoFt is shown on the display. Figure 18: Software release screen •...
Page 23: Calling Up Bluetooth Pairing/ Discovery Mode
Instruction book Calling up Bluetooth pairing/ discovery mode For Bluetooth connectivity a paring with the device is necessary, see section Connectivity. This function is also a way to select the pair to the correct unit when multiple units are in the proximity. During the Bluetooth pairing, the controller generates and stores a random code.
Page 24: Advanced Menu
Instruction book Advanced menu To enter inside the advanced menu Press buttons (6) and (8) together. Advanced menu consists by following functions: Controller screens Designation Function See section Calling-up SEru Service mode Service mode See section Calling-up Screen tESt Screen Test Test See section Calling-up FACt...
Page 25: Service Mode
Instruction book Service mode Service mode can be only enabled/disabled physically on the controller, this function will allow to notify the customer on the App that the service has been started on the machine and when it will be finished. It will also prevent remote start/stop when a service technician is working on a machine. Once Service mode is active, it will not be possible to use any of the remote control functionalities like: •...
Page 26: Screen Test
Instruction book Screen test Starting from the Main screen: • Press buttons (6) and (8) together to enter inside advanced menu. • Press Scroll button (6-8) until tESt is shown on the display. • Use enter button (9) to confirm the screen test. The display now shows all icons that can be displayed: Figure 20: Test screen 9828093646...
Page 27: Calling Up Factory Reset
Instruction book Calling up factory reset This function restores the controller to original machine settings for pressure settings/units/starting. This parameter can only be modified after entering a password. Consult your supplier to use this function. Starting from the Main screen: •...
Page 28: Connectivity-Smartphone App
Instruction book Connectivity-Smartphone App The controller has been designed as a standalone Internet of Things (IoT) solution. As such it includes integrated connectivity, which allows you to monitor and control your unit by using just your smartphone. To enable this you just need the ICONS application and an internet connection for your unit. Download the ICONS application from the Play Store and App Store to get the full functionality of the unit.
Page 29 Instruction book Note: Have the modifications checked by your supplier. Stop the unit and switch off the voltage before connecting external equipment. Only potential-free contacts are allowed. In the App you will be able to change the settings of “Wi-Fi” or “Ethernet”, see App guidelines document.
Page 30 Instruction book OTA firmware update Over-the-air (OTA) firmware updates are remote updates that do not require a direct connection to the unit. These are only possible if the controller of the machine is connected to the internet, so make sure to connect your machine to be able to use this feature. The benefits of this feature are to keep a product updated with the latest software to ensure optimal functionality, add the ability to receive new firmware to support additional features.
Page 31 Instruction book With a timer schedule, you will not need to go every day to your unit to start and stop it. You will just need to specify a start and stop hour in the App. To active the function and set the timers you will need a Bluetooth connection with the unit, this is needed to send the information from the phone to the controller.
