Fungoo Maxi Funny Optimizer Installation Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
PLAYGROUND
SPIELPLATZ
(612 x 518 x h257cm)
003_08510_31052023

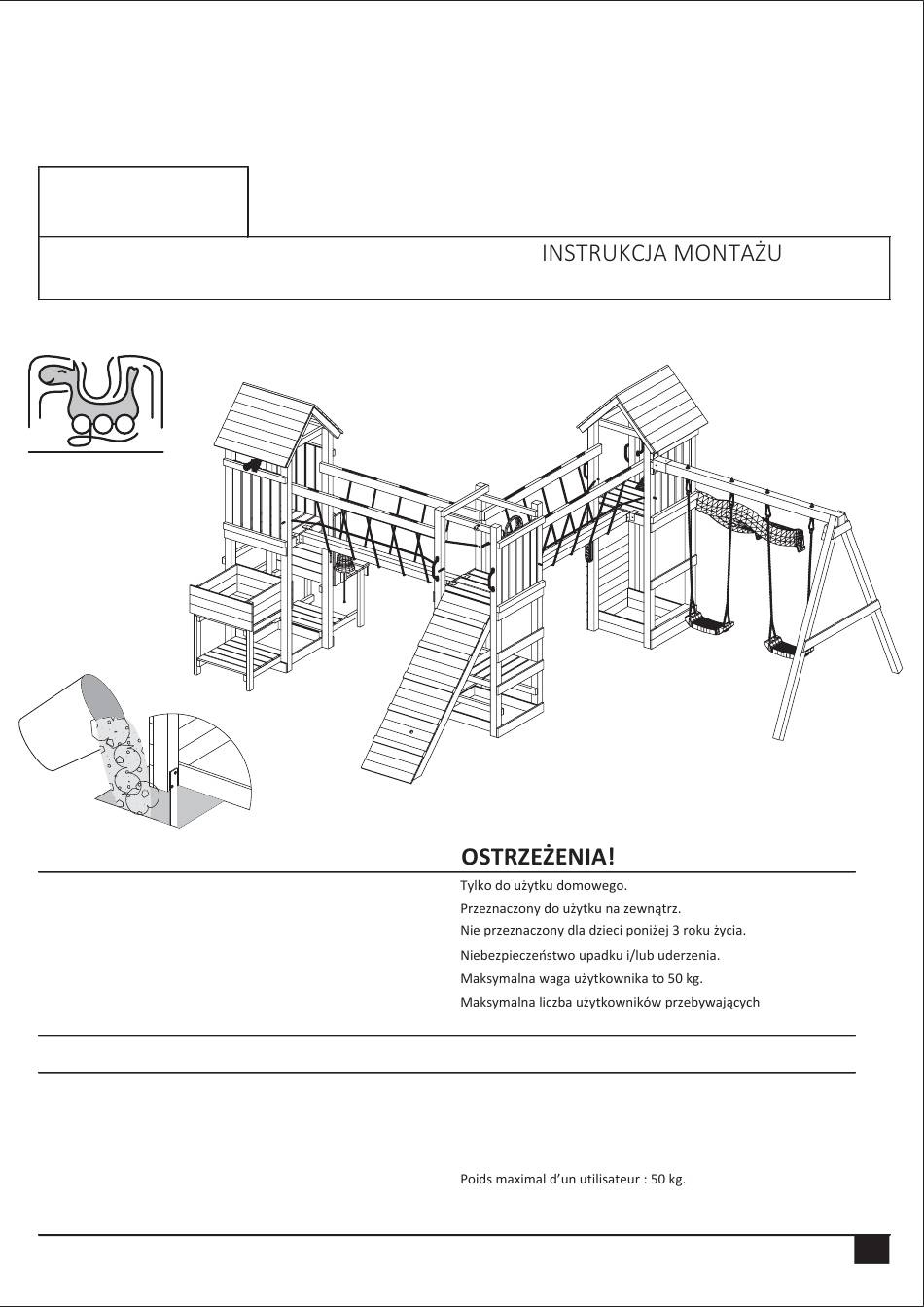

INSTALLATION INSTRUCTIONS
MONTAGEANLEITUNG
Warranty period - 2 years from purchase date
Garantiezeit - 2 Jahre ab Kaufdatum
fungoo
®
WARNINGS!
Only for home use.
Dedicated for external use only.
Not suitable for children under 3 years old.
Risk of falling down and/or hitting.
Maximum user weight is up to 50 kg.
Maximum number of users staying on the
playground at the same time: 15.
ACHTUNG!
Nur für den privaten, häuslichen Bereich.
Ausschließlich für die Verwendung im Freien.
Nicht geeignet für Kinder unter 3 Jahren.
Stolper- und / oder Sturzgefahr
Höchstgewicht pro Einzelkind beträgt 50 kg
Der Aufenthalt auf diesem Spielturm ist max. : 15.
Kindern gleichzeitig erlaubt.
Maxi Funny Optimizer
Maxi Funny Optimizer
PLAC ZABAW
AIRE DE JEUX
GUIDE D'INSTALLATION
Okres gwarancji - 2 lata od momentu zakupu towaru
Période de garantie - 2 ans à compter de l'achat
na placu zabaw w tym samym czasie: 15.
AVERTISSEMENT!
Aire exclusivement destinée à un usage privé.
Aire exclusivement destinée à un usage en extérieur.
Prévue pour les enfants de plus de 3 ans.
Danger de chute ou de choc.
Nombre maximal d'utilisateurs présents en
même temps sur la même aire de jeux: 15.
EN - 71
15
1
