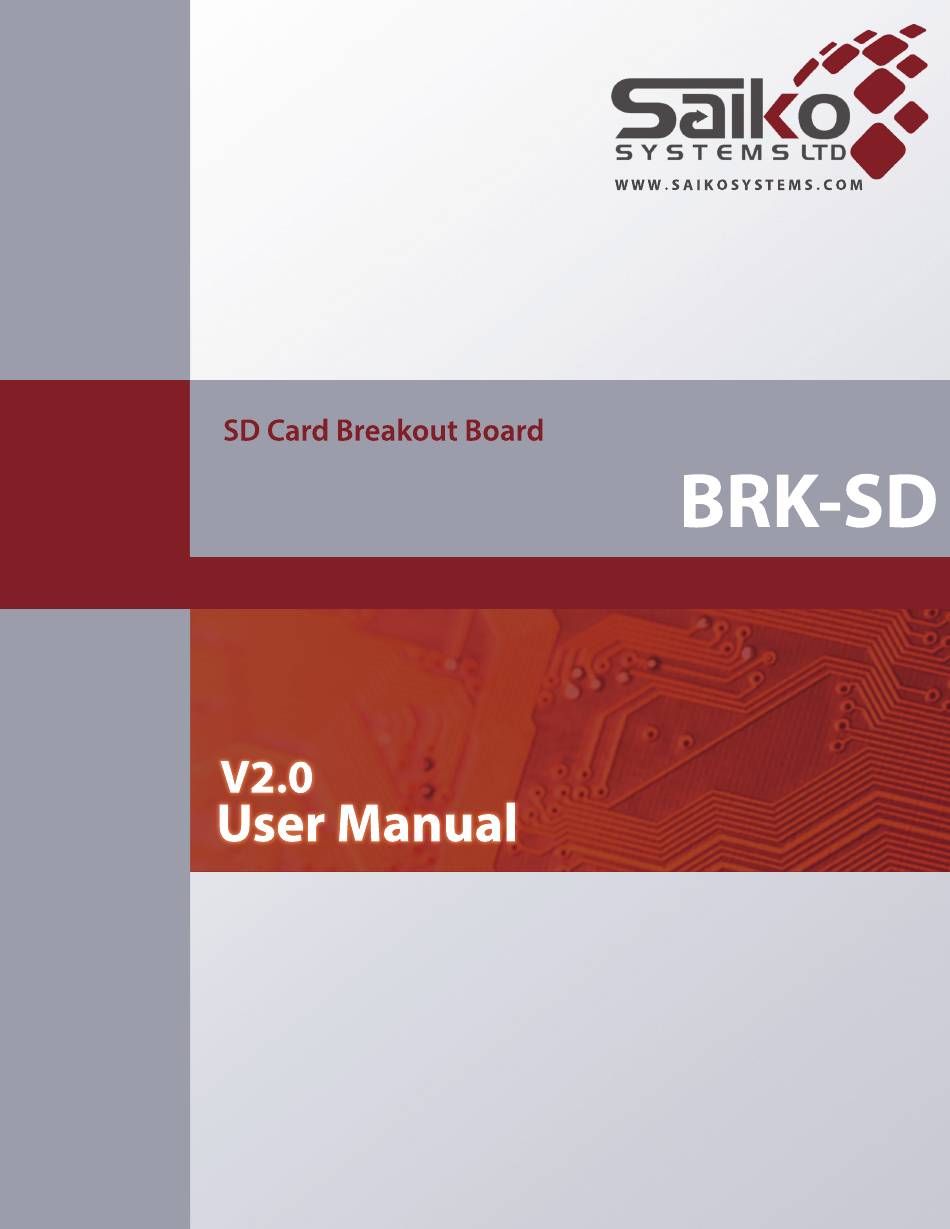

Summary of Contents for SAIKO BRK-SD
-
Page 2: Table Of Contents
BRK-SDv2.0 User Manual 2023 Table of Contents Chapter 1: Introduction ........................... 3 What to Expect ........................3 Ordering Information ....................... 4 Chapter 2: Getting Started ......................... 5 Unpacking ..........................5 Device Diagram & Dimensions ....................6 Chapter 3: Setup and Operation ......................7 Schematics .......................... - Page 3 Hard copies may be produced for personal use. Saiko Systems Ltd. products are not tested for use in life support or life critical devices. If this product is used for such applications, the developer/integrator/user agrees to perform further testing to ensure the reliability of the product in such applications.
-
Page 4: Chapter 1: Introduction
Chapter 1: Introduction 1.1 What to Expect The BRK-SD is a breakout board designed for interfacing standard Secure Digital (SD) Memory Card form factor devices (such as SD Memory Cards, SD Wireless cards, etc.). A standard 0.1” pitch, 10-pin header can be soldered to J2, allowing developers access to the SDIO signals. -
Page 5: Ordering Information
BRK-SDv2.0 User Manual 2023 1.2 Ordering Information Part Number Description BRK-SDv2.0 SD Card Breakout Board v2.0 All models can be ordered in bulk in retail packaging. Please contact us if retail packaging is required. -
Page 6: Chapter 2: Getting Started
BRK-SDv2.0 User Manual 2023 Chapter 2: Getting Started 2.1 Unpacking Please ensure that all necessary Electrostatic Discharge (ESD) precautions are taken before removing the product from its packaging. These may include touching a grounded object, using a grounded wrist strap, and using a grounded table mat to eliminate any stored static energy. -
Page 7: Device Diagram & Dimensions
BRK-SDv2.0 User Manual 2023 2.2 Device Diagram & Dimensions HDMI Type A Female Receptacle connector Indicator Function 0.1” I/O connector 3D Step models of products may be found online or by contacting support. -
Page 8: Chapter 3: Setup And Operation
BRK-SDv2.0 User Manual 2023 Chapter 3: Setup and Operation 3.1 Schematics 3.2 Mounting Holes Two plated mounting holes for use with 4-40 screws and standoffs. -
Page 9: Chapter 4: Technical Support & Warranty
Technical Support & Warranty 4.1 Technical Support If you run into any trouble with your Saiko Systems Ltd. product, or need further assistance than is provided in this User Manual or other resources, rest assured that we are here to help! The Saiko Systems Ltd. -
Page 10: Chapter 5: History
BRK-SDv2.0 User Manual 2023 Chapter 5: History Date Version Action 2/15/2023 Original Released...
