Summary of Contents for Bosche K30S

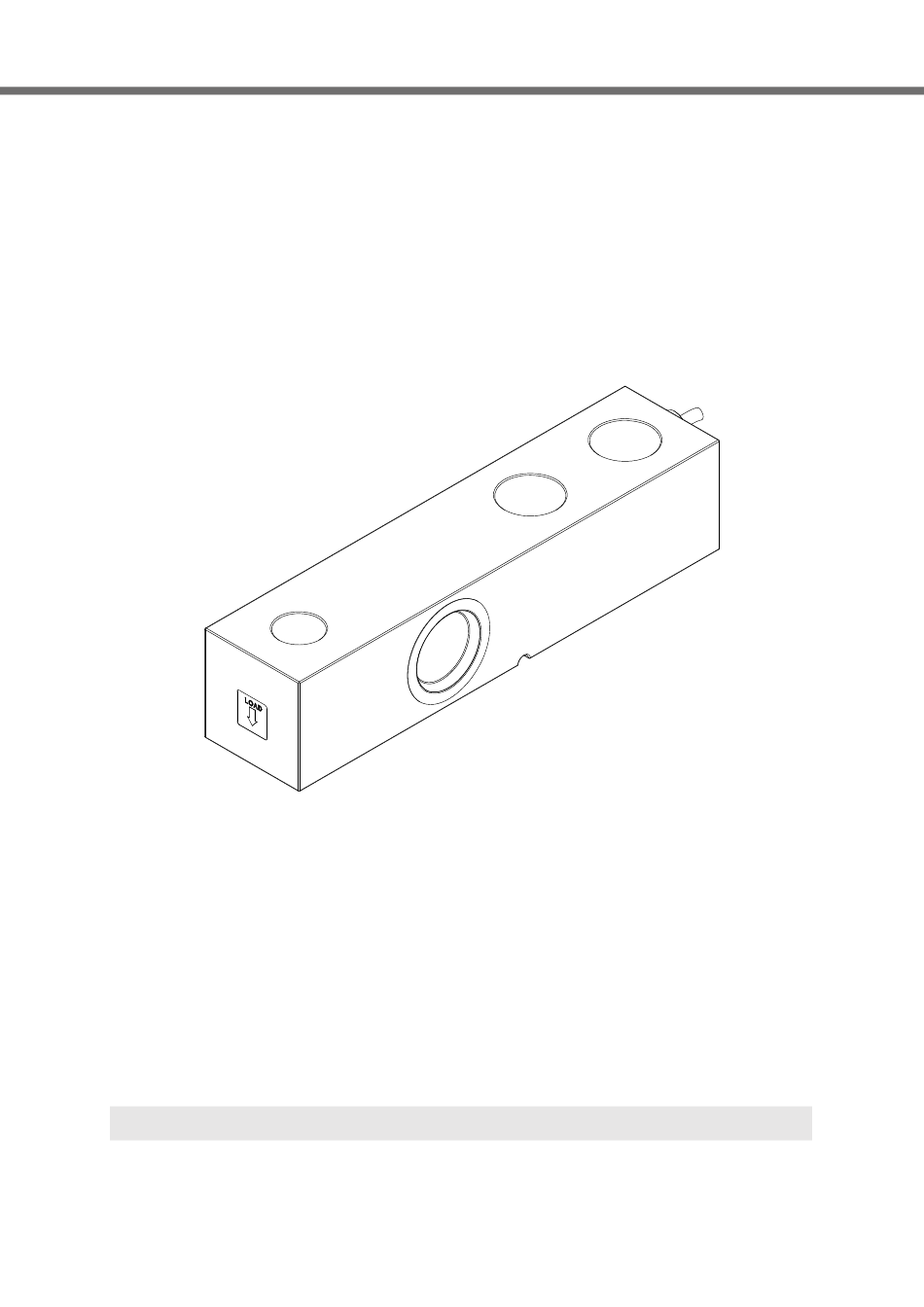

- Page 1 BOSCHE Shear beam load cell K30S / K30N Operating and Installation Manual - Translation of the original - (keep for future use) Status: 2025-02-10...
- Page 2 This manual has been created on: 2025-02-10 Copyright The Bosche GmbH & Co. KG company retains all rights for this document. Copying, disclosure to third parties or use of its contents are forbidden without our express approval © 2025...
- Page 3 Foreword Foreword These operating and installation manual provide you with detailed information about the Shear beam load cell K30S / K30N. It will instruct you on installation, connection and use. These instructions contain safety instructions to guarantee safe use. The manufacturer strives to improve their products on an ongoing basis. They reserve the right to carry out any and all modifications and improvements that they consider to be necessary.
-
Page 4: Table Of Contents
1.1.2 Safety symbols in this manual..............5 1.2 Intended use ....................5 1.3 Reasonably foreseeable misuse ..............6 1.4 Type and Information Labels on the shear beam load cell K30S / K30N..6 1.5 Obligations of the owner/user ................. 7 1.6 Obligations of the operator................8 1.7 Description of the dangers ................ - Page 5 Shear beam load cell K30S / K30N Table of contents 7 Technical data ....................26 7.1 Mechanical data .................... 26 7.2 Connection data .................... 27 7.3 Measuring range / Legal-for-trade..............27 7.4 Ambient conditions..................27 7.5 Metrological data of verifiable load cell ............28 7.6 Accessories....................
-
Page 6: Safety
• Danger to limb and life of operators, third persons and animals staying in the vicinity of the load cell. • Danger to the load cell and other assets of the owner/user • Danger to the efficient operation of the shear beam load cell K30S / K30N. Status: BOSCHE Weighing Systems... -
Page 7: Safety Symbols In This Manual
Intended use The shear beam load cell K30S / K30N is designed for installation in industrial scales (mechanical engineering, agriculture or similar application). Any further use is considered as not in accordance with the intended use. The manufacturer does not assume any liability for resulting damage. -
Page 8: Reasonably Foreseeable Misuse
Shear beam load cell K30S / K30N Reasonably foreseeable misuse Ensure that the shear beam load cell K30S / K30N is used exclusively in the prescribed load direction. Otherwise, measurement results may be distorted, and the load cell's lifespan may be affected. Avoid lateral forces as well as ben- ding and torsional moments. -
Page 9: Obligations Of The Owner/User
Shear beam load cell K30S / K30N Safety | 1 You will find signs at the following locations: (1) Prescribed load direction LO AD Obligations of the owner/user The owner/user obligates himself to only instruct people to work on the shear beam load cell K30S / K30N, who: •... -
Page 10: Obligations Of The Operator
• Do not change the contacts. • Do not continue operating the shear beam load cell K30S / K30N if it is damaged or experiencing a malfunction. • Do not operate the load cells in explosive environments (except for the corresponding ATEX versions). -
Page 11: Liability And Warranty
The BOSCHE company offers a restricted warranty for components, which became faulty due to strain or material faults. The warranty starts with the date of delivery. The BOSCHE company retains the right to repair or replace components. Repair work executed during the warranty period will not extend the period of warranty. -
Page 12: Description
Shear beam load cell K30S / K30N Description General The shear beam load cell K30S / K30N is used as a sensor in industrial scales (e.g. platform scales, floor scales, silo scales) to determine the weight of placed products. The shear beam load cell K30S is made of alloyed steel, nickel-plated. -
Page 13: Functionality
Shear beam load cell K30S / K30N Description | 2 Functionality The shear beam load cells K30S / K30N are designed for installation in industrial scales and are used for the precise weighing of the product loaded onto the scale. -
Page 14: Installation & Connection
Shear beam load cell K30S / K30N Installation, connection Control When the shear beam load cell K30S / K30N is delivered, check the packaging, the load cell and possible accessories for visible damage. Packaging and disposal Keep all parts of the original packaging for a possible return. -
Page 15: Connection
90° Attention Ensure that the shear beam load cell K30S / K30N is used exclusively in the prescribed load direction (see arrow on the load application face of the load cell). Otherwise, measurement results may be distorted, and the load cell's lifespan may be affected. - Page 16 3 | Installation, connection Shear beam load cell K30S / K30N Note For the operating instructions of the evaluation electronics, please refer to the separate documentation of the evaluation electronics. The following points must be observed during installation: • The support surfaces of the load cells must be coplanar (aligned in one plane) and sufficiently rigid.
-
Page 17: Connection
Shear beam load cell K30S / K30N Installation, connection | 3 • Never overload the load cell, even temporarily, as this can lead to permanent damage. • If necessary, seal the cable entry points of the junction box with a suitable sealing compound to prevent moisture ingress. -
Page 18: Electrical Connections
3 | Installation, connection Shear beam load cell K30S / K30N 3.4.3 Electrical connections The connection cable to the evaluation electronics is four-core, shielded as standard. An optional six-core connection cable is available. The cable cross-section should be selected according to the required cable length (between the junction box and the evaluation electronics). -
Page 19: Parallel Connection Of Multiple Load Cells
Shear beam load cell K30S / K30N Installation, connection | 3 3.4.4 Parallel connection of multiple load cells To connect multiple cells in parallel, a sealed junction box with a terminal board must be used if necessary. The extension connection cables of the load cells must be shielded, placed individually in cable ducts or pipes, and routed as far away as possible from the power cables. -
Page 20: Grounding Connection Of The Weighed Structure
3 | Installation, connection Shear beam load cell K30S / K30N 3.4.6 Grounding Connection of the Weighed Structure Step 1 Connect the upper mounting plate of each individual load cell to the corresponding lower plate of each load cell using a copper conductor of suitable cross-section. -
Page 21: Measures Against Lateral Displacement
Shear beam load cell K30S / K30N Installation, connection | 3 3.4.7 Measures against lateral displacement Attention Necessary measures must be taken to prevent lateral displacement and tipping, depending on impacts and vibrations, wind load, seismic classification, and ground conditions. -
Page 22: Operation
For the operation description of the evaluation electronics, the separate documentation of the evaluation electronics must be observed. Warm-up time The minimum warm-up time for the shear beam load cell K30S / K30N before starting the measurement (calibration) is approximately 20 minutes. Checking the load cells with a multimeter Note Using a load cell tester (available from Bosche Wägetechnik), check whether... -
Page 23: Test Of Load Cell Input (Quick Access) Via Resistance Measurement
Shear beam load cell K30S / K30N Operation | 4 4.3.1 Test of load cell input (Quick access) via resistance measurement • Turn off the load cell tester. • Disconnect the cells from the instrument and check whether the junction box shows any signs of moisture, which may indicate condensation or water ingress. -
Page 24: Dimensioning The Load Cell Nominal Load
4 | Operation Shear beam load cell K30S / K30N Dimensioning the load cell nominal load For safety reasons, it is recommended to use load cells at a maximum of 70- 80% of their rated capacity for dead load (static), assuming that the load is evenly distributed across the entire weighing system. -
Page 25: Troubleshooting | 5
Troubleshooting | 5 Troubleshooting In case of malfunction In the event of a malfunction, the shear beam load cell K30S / K30N does not function, or an error message appears on the evaluation electronics. Note For error messages of the evaluation electronics and troubleshooting/error correction of the evaluation electronics, refer to the documentation for the evaluation electronics. -
Page 26: Information Needed When Contacting Customer Service
Fill in the tables that are shown when you receive the shear beam load cell K30S / K30N so you can easily refer back to them at any time Always return defective load cells with a clear and detailed error description. -
Page 27: Maintenance, Care, Disposal | 6
However, contaminants on the load cells and accessories should be regularly removed as described in chapter 6.1. The shear beam load cell K30S / K30N may only be serviced by trained and authorized service technicians. If maintenance or welding work is required after installing the shear beam load cell K30S / K30N, it is essential to disconnect the connections from the evaluation electronics beforehand. -
Page 28: Technical Data
7 | Technical data Shear beam load cell K30S / K30N Technical data Mechanical data 2 x D3 Load [t] 0,5 bis 2 12,7 76,2 25,4 53,5 31,8 ø 13,5 ø 13 ø 20 M18 x 1,5 ø 20 3 - 5... -
Page 29: Connection Data
Shear beam load cell K30S / K30N Technical data | 7 Connection data + EXC + EXC + Sense + Signal + Signal – Sense – EXC – EXC – Signal – Signal four-core cable six-core cable Feature Value/Unit Recommended supply voltage U 10 to 12 V DC Max. -
Page 30: Metrological Data Of Verifiable Load Cell
7 | Technical data Shear beam load cell K30S / K30N Metrological data of verifiable load cell Value/Unit Feature K30S K30N Accuracy class according to OIML R60 Number of division values n 3.000 Nominal load E 1.000 bis 5.000 kg... -
Page 31: Accessories
Shear beam load cell K30S / K30N Technical data | 7 Accessories 7.6.1 Load foot LF-K30 Type LFK-K30-02500 M12 x 1,75 LF-K30-05000 M18 x 1,5 LF-K30-10000 M24 x 2 Dimensions in mm Status: BOSCHE Weighing Systems Page 29 2025-02-10... -
Page 32: Weighing Module K30-Me
7 | Technical data Shear beam load cell K30S / K30N 7.6.2 Weighing module K30-ME 194 12,5 18,9 100 62,5 Dimensions in mm Note The weighing module is not lift-proof! Status: BOSCHE Weighing Systems Page 30 2025-02-10... -
Page 33: Weighing Modulel K30-Ma
Shear beam load cell K30S / K30N Technical data | 7 7.6.3 Weighing modulel K30-MA Nominal load 2.500 kg 212,3 15,2 5.000 kg 186,3 10.000 kg 345,2 150,4 Dimensions in mm Status: BOSCHE Weighing Systems Page 31 2025-02-10... -
Page 34: Weighing Module With Ball Joint Head
7 | Technical data Shear beam load cell K30S / K30N 7.6.4 Weighing module with ball joint head Note The illustration shows a design example of a weighing module with a ball joint head. The upper load introduction can be customized to accommodate various hole patterns according to customer specifications. -
Page 35: Declaration Of Conformity
Shear beam load cell K30S / K30N Declaration of Conformity | 8 Declaration of Conformity Bosche GmbH & Co. KG Reselager Rieden 3 D-49401 Damme Telefon: 0 54 91 / 999 689 - 0 Telefax: 0 54 91 / 999 689 - 9 E-Mail: info@bosche.eu... - Page 36 BOSCHE GmbH & Co. KG 05491 999 689 0 Reselager Rieden 3 Fax 05491 999 689 9 49401 Damme www.bosche.eu Germany info@bosche.eu...
