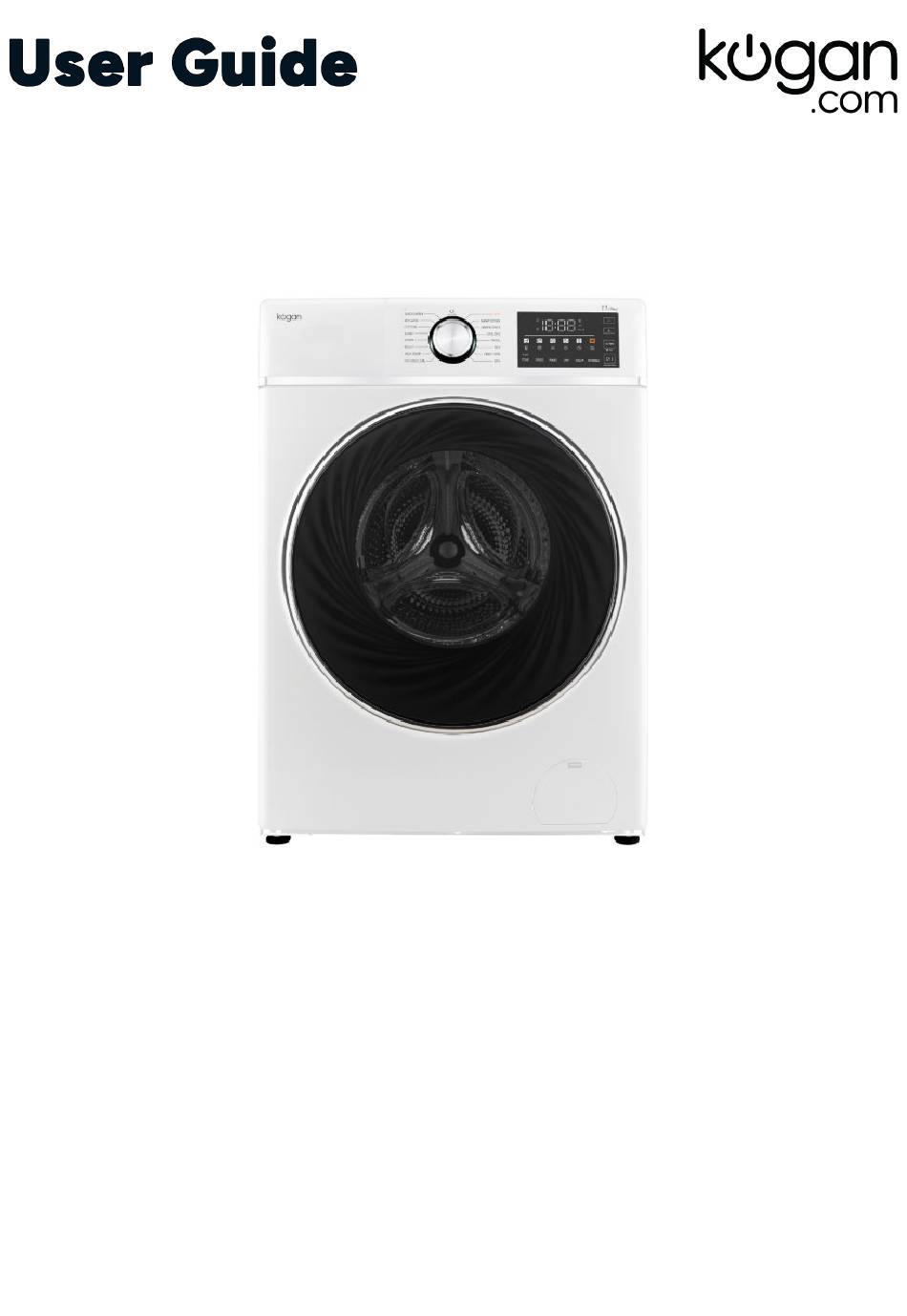

- Page 1 11kg/8kg Washer Dryer Combo KAWWAS11D8A & KAWWAS11D8B...
-
Page 2: Table Of Contents
Safety & Warnings Components Overview Installation Before First Use Operation Cleaning & Care Specifications Troubleshooting Notes... -
Page 3: Safety & Warnings
Do not bend, stretch, twist, or overload the power cord. • If the power cord or plug is damaged, cease use immediately and contact help.Kogan.com for support. • Avoid installing the washing machine in bathrooms or damp areas. Do not wash the machine with water or place wet clothes on the control panel. - Page 4 Do not kink, clamp, or damage the power cord or plug. • If the power cable is damaged, it must be replaced. Cease use immediately and contact help.Kogan.com for support. • Do not use extension cords or multi-socket adapters. •...
-
Page 5: Explosion And Fire Hazards
• Ensure there is proper access to the electrical outlet so it is possible to disconnect the appliance by unplugging the plug. Warning: The appliance must not be supplied through an external switching device, such as a timer or connected to a circuit that is regularly switched on and off by a utility Risk of Damage •... - Page 6 Use protective gloves to unpack and install risk of cuts. • If you want to stack a dryer on top of your washing machine, first contact help.Kogan.com to verify whether this is possible. • Do not lift or move the appliance from the worktop or top lid.
-
Page 7: Cleaning And Maintenance
Cleaning And Maintenance Warning: Ensure that the appliance is switched off and disconnected from the power supply before performing any maintenance operation; never use steam cleaning equipment - risk of electric shock. Attention: • Items that have been soiled with substances such as cooking oil, acid one, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer. -
Page 8: Components
Components Water Supply Hose Caps (x4) Spanner User Guide... -
Page 9: Overview
Overview Water inlet Control panel valve Power cord Detergent compartment Body Washer door Wash/Spin tub Adjustable leg Installation • Two people are required when lifting or transporting the machine. • Move cautiously. Do not grasp any protruding parts of the machine. The door must not be used as a handle for transport. -
Page 10: Installation Position
Risk of Injury and Damage: • Improper handling of the appliance may result in injury. • The appliance is very heavy. Always transport or carry it with the assistance of another person. • Clear all obstacles from the transport route and installation location, such as open doors and objects on the floor. - Page 11 Remove the Transit Bolts To protect the machine in transportation, there are 4 bolts on the rear of the machine. Ensure these bolts are removed before operation. Unscrew the four transit bolts using the supplied spanner. Fit the four caps over the bolt holes. Store the transit bolts, as these will be required when transporting the appliance.
-
Page 12: Level Adjusting
Level Adjusting Once in its permanent operating position, check that the dryer is absolutely level with the aid of a spirit level, or a plumb line as shown below. The appliance is level if the frame line of washer is parallel with the plumb line. Opening Plumb line Opening... -
Page 13: Connecting The Water Supply Hose
If water pressure is too strong, close the water tap completely then open it slightly. • Do not use water which is hotter than 50°C. • If your faucet is not suitable, consult a licensed trade professional or contact help.Kogan.com for support. Sealing washer Twist Tap End Intel Hose Caution •... -
Page 14: Installing The Drain Hose
Installing Water Supply Hose to the Washer Turn the nut clockwise till the nut turned tight while holding the hose. Turn the nut counterclockwise to detach the water supply hose. Hose Installing the Drain Hose When not in operation, the drain hose can be stored at back of washing machine. During operation, place the drain hose into a sink or drain no higher than 1200m high. -
Page 15: Before First Use
Before First Use Ensure the four transit bolts have been removed. Leave the dyer to stand for at least 2 hours after transporting. 2. Use a soft cloth to clean the inside drum. 3. Place some clean rags into the drum. 4. -
Page 16: Operation
Operation Program Select Knob • Turn the knob to select a program. • Turn the knob to the off position to turn dryer off. Display The display shows the setting, estimated program time remaining and status messages of your appliance. ‘+’... - Page 17 Start/Pause button • Press the button to start or pause the program cycle • Press and hold this button for 3 seconds to xxxxxx. Temperature button • Selects the washing temperature based on the type of clothes being washed. After pressing the Temp button, use the ‘+’ and ‘-‘ buttons to increase or decrease the temperature within the available range.
- Page 18 Delay button • Enables the delay wash function to schedule a wash cycle to finish at a specific time. With the power on, select your desired program and settings, then press the Delay button to set the finishing time in one-hour increments (up to 24 hours).
-
Page 19: Detergent Compartment
Detergent Compartment Powder Detergents: Dissolve undissolved powder detergents, such as powdered soap, in water before pouring them into the detergent compartment to avoid residue. Liquid Detergents & Bleach: • Use low-foam liquid synthetic detergents for best results. • For concentrated liquid detergents, dilute them before pouring into the designated compartment. -
Page 20: Program Guide
Detergent Usage Guidelines • Do not use high-foam washing powders or detergents, as they can interfere with the machine's operation. • Always use detergents according to the manufacturer's recommendations for optimal washing performance. • Using too much detergent may cause excessive foaming, which can hinder the rinse process and lead to operational issues. - Page 21 Instructions and Special Features Normal Clothes Method: Load the clothes into the drum and close the door carefully. • Add detergent or washing powder to the detergent compartment. • Turn on the water tap, ensure the drainpipe is in place, and plug in the machine. •...
- Page 22 Attention: • To change or cancel the scheduled time, turn the power knob and reset. • The delay time depends on factors like water pressure, clothes type, and temperature. • The setting time will display for 5 seconds after confirmation. Mid-Cycle Add Allows you to add clothes mid-cycle.
-
Page 23: Drying Program
Child Lock Prevents unintended operation while the machine is running. Set/Cancel Method: • With the power on, press and hold the Temp button for 3 seconds until the buzzer sounds. • The door will remain locked, and all buttons except the power button will be disabled. •... -
Page 24: Cleaning & Care
Cleaning & Care Regular maintenance and cleaning help ensure a longer lifespan for your washer-dryer. Always disconnect the power supply before performing any maintenance tasks. Machine Body • Use a soft cloth to wipe the machine body after each use. •... -
Page 25: Water Inlet Valve
Water Inlet Valve Frequency: once a year Disconnect the inlet pipe. Remove the filter screen from the valve. Use a toothbrush to clean the filter screen. Reassemble the filter and reconnect the inlet pipe. Tub Clean Frequency: once a month There may be dirty rest in the drum after long time using. - Page 26 Dryer Air Outlet Cleaning Frequency: After every 100 drying cycles or if drying performance decreases. Lint and dust may accumulate in the drying system over time, affecting performance. Clean regularly as follows: Wet a small brush under running water. Insert the brush into the designated area and twist it inward, then pull out to remove lint.
-
Page 27: Specifications
Specifications Rated wash capacity 11.0kg Rated spin capacity 11.0kg Rated dry capacity 8.0kg Rated voltage 220-240V-50Hz Water pressure 0.03-1.0MPa Dimensions 596 × 580 × 850mm Troubleshooting Problem Possible Cause • Water temperature is too high or power cut. • Setting child lock function. Door can't be opened •... - Page 28 The washing machine may adjust the remaining time due • Imbalanced Load: If clothes are unevenly distributed, the machine automatically fills with water to balance the load. Residual time change • Water Pressure: The residual time is calculated based on 15L/min inflow. Varying water pressure may increase or decrease the estimated time.
-
Page 29: Error Codes
Check if the outlet is providing power. • Ensure the unit is plugged in. • Confirm there is no Contact Out of help.Kogan.com for power cut. operation support • Check if the leakage protector has switched off. • Confirm if the booking function has been set. - Page 30 Confirm the door is Close the door firmly Door not properly closed and the and press the closed "locked" indicator light is Start/Pause button. Check if the issue can contact help.Kogan.com for Other code Alarm be resolved by pressing the Start/Pause button. support...
-
Page 31: Notes
Notes... - Page 32 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.Kogan.com.
