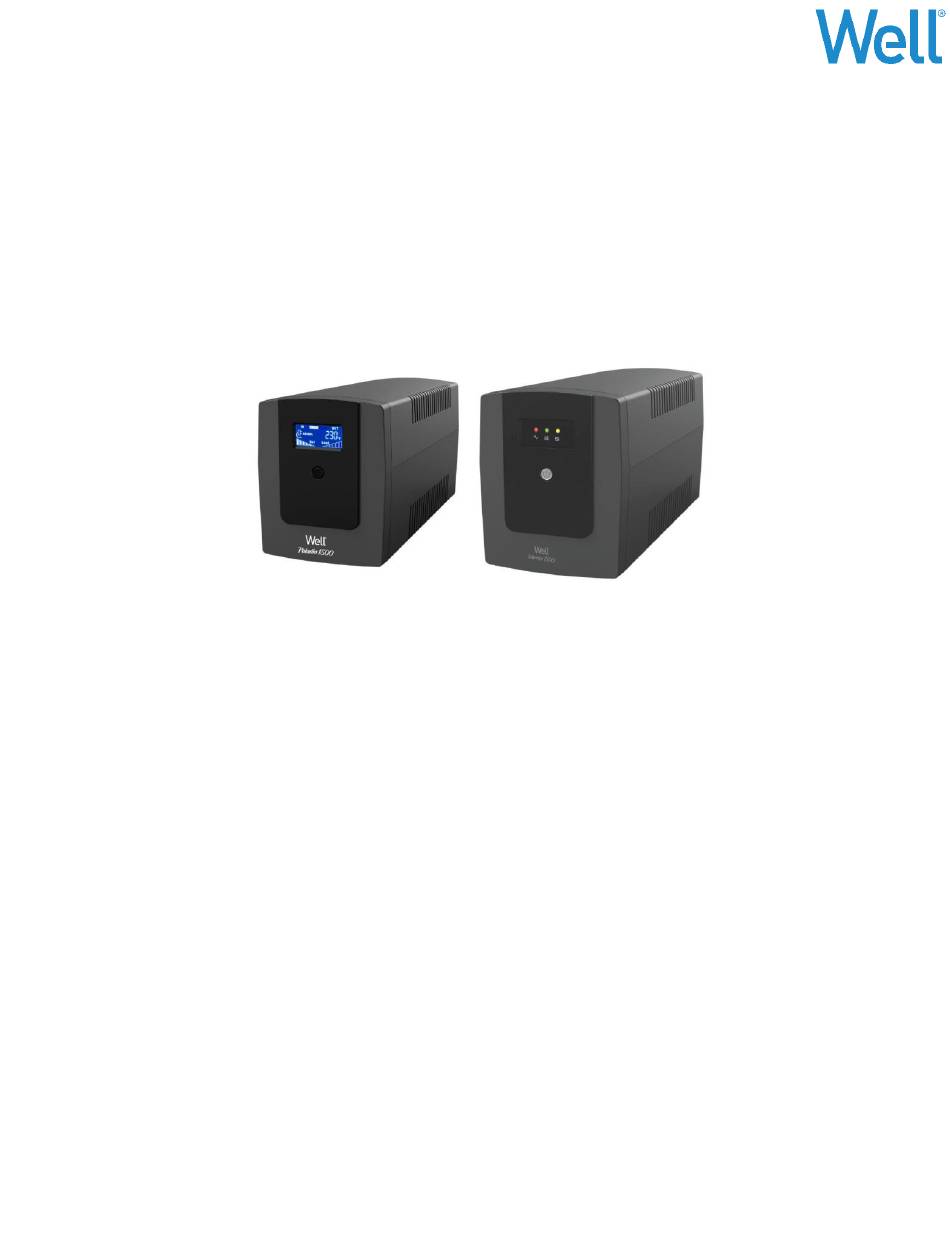

INSTRUCTION MANUAL
LINE INTERACTIVE UPS
Thank you for choosing WELL. Please read carefully the following instructions and keep them
within reach.
Reorder No: UPS-LINT-PALADIN650-WL, UPS-LINT-PALADIN850-WL, UPS-LINT-PALADIN1200-WL,
UPS-LINT-PALADIN1500-WL, UPS-LINT-WARRIOR650-WL, UPS-LINT-WARRIOR850-WL,
UPS-LINT-WARRIOR1200-WL, UPS-LINT-WARRIOR1500-WL
Advertisement
Table of Contents
Related Manuals for Well UPS-LINT-PALADIN650-WL
Summary of Contents for Well UPS-LINT-PALADIN650-WL
- Page 1 INSTRUCTION MANUAL LINE INTERACTIVE UPS Thank you for choosing WELL. Please read carefully the following instructions and keep them within reach. Reorder No: UPS-LINT-PALADIN650-WL, UPS-LINT-PALADIN850-WL, UPS-LINT-PALADIN1200-WL, UPS-LINT-PALADIN1500-WL, UPS-LINT-WARRIOR650-WL, UPS-LINT-WARRIOR850-WL, UPS-LINT-WARRIOR1200-WL, UPS-LINT-WARRIOR1500-WL...
-
Page 2: General Information
WARNING ● This UPS is intended only for indoor use in a controlled environment (please refer to the temperature and humidity range specified in this manual). Do not operate the UPS in direct sunlight, in contact with fluids, or where there is excessive heat, humidity or dust. - Page 3 LED indicators / LCD display screen ① ② ③ On Line (green) - is lit when the UPS is supplying power to connected equipment after turning on. Battery charge state (yellow) - flashes during charging, lights when fully charged. On battery (red) - is lit when the UPS is supplying battery power to connected equipment. LCD display screen ①...
-
Page 4: Specifications
1. Output outlet 2. Input power cord 3. Fuse SPECIFICATIONS Model 650VA 850VA 1200VA 1500VA Rated power 390 W 510 W 720 W 900 W Input 100 / 110 / 120 Vac: 80 - 150 Vac； 220 / 230 / 240 Vac: 162 - 295 Vac / 145 - 295 Vac Voltage range Frequency range 50 / 60 Hz (auto-sensing) -
Page 5: Battery Backup Time
BATTERY BACKUP TIME Load Battery Battery Charge/Discharge Percentage model Quantity Model Time 100% Discharge time 67.3 27.1 15.1 <2 <2 (min) 650VA Charging Time 10.7 <3.6 <3.6 (hrs) Discharge time 41.7 19.2 10.4 <2 <2 <2 <2 (min) 850VA Charging Time <3.9 <3.9 <3.9... - Page 6 în considerarea dispozitiilor art.15 din HG 740/2016, art.10 din HG 487/2016 si art.11 din HG 409/2016 în sensul recunoașterii calității de producator declarăm pe propria raspundere faptul că produsul/ele introduse pe piată: UPS LINE INTERACTIVE WELL Modele: UPS-LINT-PALADIN650-WL, UPS-LINT-PALADIN850-WL, UPS-LINT-PALADIN1200-WL, UPS-LINT-PALADIN1500-WL, UPS-LINT-WARRIOR650-WL, UPS-LINT-WARRIOR850-WL, UPS-LINT-WARRIOR1200-WL, UPS-LINT-WARRIOR1500-WL la care se refera această...
