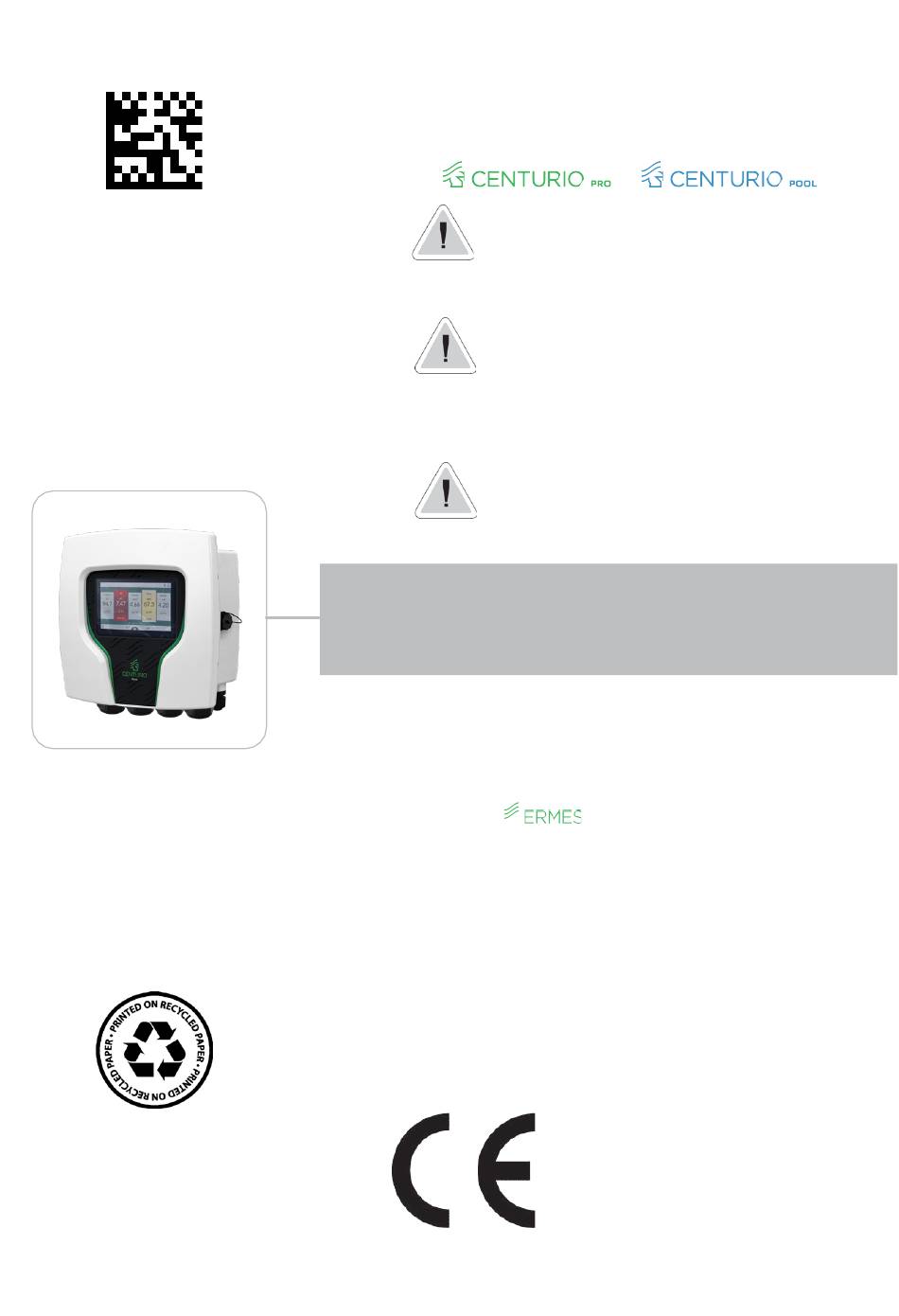

Read carefully!
1
This manual contains safety information which, if ignored, could
endanger life or cause serious injury to persons and property.
Keep the instrument protected from sun and water.
Avoid splashing water.
Depending on the configuration chosen, the main screen of the
instrument may look different and some functions may not be
present.
Operating manual for "CENTURIO PRO"
& "CENTURIO POOL" series instruments
REMOTE CONTROL AND SETUP
www.ermes-server.com
ENGLISH version
R1-11-24

Advertisement

loading
Need help?

Need help?

Do you have a question about the CENTURIO PRO Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ERMES CENTURIO PRO Series

  • Page 1 Depending on the configuration chosen, the main screen of the instrument may look different and some functions may not be present. Operating manual for “CENTURIO PRO” & “CENTURIO POOL” series instruments REMOTE CONTROL AND SETUP www.ermes-server.com Read carefully! ENGLISH version R1-11-24...

  • Page 2: General Safety Information

    NORME CE EC RULES (STANDARD EC) NORMAS DE LA CE Direttiva Bassa Tensione 2014/35/EU Low Voltage Directive Directiva de baja tensión Direttiva EMC Compatibilità Elettromagnetica EMC electromagnetic compatibility directive 2014/30/EU EMC directiva de compatibilidad electromagnética GENERAL SAFETY INFORMATION Danger! During an emergency of any kind in the room where the pump unit is installed, immediately cut off the power to the system and disconnect the instrument from the power socket! If particularly aggressive chemical materials are used, regulations on the use and storage of these substances must be strictly followed!
  • Page 3 Introduction “Centurio PRO” is a multi-measure digital instrument capable of simultaneously controlling up to 6 programmable channels for the adjustment* of pH - Redox (ORP) - Chlorine - Turbidity - Temperature - Combined Chlorine (see Chlorine feature for configuration) - Total Chlorine (see Chlorine features for configuration) - Tracers - Conductivity - Dissolved Oxygen.
  • Page 4 Connections to the main board Disconnect the instrument from the main power supply, then make the connections as shown below. For easier understanding, the board has been divided into two parts: I/O connections and Power Supply - Relay connections. See page 44 for mA connections and communication options (MODBUS). POWER SUPPLY SIDE BOARD 1 2 3 4 5 6 7 8 S1 S2 FOUT...
  • Page 5 I/O connections: 1 (+); 2 (-): Pulse emitting water meter input No.1 (WM1) max. 300Hz 3 (+); 4 (-): Pulse emitting water meter input No.2 (WM2) max 300Hz 5 (+ brown) - 6 (black) - 7/8 (- blue; GND): flow sensor mod. “SEPR” (do not remove the jumper between blocks 7 and 8)* * to use as voltage-free contact leave the jumper on blocks 7 and 8 and use blocks 5 and 6 as contact 9 (+);...
  • Page 6 For further information on channel status (alarms, readings, etc.), tap here to view an info pop-up. For further information on the serial number/ERMES code, tap here to view an info pop-up. The red icon requires the user's attention: tap it for more information.
  • Page 7 The standard settings are: Probe calibration, working mode (bleed - inhibitor - biocide). The advanced settings are: Pulse emitting water meter, flow, alarms and communication (WiFi, Mobile, ERMES). All these settings must be set for the instrument to function correctly.
  • Page 8 International. Before programming the instrument, Language, Location, Local time and date must be set (Settings/International). Since instrument activities are time-based, it is essential to set the time and date before anything else. Within the international menu, choose the language and location for the correct unit format. Units of measurement change according to local rules.
  • Page 9 Standard “Centurio PRO” settings. The standard settings are: Probe calibration and operating modes (bleed - inhibitor - biocide). To calibrate each channel, select it in the main menu. Channel availability is based on module configuration. The controller will automatically add the correct channel when a new module is installed and detected. Conductivity calibration menu.

  • Page 10: Chlorine Calibration

    CHLORINE calibration. The chlorine calibration procedure is based on the installed chlorine probe and may involve one or two calibration points depending on the probe model (see table on next page). From the main menu, select “Chlorine”, then tap “Calibration”. The installed probe will be detected automatically and, depending on the model, will be enabled for one or two calibration points.
  • Page 11 Chlorine probe table. Use the following table to check the number of calibration points for the installed probe. Note: Some probes are not supported.

  • Page 12: Tracer Calibration

    Tracer calibration. The tracer calibration procedure is based on two buffer solutions (0 BTSA and “working value” BTSA buffer solution). Depending on the probe installed, configure the model using the “Probe Tracer” menu before calibration. Note: this procedure assumes that the CONTROLLER is correctly installed, configured and connected to a functioning probe.

  • Page 13: Settable Parameters

    Channel setpoints. A setpoint configuration (for DIGITAL and PROPORTIONAL outputs) must be set for each channel (except conductivity) for the outputs to function correctly. It is also possible to set the temperature setpoint (On/Off) and assign a free output for each reading channel. Settable parameters: 1) Working Mode (digital or proportional) 2) Working range...
  • Page 14 “Cl Set-Point” (PWM) mode - Digital This mode is valid for any available “digital” output. Pulse-width modulation, or PWM, is a type of digital modulation in which information is encoded in the form of the duration in time of each pulse of a signal. The duration of each pulse can be expressed in relation to the period between two successive pulses, implying the concept of “duty cycle”.
  • Page 15 “Cl Set-Point” (Proportional) mode - Pulse This mode is valid for any available proportional/pulse output. Proportional mode makes it possible for the instrument to operate using a calculated percentage between two set values that enable or disable the Cl pump. To use this mode, tap “Proportional First Point”. PROPORTIONAL mode between 1.00Cl (0 p/m) and 0.50Cl (180 p/m).
  • Page 16 “pH Set-Point” (on/off) ALKALI mode This mode is valid for any available digital output. In On/Off mode, two values are set in the instrument that enable or disable the pH pump. To select this operating mode, highlight “Working Mode” with the cursor. Tap the screen to select.
  • Page 17 “pH Set-Point” On/Off mode for Acid solutions This mode is valid for any available digital output. ON/OFF mode while dosing ACID ACID SOLUTIONS dosing ON/OFF mode Set the pH value to 7.00 OFF and 7.10 ON. The instrument will enable the pH pump until the reading reaches 7.00pH. At 7.00pH the pump will be disabled until the reading goes back up to 7.10pH 7.00 7.10...
  • Page 18 “pH Set-Point” (PWM) This mode is valid for any available digital output. Pulse-width modulation, or PWM, is a type of digital modulation in which information is encoded in the form of the duration in time of each pulse of a signal. The duration of each pulse can be expressed in relation to the period between two successive pulses, implying the concept of “duty cycle”.
  • Page 19 “pH Set-Point” (Proportional) mode - Pulse This mode is valid for any available proportional/pulse output. This mode sets the instrument to operate using a calculated percentage between two set values that enable or disable the pH pump. To use this mode, tap “Proportional First Point”. PROPORTIONAL mode between 7pH (0 P/m) and 8pH (180 P/m).
  • Page 20 “ppm Set-Point” (on/off) example 1 for tracer This mode is valid for any available “digital” output. On/Off mode allows the instrument to be set to operate using two set values that enable or disable the TRACER pump. To use this mode tap “Working mode”. Example Set the ppm value to 7.00 OFF and 6.90 ON.
  • Page 21 “Centurio PRO” main menu: settings The following options are present in the main menu: Flow, Label, PASSWORD, Flow meter, Log Setup and International. “Flow Sensor”. This menu is used to configure the flow sensor contact (5 - 6 - 7/8). The options are: Mode: contact type, open (N.O.), closed (N.C.), disabled.
  • Page 22 “Flow Meter” settings. This menu is used to configure the working modes for the two pulse emitting water meters connected to the instrument: FlowMeter1 and FlowMeter2. The options are: Factor: based on the “pulse/litre” or “litre/pulse” mode; this option defines how many pulses made a litre or how many litres made a pulse Mode: pulse ratio with Pulse/Litre or Litre/Pulse Name: Name of water meter...
  • Page 23 pH/Temperature compensation curve. pH measurements depend on temperature. The degree to which temperature affects mV readings varies from solution to solution and can be calculated using the following graph. The instrument has a fixed or adjustable automatic temperature compensation referring standard temperature of 25°C.
  • Page 24 The configurable options for this menu are: ERMES, Mobile, Ethernet, Proxy, WiFi, Message and Modbus “ERMES”. This menu enables or disables the “ERMES” remote management system. The option is ENABLED OR DISABLED. Before enabling it, configure at least one communication protocol from among MOBILE, WiFi or Ethernet. Once Internet communication is established, a confirmation icon will be displayed on the main screen (e.g:...
  • Page 25 “Proxy”. This menu is used to configure the proxy server. A proxy server is a server that acts as an intermediary for requests from clients searching for resources on other servers. It is not necessary to configure this item in most configurations.
  • Page 26 “RS485” / “MODBUS” From this menu it is possible to choose RS485 connection operation. To set the instrument to MODBUS protocol operation, choose “MODBUS” and proceed to configuration. If the instrument is to be connected to other “CENTURIO” series instruments, it is possible to choose between “RS485 MASTER” (the instrument will be the primary one and will provide communication services) or “RS485 SLAVE”...
  • Page 27 “Graphics”. The “Centurio PRO” instrument can graphically represent the value of readings for each channel. Scroll to the left on the main screen until the option graphics screen appears (see screenshot below). Tap on the required graphic period (daily, weekly or monthly) and wait until all data has been collected. Once the graph is displayed, tap to change parameters (channel, date, time, etc.).
  • Page 28 “CORROSION” Proportional Mode When the ECORR probe is installed, the instrument can be configured to read and monitor the corrosion rate in the pipes of a plant. Tap the corrosion icon in the main menu to access the main options. Setpoint: enables / disables control on inhibitor dosing Corrosion Level: tank level of anti-corrosion product Corrosion Alarm: alarm management for high corrosion values...
  • Page 29 CORROSION LEVEL Input: enables/disables/selects level probe input NO/NC: sets the type of contact for the level probe (normally open or normally closed) Stop: enables to disables locking when contact changes state Name: Name of the label Message: Enables or disables alarm messages Log: Enables or disable event log logging CORROSION ALARM Absolute: “absolute”...
  • Page 30 SETTINGS/ALLOY Depending on the pipe construction material, select the most suitable alloy factor value according to the table below: It is possible to assign a name to the material type by selecting LABEL.
  • Page 31 “Centurio POOL” The POOL version of the CENTURIO instrument includes some exclusive features for dosing and controlling water in the tank. These features include “FLOCCULANT”, “FILTRATION”, “CHLORINE” and a single channel for temperature management entrusted to the pH plate. In the pH setting submenu (pH/Settings) it is also possible to set pH reset activity priority over the Chlorine dosing.
  • Page 32 “Filtration” (dechlorination of filters in tank) Using this menu (Settings, Filtration) it is possible to configure the dechlorination pump on the filters in the tank. To set this function correctly, it is necessary to select the input level from those available which will activate the pump, the type of contact (N.O.
  • Page 33 Hypochlorous acid dissociation and relationship with pH The pH is an index of the acidity of a solution. Chemically, pH indicates the exponent in base 10 of the concentration of H+ ions present in a solution and thus the ability of the solution to accept OH- ions and neutralise them. In practice, a low pH solution is ACID, while a high pH solution is BASIC.
  • Page 34 Laser Level Sensor (via RS485) - Configuration The SLL laser level sensor enables stable and accurate detection of the amount of liquids in different sized tanks. It is also capable of detection simply based on distance, regardless of shape, colour or surface finish. Connect the sensor to the instrument.
  • Page 35 Laser Level Sensor (via RS485) - Alarm Management From the container menu (TANK) select the “Alarm” option and set the configuration parameters as follows: Alarm Low. Enables or Disables the low product tank alarm. Limit Defines the minimum level of product in litres in the canister for activation of the level alarm.
  • Page 36 Appendix - Probe modules This module is suitable for the CONDUCTIVITY PROBE 1) not connected 2) + 3) PT100 2) + 3) PT100 4) + 5) PT100 4) + 5) PT100 6) CD PROBE (out) Signal 7) CD PROBE (in) Power 6) CD PROBE (out) Signal 7) CD PROBE (in) Power For ECDHLCPT/1...
  • Page 37 Appendix - Probe modules CDIND/CDINDS Connections to INDUCTIVE CONDUCTIVITY PROBE 1) not connected 2) + 3) PT100 4) + 5) PT100 6) PROBE power supply 7) PROBE signal 8) GND Connections to TYPE “S” INDUCTIVE CONDUCTIVITY PROBE 1) not connected 2) + 3) PT100 4) + 5) PT100 6) PROBE power supply...
  • Page 38 Appendix - Probe modules This module is suitable for SVCL (chlorine) and open amperometric probes (type ECL6): 1) -12 VDC SVCL probe 2) +12 VDC SVCL probe 3) external PT100 yellow wire 4) external PT100 white wire 5) external PT100 brown wire 6) external PT100 green wire 7) + SVCL probe mV (or ECL6 red wire) 8) - SVCL probe mV (or ECL6 black wire)
  • Page 39 Appendix - Probe modules POTENTIOSTATIC This module is suitable for the potentiostatic probe: 1) External PT100: Yellow wire 2) External PT100: White wire 3) External PT100: Brown wire 4) External PT100: Green wire 5) n/a 6) n/a 7) n/a 8) WE 9) RE 10) CE TURBIDITY...
  • Page 40 Appendix - Probe modules ETO40 This module is suitable for ETO40 TURBIDITY probes 1) External PT100: Yellow wire 2) External PT100: White wire 3) External PT100: Brown wire 4) External PT100: Green wire 5) Turbidity Probe: Blue wire (GND) 6) Turbidity Probe: Brown wire (TX Power/50 mA) 7) Turbidity Probe: Black wire 8) Turbidity Probe: White wire (Signal) 9) Turbidity Probe: Green wire (RX Power/+8VDC)

  • Page 41: Work Environment

    Appendix - DIMENSIONS (mm) 4.3” touchscreen display USB connector ENCLOSURE IP65 enclosure (NEMA4x) 5.50 Centurio control CONTROLLER is manufactured 5.50 in ABS housing to ensure protection against aggressive chemicals tough environments. WORK ENVIRONMENT -10°C ÷ 50°C (14°F ÷ 122°F) 0÷95% (non condensing) relative humidity.
  • Page 42 Appendix - Panel/wall mounting with lock/unlock function LOCK UNLOCK To lock the instrument to the wall, gently insert (1) the upper case onto the wall-mounting rack and move it (2) downwards until it locks into the lower part. To unlock the instrument from the wall, pull (3) the handle from the mounting rack and lift (4) the instrument. MODULE INSTALLATION AREA...
  • Page 43 Appendix - Passing the wires through the cable gland retaining grommet To pass the probe cable/wires through the retaining grommet, a cut must be made at the hole to allow the probe cable to enter. Once the cable is inserted, it is possible to reassemble the grommet with the cable clamp by screwing it back onto the instrument box.
  • Page 44 Appendix - Installation / Removal of probe module / mA / communication module To remove or add a module, first disconnect the instrument from the main power supply, then remove the white front cover by pulling it off. Unscrew the 8 screws and open the main panel to access the modules. Install the new module in any available slot or remove the desired module by unscrewing it from the main board.
  • Page 45 Appendix - Communication module installation To remove or add a communication module, first disconnect the instrument from the main power supply, then remove the white front cover by pulling it off. Unscrew the 8 screws and open the main panel as shown in the figure. Install the required module, then close the instrument.
  • Page 46 Appendix - DO (Dissolved Oxygen) channel calibration Sensor calibration is NOT required. However, if unexpected readings occurred, oxygen sensor slope calibration can be performed in air, in saturated water or with a reference solution. Set the probe type by selecting “Select Probe” then select the calibration type of your choice.
  • Page 47 Appendix - NTU channel calibration (Turbidity) To obtain correct readings for the turbidity probe, you can set: SELECT PROBE of the probe (selectable working scale), calibration of the NTU probe based on two points (first point and second point), calibrate the internal sensor temperature or restore the original NTU calibration values (recovery calibration).
  • Page 48 Appendix - Pressure Level Sensor The SLP pressure sensor is the ideal solution for measuring liquids in tanks of any size. Based on Stevin's law, the sensor works by converting pressure into an analogue electrical signal. Pressure can be defined as the force per unit area that a fluid exerts on its surroundings.
  • Page 49 Appendix - Operating logic diagram (pool)
