Adaptive Technologies Group MultiMount MM-060-V2 Installation Manual

Installation Guide
MOUNTING
HARDWARE

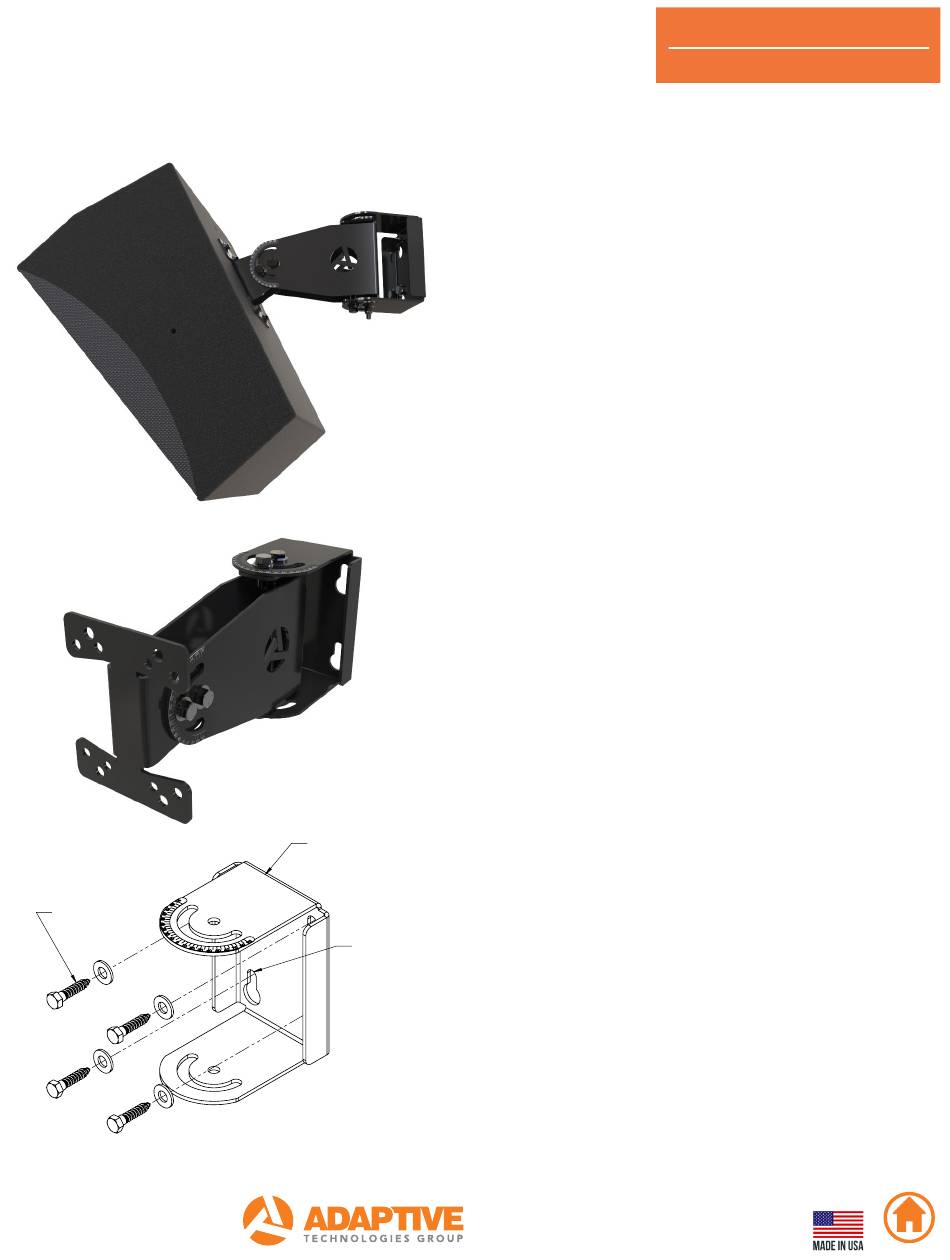

Figure 1
Adaptive Technologies Group
1635 E. Burnett Street | Signal Hill, CA 90755 USA
Ph: 562.424.1100 | Fax: 562.424.3520
www.adaptivetechnologiesgroup.com
The versatile MultiMount™ MM-060-V2 wall mounts
loudspeakers weighing up to 60 lbs to walls using the standard
four-hole mounting patterns located on the back panels
(2.00" x 4.25", 2.75" X 5.00" and 100mm x 100mm).
The MM-060-V2 simplifies and speeds up installation while
offering a very versatile range of mounting and aiming options.
Contents:
Be sure that all of the following items are included in this kit
before proceeding:
1 pc
1 pc
1 bag
1 pc
Hardware to attached speaker is not included.
Installation Procedure:
Step 1:
Install the wall bracket to the wall surface with the small hole of
the keyhole slots facing up (Figure 1).
Consult your local hardware store for the correct hardware to
use for the wall structure.
WALL
Step 2:
BRACKET
Install the swivel bracket and speaker adapter plate assy to the
mounting holes of the speaker using the appropriate screws and
flat washers. Tighten permanently.
SMALL
Hardware to attach speaker to MM-060-V2 is not included
HOLE
FACING UP
(Figure 2).
Make sure that the "L" side of the speaker adapter plate is on
the left side of the speaker (Figure 2).
ALWAYS INSTALL SAFETY CABLES
WARNING: Mounting and/or suspension of audio and video equipment requires
experienced professionals. Improperly installed loudspeakers can result in
property damage, personal injury and/or liability to the installing contractor.
Wall bracket
Swivel and speaker bracket assy.
Hardware kit
Installation Guide
MM-060-V2
MULTIMOUNT ™
Rated for indoor use.
