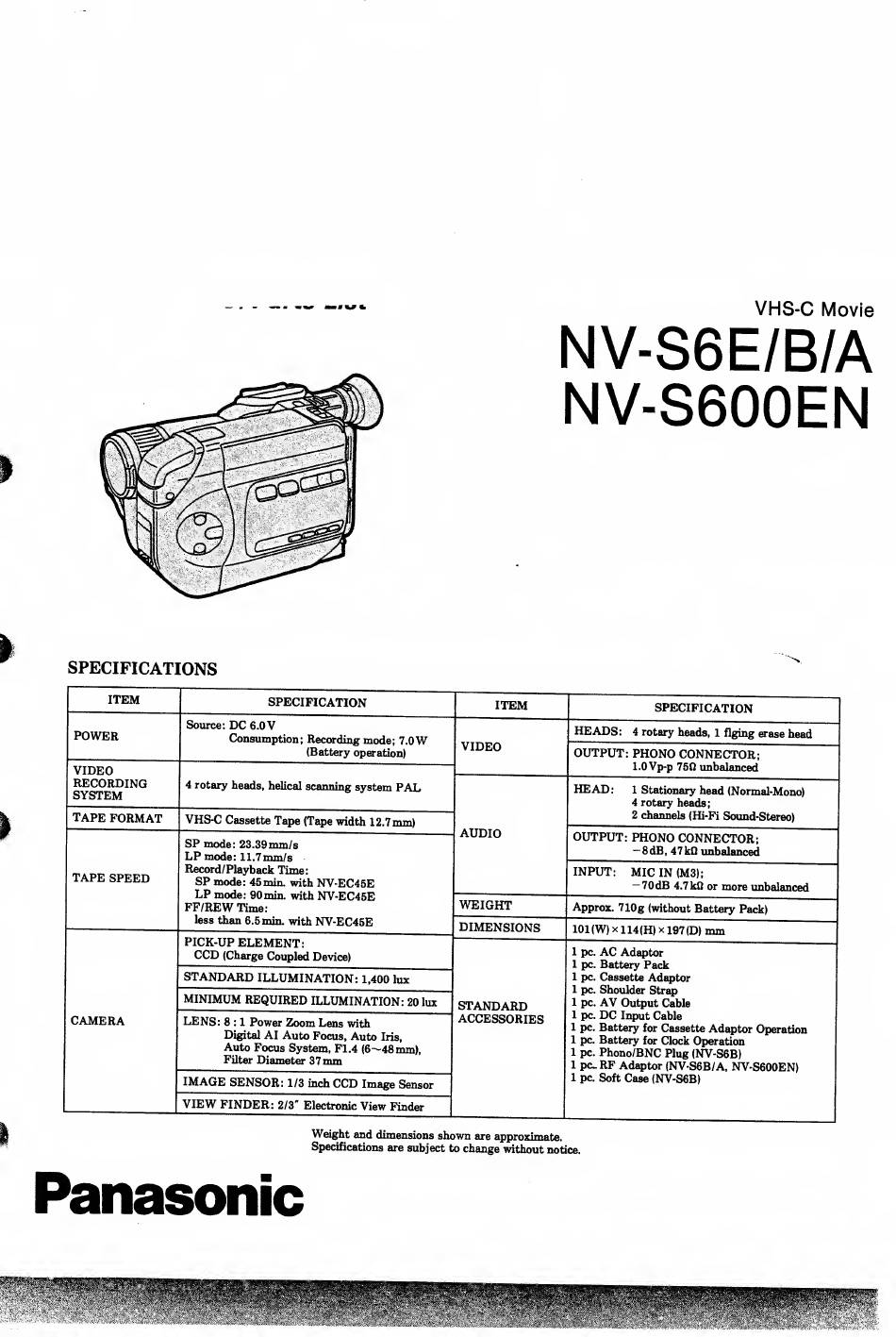

Panasonic NV-S6E Manual

VHS-C
Movie
NV-S6E/B/A
NV-S600EN
SPECIFICATIONS
ITEM
SPECIFICATION
ITEM
SPECIFICATION
POWER
Source:
DC
6.0V
Consumption; Recording mode;
7.0
W
(Battery operation)
VIDEO
HEADS:
4 rotary heads,
1 flging erase head
OUTPUT: PHONO
CONNECTOR;
l.OVp-p 750
unbalanced
VIDEO
RECORDING
SYSTEM
4 rotary
heads,
helical
scanning
system
PAL
AUDIO
HEAD:
1
Stationary head (Normal-Mono)
4 rotary heads;
2
channels
(Hi-Fi
Sound-Stereo)
TAPE FORMAT
VHS-C
Cassette Tape
(Tape width
12.7
mm)
TAPE SPEED
SP
mode:
23.39
mm/s
LP
mode: 11.7mm/s
Record/Playback Time:
SP
mode:
45min. with
NV-EC45E
LP
mode:
90min. with
NV-EC45E
FF/REW
Time:
less
than
6.5 min. with
NV-EC45E
OUTPUT: PHONO
CONNECTOR;
-8dB, 47kQ
unbalanced
INPUT: MIC
IN
(M3);
-70dB
4.7
kQ
or more
unbalanced
WEIGHT
Approx.
710g
(without Battery Pack)
DIMENSIONS
101 (W)
x
114(H) x 197
(D)
mm
CAMERA
PICK-UP
ELEMENT:
CCD
(Charge Coupled
Device)
STANDARD
ACCESSORIES
1 pc.
AC
Adaptor
1 pc.
Battery Pack
1
pc. Cassette Adaptor
1 pc.
Shoulder Strap
1
pc.
AV
Output
Cable
1 pc.
DC
Input Cable
1
pc. Battery
for Cassette Adaptor
Operation
1 pc.
Battery
for Clock Operation
1
pc.
Phono/BNC
Plug (NV-S6B)
1
pcRF
Adaptor (NV-S6B/A,
NV-S600EN)
1 pc. Soft
Case (NV-S6B)
STANDARD
ILLUMINATION:
1,400 lux
MINIMUM
REQUIRED
ILLUMINATION:
20
lux
LENS:
8
:
1
Power Zoom
Lens
with
Digital
AI
Auto
Focus,
Auto
Iris,
Auto
Focus System,
F1.4 (6~48mm),
Filter
Diameter
37
mm
SENSOR:
1/3 inch
CCD
Sensor
VIEW
FINDER:
2/3"
Electronic
View
Finder
Weight and
dimensions shown
are approximate.
Specifications are subject to change without
notice.
