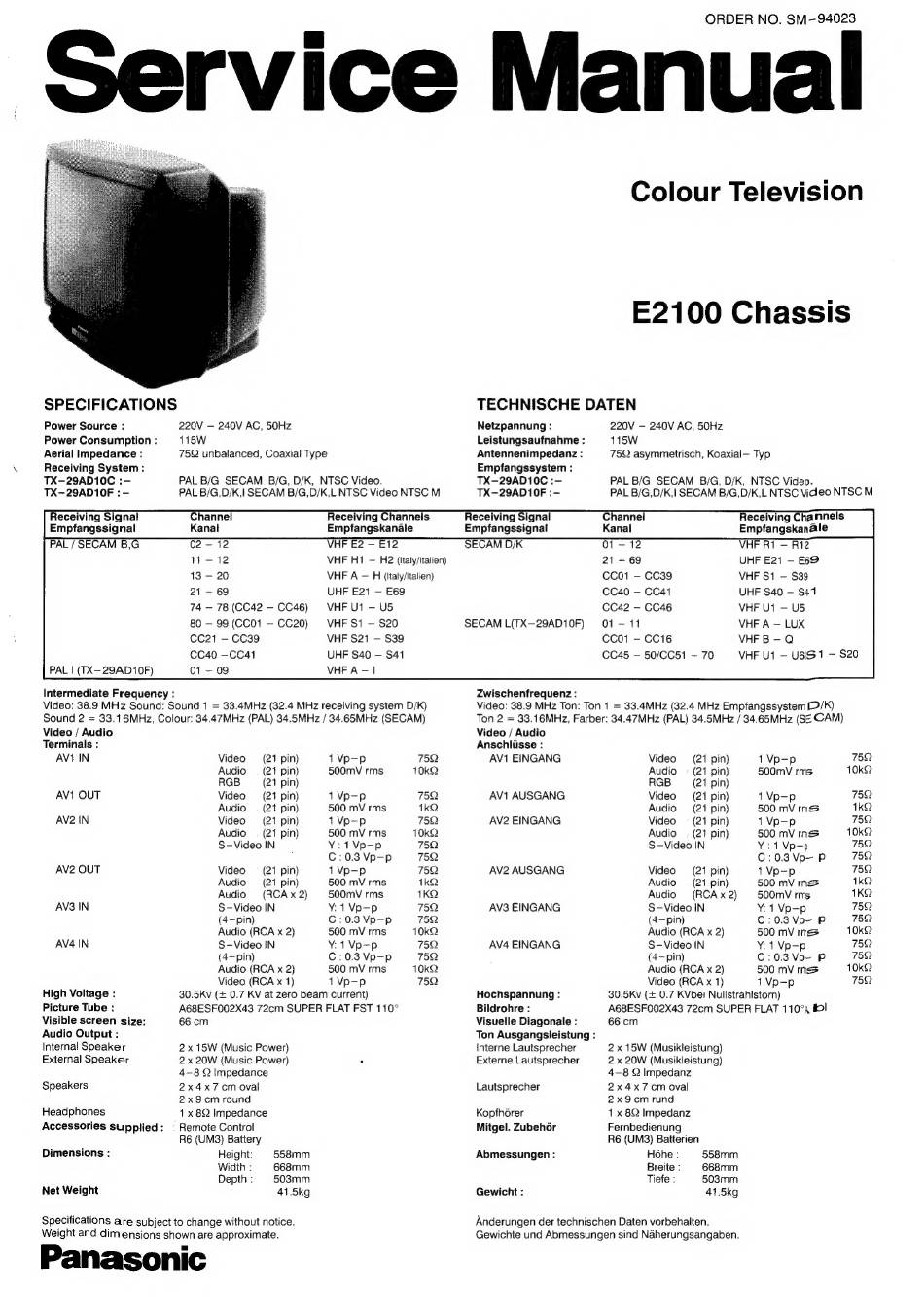

Panasonic TX29AD20 Service Manual

SPECIFICATIONS
Power Source :
Power Consumption :
Aerial Impedance :
220V — 240V AC, 50Hz
115W
75Q unbalanced, Coaxial Type
ORDER NO. SM-94023
Colour Television
E2100 Chassis
TECHNISCHE DATEN
Netzpannung:
Leistungsaufnahme :
Antennenimpedanz :
Receiving System : Empfangssystem :
TX-29AD10C :- PAL B/G SECAM B/G, D/K, NTSC Video. TX-—29AD10C :-
TX-29AD10F :— PAL B/G,D/K,| SECAM B/G,D/K,L NTSC Video NTSC M TX-29AD10F :-—
Receiving Signal
Empfangssignal
74 — 78 (CC42 — CC46)
80 — 99 (CCO1 — CC20)
CC21 — CC39
CC40 —CC41
01 ~ 09
PAL | (TX—29AD10F)
Intermediate Frequency :
Video: 38.9 MHz Sound: Sound 1 = 33.4MHz (32.4 MHz receiving system D/K)
Sound 2 = 33.16MHz, Colour: 34.47MHz (PAL) 34.5MHz / 34.65MHz (SECAM)
Video / Audio Video / Audio
Terminals : Anschliisse :
AV1 IN Video (21 pin) 1 Vp-p 75Q AV1 EINGANG
Audio = (21 pin) 500mV rms 40kQ
RGB (21 pin)
AV1 OUT Video (21 pin) 1 Vp-p 75Q AV1 AUSGANG
Audio = (21 pin) 500 mV rms 1kQ
AV2 IN Video (21 pin) 1 Vp-p 75Q AV2 EINGANG
Audio = (21 pin) 500 mV rms 10ko2
S-Video IN Y:1Vp-p 75Q
C:0.3 Vp—p 76Q
AV2 OUT Video = (21 pin) 1 Vp-p 75Q AV2 AUSGANG
Audio = (21 pin) 500 mV rms 1kQ
Audio (RCAx 2) 500mV rms 1KQ
AV3 IN S-Video IN Y¥: 1 Vp-p 75Q AV3 EINGANG
(4-pin) C:0.3 Vp-p 75Q
Audio (RCA x 2) 500 mV rms 10kQ
AV4 IN S-Video IN Y¥: 1 Vp-p 75Q AV4 EINGANG
(4—pin) C:0.3Vp—p 75Q
Audio (RCA x 2) 500 mV rms 10kQ
Video (RCA x 1) 1 Vp-p 75Q
High Voltage : 30.5Kv (+ 0.7 KV at zero beam current) Hochspannung:
Picture Tube : A68ESF002X43 72cm SUPER FLAT FST 110° Bildrohre :
Visible screen size: 66 cm Visuelle Diagonale :
Audio Output : Ton Ausgangsleistung :
Internal Speaker 2 x 15W (Music Power) interne Lautsprecher
External Speaker 2 x 20W (Music Power) . Externe Lautsprecher
4-8 © Impedance
Speakers 2x 4x7 cm oval Lautsprecher
2x9cm round
Headphones 1 x 8Q Impedance Kopfhorer
Accessories supplied: | Remote Control
R6 (UM3) Battery
Dimensions : Height: 558mm
Width : 668mm
Depth : 503mm
Net Weight 41.5kg
Specifications are subject to change without notice.
Weight and dimensions shown are approximate.
Panasonic
Receiving Signal
Empfangssignal
Receiving Channels
Empfangskanale
VHF E2 — £12
VHF H1 — H2 (italy/Italien)
VHF A — H (ltaly/Italien)
UHF E21 — E69
VHF U1 — US
VHF S1 — S20
VHF S21 — S39
UHF S40 — S41
VHF A - |
SECAM L(TX—29AD10F)
Zwischenfrequenz :
Mitgel. Zubehér
Abmessungen :
Gewicht :
220V — 240V AC, 50Hz
115W
75Q asymmetrisch, Koaxial— Typ
PAL B/G SECAM B/G, D/K, NTSC Video.
PAL B/G,D/K,| SECAM B/G,D/K,L NTSC Video NTSC M
CC01 — CC39
CC40 — CC41
CC42 — CC46
01-11
CCO1 - CC16
CC45 — 50/CC51 — 70
Video (21 pin)
Audio = (21 pin)
RGB (21 pin)
Video (21 pin)
Audio = (21 pin)
Video = (21 pin)
Audio = (21 pin)
S-Video IN
Video (21 pin)
Audio = (21 pin)
Audio (RCAx 2)
S—Video IN
(4—pin)
Audio (RCA x 2)
S-Video IN
(4~pin)
Audio (RCA x 2)
Video (RCA x 1)
Receiving Channels
Empfangskanale
VHF R1 — R12
UHF E21 — E59
VHF S1 — $39
UHF S40 - S41
VHF U1 — US
VHF A — LUX
VHF B- Q
VHF U1 — UeS1 — S20
Video: 38.9 MHz Ton: Ton 1 = 33.4MHz (32.4 MHz Empfangssystem [>/K)
Ton 2 = 33.16MHz, Farber: 34.47MHz (PAL) 34.5MHz / 34.65MHz (SE CAM)
1 Vp-p 75Q
500mV rms 10k&
1 Vp-p 7522
500 mV ms 1kQ
1 Vp-p 75Q
500 mV rns 10kQ
Y:1Vp-p 75Q
C:0.3Vp— P 75Q.
1 Vp-p 75
500 mV rns 1kQ
500mV rms 1KQ
Y¥:1 Vp-p 75Q
C:0.3Vp- Pp 75Q
500 mV rns 10kQ
Y: 1 Vp-p 75Q
C:0.3Vp- Pp 75Q
500 mV rns 10kQ
1 Vp-p 75Q
30.5Kv (+ 0.7 KVbei Nullstrahlstom)
A68ESF002X43 72cm SUPER FLAT 110%
66 cm
2 x 15W (Musikleistung)
2 x 20W (Musikleistung)
4-8 Q Impedanz
2x4x7cm oval
2x9cm rund
1 x 8Q Impedanz
Fernbedienung
R6 (UM3) Batterien
Hohe : 558mm
Breite : 668mm
Tiefe : 503mm
41.5kg
Anderungen der technischen Daten vorbehalten.
Gewichte und Abmessungen sind Naherungsangaben.
