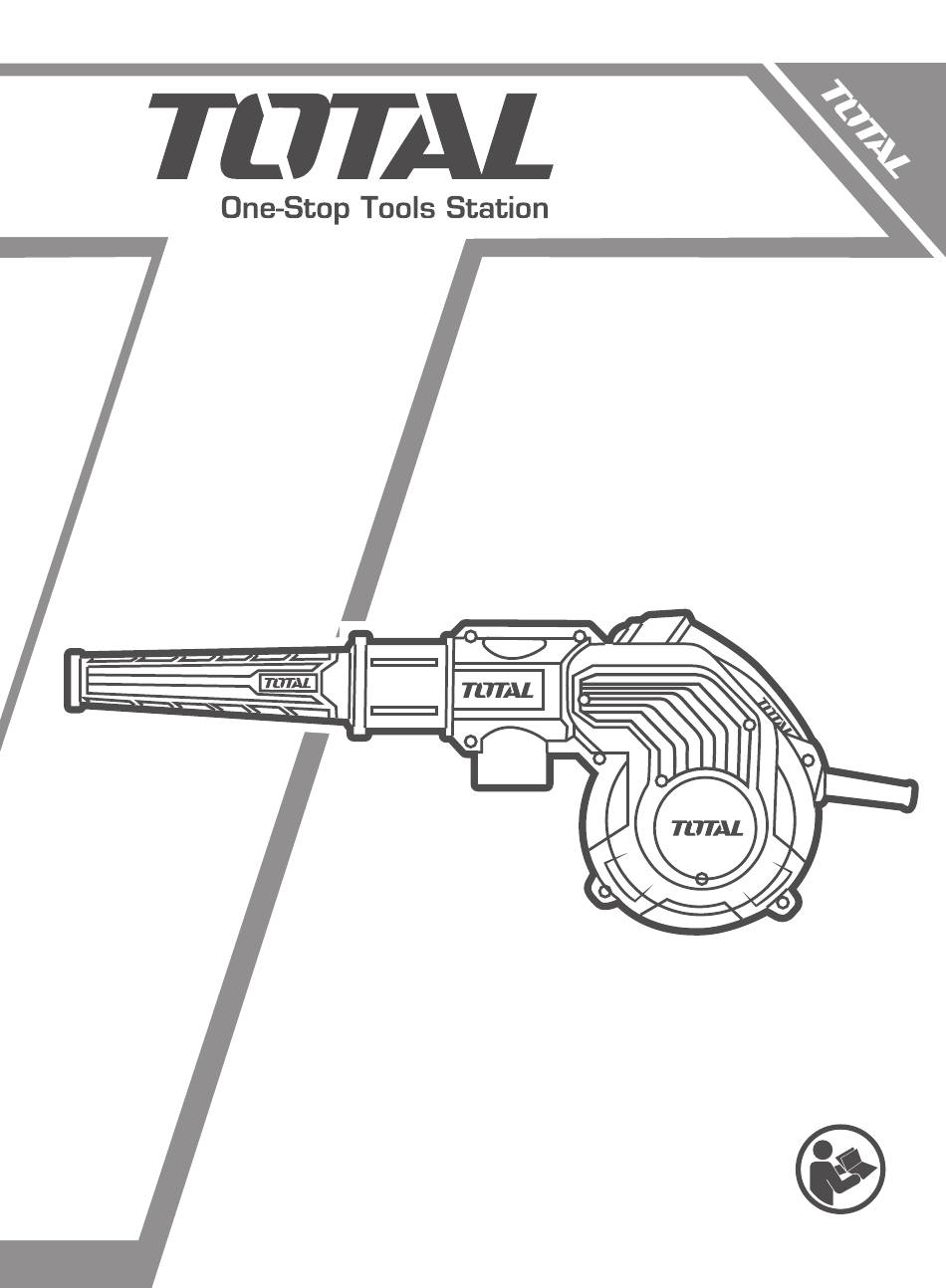

- Page 1 PRODUCT MANUAL ASPIRATOR BLOWER TB2086 UTB2086 TB2086-4 TB2086-6 TB2086-8 TB2086-9 TB2086S...
-
Page 2: General Safety Warnings
| English Original Instructions GENERAL SAFETY WARNINGS ⚠ Warning! Work area safety Keep work area clean and well lit. Cluttered and dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes. - Page 3 | English operating power tools may result in serious personal injury. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
- Page 4 | English Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. Keep cutting tools sharp and clean.
- Page 5 | English THE SYMBOLS IN INSTRUCTION MANUAL Double insulated for additional protection Read the instruction manual before using. CE conformity. Safety alert. Please only use the accessories supported by the manufacturer. Wear safety glasses, hearing protection and dust mask. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
- Page 6 | English ADDITIONAL SAFETY WARNING Wait for the cutter to stop before setting the tool down. An exposed rotating cutter may engage the surface leading to possible loss of control and serious injury. - Hold the power tool by insulated gripping surfaces only, because the cutter may contact its own cord.
-
Page 7: Residual Risks
| English always in operating condition. Be aware of possible hazards when using your blower or when changing accessories. RESIDUAL RISKS Even when the power tool is used as prescribed it is not possible to eliminate all residual risk factors. The following hazards may arise in connection with the power tool’s construction and design: Health defects resulting from vibration emission if the power tool is being used over longer period of time or not adequately managed and properly... -
Page 8: Specifications
| English SPECIFICATIONS Suction Port Nozzle Dust Bag Blast Port Speed control button Trigger Switch Lock-On Button... -
Page 9: Technical Specifications
| English Technical specifications Model No. TB2086 UTB2086 Rated voltage: 220-240V-50/60Hz 110-120V~50/60Hz Rated power input: 800W 800W No-load speed: 0-15000/min 0-15000/min Blowing rate: 0-4.5m³/min 0-4.5m³/min Insulation class: 回 回 TB2086-6 (ISRAEL Plug) TB2086-4 TB2086-8 TB2086S Model No. (IRAM Plug) (BS Plug) （SAA Plug) - Page 10 | English OPERATION PICTURE...
-
Page 11: Operation
| English OPERATION Mounting the nozzle for blowing operations (see Dia A) Insert the pin located inside the Nozzle into the notch provided on the Blast Port. To lock Nozzle in place, turn the Nozzle in the direction indicated. To remove Nozzle, turn the Nozzle in the opposite direction. Mounting the nozzle and dust for dust collection (see Dia B) For dust collection, mount the Dust Bag at the Blast Port (2) and Nozzle at the suction Port. - Page 12 | English MAINTENANCE&MALFUNCTIONS Possible malfunctions and methods of their eliminations Malfunction Probable causes Actions ● Switch failure ●The power cord or wiring is Disconnect When the machine is broken, power cord plug machine from turned on, the electric malfunction; mains and contact a motor does not work.
- Page 13 TOTAL TOOLS WORLD MADE IN CHINA T0423.V07 TOTAL TOOLS CO., PTE. LTD. No. 45 Songbei Road, Suzhou Industrial Park, China.
