Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts,
which may have come loose inside the carton during shipment. Identify and count all items and compare with
the parts list and/or hardware list shown.
PARTS LIST
NO
COMPONENT
A
Dresser
Leg
B
Center Support Leg
C
STEP 1 : Locate the Legs (B) from the bottom drawer of the Dresser (A)
STEP 2 :
Place the Dresser(A) upside down on a flat and clean surface. Assemble the Leg (B) by using Allen Key (4)
with hardware 1, 2, and 3.
NOTE : MUST TIGHTEN SCREWS PERIODCALLY WITH USE SCREW WILL BECOME LOOSE CHECK TIGHTNESS OF ALL SCREW EVERY 6-8 WEEKS.
ASSEMBLY INSTRUCTIONS

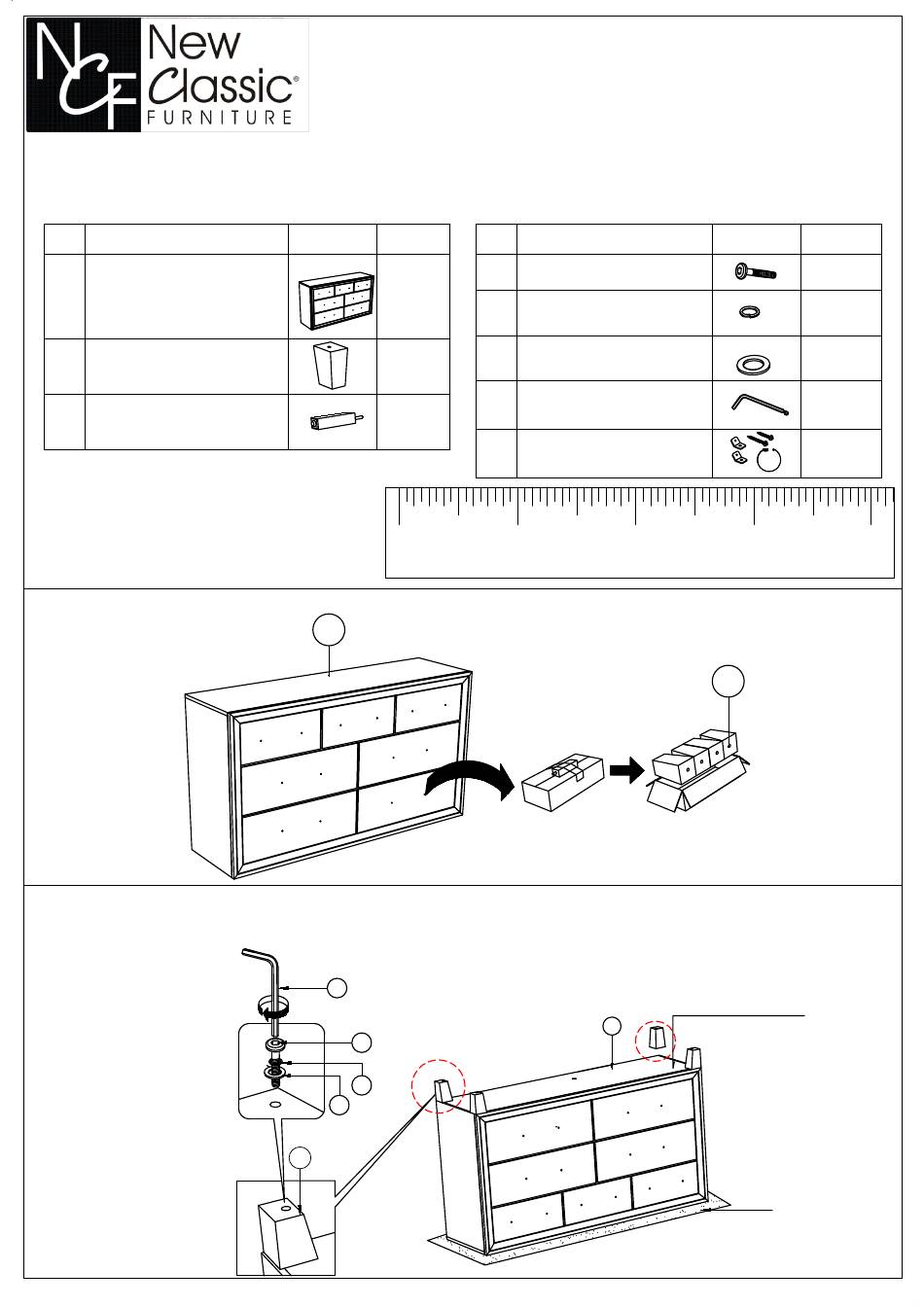

B0182-050 BALLARD 7 DRAWER DRESSER
DRAWING
A
4
x4
1
2
3
B
QTY
NO
COMPONENT
1
JCBC M6 x 2"Blk
1 pc
2
Spring Washer 1/4" Blk
3
Flat Washer 1/4"IDx6/8"OD Blk
4 pcs
4
Allen Key M4 x 4 3/8 '' Blk
1 pc
5
Anti Tip-Kit
INCH
1
HARDWARE LIST
DRAWING
2
3
SCALE (1:1)
B
Remark : Turn the Dresser
upside down as shown.
A
Soft Surface
QTY
4 pcs
4 pcs
4 pcs
1 pc
1 pc
4
