Summary of Contents for Geely ZDA4-DC1-C12E

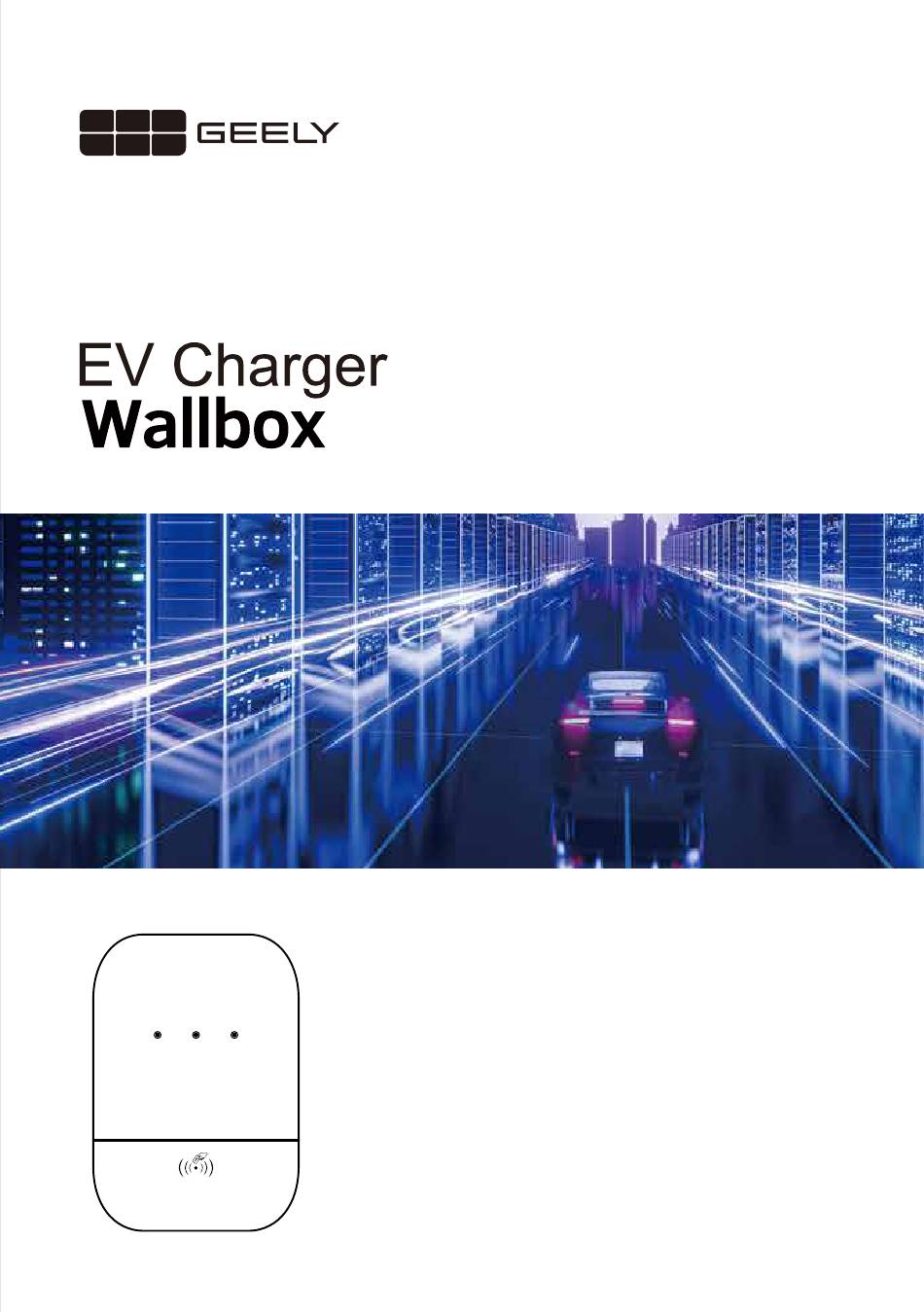

  • Page 1 User Manual...
  • Page 3: Table Of Contents

    Contents ............01 Multinational language ............02 Safety Precautions ..............03 Packing List ............04 Product Features Installation Environment Requirements ......05 ............05 Installation Process ............08 Operation Instruction .............09 Operation Flow Troubleshooting .............10 .........11 Warranty, Repair & Maintenance ............11 Warranty Disclaimer ............11 Customer Support ..............11 Certification...
  • Page 4: Multinational Language

    Multinational language GE: Für andere Sprachen scannen Sie bitte den QR-Code. FR: Pour d'autres langues, scannez le code QR. ES: Para otros idiomas, escanee el código QR. PT: Para outras línguas, digitalize o código QR. IT: Per altre lingue, scannerizza il codice QR. RU:...
  • Page 5: Safety Precautions

    Safety Precaution 1.Carefully read the user manual before installing and using the product. Ignoring precautions may result in serious injury or damage. 2.Only a qualified electrician should install and maintain the charger. Untrained individuals should not perform these tasks. 3.Improper installation or repairs can be hazardous and may increase the risk of fire. 4.
  • Page 6: Packing List

    Packing List Please check the content inside the box. Input Cable Smart Charging Card Charging Box (Select Configuration) Composition of the Kit User Manual * 1 Quality Certificate * 1 M4 * 6, pan head screw * 2 ST6*60, Hex Flange Screw* 4 Φ8*60, Expansion Tube * 4...
  • Page 7: Product Features

    Product Features Specifications ZDA4-DC1-C12E/ ZDA4-CC1-C12E/ Model ZDA4-DC1-C11E ZDA4-CC1-C11E Rated Voltage (V) 230V 230V Rated Current (A) Maximum Output Power 3.5kW Cable Width 3×6mm² 3×2.5mm² Frequency (Hz) 50Hz/60Hz Working Altitude ≤3000m Charging Mode Mode 3 Dimension 310×210×90mm (without cable) Weight 3.5kg Operating Temperature -40 ºC to 55 ºC...
  • Page 8: Installation Environment Requirements

    Installation Environment Requirements The charger installation environment should meet the following conditions: 1. A location that offers a suitable cable length for easy charging access. 2. At least 1.3 meters above the ground. 3. Minimum clearance of about 50cm around the charger when wall-mounted. 4.
  • Page 9: Installation Steps

    2.Installation steps a.Confirm the charging station's location and mark it. The station's center must be installed at least 1.3 meters above the ground. The Wall 1.3m b.Align the four locating holes on the hanging plate, then mark the wall. Drill a 60mm-deep hole at each mark and insert four Ф8 x 60mm expansion pipes.
  • Page 10 2.Installation steps c.Secure the hanging plate to the wall using four M6 x 60mm cross-slot tapping screws, aligning them with the expansion pipes. d. Hang the charging pile with the attached power line on the hanging plate. Secure the charging pile to the plate with two M4 x 6 cross-recessed pan head screws on each side.
  • Page 11: Operation Instruction

    Operation Instruction Inspection Before Charging Check the charging cable and connector for damage, ensuring no foreign objects, water, or impurities are present. Connecting to Vehicle Attach the charging connector to the vehicle and wait for the light indicator to flash green slowly, signaling it's ready to charge.
  • Page 12: Operation Flow

    Operation Flow Private charge at private place Plug in and Charge Inspection Before Charging Private charge at public place Initiating Charge with RFID Stop Charging App’ s SmartCharging Feature Indicator Status Charging Status Next Step Green light stays on Standby mode Connect the charging plug to vehicle Vehicle-connector Green light flashing...
  • Page 13: Troubleshooting

    Troubleshooting For your safety, only a licensed electrician can test and diagnose any issues. The manufacturer is not responsible for damage or hazards caused by attempted repairs by an unqualified individual. Indicator Lamp Status Likely Failure What to Do Red light flashes 1 time Leakage Contact the Customer Service Red light flashes 2 times...
  • Page 14: Warranty, Repair & Maintenance

    Warranty, Repair & Maintenance The manufacturer warrants the new product without any material and manufactur- ing defects. During the warranty period, the manufacturer will repair and/or replace the parts if there is verified product failure. Consult your local authorized representative for country-specific warranty details. The product contains no user-serviceable parts.
  • Page 16 ZD0148_V0...

This manual is also suitable for:

Zda4-dc1-c11eZda4-cc1-c12eZda4-cc1-c11e
