English Français Deutsch LUMEX 15–45 LUMEX 15–45 Index General Connection temperature sensor (Option) Installation Programming Manual programming time Connection Setting light intensity Connection synchronization Setting synchronization Strapping TC / MIN-impulse computer board (default) Setting alternating time, Loop time Strapping DCF-radio (2-wire) computer board Setting Correction value, for the temperature sensors Strapping DCF-radio (3-wire) computer board Setting DLS-Function... -
Page 2: Lumex

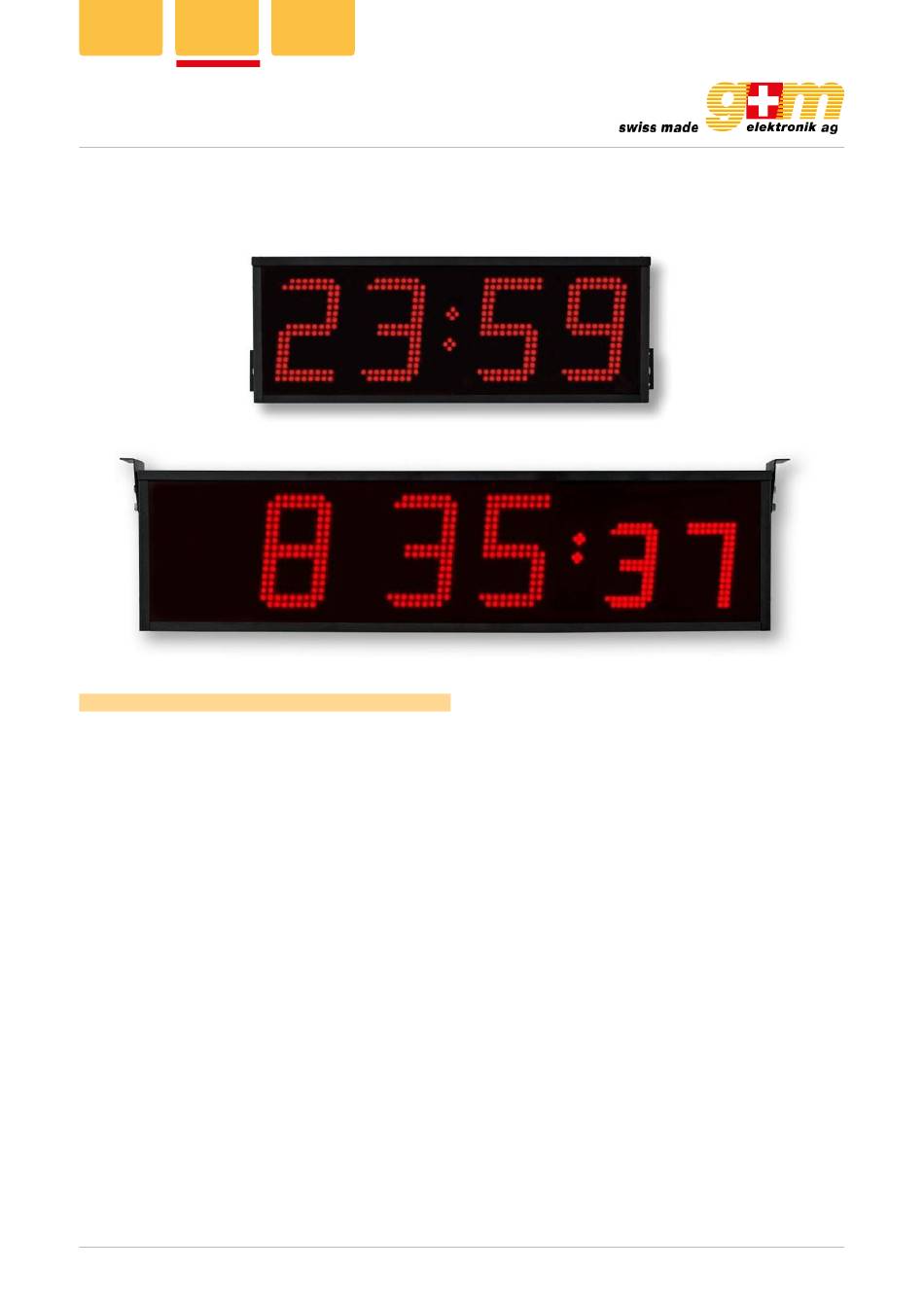

LUMEX 15–45 General Time and temperature displays, alternates time and temperature in 1–25 seconds intervals. Seven LED segments in dimen- sions 150, 190, 250, 300 and 450 mm. The time and temperature display could be single or double sided with or without second. -
Page 3: Installation
LUMEX 15–45 Installation • Mount the clock by means of the mounting brackets. Both wall and roof mounting is possible by rotating the brackets • The socket outlet shall be installed near the clock and shall be easily accessible • Connect the mains, 230 VAC 50 Hz. Installation fuse max 10 A •... -
Page 4: Synchronization
LUMEX 15–45 Synchronization Stand alone If no synchronization the T/T works as stand alone. Minute impulse • Set the straps according to the strapping schema page 3 • Connect the wires, see page 5 • The T/T could be set for synchronization or slave mode Synchronization mode: –... -
Page 5: Manual Programming Time
LUMEX 15–45 Manual programming time 12:07 Example: tine • Push until display shows YY95 • Push , Display shows Push until desired year. Accept with nn 1 • Display shows Push until desired month (1–12). Accept with DD 1 • Display shows Push until desired date (1–31). -
Page 6: Setting Alternating Time, Loop Time
LUMEX 15–45 Setting alternating time, Loop time loop • Push until Display shows Push l1 4 • Display shows Alternating time for display time is 4 seconds. Push for desired alternating time (0–25). Accept with l2 0 • Display shows Alternating time for display temperature is 0. -
Page 7: Technical Specification
LUMEX 15–45 Technical specification Common Mains 230 VAC, 50 Hz, ± 10 % Temperature- / IP-range -20 ºC until +55 ºC / Indoor IP30; Outdoor IP44 Synchronization Polarized 24 V Impulse 1/1, TC, DCF Accuracy ± 0.1 sec / 24 hours Running reserve 48 hours Changing Summer/Winter... - Page 8 LUMEX 15–45 gm-elektronik.swiss | adm@gm-elektronik.swiss Page 8 | 7 Operating instruction | 1867en01.doc | 2009...
