Summary of Contents for Gentec GAP Series

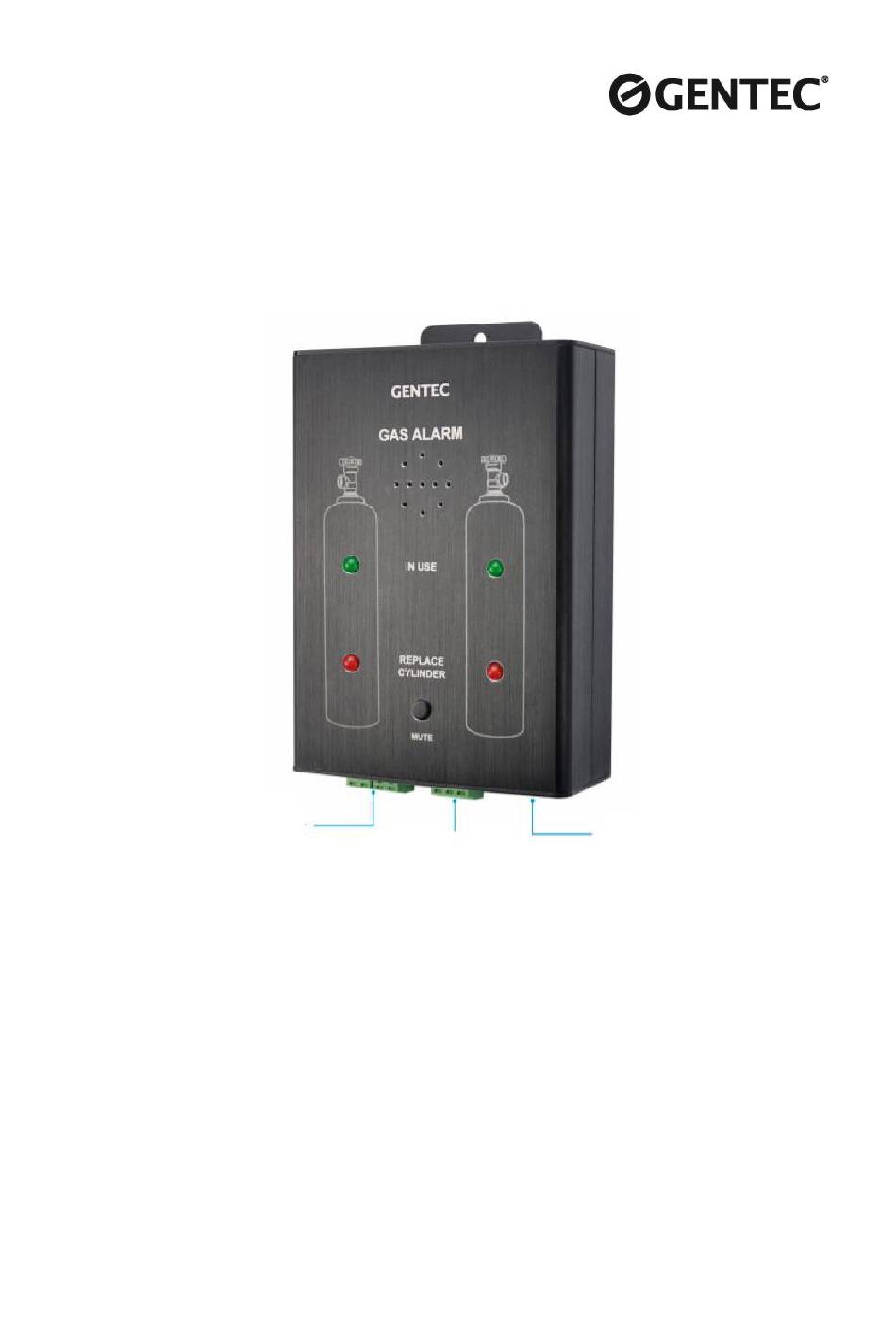

- Page 1 GAP SERIES GAS ALARM PANELS Instruction Manual Input signal Power Output signal Read this manual thoroughly and carefully before using this product. Retain this manual for future reference...
-
Page 2: Table Of Contents
Solutions for Life Contents I. Safety precautions..................3 II. Anticipated purpose................4 III. Characteristics..................4 IV. Technical parameters................5 V. Installation and operation..............6 VI. Wiring diagram................... 7 VII. Product maintenance, storing and transport........8 VIII. Common faults/issues and troubleshooting........10 IX. -
Page 3: Safety Precautions
Definition The following words in the front part have special meanings in the manual. Warning: it may cause casualty of oneself or others. Caution: it may cause loss of the company or other properties. Note: significant points require special attention, which make operation more efficient and convenient. -
Page 4: Anticipated Purpose
II. Anticipated purpose GENTEC ® GAP series gas alarm panel is to alarm and monitor interrupted gas supply of two-way gas manifold system. Audible and visual alarm is automatically triggered when gas source pressure is lower than the set pressure; LED green indicator shows normal gas source pressure when it is higher than the set value. -
Page 5: Technical Parameters
IV. Technical parameters 1) Input power of power adapter: AC100-240V 50/60Hz 2) Work voltage of alarm: DC24V (2A) 3) Input signal: normally-closed contact of pressure switch or pressure gauge with electric contact 4) Alarm: audible and visual alarm 5) Optional alarm output: a. External signal lamp b. -
Page 6: Installation And Operation
V. Installation and operation Note: size unit is mm (in.) 1) Installation size diagram 2) Schematic diagram of installation GAP series gas alarm panel P3400 Special gas Power control panel Signal lamp... -
Page 7: Wiring Diagram
VI. Wiring diagram a. VCC of alarm output port connects with NO port, when dial switch 1 and 2 on GAP-02-PCB are at Off. Under the circumstance, VCC and NO are passive ON-OFF signal in case of alarm output. b. VCC of alarm output port connects with NO port, when dial switch 1 and 2 on GAP-02-PCB are at On;... -
Page 8: Product Maintenance, Storing And Transport
VII. Product maintenance, storing and transport 7.1 Maintenance Although main components of the equipment have very long service life in general environment, uncertainty of environmental conditions may cause product degradation. Therefore, regular inspection is needed to ensure safe and stable operation of the product. At least one inspection is suggested every six months to one year;... - Page 9 test work indicator when value source pressure switch pressure or pressure gauge lower than set with electric pressure contact, corresponding red indicator is alarm sound activated; otherwise, send it back repairing. Silencing Alarm sound Press Send it back for test shall silencing repairing...
-
Page 10: Common Faults/Issues And Troubleshooting
Transport temperature is -20-60℃. Transport shall prevent rain, exposure to the sun and weight stacking, following provisions of the order contract. VIII. Common faults/issues and troubleshooting Fault Cause Troubleshooting Panel has no 1. No power 1. Check whether display power adapter is 2. -
Page 11: Technical Support
IX. Technical support 1. GENTEC has many experienced engineers to provide top services for you. When you contact us, please provide detail information of relevant applications below correct information assist rapid troubleshooting: 1) Model. 2) Operation. 3) Fault. 4) Troubleshooting.
