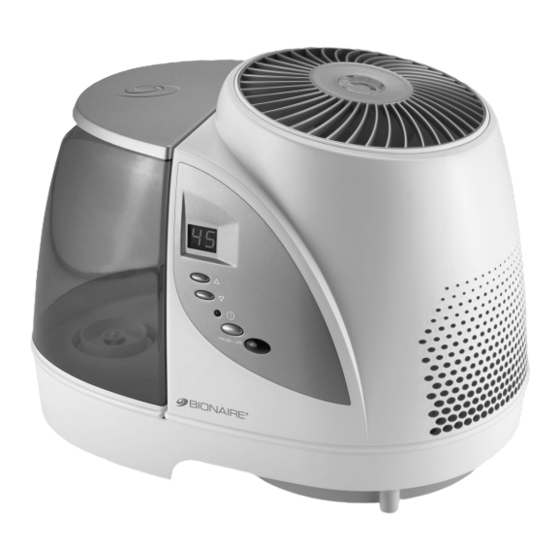

Bionaire BCM5555-CN Instruction Leaflet

BCM5555-CN06EFM1.qxd 7/3/06 15:50 Page 1
HUMIDIFIER SAFETY
PLEASE READ AND SAVE
THESE IMPORTANT SAFETY
COOL MIST
Digital
INSTRUCTIONS
Humidifier
IMPORTANT SAFEGUARDS
BCM5555-CN
MODEL
When using electrical appliances, basic safety precautions
should always be followed to reduce the risk of fire, electric
shock, and injury to persons, including the following:
1. Read all instructions before using the appliance.
2. To avoid fire or shock hazard, plug the appliance
directly into a 120V AC electrical outlet.
3. Keep the cord out of heavy traffic areas. To avoid fire
hazard, NEVER put the cord under rugs or near heat
registers.
4. DO NOT place humidifier near heat sources such as
stoves, radiators, and heaters. DO locate your
humidifier on an inside wall near an electrical outlet.
The humidifier should be at least 4" away from the
wall for best results.
5. NEVER place humidifier in an area where it is
accessible to children. NEVER use humidifier in a
closed room, particularly where a child may be
sleeping, resting, or playing (a closed room may
result in excessive humidity).
6. WARNING: Do not attempt to refill humidifier without
first unplugging the unit from its electrical outlet.
Failure to heed this warning may cause personal
injury. Be sure to unplug the unit by pulling on the
plug and not the cord.
7. Never place anything over moisture outlet when the
unit is running.
8. NEVER drop or insert any object into any openings.
DO NOT place hands, face or body directly over or
near Moisture Outlet while unit is in operation. DO
NOT cover Moisture Outlet while the unit is operating.
9. DO NOT operate any appliance with a damaged cord
or plug, after the appliance malfunctions, or if it has
Filter: BWF100P been dropped or damaged in any manner. Return
appliance to manufacturer for examination, electrical
Read instructions before operating.
or mechanical adjustment, or repair.
Retain for future reference.
10.Use appliance only for intended household use as
Instruction Leaflet
described in this manual. Any other use not
recommended by the manufacturer may cause fire,
☎
electric shock, or injury to persons. The use of
INFO-LINE
attachments not recommended or sold the
If after having read this leaflet, you have any
manufacturer may cause hazards.
questions or comments on your air humidifier,
call 1-800-253-2764 in North America.
9100030004077
Disinfect Humidifier Base and Reservoir: SERVICE INSTRUCTIONS
1. Fill humidifier base with 1/4 gallon of water and 1/2 1. Do NOT attempt to repair or adjust any electrical or
teaspoon of chlorine bleach. mechanical functions on this unit. Doing so will void the
warranty. The inside of the unit contains no user
2. Fill the reservoir 1/2 full with water and 1/2 teaspoon of
serviceable parts. All servicing should be performed by
chlorine bleach.
qualified personnel only.
3. Let the solution stand for 20 minutes, swishing every
2. If you need to exchange the unit, please return it in its
few minutes. Wet all surfaces.
original carton, with a sales receipt, to the store where
4. Carefully empty the base and reservoir after 20 you purchased it. If you are returning the unit more than
minutes, and rinse with water until you cannot detect 30 days after the date of purchase, please see the
any bleach smell. Dry with a clean cloth or paper towel. enclosed warranty.
5. Check the Filter Monitor to see if it is time to clean the
3. Should your humidifier require service, please call
filters. Depending on water hardness in your area, it 1-800-253-2764 in North America for further assistance.
may be necessary to clean the filter every 1-2 months.
4. If you have any other questions or comments, feel free
Re-insert the wick filters into the wick frame.
to write to us or visit our website www.bionaire.com.
6. Refill the water tank as directed with cool tap water,
Bionaire
repace the humidifier housing, and turn the unit on.
JCS/THG, LLC
STORAGE INSTRUCTIONS
303 Nelson Avenue
If your humidifier will not be in use for two days or more,
Neosho, MO 64850
or at the end of the season follow these instructions.
1. Clean and dry the humidifier thoroughly as per the
"Weekly Maintenance" instructions.
2. Let the humidifier dry completely before storing. Do not
store with water inside the base or water reservoir.
3. Remove the reservoir cap. Do not store with the
reservoir cap in place.
4. Do not leave wick filters inside the humidifier.
5. Store in a cool dry location.
11.DO NOT use outdoors. PLEASE SAVE THESE
12.Always place humidifier on a firm, flat, level surface. A
INSTRUCTIONS
waterproof mat or pad is recommended for use under
the humidifier. NEVER place it on a rug or carpet, or
CONSUMER SAFETY INFORMATION
on a finished floor that may be damaged by exposure
to water or moisture.
THIS PRODUCT IS EQUIPPED
13.DO NOT allow the Moisture Outlet to directly face the WITH A POLARIZED PLUG (a
wall. Moisture could cause damage, particularly to wall plug having one blade wider
paper.
than the other). This plug will fit
into the power outlet only one
14.Humidifier should be unplugged when not in use.
way. If the plug does not fit fully
15.NEVER tilt, move, or attempt to empty unit while it is
into the outlet, reverse the plug.
operating. Shut off and unplug before removing the
If it still does not fit, contact qualified personnel to install
water tank and moving the unit. If you have a warm
mist humidifier, DO NOT attempt to remove the water the proper outlet.
tank within 15 minutes after the humidifier is turned off
DO NOT DEFEAT THE SAFETY PURPOSE OF THIS
and unplugged. Serious injury may result.
POLARIZED PLUG IN ANY WAY
16.This humidifier requires daily and weekly maintenance
to operate appropriately. Refer to daily and weekly The length of cord used on this appliance was selected
cleaning procedures. Use only cleaners and additives
to reduce the hazards of becoming tangled in, or tripping
recommended by the manufacturer. Never use
over a longer cord. If a longer cord is necessary, an
gasoline, glass cleaner, furniture polish, paint thinner,
approved extension cord may be used. The electrical
or other household solvents to clean any part of the
rating of the extension cord must be equal to or greater
humidifier.
than the rating of the humidifier. Care must be taken to
17.Excessive humidity in a room can cause water
arrange the extension cord so that it will not drape over
condensation on windows and some furniture. If this
the countertop or tabletop where it can be pulled on by
happens, turn the humidifier OFF.
children or accidentally tripped over.
18.Do not use humidifier in an area where humidity level
is in excess of 50%. Use a hygrometer, available at
HOW YOUR COOL MOISTURE HUMIDIFIER WORKS
your local retailer or through the manufacturer to
Your Bionaire ® Cool Moisture humidifier draws dry air
measure the humidity.
through the rear air intake grill area. This air is then
19.DO NOT attempt to repair or adjust any electrical or
passed through 4 moisture–laden wick filters which
mechanical functions on this unit. Doing so will void
retains the minerals and deposits. The resulting moist air
your warranty. The inside of the unit contains no user
is directed back into the room from the top air grill.
serviceable parts. All servicing should be performed by
☛ Tip: This humidification system provides a cool, invisible
qualified personnel only.
20.Never place housing under water flow, or immerse in moisture output. It is normal not to see the mist.
liquids.
PRE-OPERATING INSTRUCTIONS
21.DO NOT plug in the cord with wet hands, electric
1. Be sure the humidifier is switched to OFF and the unit
shock could result.
is disconnected from the electrical outlet.
22.DO NOT pour water in any openings other than the
2. Select a location for your humidifier, on a flat surface,
water tank.
about 4" away from the wall. DO NOT place the
23.If you have a warm mist humidifier, allow unit to cool
humidifier on a finished floor or near furniture, which
before refilling water tank or maintenance as the
can be damaged by moisture or water. Place on a
heater bulb is hot.
moisture-resistant surface.
24.To prevent damage to surfaces, do not place
3. Remove the water reservoir, by holding the reservoir
humidifier under overhanging surfaces.
handle and lifting straight upwards.
25.NEVER operate unit without water in the tank.
FILLING THE WATER TANK
26.Use both hands when carrying full tank of water.
1. Twist off the water reservoir cap located on the bottom
of the water reservoir by turning counter clockwise and
fill the water reservoir with cool fresh water. Do not fill
with warm water as this may cause leaking.
Frequently Asked Questions Troubleshooting for your Cool Mist Humidifier
Question Answer Trouble Probable Cause
• What are the variables that The estimated run time for this humidifier is based on average
☛ Unit not plugged in.
affect run time? room conditions. The actual run time of your humidifier is • LED not illuminated.
☛ Power failure.
dependent on numerous variables such as:
✔ Air exchange in the room where the humidifier is placed.
☛ Filter has not
• Mist output minimal to
✔ Room construction of the room where the humidifier is placed.
none. absorbed water.
☛ Mineral buildup in base.
✔ Temperature of the room where the humidifier is placed.
✔ Humidity levels in the room where the humidifier is placed.
☛ Humidistat is set too low.
✔ Movement of occupants and the opening and closing of
doors in the room where the humidifier is placed.
☛ Wick Filter needs
to be replaced.
✔ Home furnishings in the room where the humidifier is placed.
• How do I remove film on ✔ See Daily Maintenance instructions. Regular cleaning is
☛ Normal operation.
water tank? recommended.
✔ Run your unit on the lowest setting.
• How can I extend the run
time? ☛ Rubber O-ring is missing
• Water leaks from water
✔ If your unit has electronics, set it to your desired humidity
reservoir. or improperly placed.
level. The unit will turn on and off, which will extend the run
time.
☛ Reservoir Cap not
tight enough.
✔ Fill the tank all the way full, place it on the base, let the
water empty into the base until it stops bubbling, then refill
☛ Your filter needs
• Water Filter turns brown.
the tank full again. This ensures maximum water capacity
to be cleaned.
and will extend run time.
☛ In areas with particular
hard water your wick
filter will need to be
changed frequently.
☛ Mineral deposits cause
• Film on water reservoir.
film on tank to build up.
☛ Filter needs to be
• Water cloudy.
washed.
☛ Using warm water
to refill reservoir.
☛ Humidifier is reacting
• Humidistat cycles on/off.
to room humidity level.
• Very tight reservoir cap. ☛ Over tightened.
2. After filling the water reservoir, replace the water reservoir
If you do not plan to use the humidifier for two or more
cap by firmly turning clockwise and then replace the
days, make sure any residual water is drained from the
water reservoir onto the base. The water reservoir will
water reservoir, base and wick filters to prevent algae or
immediately begin to empty into the base.
bacteria growth.
OPERATING INSTRUCTIONS
EXTENDED RUN TIME SETTING
Your humidifier is equipped
Fig 1 By setting your humidifier to a specific humidity level, you
Filter Monitor
with a technologically Control Panel
are actually also extending the run time. Since the unit
advanced Digital Humidistat.
Reservoir Handle
will turn on and off to maintain the set humidity level, less
You can set the humidifier to
water will be used, so you will need to fill the unit less
run continuously in manual
than you would on manual setting.
mode or set the Digital
Humidistat to your desired
USING THE PROGRAMMABLE TIMER
humidity setting. The Digital
Housing The Digital Humidistat allows the user to program the
Humidistat will automatically
humidifier to come on at a preset time, or turn off after a
turn the humidifier ON or
Water
set amount of time.
Reservoir
OFF, depending on the
preset comfort level. The
Setting the Off Timer:
Wick Holder
comfort level ranges from
1. Select the Mode and or
30% and 65% relative humidity.
humidity you wish the
humidifier to run in.
MANUAL MODE INSTRUCTIONS
2. While the humidifier is
1. Plug the humidifier into a 120V AC electrical outlet.
running, press and hold the
2. The display will show the current room humidity. up and down buttons
simultaneously for 2
3. To start the unit, push the MODE/ OFF button once for
seconds. The display will
the HIGH (3) manual setting.
flash "00".
4. Press the button again for the MEDIUM (2) manual
3. By pressing the up and
setting and again for LOW (1). After the selection is
down buttons, program the
made, the display will return to show the current room
humidifier to turn off up to
humidity.
16 hours later in increments of 1 hour.
5. To stop the unit, press and hold the button for two
4. After setting the timer, the display will return to show
seconds, or keep pressing the button until the display
the current room temperature. The Timer light will
reads "OF".
illuminate to show that the timer is activated.
5. After the predetermined length of time has passed, the
HUMIDISTAT INSTRUCTIONS
humidifier will automatically shut off.
To take advantage of the Digital Humidistat, press the
MODE/ OFF button until the speed is set in either the
Setting the On Timer:
Auto HIGH (A3), Auto MEDIUM (A2) or Auto LOW (A1)
1. While the humidifier is off, press and hold the up and
setting. Then adjust the set humidity by using the up and
down buttons simultaneously for 2 seconds.
down buttons. Humidity will increase in increments of
2. By pressing the up and down buttons, program the
5%. When the humidity level is set, the display will return
humidifier to turn on up to 16 hours in advance in
to show the current room humidity. When the room
increments of 1 hour.
humidity level rises above the set humidity, the humidifier
3. The humidifier will continue to run on Auto Mode (HI) at
will stop. When the humidity level drops below the set
45% for 2 hours of run time.
humidity, the humidifier will turn on automatically.
NOTE: Allow up to 30 minutes for the filter to fully
absorb water and for the unit to produce moisture.
NOTE: The Digital Humidistat has memory. This means
that when you turn the unit back on, it will be at the last
setting the humidifier was set at.
TWO (2) YEARS LIMITED WARRANTY b) A dated sales receipt or PROOF OF PURCHASE,
SAVE THIS WARRANTY INFORMATION c) Your $10.00 check for return shipping and
Solution
handling, and
A. This Warranty applies only to the original purchaser of
✔ Plug in unit.
✔ Check circuit breaker or
this product. d) The model number of the unit and the problem
outlet.
you are having. (Enclose in an envelope and tape
B. This Warranty applies ONLY to repair or replacement of
✔ Wait 15 minutes before
directly to the unit before the box is sealed.)
any supplied or manufactured parts of this product that,
starting humidifier.
✔ Regular cleaning of tray
upon inspection by JCS/THG, LLC authorized personnel, 3. JCS/THG, LLC recommends you ship the package
after each use will help
keep the unit functioning is shown to have failed in normal use due to defects in U.P.S. ground service for tracking purposes.
properly.
material or workmanship. JCS/THG, LLC will determine
✔ Set the humidistat to
4. All shipping charges must be prepaid by you.
high. whether to repair or replace the unit. This Warranty
✔ Follow cleaning instructions
5. Mark the outside of your package:
does not apply to installation expenses.
in manual.
Bionaire
C. Operating this unit under conditions other than those
✔ Mist is invisible.
recommended or at voltages other than the voltage JCS/THG, LLC
✔ Check to see if inlet or
outlet grills are blocked. indicated on the unit, or attempting to service or modify
303 Nelson Avenue
the unit, will render this WARRANTY VOID.
✔ Remove reservoir
Neosho, MO 64850
cap then replace
D. Unless otherwise proscribed by law, JCS/THG,
or reposition ring.
SHIPPING AND HANDLING CHARGES: $10.00 (USD)
✔ Tighten the LLC shall not be liable for any personal injury,
reservoir cap.
property or any incidental or consequential This Warranty gives you specific legal rights, and you may
✔ Follow cleaning
damage of any kind resulting from malfunctions, have other rights which vary from state to state. The
instructions in manual.
provisions of this Warranty are in addition to, and not a
defects, misuse, improper installation or alteration
of this product. modification of, or subtraction from, the statutory
✔ Use Clean-Away™
warranties and other rights and remedies contained in any
Solution (DMS216), to
E. All parts of this product excluding filters, which are
order call 1-800-253-2764,
applicable legislation. To the extent that any provision of
or visit www.bionaire.com. covered under separate warranty, are guaranteed for a
this Warranty is inconsistent with any applicable law, such
period of 2 years as follows:
provision shall be deemed voided or amended, as
✔ Follow cleaning
1. Within the first 30 days from date of purchase, the
instructions in manual.
necessary, to comply with such law.
store from which you purchased your product
✔ Refill using cool water.
should replace this product if it is defective in
material or workmanship (provided the store has
in-stock replacement.) If you intend to assert any
✔ Set the humidistat to a
claim in connection with the product, please follow
higher or lower setting.
the instructions in paragraph F.
✔ Add liquid soap or
petroleum jelly to cap
2. Within the first 24 months from date of purchase,
gasket to ease opening.
JCS/THG, LLC will repair or replace the product if it
is defective in material or workmanship, subject to
the conditions in paragraph G.
F. If you have any other problem or claim in connection
with this product, please write to our Consumer Service
Department.
G. IMPORTANT RETURN INSTRUCTIONS. Your Warranty
depends on your following these instructions if you are
returning the unit to JCS/THG, LLC:
1. Carefully pack the item in its original carton or other
© 2006 JCS/THG, LLC
suitable box to avoid damage in shipping.
Bionaire ® , the Bionaire logo™, Clean-Away™ and
2. Before packing your unit for return, be sure to
PERMAtech™ are trademarks of JCS/THG, LLC.
enclose:
a) Your name, full address with zip code and
telephone number
BCM5555CN06EFM1
REMOTE INSTRUCTIONS CLEANING AND MAINTENANCE INSTRUCTIONS
Fig 3
1. Insert 2 AAA batteries into back
Humidifiers provide comfort by adding moisture to dry,
of remote control.
heated indoor air. To get the most benefit from the
2. Press the Mode button on remote humidifier and avoid product misuse, follow all
to begin operation. instructions carefully, specifically the operation, care and
maintenance guidelines. Please note that this is an
3. Use the remote to control the
same features as the base unit. electrical appliance, and requires attention when in use.
NOTE: The timer function can only In addition, if you do not follow the recommended care
be activated on the base unit. It cannot be activated via and maintenance instructions, micro-organisms may be
able to grow in the water within the humidifier's reservoir.
the remote control.
You must routinely follow the cleaning procedures that
NOTE: The remote will not shut off the humidifier by
follow in order to ensure proper, efficient operation of your
holding the remote button for 2 seconds. The user needs
humidifier. Proper maintenance and cleaning is essential
to scroll to "OF" to shut off the humidifier with the remote
to the continued performance of your unit and the
control.
avoidance of algae or bacteria build-up.
NOTE: Do not mix new and old batteries. Do not mix
alkaline, standard (carbon-zinc), or rechargeable (nickel-
DAILY MAINTENANCE
cadmium) batteries.
1. Be sure the unit is OFF and is disconnected from the
Fig 2
PERMAtech™ FILTER CLEANING INSTRUCTIONS
A
2. Remove the housing and the reservoir from the
1. The water tray should be cleaned
Fig 4
when you clean the filter. The
C
3. Carry the base of the unit to the sink, remove the wick
water tray is a convenient way to
D
carry the filter to prevent dripping.
B
2. Mix 1 gallon warm tap water with
1 teaspoon concentrated
antibacterial liquid dish washing
soap.
A. Control Panel C. UP/DOWN Buttons
3. Fully submerge filter in soap solution for 15-20 minutes.
B. Mode/Off Butto n D. Timer Light LED Display
4. Drain the water from the tank into the sink and rinse
4. Dunk filter in soap solution several times then gently
press to release the soapy water. Be sure not to wring,
pull or scrub filter as this will degrade the filter.
5. Put filters back in wick frame, replace on base, replace
5. Run under cool tap water until there is no soap
remaining. Some discoloration may still be visible, this
is normal and does not affect performance.
6. Gently shake or press the filter to remove excess water.
6. Follow Operating Instructions.
7. The filter can be put directly into the humidifier while still
damp if it is to be used right away, or allow filter to dry
WEEKLY MAINTENANCE
completely if humidifier is to be stored.
Remove Scale:
Should your filter become damaged or lost, please call
1. Repeat steps 1-4 above.
the customer service number listed in the manual for a
replacement part: BWF100P. 2. Clean the base by partially filling the base with one 8-oz
3. Rinse with clean warm water to remove scale and the
Printed in China
electrical outlet.
humidifier and place in sink or tub.
frame and wicks, place in sink, drain any remaining
water and rinse thoroughly to remove any sediment or
dirt. Wipe clean, and dry with a clean cloth or paper
towel.
NOTE: the base and wick frame are dishwasher safe
TOP RACK ONLY.
tank thoroughly. Wipe clean, and dry with a clean cloth
or paper towel.
the housing, then refill tank with cool tap water as
instructed earlier in the Filling Instructions. Do not
overfill.
cup of undiluted white vinegar, or use Clean-Away™ by
Bionaire ® . Let solution stand 20 minutes, cleaning all
interior surfaces with a soft brush. Dampen a cloth with
undiluted white vinegar and wipe out entire base to
remove scale.
white vinegar solution before beginning to disinfect the
reservoir.
