Summary of Contents for ELEVEN Volta Sodium EBL-4.5

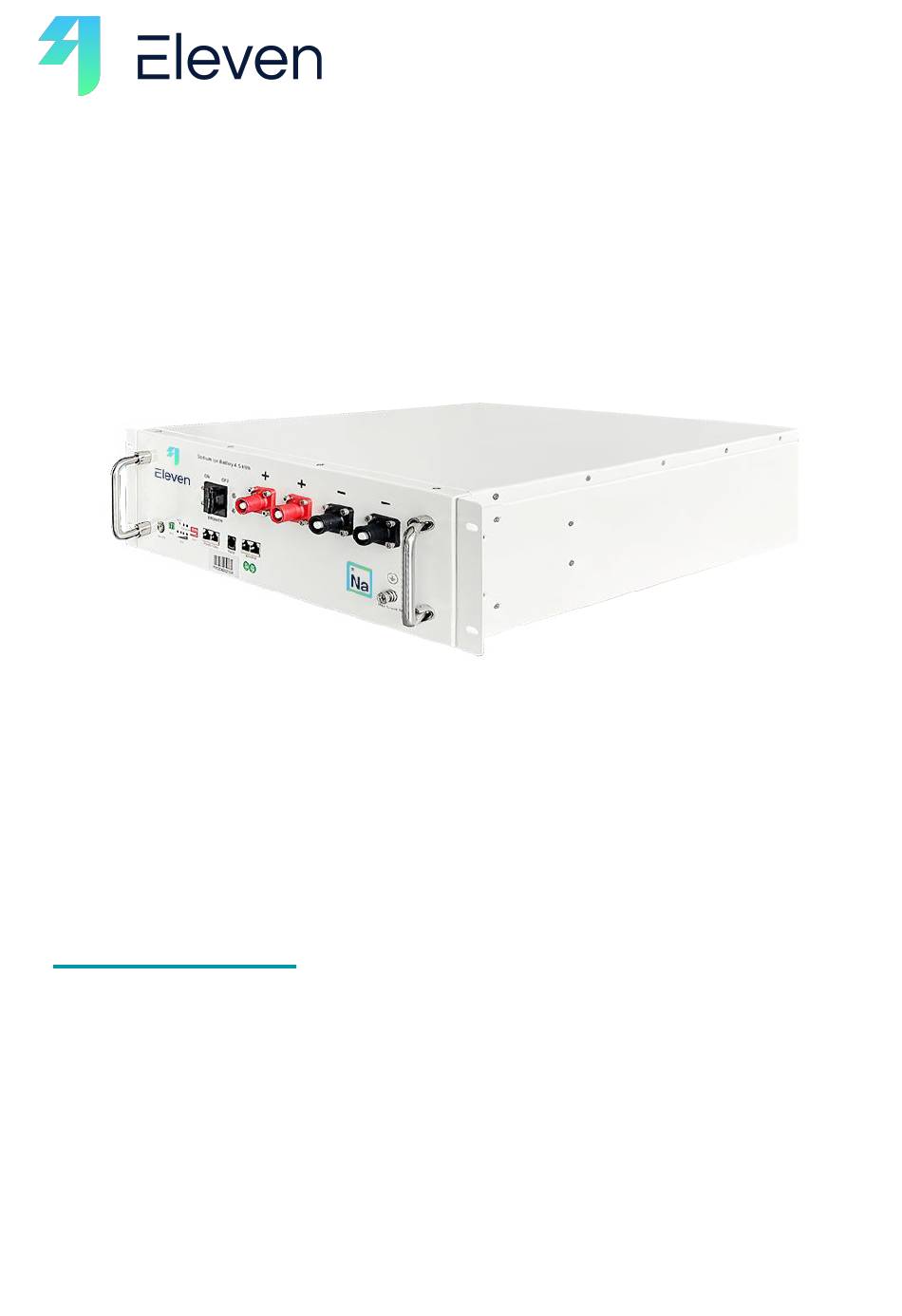

- Page 1 Volta Sodium Battery Pack EBL-4.5 Installation Manual Ver. 1.0 01/25...
-
Page 2: General Information
General Information A Sustainable, Reliable, and Scalable Energy Storage Solution The Eleven Energy 4.5 kWh Sodium Battery Pack combines innovative sodium-ion technology with sustainable design, offering reliable energy storage that’s eco-friendly, durable and adaptable to your needs. This manual provides detailed information about the battery pack, including installation guidelines, electrical connections, configuration and... -
Page 3: Table Of Contents
Box Content Battery Pack Inverter-Battery Power Qty: 1 Cable Set Qty: 1 Grounding Cable Qty: 1 Battery-Battery Parallel Cable Set Qty: 1 Battery-Battery Parallel Inverter-Battery Communication Cable CAN BUS Cable Qty: 1 Qty: 1 If any damaged or missing parts are found, please contact us immediately. - Page 4 Connections E F G Battery ON/OFF Switch Battery Status Indicator Lights ADD: Parallel Battery Setting Dip Switch Battery Circuit Breaker RS485-1/ CAN: Inverter Communication Ports RS232: Battery Diagnosis Port RS485-2/ RS485-2: Battery Parallel Connection Ports Battery Positive Terminal Battery Negative Terminal GND: Battery Grounding Connection Point...
-
Page 5: Safety And Precautions
UK registered electrician and in accordance with the IEE Wiring Regulations (BS 7671 - 18th Edition). The battery pack is designed to work with an Eleven Energy Hybrid Inverter. ● Please do not connect this battery pack to any other brands of inverters or battery packs. -
Page 6: Inverter-Battery
Battery Connection Before connecting the battery packs, ensure that both the inverter and battery are powered off (all indicator lights are off). Do not connect or disconnect the battery cable while the inverter is operating, as this could result in electric shock and damage both the inverter and battery. Battery power cable connectors have a locking mechanism. -
Page 7: Can Bus Cable
Battery Connection Inverter Secure the positive and negative power cables into their corresponding Waterproof Rubber Plug inverter terminals, ensuring a locking torque of N·m. Do not reverse polarity! CAN BUS Cable Inverter Communication Sodium Battery Pack Module Interface CAN Port CAN/RS485-BMS Port... -
Page 8: Dip Switch Setting
Dip Switch Setting When connecting multiple battery packs, each individual battery pack must be uniquely identified by its DIP switch setting. Please configure the DIP switches for each battery pack according to the table below. When connecting two or more batteries, ensure that all batteries have the same State of Charge (SoC). - Page 9 Startup / Shutdown & Indicator Lights Startup Press the ON/OFF switch on the battery pack(s). After hearing a "beeping" sound, set the battery's integrated circuit breaker to the ON position. Shutdown Turn the battery's integrated circuit breaker to the OFF position, then press the battery ON/OFF switch.
- Page 10 Sodium Battery | Datasheet Volta ELB-4.5 Specifications Battery Type Sodium-ion Capacity 4.5 kWh Max. Charging / 100 A / 100 A Discharging Current Rated Voltage 45 V Sodium-ion Technology Operating Voltage Range 33V - 59.2V Green & Sustainable Battery Depth of Discharge High Charge / Discharge Rate Up to 100 A Charging Temperature...
