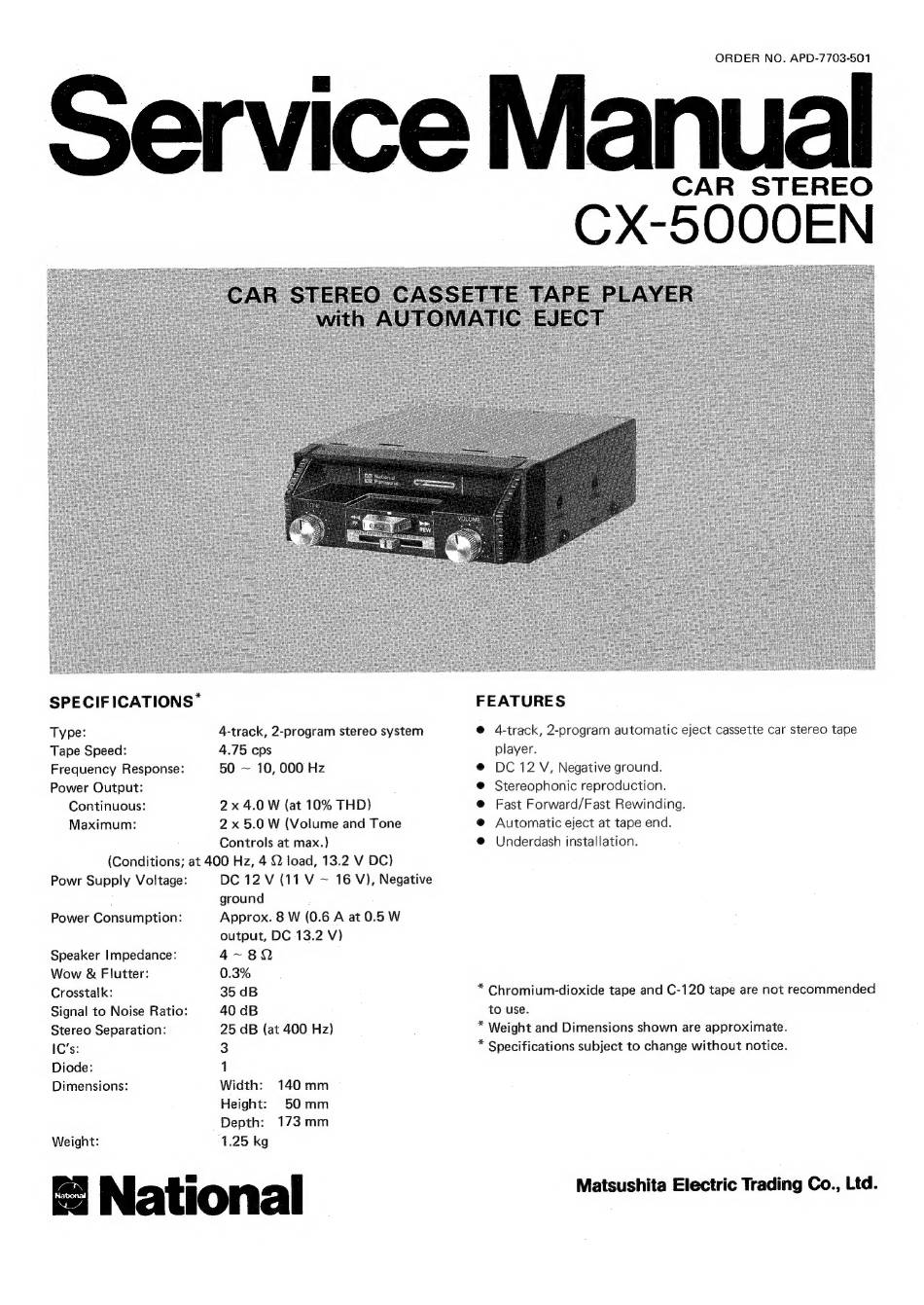

National CX-5000EN Service Manual

ORDER NO. APD-7703-501
SPECIFICATIONS™
Type:
Tape Speed:
Frequency Response:
Power Output:
Continuous:
Maximum:
4-track, 2-program stereo system
4.75 cps
50 ~ 10, 000 Hz
2x 4.0 W (at 10% THD)
2 x 5.0 W (Volume and Tone
Controls at max.)
(Conditions; at 400 Hz, 4 Q load, 13.2 V DC)
Powr Supply Voltage:
Power Consumption:
Speaker Impedance:
Wow & Flutter:
Crosstalk:
Signal to Noise Ratio:
Stereo Separation:
IC's:
Diode:
Dimensions:
Weight:
DC 12 V (11 V ~ 16 V), Negative
ground
Approx. 8 W (0.6 A at 0.5 W
output, DC 13.2 V)
4~8Q
0.3%
35 dB
40 dB
25 dB (at 400 Hz)
3
1
Width: 140mm
Height: 50mm
Depth: 173mm
1.25 kg
National
CAR STEREO
CX-SOOOEN
FEATURES
@ 4-track, 2-program automatic eject cassette car stereo tape
player.
DC 12 V, Negative ground.
Stereophonic reproduction.
Fast Forward/Fast Rewinding.
Automatic eject at tape end.
Underdash installation.
* Chromium-dioxide tape and C-120 tape are not recommended
to use.
* Weight and Dimensions shown are approximate.
* Specifications subject to change without notice.
Matsushita Electric Trading Co., Ltd.
