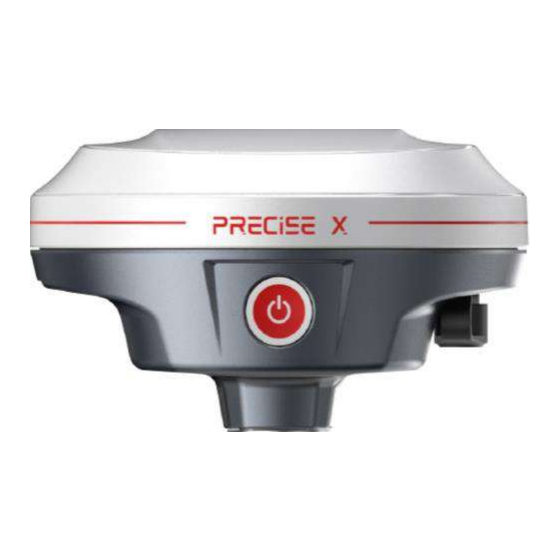

- Page 1 PRECISE X GNSS Receiver User Manual...
- Page 2 PRECISE X GNSS RECEIVER GNSS Receiver User Manual...
- Page 3 Before using the product, please read these operating instructions carefully, they will help you to use it better. Zhuhai Precise Technology Co., Ltd. assumes no responsibility if you fail to operate the product according to the instructions or operate wrongly due to misunderstanding the instructions.
-
Page 4: Table Of Contents
PRECISE X GNSS RECEIVER Contents Chapter 1 ..............................1 1.1 Foreword ................................2 1.2 Features ................................2 1.3 Use and precautions ............................2 Chapter 2 ..............................3 2.1 Hardware structure ............................4 2.2 Button and light ..............................5 2.4 Static survey..............................16 2.5 tilt survey ..............................18 2.6 Firmware upgrade ............................ -
Page 5: Chapter 1
PRECISE X GNSS RECEIVER Chapter 1 Overview This chapter contains: - Foreword - Features - Use and precautions... -
Page 6: Foreword
TV towers, microwave stations, and high-voltage transmission lines. To avoid or reduce the Precise X GNSS receiver occurrence of multipath effects, the station should be away from terrain and features with strong reflectors, such as high-rise buildings, water, etc. -
Page 7: Product Introduction
PRECISE X GNSS RECEIVER Chapter 2 Product Introduction This chapter contains: - Hardware structure - Button and light - Web management system - Static measurement - Real Time Kinematic (RTK) surveying - Tilt survey - Firmware upgrade - AR Stakeout... -
Page 8: Hardware Structure
PRECISE X GNSS RECEIVER 2.1 Hardware structure The product’s appearance is divided into three parts, the upper cover, bottom cover and control cover. 2.1.1 Upper cover 2.1.2 Bottom cover... -
Page 9: Button And Light
Bluetooth: bule color WIFI: green color 2.3 WEB management system PRECISE X has a built-in web management system that can be used to set the receiver's working mode, data output, as well as view receiver information and satellite information. The receiver’s Wi-Fi name is S/N of GNSS receiver. - Page 10 PRECISE X GNSS RECEIVER 2.3.1 Main menu After logging into the web management system, you will see the whole web. Each option of the main menu contains drop-down menus. All options of main menu...
- Page 11 PRECISE X GNSS RECEIVER All descriptions of options Main menu Sub-menu Description Work mode, position information, PDOP, Locked and Information Position status tracked Satellite, Time. Satellite information Cut-off angle, Locked and tracked Satellite of all GNSS constellations. Instrument Device information, Antenna, GNSS board, Network information Module, Radio.
- Page 12 PRECISE X GNSS RECEIVER 2.3.2 Information The “information” includes Position status, Satellite information, Instrument information 1. Position statuts 2. Satellite information...
- Page 13 PRECISE X GNSS RECEIVER...
- Page 14 PRECISE X GNSS RECEIVER 3. Instrument information...
- Page 15 PRECISE X GNSS RECEIVER 2.3.3 Settings The “settings” includes Mode setting, Satellite setting, Parameter setting, Output setting 1. Mode setting 2. Satellite setting...
- Page 16 PRECISE X GNSS RECEIVER 3. Parameter setting 4.Output setting...
- Page 17 PRECISE X GNSS RECEIVER 2.3.4 File upload and download The “File upload and download” includes Raw data, Log file. 1. Raw data 2.Log file...
- Page 18 PRECISE X GNSS RECEIVER 2.3.5 Management The “Management” includes System management, Developer mode 1. System management...
- Page 19 PRECISE X GNSS RECEIVER 2.Developer mode...
-
Page 20: Static Survey
PRECISE X GNSS RECEIVER 2.4 Static survey Static survey is a kind of positioning survey, which is mainly used to establish various control networks. 2.4.1 Static settings Currently, there are two ways to set a Static mode. 1. Using Web interface Settings—Mode settings—Work mode—Static... - Page 21 PRECISE X GNSS RECEIVER H+HL=72mm 2.4.3 Static data download 1. Download by USB cable Connect the GNSS receiver to a computer with the Type-C USB cable and copy the static data to the computer. Currently, it is only supported original data. So, it could be “Static to RINEX” with post...
-
Page 22: Tilt Survey
PRECISE X GNSS RECEIVER 2. Download in the web management system The Wi-Fi name of the receiver is its S/N. You can connect it to a controller or phone (the default password is: password) and then input the IP address 192.168.10.1 into the browser to log into the WEB management system. -
Page 23: Firmware Upgrade
PRECISE X GNSS RECEIVER Shake the receiver back and forth (once every second) for initialization until Shake is marked with When all the initialization items are ticked, the receiver prompts “Tilt compensation started” and the tilt survey icon becomes illuminated. This means that the tilt survey initialization is now complete, and you can perform the tilt survey on the receiver. - Page 24 PRECISE X GNSS RECEIVER 4. Click the “select file” and find the new file of firmware which we have sent to you. 5. Click the “Upload” and wait for a while until it is finished. 2.6.2 Through USB interface 1. Plug the USB cable into the GNSS receiver and your computer.
-
Page 25: Ar Stakeout
PRECISE X GNSS RECEIVER 2.7 AR Stakeout Precise X supports AR stakeout function. The PC2 controller and the software xField or later versions are required. 2.7.1 AR Stakeout Instructions 1. Device Preparation before AR stakeout: (1) Use the PC2 controller to connect the Precise X via WIFI. -
Page 26: Chapter 3
PRECISE X GNSS RECEIVER Chapter 3 Technical specifications This chapter contains: - Technical specifications... -
Page 27: Technical Specifications
PRECISE X GNSS RECEIVER 3.1 Technical specifications Configuration Detailed indicators Satellite Channels 1808 performence L1C/A, L2P(Y), L2C, L5 B1I, B2I, B3I, B1C, B2a, B2b GLONASS L1, L2 Galileo E1, E5a, E5b, E6 QZSS L1, L2, L5, L6 SBAS L1, L5... -
Page 28: Power Supply
External USB Pen drive Data Tranfer Type-C USB Transfer Supports FTP/HTTP download Differential RTCM 2.1, RTCM 2.2,RTCM 3.0,RTCM 3.1,RTCM 3.2,NMEA Format 0183CMR,CMR+ Static Data DAT, RINEX 2.X, RINEX 3.x,BINEX Format GPS Output VRS, FKP, MAC Format Network Ntrip fully supportable Model COMMUNICATION... - Page 29 PRECISE X GNSS RECEIVER Weight 740g Operating -30° C to 65° C Temp Storage -40° C to 80° C Temp Proof IP68 water and dust proof 2m drop on hard surface40G 10ms sawtooth wave Notice: [1] The measurement accuracy, precision, reliability and initialization time depend on various factors, including tilt angle, number of satellites, geometric distribution, observation time, atmospheric conditions and multi-path validation, etc.
-
Page 30: Chapter 4
PRECISE X GNSS RECEIVER Chapter 4 Accessories and interfaces This chapter contains: - Data cable - Antenna - Battery & charger... -
Page 31: Data Cable
PRECISE X GNSS RECEIVER 4.1 Data cable Type-C cable: To connect the receiver to the PC for upgrading the firmware and downloading static data. 4.2 Antenna The UHF radio antenna is used in the Internal radio mode. 4.3 Battery 4.3.1 Battery: The receiver has a built-in 6800mAh/7.2V battery. - Page 32 PRECISE X GNSS RECEIVER 4.3.2 Charger: To charge the receiver, use the standard charger. When it is in charge, the battery button light will turn flashing. Notice: Please use this product’s standard charger to charge the receiver. We will not be responsible for any accidents that occur during the charging process or any damage to the instrument if you use other chargers instead.
- Page 33 PRECISE X GNSS RECEIVER...
