Summary of Contents for Milton Zeeline ZE21DC

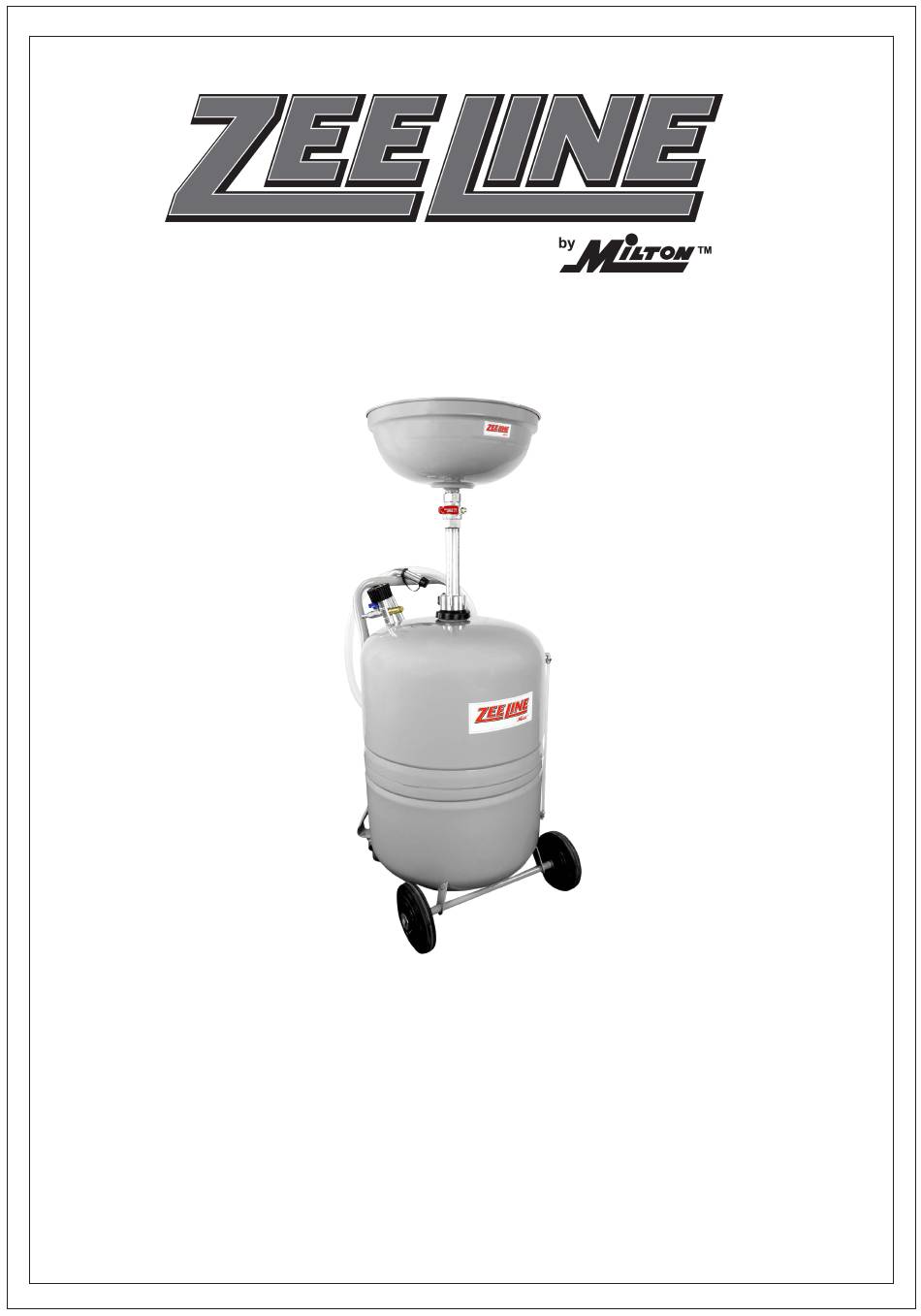

- Page 1 www.zeeline.com 21-Gallon Air Operated Waste Oil Drain Model Number: ZE21DC Use and Operations Manual...
- Page 2 Index 1 - Product Introduction 2 - Safety & Warnings 3 - Assembly & Usage Instructions 4 - Maintenance & Care 5 - Troubleshooting 6 - Mechanical Drawing 7 - Parts List 8 - After Sales Service 9 - Contact Info ¿Necesita instrucciones en Besoin d'instructions en español? Escanea aquí.
- Page 3 ZE21DC This waste oil drain is for collecting waste oil that is discharged from the transmission and/or motor. The fill rate of the drain can be monitored from the level indicator on the tank. Maximum oil storage capacity is 21 gallons. This waste oil drain is intended to drain the waste oil from underneath a properly lifted vehicle by using the telescoping funnel.
-
Page 4: Safety And Warnings
Never exceed 7.3 PSI (0.5 bar) of pressure when discharging oil from tank 7.3 PSI 0.5 Bar Only use original spare parts that are authorized by Zeeline by Milton . The use of spare parts not designed in accordance with this product can cause undesired operation or put the operator at risk of serious injury or death. - Page 5 Assembly & Usage Instructions Customer Obligations The customer must ensure that anyone operating this equipment has thoroughly reviewed this manual and that all staff is properly trained before operating. The customer must have an air compressor which is in accordance with the technical data. The customer must follow all local and federal environmental guidelines when discharging oil from the oil drain.
- Page 6 Assembly & Usage Instructions For Discharging waste oil from the tank ; Close all of the valves, which are located on the product. Ensure that the air inlet nipple is inserted (18) and tighten. Open valve (17) and connect your air coupler to the air inlet nipple (18).
- Page 7 Assembly & Usage Instructions For Funnel Usage Unscrew the downtube position knob (7) and set the down tube to the desired working height. Then Screw the downtube position knob to tighten and lock in the desired height. Downtube position knob Funnel Ball Valve Open the funnel ball valve (3) before draining oil into the funnel assembly.
- Page 8 Clean the oil drain daily. Check the hose connections, if there is a loose connection and then tighten. Look at the level nd cator on the s de of the tank and empty t f the tank s full. Check f the pressure gauge s work ng. If t s defect ve, replace t w th a new one.
- Page 9 When a r s suppl ed to the o l dra ner, the pressure M n valve on the a r pump ng system may be n gauge does not ncrease. closed pos t on, turn t to open pos t on. Check whether the down tube know is in the Funnel tube does not move up and down.
-
Page 10: Technical Drawing
Technical Drawing Model: ZE21DC When ordering spare parts please refer to the chart located on page 11 of this manual for part number identification. -
Page 11: Replacement Part List
Replacement Part List MODEL ZE21DC... - Page 12 4500 W. Cortland St., Chicago, IL 60639 Telephone: 1-800-231-1525 www.zeeline.com / saleszeeline@miltonindustries.com Above is the manufacturer's product identification information According to this information: A: Indicates evacuation working type. B: Indicates tank capacity of tank and funnel. C: Indicates hose length. D: Indicates machine weight without oil.
- Page 13 Support Service Assistance Phone Toll Free: 1-800-231-1525 Email: saleszeeline@miltonindustries.com Zeeline by Milton 4500 W Cortland Street Chicago, IL 60639 WWW.ZEELINE.COM REV 11/10/2022...
