Summary of Contents for Belkin P74978UKAP21000UK3M

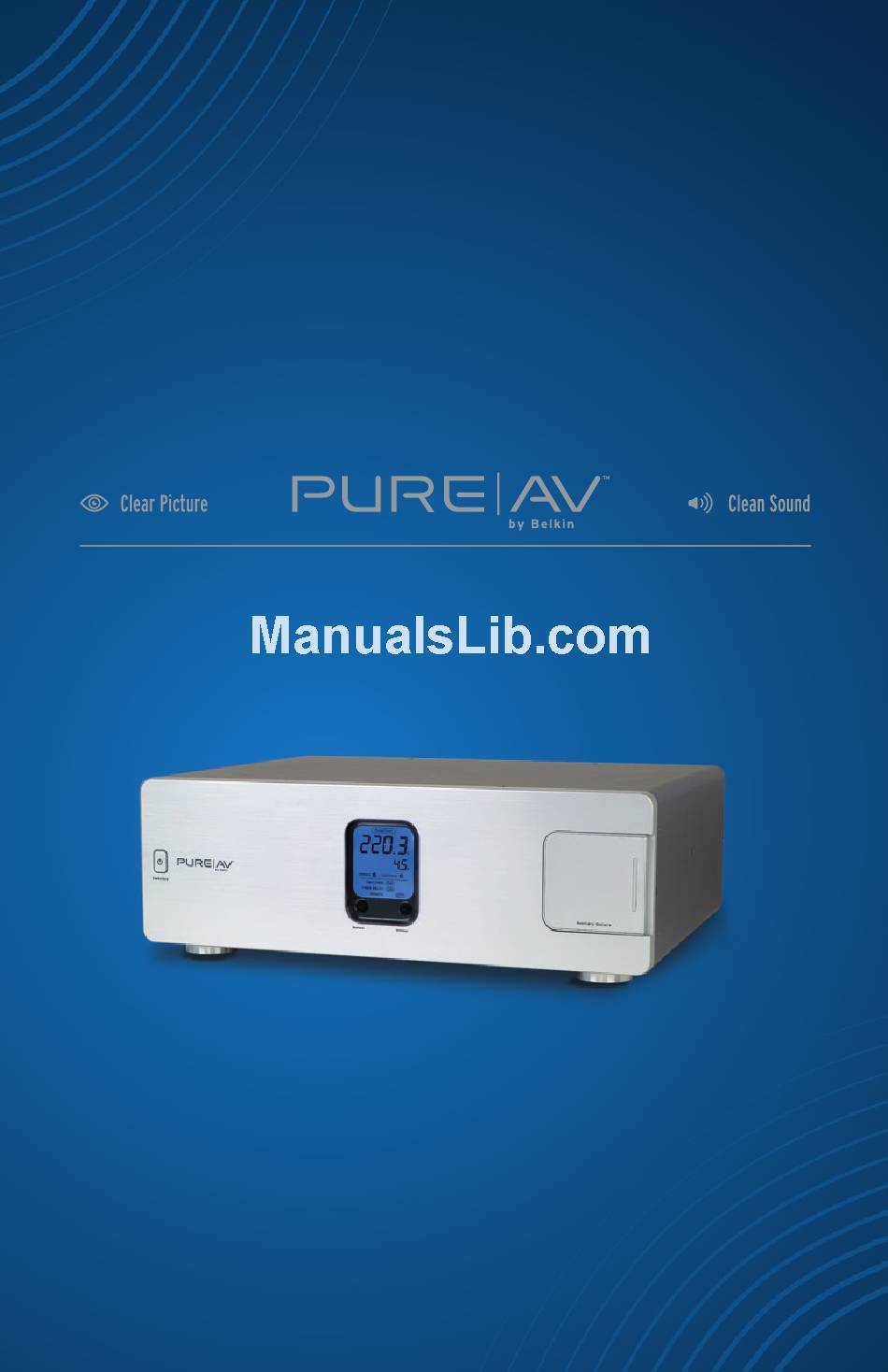

- Page 1 Home Cinema Power Protection with PureFilter™ Technology Power Console PF40 User Manual AP21000uk3M...
-
Page 2: Table Of Contents
Step 9 Connect your Cable TV/Satellite Coaxial Lines 15 Step 10 Connect your Broadband Ethernet Line .... 16 Operation ..................17 Technical Specifications ............19 Troubleshooting ................. 20 Glossary of Power Terms ............22 Belkin Connected Equipment Warranty ........23... -
Page 3: Introduction
Introduction Thank you for purchasing the PureAV Power Console. The Power Console is designed to clean, protect, and efficiently distribute power to your valuable home cinema system. The PureAV Power Console ensures that every movie you watch and every album you hear is as clean and clear as possible. -
Page 4: Safety Precautions
Failure to plug this product directly into an earthed socket may result in personal injury or damage to your equipment, and void your Belkin Connected Equipment Warranty. Call a licensed electrician if you are unsure if your AC sockets are properly earthed. -
Page 5: Package Contents
For more detailed information about recycling of this product, please visit our website at www.belkin.com (or contact your local city office, your household waste disposal service, or... -
Page 6: Power Console Features
Power Console Features 1. Switched Button - turns on and off the power to the Power Console’s “switched” sockets 2. Auxiliary Socket - offers optimal connection for digital components, ideal for temporary connection of equipment such as video/digital cameras, game consoles, or any device you wish to power 3. - Page 7 Power Console Features Remote AC/DC Trigger - allows for remote turn on/off of switched sockets on the Power Console (equipped with both AC and DC inputs) Cable TV, Antenna, and Satellite-Line Input/Output - protects coaxial-cable lines from dangerous electrical disturbances that can travel down your coaxial-cable lines Pay-Per-View/Phone-Line Input/Output - protects Pay-Per-View, phone, or DSL lines from dangerous power surges...
-
Page 8: Hookup And Installation
Hookup and Installation Step 1 Mounting your Power Console (Optional) The PureAV Power Console can be mounted to a standard AV equipment rack or inside a cabinet equipped with an equipment rack. A. Remove the mounting from the box. B. Make sure that the Power Console is unplugged. C. -
Page 9: Step 2 Remote Ac Operation
Hookup and Installation Step 2 Remote AC Operation This function allows you to turn your Power Console on and off via your preamplifier or receiver equipped with a switched European power socket. Note: You cannot turn off the switched sockets on the Power Console with the “Switched”... -
Page 10: Step 3 Remote Dc Operation
Hookup and Installation Step 3 Remote DC Operation This function allows you to turn your Power Console on and off via any component that is equipped with a 3~30V DC output (low-voltage trigger out). Note: You cannot turn off the switched sockets on the Power Console with the “Switched”... -
Page 11: Step 4 Connect Digital Components To The Digital Filter
Hookup and Installation Step 4 Connect Digital Components to the Digital Filter The PureAV Power Console PF40 has one digital filter. The isolated digital filter is optimised to clean and condition the power to all of your digital components. The digital filter also filters out noise created by digital components, such as DVD players, and isolates your digital components from connected video, audio, and high-current audio components. -
Page 12: Step 5 Connect Video Components To The Video Filter
Hookup and Installation Step 5 Connect Video Components to the Video Filter The PureAV Power Console contains an isolated video filter that is optimised to clean and condition the power to all of your video components. The video filter also isolates your video components from connected digital, audio, and high-current audio components. -
Page 13: Step 6 Connect Audio Components To The Audio Filter
Hookup and Installation Step 6 Connect Audio Components to the Audio Filter The PureAV Power Console contains an isolated audio filter that is optimised to clean and condition the power to all of your audio components. The audio filter also isolates your audio components from connected digital, video, and high-current audio components. -
Page 14: Step 7 Connect High-Current Audio Filter (8-Second Delay)
Hookup and Installation Step 7 Connect High-Current Audio Filter (8-Second Delay) The HiCurrent socket is specifically designed to filter out AC line noise ™ while delivering maximum current to power-hungry amplifiers and other high-current audio components. Note: The HiCurrent socket is equipped with an eight-second delay. This allows your high-current amplifiers to turn on last and turn off first, avoiding that annoying and potentially damaging “thump”... -
Page 15: Step 8 Connect Your Pay-Per-View/Phone Line
Hookup and Installation Step 8 Connect your Pay-Per-View/Phone Line Your PureAV Power Console comes equipped with Pay-Per-View/phone- line protection with a built-in splitter. These are standard BT RJ11 phone ports and are labeled “Phone”. A. Connect one end of your telephone cable to the wall port to which you normally connect your phone line. -
Page 16: Connect Your Cable Tv/Satellite Coaxial Lines
Hookup and Installation Step 9 Connect your Cable TV/Satellite Coaxial Lines Your PureAV Power Console comes with two pairs of F-type coaxial- cable connections, and one pair of aerial-cable connections to protect your system from dangerous electrical disturbances that can travel down your cable/satellite/aerial-signal lines. -
Page 17: Step 10 Connect Your Broadband Ethernet Line
Hookup and Installation Step 10 Connect your Broadband Ethernet Line Your PureAV Power Console comes equipped with broadband Ethernet-line protection. These are standard RJ45 Ethernet ports and they are labeled “Network”. A. Connect one end of an RJ45 network patch cable to a network port (either directly to a router or wired network wall port). -
Page 18: Operation
Operation Central LCD Control Panel The PureAV Power Console PF40 is equipped with an advanced LCD Control Panel. Most functions of the Power Console can be monitored from this display. A. PureFilter Indicator – shows that the multiphase PureFilter Circuitry is functioning properly. - Page 19 Operation Auxiliary Power Socket The Power Console is equipped with a front auxiliary power socket. This socket contains a digital noise filter and is a convenient place to connect digital video cameras, digital still cameras, MP3 players, game consoles, or any other portable device in need of AC power. Simply remove the small door covering the socket by sliding it to the right (Fig.
-
Page 20: Technical Specifications
Technical Specifications Specification PF40 Electrical Rating 240V~10A/2400W Product Weight (kg.) 6.8kg. Product Dimensions (mm) 435 x 329 x 153mm (LxWxH) Number of Sockets 10 Sockets Cable Length 3M - SD1000 Joule Rating 7700J Maximum Spike Current 264,000A Response Time <1 nanosecond Coaxial Protection 3-in;... -
Page 21: Troubleshooting
• The surge protection components may be expired. The Power Console is designed to stop delivering power to all sockets when the surge-protection circuitry is not functioning properly or is expired. Call Belkin Customer Service for assistance. • The Power Console may be defective. Call Belkin Customer Service for assistance. - Page 22 • If the “Earth Fault” indicator is still lit, you have an earth-wiring problem. Connecting the Power Console to an improperly earthed socket is not safe and will void all Belkin warranties. Unplug the Power Console and consult an electrician to properly earth the socket.
-
Page 23: Glossary Of Power Terms
Glossary of Power Terms Alternating Current (AC): The current that is commonly flowing through the electrical sockets in your home. It is an electrical current in the form of a sine wave that oscillates up and down continuously. Amp: An abbreviation for Ampere. This is a unit of electrical current. Direct Current (DC): An electrical current flowing in one direction only. -
Page 24: Belkin Connected Equipment Warranty
For model AP41000uk3M (PF50), up to a maximum of £300,000 The fair market value of the equipment shall be the current retail market value of the same or similar model or specification as agreed by Belkin at the time it accepts or approves any claim. - Page 25 PureAV Power Console. Nothing herein shall serve to exclude or limit the liability of Belkin for the death or personal injury of the consumer resulting from the negligence of Belkin or for fraudulent misrepresentation.
- Page 26 Belkin Connected Equipment Warranty To file a claim against the Belkin Connected Equipment Warranty, you must take the following steps: 1. You must have an original receipt with date of purchase. 2. Contact a Belkin Limited Customer Service Representative at 00 800 22355460 within 15 days of the Occurrence.
- Page 27 Notes...
- Page 28 +31 (0) 20 654 7300 +33 (0) 1 41 03 14 40 +31 (0) 20 654 7349 fax +33 (0) 1 41 31 01 72 fax © 2005 Belkin Corporation. All rights reserved. All trade names are registered trademarks of respective manufacturers listed. P74978uk...
