EKF AVERES AV POWER-1 Technical Manual

Motor mechanisms cd
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

TECHNICAL MANUAL
Motor mechanisms CD
EKF AVERES

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVERES AV POWER-1 and is the answer not in the manual?

Questions and answers

Summary of Contents for EKF AVERES AV POWER-1

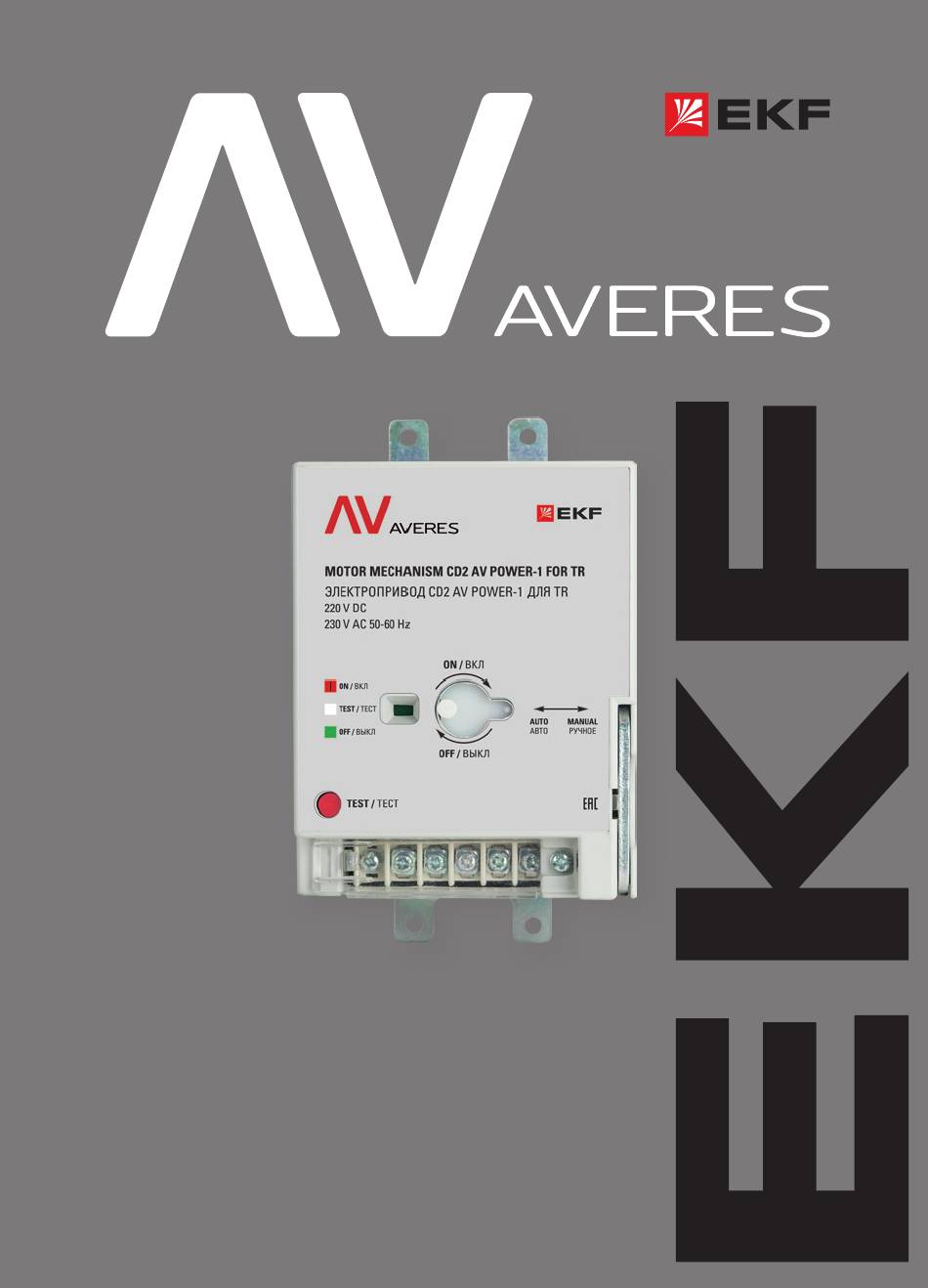

  • Page 1 TECHNICAL MANUAL Motor mechanisms CD EKF AVERES...

  • Page 2: Design And Operation

    1 DESCRIPTION The motor mechanism CD EKF AVERES is designed for manual and remote control of the molded case circuit breakers (MCCB) AV Power: to facilitate the MCCB close/open operations and to reclose it after auto tripping. The circuit breakers equipped with a motor mechanism feature high reliability and user-friendly control.

  • Page 3: Technical Data

    3 TECHNICAL DATA Table 1 Values Parameters AV POWER AV POWER AV POWER AV POWER Rated voltage Un, V 110-240 Rated frequency, Hz Max. operating current I, A Rated operating (0,85-1,1) Un voltage Ue, V Active power, W Time constant, ms Duty ratio, s 0,09 Reset, s...
  • Page 4 4 TECHNICAL DATA For motor mechanism vs MCCB compatibility, refer to Table 2. Table 2 Motor mechanism Molded case circuit breaker size Motor mechanism CD2 AV POWER-1 AV POWER-1/3 Motor mechanism CD2 AV POWER-2 AV POWER-2/3 Motor mechanism CD2 AV POWER-3 AV POWER-3/3 Motor mechanism CD2 AV POWER-4 AV POWER-4/3...

  • Page 5: Overall Dimensions

    5 OVERALL DIMENSIONS А Fig. 1 Table 4 Name A, mm B, mm H, mm Motor mechanism CD2 AV POWER-1 Motor mechanism CD2 AV POWER-2 Motor mechanism CD2 AV POWER-3 Motor mechanism CD2 AV POWER-4 6 DELIVERY SCOPE The motor mechanisms CD are supplied in an individual package. For all available documentation, scan the QR-code on the insert or on the inside of the package.

  • Page 6: Safety Requirements

    2. Remove the front panel from the circuit breaker by loosening the fastening screws covered with a narrow white plate indicating the circuit breaker type and rating. 3. Put the flag of the circuit breaker to the «OFF» position. 4. Charge the motor mechanism with the rotary handle to the distinguished click.
  • Page 7 Importer and EKF trademark service representative: EKF ELECTRICAL SOLUTION – FZCO, Dubai Silicon Oasis, DDP, Building A2, Dubai, United Arab Emirates. Importer and EKF trademark service representative on the territory of the Russian Federation: OOO «Electroresheniya», Otradnaya st., 2b bld. 9, 5th floor, 127273, Moscow, Russia.
