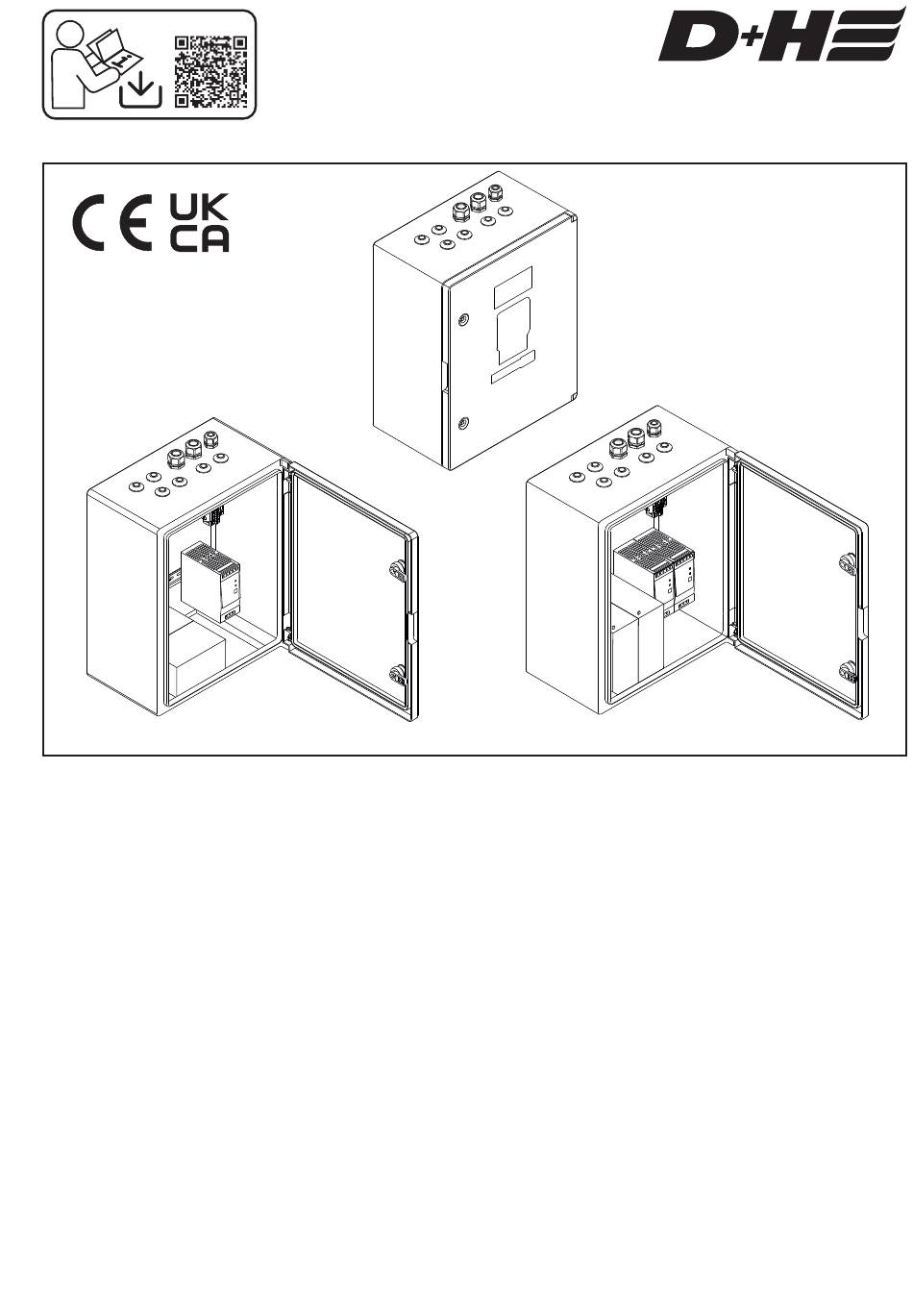

- Page 1 D+H Downloads CPS-P1 CPS-P1-020-0202(-B) CPS-P1-040-0202(-B) en Table of contents ......Page ..2 Original instructions .
-
Page 2: Table Of Contents
Pictogram explanations ..........................9 Signalling relais.............................9 Terminal assignment...........................10 DIP switch settings .............................12 Cables for D+H smoke and heat vent systems ..................14 Wiring diagram (sample)..........................14 24 V - Emergency supply..........................15 230 V - Power supply..........................16 Power supply unit connection to control board ...................16 Battery connection to control board ......................16... -
Page 3: Introduction
For all D+H SHEV systems, which have been service. The highest national and international installed by a D+H service and sales partner and are quality standards are therefore reliably fulfilled. regularly serviced, you will receive extended warranty services. -
Page 4: Intended Use
- 2 lines, 2 Groups - Only for inside mounting - 20 A or 40 A - Just use unchanged original D+H parts - Group current max. 20 A - Comfort functions for daily ventilation Scope of supply... -
Page 5: Technical Data
Smoke gases are to be carried off as unhindered High-speed function (HS): as possible through smoke and heat vent opening All D+H drives with SHEV high-speed function are in case of fire. Size, kind and arrangement of the supported. In daily ventilation operation, a consi-... -
Page 6: Mounting (Plastic Housing)
Ø max. 5 mm housing to the wall. (not included) This type of installation is only valid for the 20 A design! Ø max. 6 mm (not included) 6/32 CPS-P1 English 99.829.38 1.0/10/24... -
Page 7: Overview (Plastic Housing)
Overview (Plastic housing) Cable gland Cable gland Fig.: CPS-P1 40 A PG 21 PG 16 Groups 230 V AC Top hat rail Cable entry gland Cable support rail Control board 480 W / 480 W / 24 V / 24 V /... -
Page 8: Overview (Sheet Steel Housing)
Overview (Sheet steel housing) Fig.: CPS-P1 40 A Cable gland Cable gland PG 16 PG 21 230 V AC Cable entry gland Groups Top hat rail Cable support rail Control board 480 W / 480 W / 12 V / 18 Ah... -
Page 9: View Motherboard
Pictogram explanation Signalling relais SHEV alarm max. 30 V / 0,5 A Fault Control panel O.K. D+H window drive Mains existing Ā E / System Ā = Alarm negated 9/32 99.829.38 1.0/10/24 English... -
Page 10: Terminal Assignment
X6.2 Output not supplied with emergency power* (max. 800 mA) X6.3 Reference potential GND X6.4 Output supplied with emergency power* (max. 800 mA) X6.5 Isolated output alarm - normally open contact * See technical data 10/32 CPS-P1 English 99.829.38 1.0/10/24... - Page 11 Drive line monitoring wire X10.2 Output drives Mot.a X10.3 Output drives Mot.b SNT X12 X12.1 Reference potential GND X12.2 Reference potential GND X12.3 Power supply SNT +24 V DC X12.4 Power supply SNT +24 V DC 11/32 99.829.38 1.0/10/24 English CPS-P1...
-
Page 12: Dip Switch Settings
Main control panel: Number of subs / Sub control panel: Address of the sub Binary 8 S3.5 Communication function This control panel is the Main control panel OFF This control panel is a Sub control panel * Information on setting the DIP switches on page 20 12/32 CPS-P1 English 99.829.38 1.0/10/24... - Page 13 All groups 1 of the networked control panels are controlled. S6.7 LT 2 Bus operation All groups 2 of the networked control panels are controlled. S6.8 LT - Central Both ventilation buttons operate both groups 13/32 99.829.38 1.0/10/24 English CPS-P1...
-
Page 14: Cables For D+H Smoke And Heat Vent Systems
Cables for D+H smoke an heat vent systems When selecting and installing the cables, the Group cable (control panel - drive) regional electrical installation regulations At least three wire design: concerning wiring systems and the necessary - 2 wires for the supply of the drive... -
Page 15: 24 V - Emergency Supply
24 V - Emergency supply Emergency power supply for 72 hours. Use VdS approved storage batteries only! CPS-P1-040-0202(-B): CPS-P1-020-0202(-B): 2x 12 V / 18 Ah ±0,3Ah 2x 12 V / 12 Ah ±0,3Ah (Battery type 5) (Battery type 4) 15/32 99.829.38 1.0/10/24... -
Page 16: 230 V - Power Supply
Cable cross-section: 2.5 mm² Cable cross-section: 4 mm² Battery Battery Power supply unit blue 40 A Design 40 A Design Cable cross-section: 2.5 mm² Cable cross-section: 4 mm² Battery Battery Power supply unit Power supply unit blue blue 16/32 CPS-P1 English 99.829.38 1.0/10/24... -
Page 17: Connection Overview
SD-O 371 RT 46 Mot.a Mot.b 10kW Mot.a Mot.b – – – LT(X7/X9) MOT(X8/X10) RT(X1/X3) RM(X1/X3) CPS-P1 Max. Wire cross-section at the terminals X8/X10: 6 mm² Max. Wire cross-section at the terminals X1/X3/X7/X9: 1.5 mm² 17/32 99.829.38 1.0/10/24 English CPS-P1... -
Page 18: Connection Of Smoke Vent Buttons
RT 46 RT 46 10kW – – * Shunt connection by customer in the RM(X1/X3) RT(X1/X3) control panel CPS-P1 Parallel connection of 2x 2 buttons RT 46 RT 46 10kW – – RM(X1/X3) * Shunt connection by customer in the... -
Page 19: Connection Of Fire Detector
Connection of fire detector Connection of fire alarm system Max. 14 fire detectors connectable. Connection via line socket. Only D+H approved detectors must be used. Triggering via switching contact. 1kΩ < optional > 10kΩ* SD-O 371 FD-T 271 – –... -
Page 20: Connection Of Magnetic Clamps
Ā E / System Ā = Alarm negated Connection of alarm interlock Country specific function. B– B+ RS – B– B+ RS – LE (X2/X4) LE (X2/X4) CPS-P1 CPS-P1 1. Control panel 2. Control panel 20/32 CPS-P1 English 99.829.38 1.0/10/24... -
Page 21: Networked Operation
Networked operation (only with CPS-P1-0X0-0202) - Networking of up to 16 control centres in a line topology - There is always 1 main centre in a network. All other control centres are configured as sub-centres. - Each sub-centre receives a unique address via a coding switch. -
Page 22: Setting The Addresses
Bus termination: 110 W Bus termination: 110 W Main/Sub (X5) Main/Sub (X5) Main/Sub (X5) CPS-P1 CPS-P1 CPS-P1 1. Control panel 2. Control panel Last control panel Bus bias (only on one control panel, for example on the Main control panel):... -
Page 23: Operation In Network
- Bus operation is deactivated for lines 1 and 2 via coding switches S1.5 and S2.5. - Bus operation is deactivated for ventilation buttons 1 and 2 via coding switches S6.6 and S6.7. 23/32 99.829.38 1.0/10/24 English CPS-P1... -
Page 24: Information For Starting
Mains still not available or line switch on "0" Connect battery or one of fuses faulty. lines. Control l ightens? Performance check alarm/reset and ventilation Smoke vent Possibly change poles in drive. flap opens and closes? 24/32 CPS-P1 English 99.829.38 1.0/10/24... -
Page 25: Inspection
Electrical devices, accessories, batteries and packa- according to D+H maintenance notes. Only original ging should be sorted for environmental-friendly D+H spare parts may be used. Repair is to be recycling. Do not dispose electrical devices and carried out exclusively by D+H. -
Page 26: Operation - Release In Case Of Alarm
Operation - Release in case of alarm Manual opening by smoke vent button: SMOKE VENT Ā E / System CPS-P1 Automatic opening by fire detector: Ā E / System CPS-P1 Automatic opening by external control (e.g. fire alarm system): External control Ā... -
Page 27: Operation - Closing After Alarm
With manual release: In case of automatic release by fire detector or external control: Reset External control see DIP switch S1.3 page 10 Emergency closing in case of non-resettable alarm: OFF: (> 1 Sek.) Service 27/32 99.829.38 1.0/10/24 English CPS-P1... -
Page 28: Operation - Day-To-Day Ventilation
The system will not automatically open again, Automatic if wind or rain has stopped. on/off Opening of the system for ventilation via vent button. LT 84-U-W 28/32 CPS-P1 99.829.38 1.0/10/24... -
Page 29: Type Plate
2- Product name 3- Type designation 4- Technical data 5- Material number 6- Lot no. 7- Date of manufacture 8- Serial number 9- Standards and certificate numbers 10- Net-ID Type plate position: GEH-CPS-P1 GEH-CPS-P1 (Plastic) (Sheet steel) 29/32 99.829.38 1.0/10/24 CPS-P1... - Page 32 D+H Mechatronic AG Georg-Sasse-Str. 28-32 22949 Ammersbek, Germany Tel.: +4940-605 65 239 Fax: +4940-605 65 254 E-Mail: info@dh-partner.com www.dh-partner.com © 2024 D+H Mechatronic AG, Ammersbek Rights to technical modifications reserved 100 % recycled paper 99.829.38 1.0/10/24...
