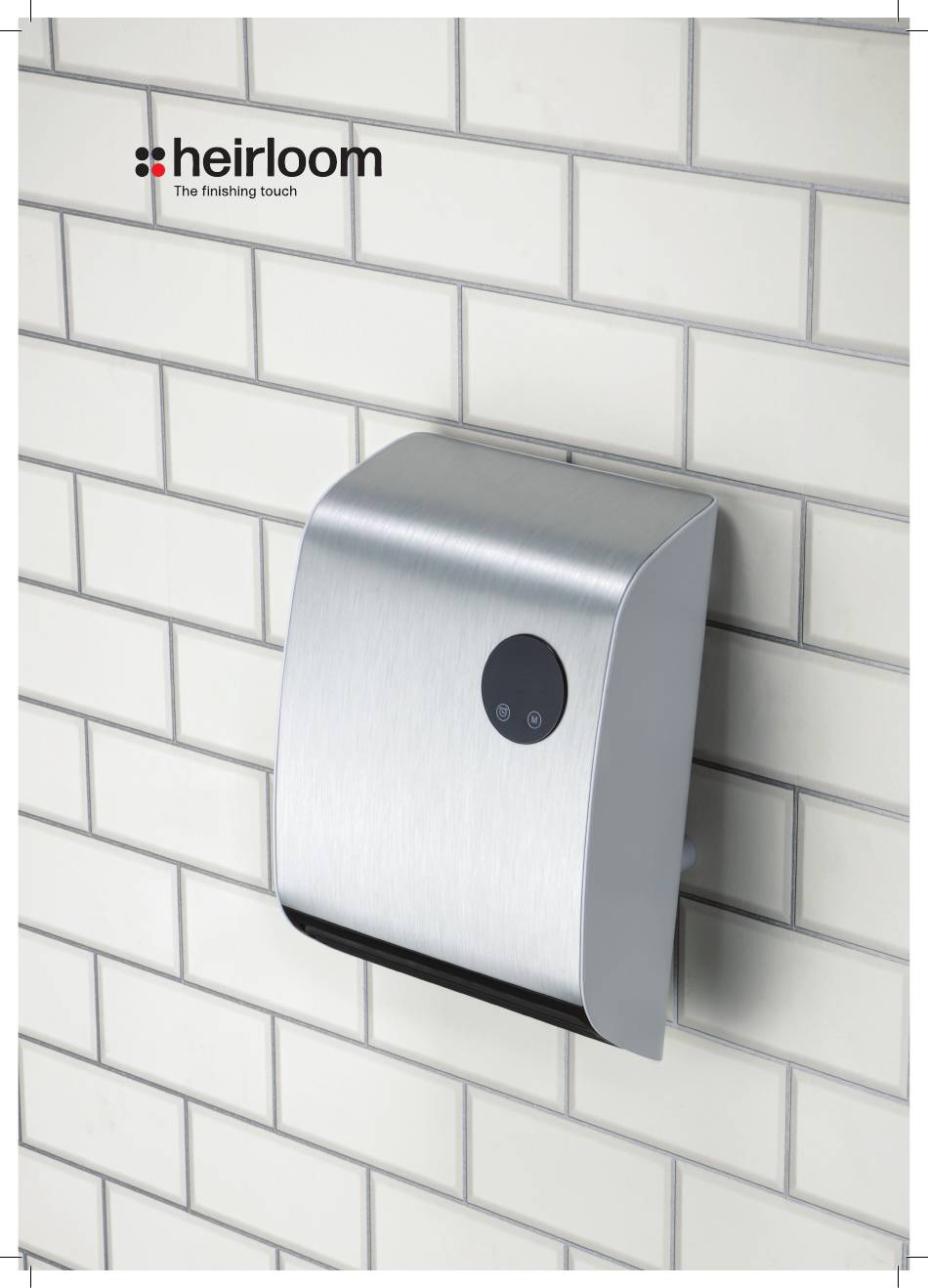

- Page 1 CERAMIC WALL HEATER MODEL HBH100 INSTRUCTION MANUAL AND SAFETY GUIDE PLEASE READ THESE SAFETY INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE. STORE IN A SAFE PLACE FOR FUTURE USERS REFERENCE...
-
Page 2: Installation
GENERAL CARE AND SAFETY GUIDE • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given instruction or supervision concerning use of the appliance by a person responsible for their safety. - Page 3 INSTALLATION POSITIONING GUIDE Wall mount fixings 210mm minimum 300mm minimum 700mm minimum wall mounted object 1850mm minimum Fig 1 Mounting ON-OFF Press the ON-OFF switch to switch the appliance ON (I) or OFF (O) Power (on remote) Stand-by mode Mode selection, turn on heater Heating on half power Heating on full power Weekly programming...
-
Page 4: Control Panel Operation
Regular function operation Temperature setting and ErP function confirm Weekly time and window open detection operation TIME TIME EDIT CONTROL PANEL OPERATION Plug in and switch on by pressing the main switch (on the back of the heater) it will go in to standby mode and display will show show “S”: Figure A below. MODE SELECTION Press F once to enter into fan mode, display shows as Figure B Press F again, for low heating mode, display shows as Figure C... -
Page 5: Setting Run Time
SETTING RUN TIME Press button to set run time (00-12hours). Each press of the button increases timer operation by one hour up to a maximum of 12 hours. If no time is set, the heater will run for 12 hours After setting the run time, the display will show current setting time for 5 seconds, then returns to previous display, meanwhile the light is on. -
Page 6: Remote Control Functions
REMOTE CONTROL FUNCTIONS Note: Aim remote control at the wall heater for remote control programming and use. 1: Press to switch on the heater with the fan blowing, display as Figure A. MODE SELECTION 2: Press button once, the heater runs on low heat, display as Figure B. 3: Press again for high heat, display as Figure C. -
Page 7: Set The Temperature
6. SET THE TEMPERATURE , the display shows ” “ as default. Press During operation, Press to set desired temperature (temperature range 10-49), press to confirm the setting. For example: The current room temperature is 15°C, when temperature is set to 25°C the display shows as below. - Page 8 6. SETTING WEEKLY PROGRAMME ( ONLY by remote control ) The heater can be programmed up to 7 days with 6 running periods per day with different set temperatures. 6-1: Press , the heater switches is on. 6-2: After setting current Time/Day, then follow the instruction to set weekly programme. 6-3: Press , the display shows ”P”, it enters into a weekly programme setting.
- Page 9 SETTING WEEKLY PROGRAMME ( Continued ) Please Note: After these settings are completed, and P program is working, press to check the setting EDIT time of each day and time periods; • The turn-on time periods 0~24hours, cannot set to minutes; •...
- Page 10 7. SET OPEN WINDOW DETECTION ( ONLY by remote control ) This funtion detects a sudden drop in room temperature sensed by the heater. 1: Press , the heater enters into working status, heating for a moment to stablise. 2: Press °C light is on;...
-
Page 11: Maintenance And Cleaning
MAINTENANCE AND CLEANING WARNING Never use detergent, chemicals can damage plastic parts. WARNING Let the appliance cool down completely and switch off before handling or cleaning, to prevent risk of fire or electrocution inside the appliance. Clean the outside of the appliance by rubbing it gently with soft, damp cloth either with or without soap. - Page 12 Heirloom International Limited P O Box 204 235, Auckland 2161, New Zealand Ph +64 9 274 4443 info@heirloom.co.nz www.heirloom.co.nz 01/1224...
