A SAFER WAY TO REACH NEW HEIGHT

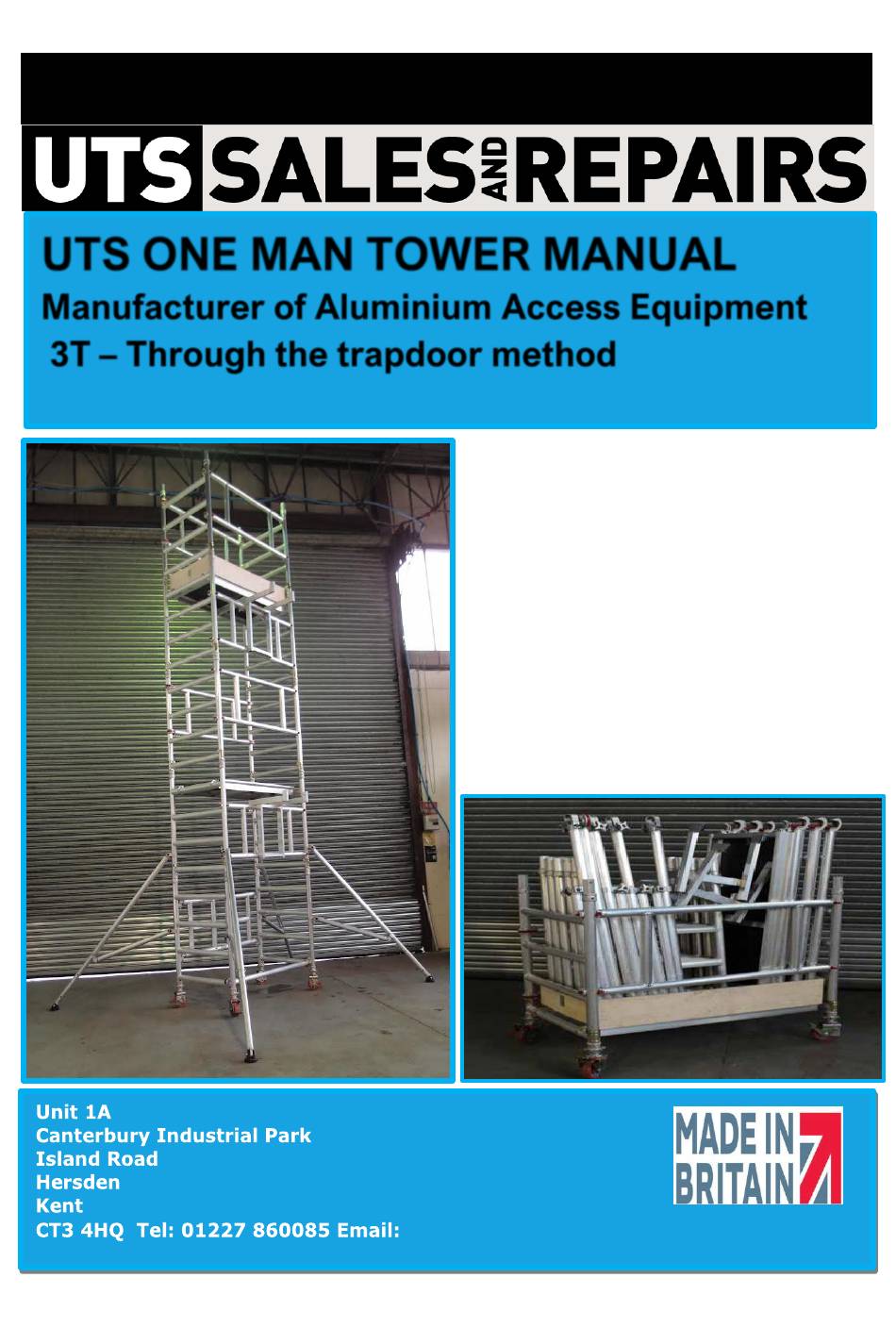

UTS ONE MAN TOWER MANUAL
Manufacturer of Aluminium Access Equipment
3T – Through the trapdoor method
www.towersandpodiums.co.uk
Safety Information
The UTS One Man Tower is both quick and
easy to assemble and can be erected and
dismantled by a single person
IMPORTANT:
Never use the One Man Tower until you have
read the instructions fully and understood the
following guide.
Always carry out a risk assessment for each
task before you start work, to ensure the
ONE MAN TOWER is the correct mode of
access for the task that is being undertaken
info@towersandpodiums.co.uk
Page 1 of 8
Advertisement
Related Manuals for UTS ONE MAN TOWER
Summary of Contents for UTS ONE MAN TOWER
- Page 1 Manufacturer of Aluminium Access Equipment 3T – Through the trapdoor method www.towersandpodiums.co.uk Safety Information The UTS One Man Tower is both quick and easy to assemble and can be erected and dismantled by a single person IMPORTANT: Never use the One Man Tower until you have read the instructions fully and understood the following guide.
-
Page 2: Safety Guide
SAFETY GUIDE 1.Check instructions before use. Mobile access working towers may only be assembled and dismantled by persons familiar with these instructions before use. 2.Do not use any scaffold tower which has not been properly assembled and which has any missing or damaged parts. -
Page 3: Component List
COMPONENT LIST Component Description: Total Platform Height 2.1M 3.1M 4.1M Adjustable Legs Castor 1M Frames 1.3M Trap Platform 1.3M Horizontal Brace Folding Toeboard Set Assembly Bracket Brace Frames SP4 Telescopic Stabiliser Weight 89kgs 117kgs 130kgs MAX SAFE WORKING LOAD FOR STRUCTURE: 550kg MAX SAFE WORKING LOAD FOR PLATFORM: 275kg QUALITY SCHEDULE Platform Loading:... - Page 4 ASSEMBLY 1)Insert the adjustable legs and castors in to the 1M base frames 2)Place a brace frame between the two frames ensuring hooks are locked in place 3)Position the horizontal brace on the lowest rung with the hooks facing downwards and the lock in place. 4)Position castors at a 45-degree angle and apply brake, check the base unit is square and level using a spirit level...
- Page 5 7)Standing inside the tower, position the platform on the top rung of the second 1M frame and secure windlocks 8)Attach the 1 assembly bracket to the top bar of the brace frame, place three of the unused brace frames on the bracket.
- Page 6 11) Attach the 2 assembly bracket to the rung above the platform hooks, this will hold the 2 sets of connected 1M frames that were made previously. 12)From inside the tower you can now climb up to and through the trapdoor of the platform until you can sit on the platform with your feet on the rungs below (3T method)
- Page 7 18)You will need to return to the bottom of the tower and place the remaining 2 brace frames, folding toeboard and second platform onto the lower assembly bracket 19)Climb up to and through the first platform closing the trapdoor behind you.
- Page 8 Page 8 of 8...
