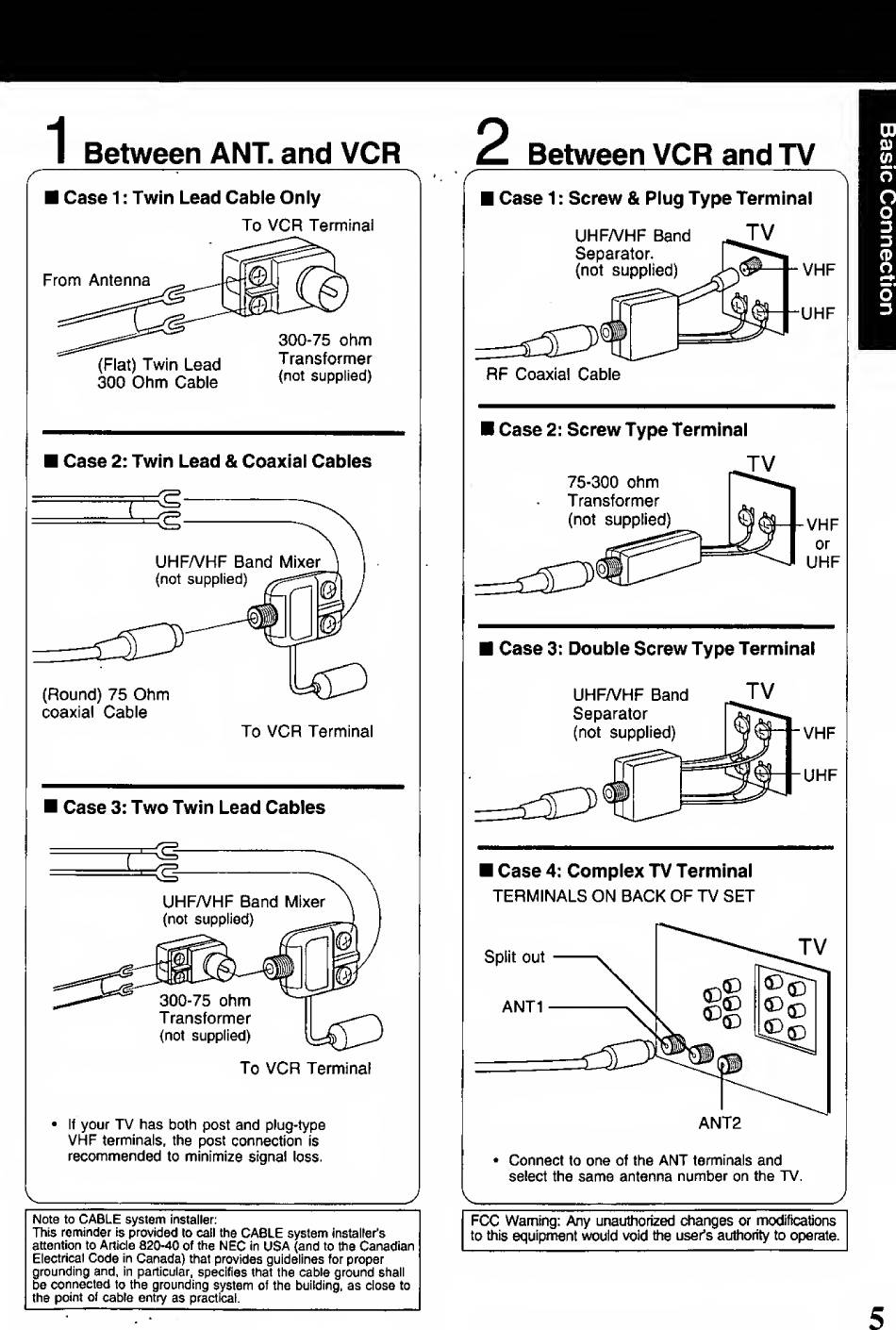

Quasar OmniVision VHQ-400 Operating Instructions Manual page 5

1
Between ANT. and
VCR
r
:
n
Case
1
:
Twin Lead Cable Only
To
VCR
Terminal
From Antenna
(Flat)
Twin Lead
300
Ohm
Cable
300-75
ohm
Transformer
(not supplied)
Case
2:
Twin Lead
&
Coaxial Cables
UHF/VHF
Band
Mixer
(not
supplied)
(Round)
75
Ohm
coaxial
Cable
To
VCR
Terminal
Case
3:
Two
Twin Lead Cables
UHF/VHF
Band
Mixer
(not
supplied)
300-75
ohm
Transformer
(not supplied)
To
VCR
Terminal
If
your
TV
has
both post
and
plug-type
VHF
terminals, the post connection
is
recommended
to
minimize
signal
loss.
Note
to
CABLE
system
installer:
This reminder
is
provided
to
call
the
CABLE
system
installer's
attention
to Article
820-40
of the
NEC
in
USA
{and
to
the
Canadian
Electrical
Code
in
Canada)
that
provides guidelines
for
proper
grounding and,
in
particular, specifies that the
cable ground
shall
be connected
to
the grounding
system
of
the
building,
as close
to
the
point of cable entry as
practical.
2
Between
VCR
and
TV
Case
1
:
Screw
&
Plug
Type
Terminal
UHF/VHF
Band
Separator,
(not supplied)
RF
Coaxial Cable
VHF
UHF
Case
2:
Screw Type
Terminal
75-300
ohm
Transformer
(not supplied)
Case
3:
Double Screw Type
Terminal
UHF/VHF
Band
Separator
(not
supplied)
VHF
UHF
I
Case
4:
Complex TV
Terminal
TERMINALS
ON
BACK OF TV
SET
Split
out
ANT2
•
Connect
to
one
of
the
ANT
terminals
and
select the
same
antenna
number
on the TV.
FCC
Warning:
Any
unauthorized
changes
or modifications
to this
equipment would
void the user's authority to operate.
